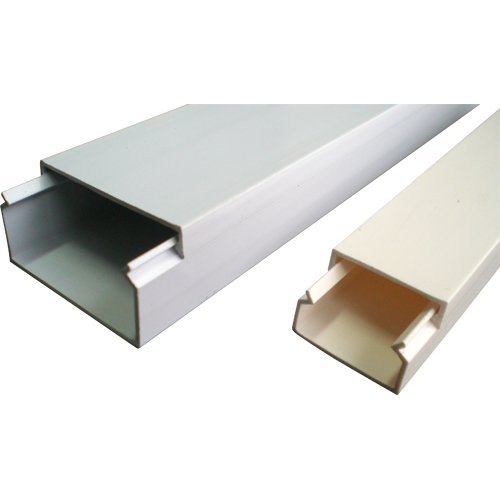

Plastic trunking electrical accessories

Material: Environmental protection and rigid PVC with good insulation performance and non-combustion. It is environmental protection and pollution-free which is approval by ROHS certificate, and without harmful substances like lead.
Fire-resistance class: UL94V-0 approval, flame-retardant material withgood self-extinguishing and insulation.
Product structure: consist of wiring duct and its cover.
Color&Size: grey, white, blue(Other colors can be customized);
Working temperature: temperature-resistance -20 to +85 ℃

Plastic trunking electrical accessories

Features:
1. more than 100 models and sizes, and each equipped with cover.
2. the buckle of the duct and cover is reverse-buckle type, never slided off, with smooth surface, conveniently and qucikly to install, and effectively to prevent slide caused by vibrations.
3. smooth slot, glitch-free, and will not cut hands and abrase the wires.
4. low thread hole, easy combination, knocking down and wiring.
5. the wiring duct will not break, distort, change colors under the temperature of +85



Item Specification Thickness(MM) Lengths(m) Packing Quantity(pcs)
PVC Trunking 10×10 0.60 2m-4m 50
PVC Trunking 15×10 0.55 2m-4m 50
PVC Trunking 16×16 0.58 / 0.63 / 1.00 2m-4m 50
PVC Trunking 20×10 0.55 / 0.65 2m-4m 50
PVC Trunking 24×14 0.65 / 0.80 2m-4m 25
PVC Trunking 25×16 0.63 / 0.72 / 1.00 2m-4m 25
PVC Trunking 25×25 0.80 2m-4m 16
PVC Trunking 30×15 0.60 / 0.76 2m-4m 16
PVC Trunking 39×19 0.75 / 0.90 2m-4m 10
PVC Trunking 40×16 0.60 / 0.80 2m-4m 10
PVC Trunking 40×25 0.68 / 0.76 / 1.00 2m-4m 10
PVC Trunking 40×40 1.38 2m-4m 6
PVC Trunking 50×25 1.00 2m-4m 6
PVC Trunking 50×50 1.25 2m-4m 4
PVC Trunking 59×22 0.85 / 1.10 2m-4m 4
PVC Trunking 60×40 1.40 2m-4m 2
PVC Trunking 60×60 1.68 2m-4m 2
PVC Trunking 75×50 1.25 2m-4m 2
PVC Trunking 75×75 1.30 / 1.50 2m-4m 2
PVC Trunking 80×40 1.35 2m-4m 3
PVC Trunking 80×50 1.40 2m-4m 2
PVC Trunking 99×27 0.90 / 1.20 2m-4m 2
PVC Trunking 100×40 1.35 / 1.50 2m-4m 2
PVC Trunking 100×50 1.35 / 1.70 2m-4m 2
PVC Trunking 100×60 1.65 2m-4m 2
PVC Trunking 100×75 1.65 2m-4m 2
PVC Trunking 100×100 1.60 / 2.00 2m-4m 1
