DIAL TORQUE DRIVER

MANUAL

1、Capability

ANQ Dial Torque Driver is our new product, it is use for cars, autobike, machine, electronic and so on. It is use for the torque of parts, easy to handle, easy to use, can keep long time. It is a necessary tool to test the torque of maintain and check equipment set.

2、Characteristic

  • Dial shows:

Shows torque value, easy to read, high accurate.

  • Have a driven needle:

When you round it to a certain measure value, the driven needle will stop and you can read the accurate value.

  • Two direction:

Our products can use by clockwise and counter-

clockwise.

  • Design logical

Handle, long time to use.

  • Easy to use:

Direct zero, anyone can use.

  • It has a cross and right screw Driver head, customer can change it when you test.
  • It has a lengthen pole, when customer need to use big capacity, it will help them to use better.

3、Products dimension

Long: 270(mm)

Wide: 98(mm)

High: 100(mm)

4、Model

Model Capacity（N·m） Accurate（%） Long（mm）
ANQ-0.6 0.1-0.6

5%



270
ANQ-1.2 0.2-1.2
ANQ-3 0.25-3
ANQ-6 0.5-6
ANQ-9 0.75-9
ANQ-12 1-12



5、Operate method

  • Zero before operate it, so you can get accurate value. Do like follow:

⑴Loose the screw, round the dial, the needle direct zero, then knob the screw.

⑵When direct the zero, if you need clockwise test, please turn the handle from clockwise direction, then loose it. If the needle not direct with the zero, please use the first method again. After direct with the zero, then you can turn from clockwise.

⑶When direct the zero, if you need counter- clockwise test, please turn the handle from counter-

clockwise direction, then loose it. If the needle not direct with the zero, please use the first method again. After direct with the zero, then you can turn from counterclockwise.

  • When using, please let the products uprightness, or it will get low accurate,And it will short the products life.
  • After using, make it zero.

6、Attention

①This products can’t use as tool.

②This products have been calibrate, not need to open the back cover, or loose the screw, it will make error.

③Don’t put the products with ache, alkali and other causticity things together.

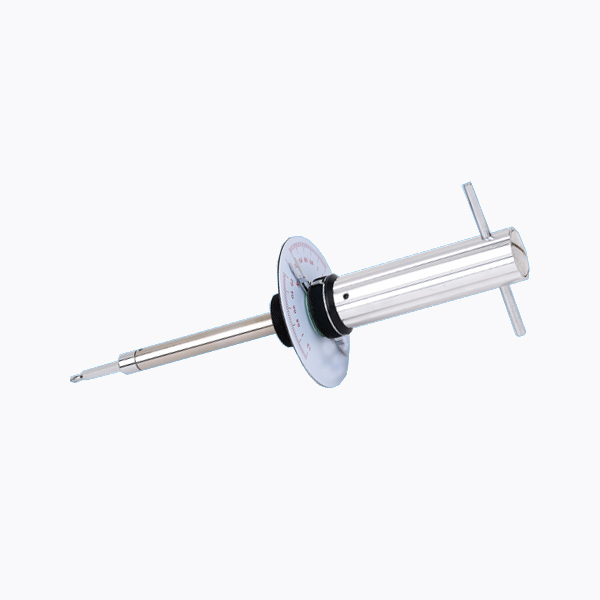

7、Product schematic drawing

















ANQ
