Meba RDP30 4P 10A Circuit Breaker For Generator is used in lighting distribution system or motor distribution system for protection overload and short-circuit in the system. The product is neoteric in structure, light in weight, reliable and excellent in performance. It has high breaking capacity, can trip quickly, and its case and items are adopted by high fire-resistant and shockproof plastics. The product, with long life, is mainly used in AC 50Hz/60Hz single-pole 230V or two, three, four pole 400V circuit for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit in normal case. The products comply with IEC 60898.

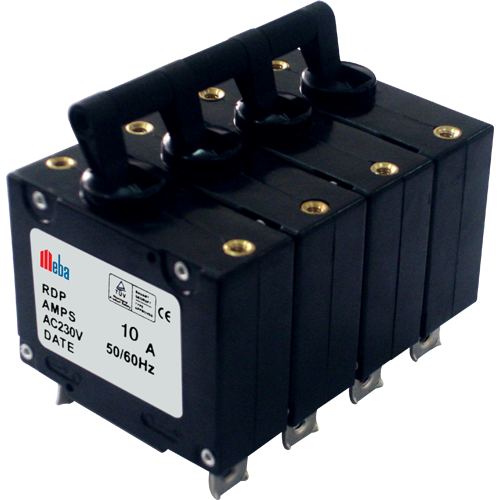

Meba RDP30 4P 10A Circuit Breaker For Generator

Technical parameters

Type: RDP30
Rated Voltage: 65VDC, 230/400V
Rated Current(A): 1, 2, 3, 6, 10, 15, 20, 25, 30
Breaking Capacity: 65VDC 2000A; 230/400VAC 1000A; O-CO-O
Life: Mechanical Life: 10000 times; Electric Life: 6000 times
Ambient Temperature: -40+85
Insulated resistance: 100M(500VDC)
Operation resistance: 2000V 1min
Overload release capacity: Follow
Auxiliary contact point: 230V(AC) 1A
Connection ways: Inset, Screw or Seal
Resist vibration: 1055Hz 1028Hz 1.5mm 2555Hz 5g
Pole: 1P,2P,3P
Weight : 1P 66g, 2P 132g, 3P 198g

Dimension

RDP30 Over-Current Protection Property

Current Character 232 release time(s)
Model Model In 1.25In 1.5In 2In 6In 10In
AC 62M Non-release 10-120 3-60 1.2-20 0.02-3 0.01-0.25
DC 52M Non-release 2-100 1-30 0.5-10 0.02-1 0.04-0.3
