Author: meba_admin

Categories
Surge Protective Device

Meba lightning arrester types MBS100

Meba lightning arrester types MBS100

Meba lightning arrester types MBS100

Specification

Meba lightning arrester types MBS100 series surge protective device (hereinafter called SPD) is suit-able for the IT, TT, TN-C, TN-S, TN-C-S and etc power supply system of AC 50/60Hz, rated voltage 380V and below, to protect from lightning impulse and other transient over voltage, it is applicable in class I lightning proof system where there has higher danger of lightning strikes As per the conditions of IEC61643-1:1998-02 standard, Class I surge protective device, it is category B surge protective device.

Operation Elements
□ Fast response time: less than 25ns
□ Low limited voltage
□ Large current carrying capacity
□ Normal state: white color, invalid state: red color
□ Kelvin wiring mode available.
Installation
□ Category B surge protective device (SPD), used in the connection between equal potential electrodes while thunder occur.
□ Generally to be installed in low voltage main incoming distribution panel, overhead incoming.
□ To adopt 35mm standard mounting rail for SPD mounting.
□ When to place an order, please indicate the model, specification and quantity of SPD.
□ It shall adopt 10~35mm2 copper conductor to be connected with SPD, earthing wire shall be dual color multi-strand soft copper conductor more than 16mm2.
The Contact
SPD can provide the NO contact for remote communication, if one or more modules of SPD is invalid, the NO and NC contact will be closed and send fault information.

Parameter

Model and specification MBS-100 MBS-120 MBS-150
Maxi continuous operating voltageUc(VAC) 420 385 275 420 385 320 275 420 385 320 275
voltage protective level Up(KV) ≤ 2.5 2.3 1.8 2.5 2.3 2 1.8 3.5 3.2 2.5 2
Max discharging current(8/20us)Imax(KA) 100 120 150
Nominal discharging current (8/20us)In(KA) 50 60 80
Response time(ns) <25
Indication of invalidation Aging invalidation:White:Normal,Red: Invalidation
Protection grade IP20
Application Protection for in line
Remote signal function If need, can supply
Remarks Other maxi continuous operating voltage Uc175, 440,690V can be customized
Categories
Surge Protective Device

Meba house surge protection MBS5

Meba house surge protection MBS5

Meba house surge protection MBS5

Specification

Meba house surge protection MBS5

□ MBS5 series surge protective device (hereinafter called SPD) is suit-
able for the IT, TT, TN-C, TN-S, TN-C-S and etc power supply system
of AC 50/60Hz, rated voltage 380V and below, to protect from lightning
impulse and other transient over voltage, it is applicable in class I
lightning proof system where there has higher danger of lightning
strikes As per the conditions of IEC61643-1:1998-02 standard, Class
I surge protective device, it is category B surge protective device.
Operation Elements
□ Fast response time: less than 25ns
□ Low limited voltage
□ Large current carrying capacity
□ Normal state: white color, invalid state: red color
□ Kelvin wiring mode available.
Installation
□ Category B surge protective device (SPD), used in the connection between equal potential electrodes while thunder occur.
□ Generally to be installed in low voltage main incoming distribution panel, overhead incoming.
□ To adopt 35mm standard mounting rail for SPD mounting.
□ When to place an order, please indicate the model, specification and quantity of SPD.
□ It shall adopt 10~35mm2 copper conductor to be connected with SPD, earthing wire shall be dual color multi-strand soft copper conductor more than 16mm2.
The Contact
SPD can provide the NO contact for remote communication, if one or more modules of SPD is invalid, the NO and NC contact will be closed and send fault information.

Parameter

 Meba house surge protection MBS5

Technical Parameter:
Model and specification MBS5-100 MBS5-120 MBS5-150
Maxi continuous operating voltageUc(VAC) 420 385 275 420 385 320 275 420 385 320 275
voltage protective level Up(KV) ≤ 2.5 2.3 1.8 2.5 2.3 2 1.8 3.5 3.2 2.5 2
Max discharging current(8/20us)Imax(KA) 100 120 150
Nominal discharging current (8/20us)In(KA) 50 60 80
Response time(ns) <25
Indication of invalidation Aging invalidation:White:Normal,Red: Invalidation
Protection grade IP20
Application Protection for in line
Remote signal function If need, can supply
Remarks Other maxi continuous operating voltage Uc175, 440,690V can be customized
Categories
Surge Protective Device

Meba home surge protection MBS1-60

Meba home surge protection MBS1-60

Meba home surge protection MBS1-60

Specification

Meba home surge protection MBS1-60

MBS1-60 series surge protective device (hereinafter called SPD) is suitably used in the IT, TT, TN-C, TN-S, TN-C-S and etc power supply system of AC 50/60Hz, rated voltage up to 380V, to protect from direct and indirect lightning impulse and other transient over voltage. As per the conditions of IEC61643-1:1998-02 standard, Class I surge protective device, it is category B surge protective device.SPD has two protection modes: MC and MD, SPD is in compliance with GB18802.1/IEC61643-1 standards。 Operation Elements

□ SPD as only one side of terminals, able to prevent from being electric touching, indoor fixedly mounted, limiting voltage.

□ SPD has built-in disconnector, when SPD is invalid due to overheating or breakdown, the disconnector can automatically separate SPD from the network, meanwhile send an indication signal. The visible window show white color in normal service, if to be separated from network, it will show red color. □ Maxi discharging current of each wire: up to 100KA. Installation

□ To be mounted between LPZ0A or LPZ0B zone and LPZ1 zone, adopts 35mm standard mounting rail. The cross sectional area of multi-strand soft copper conductor: 6 ~ 35 mm2. □ Generally it shall be mounted in the incoming side of main distribution panel or box.

□ Earthing wire shall be of 10mm2 dual color conductor, its length not more than 500mm. □ In order to eliminate the influence on normal service of power network due SPD is invalid, it shall add fuse or breaker to be series connected in L line. (NB:selected according to standard current In) voltage main incoming distribution panel, earthing wire shall be dual color multi-strand soft copper conductor more than 16 mm2.

Parameter

Technical Parameter:

Model and specification MBS1-B60 MBS-150 MBS-80
Maxi continuous operating voltageUc(VAC) 750 420 385 275 420 385 320 275 420 385 320 275
voltage protective level Up(KV) ≤ 3.5 2.2 2 1.6 2.5 2.3 2 1.8 3 3 2.5 2
Max discharging current(8/20us)Imax(KA) 60 80 100
Nominal discharging current (8/20us)In(KA) 30 40 60
Response time(ns) <25
Indication of invalidation Aging invalidation:White:Normal,Red: Invalidation
Protection grade IP20
Application Protection for in line
Remote signal function If need, can supply
Remarks Other maxi continuous operating voltage can be customized
Categories
Industrial Plug and Socket

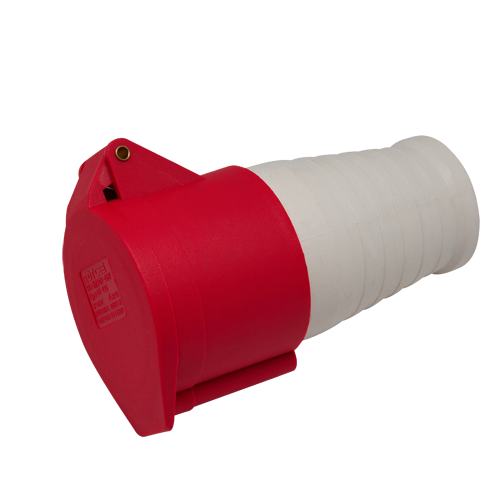

Meba plugs and connectors MB225

Meba plugs and connectors MB225

Meba plugs and connectors MB225

Specification

Meba plugs and connectors MB225Industrial plugs & socket

Power socket 225
Power socket 225
Categories
Industrial Plug and Socket

Meba plug MB56P540

Meba plug MB56P540

Meba plug MB56P540

Specification

Meba plug MB56P540

Parameter

Technical Parameter:

Categories
Industrial Plug and Socket

Meba plugs MB025

Meba plugs MB025

Meba plugs MB025

Specification

Meba plugs MB025

Power socket
power socket



plugs & socket
plugs & socket

Parameter

Technical Parameter:

Categories
Industrial Plug and Socket

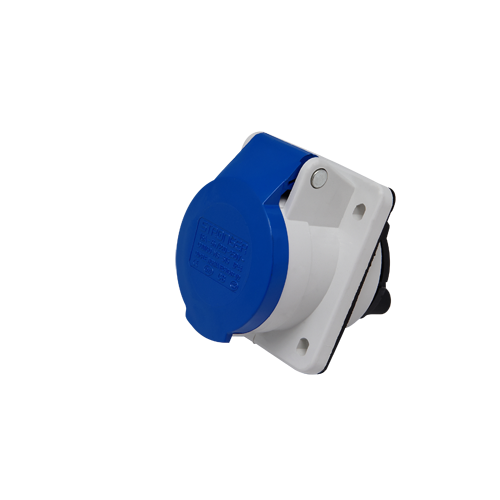

Meba industrial plugs and sockets MB313

Meba industrial plugs and sockets MB313

Meba industrial plugs and sockets MB313

Specification

Meba industrial plugs and sockets MB313



Industrial plugs & socket
Industrial plugs & socket



plug
plugs

Parameter

Technical Parameter:

Categories
Industrial Plug and Socket

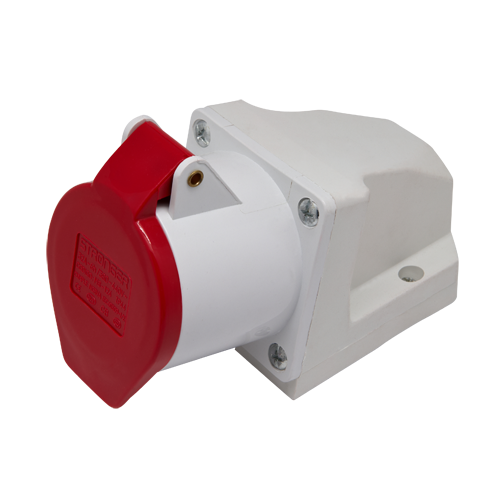

Meba electric sockets MB123

Meba electric sockets MB123

Meba electric sockets MB123

Specification

Meba electric sockets MB123



123 plugs
123 plugs



Plugs
plugs

Parameter

Technical Parameter:
Categories
Industrial Plug and Socket

Meba electric socket MB113

Meba electric socket MB113

Meba electric socket MB113

Specification

Meba electric socket MB113

123 plugs



Plugs

Parameter

Technical Parameter:

Categories
Industrial Plug and Socket

Meba electric plug socket MB024

Meba electric plug socket MB024

Meba electric plug socket MB024

Specification

Meba electric plug socket MB024

024 industrial plugs and socket



plugs & socket

Parameter

Technical Parameter:
Categories
Industrial Plug and Socket

Meba electric plug MB023

Meba electric plug MB023

Meba electric plug MB023

Specification

Meba electric plug MB023

Industrial Plugs & sockets



Power socket 225

Parameter

Technical Parameter:

Categories
Industrial Plug and Socket

Meba delta box MB1817

Meba delta box MB1817

Meba delta box MB1817

Specification

Meba delta box MB1817

Parameter

Technical Parameter:

Categories
Industrial Plug and Socket

Meba combinated box MB1816

Meba combinated box MB1816

Meba combinated box MB1816

Specification

Meba combinated box MB1816

Parameter

Technical Parameter:
Categories
Miniature Circuit Breaker

Meba Main switch NC100H 1P

Meba Main switch NC100H ,1P

MEBA  MAIN SWITCH NC100H 1P

Specification

MEBA  MAIN SWITCH NC100H 1P  is mainly used in AC50/60Hz single pole 230V or two, three, four pole 400V voltage for overload and short-circuit protection as well as for un-frequent on-and-off switching electric equipment and lighting circuit under normal condition, the product is suitable for industry, business, building, residence, etc. It’s conformity with GB10963, IEC60898 standards.

Parameter

MEBA  MAIN SWITCH NC100H 1P

Manufacturing Standards IEC 60947-3
Tropicalization Relative Humidity ℃ 93% RH at 25℃
Room Temperature ℃ -5℃ a 40℃
Electrical Properties Rated at 40℃ A 63A-125A
Rated operating voltage at 40℃ Vac 240/415
Nominal Frequency Hz 50/60
Interrupting Capacity kA 4.5/6/10
Operating temperature ℃ -5℃  a 40℃
Degree of Protection IP20
Number of poles 1/2/3/4
Conductor cross section (minimum allowable) mm2 25
Minimum number of power moves 4000
Minimum number of mechanical operations 8000
Operation curve /
Current Trip Curve A /
Characteristic Intervention attach
Type Of Assembly FOR RIEL DIN 35mm
Present Certificates CE
ISO 9001-2000
IEC 60947-3 standards
Life, given by us to ensure that the life of the goods offered by at least 5 years.

PDF Download

[Download not found]
Categories
Modular Devices Timer Relay

Time delay breaker ,model name MBO40 from Meba

Meba time delay breaker MBO40

Time delay breaker ,model name MBO40 from Meba

Specification

Meba time delay breaker MBO40， adopts advanced design technology, it has protective function as shortage as overload, and are used in lighting distribution system industry, commerce and dwelling, and protecting fractional electric motors, and Meba time delay breaker MBO40, also have many merits of high protective grade(up to IP20), high breaking capacity, reliable sensitive action, convenient, multiple assembling, long life etc. Meba time delay breaker MBO40, are mainly adapted to the circuit of AC 50Hz, 230V in single pole; 400V in double, three, four poles for protecting overload and short circuit, meanwhile they are also used in turning on or off the electric apparatus and lighting circuit under the normal condition.

Parameter

Meba time delay breaker MBO40

Technical parameters:



Manufacturing Standards

IEC 60898 IEC60947

Tropicalization

Relative Humidity

℃

93% RH at 25℃

Room Temperature

℃

-5℃ a 40℃

Electrical Properties

Rated at 40℃

A

6/10/16/20/25/32/40/50/63

Rated operating voltage at 40℃

Vac

240/415

Nominal Frequency

Hz

50/60

Interrupting Capacity at 230V

kA

6

Operating temperature

℃

-5℃ a 40℃

Degree of Protection

IP20

Number of poles

1/2/3/4

Conductor cross section (minimum allowable)

mm2

25

Minimum number of power moves

6000

Minimum number of mechanical operations

20000

Operation curve

B/C/D

Current Trip Curve

A

5 a 10 In

Characteristic Intervention

attach

Type Of Assembly

FOR RIEL DIN 35 mm

Operation Indicator Window

The circuit breaker have an operating window color display that shows the state in which it is (connected or disconnected).

Features

MAGNETIC COIL: ensures the switching of short-circuit, speaking within the following ranges: 5 to 10 times rated current (Type C), 3 to 5 times rated current (Type B), 10 to 14 times rated current (Type D)

BIMETAL: ensures the breaker trip when overloaded.

ARC CHAMBER: effectively dissipates the electric arc that is generated by the opening contacts of the trigger mechanism in the presence of an overload or short circuit.

Present Certificates

CE CB

ISO 9001-2000 awarded by the competent certification body, Meba is qualified in the manufacturing of the object

IEC 60898 standards in the manufacture of the goods

Curve compliance issued Shot by an accredited laboratory for effect

Life, given by Meba to ensure that the life of the goods offered by at least 15 years.

Testing For Acceptance

Before receiving the circuit breakers(breakers), customers may perform the tests may be necessary to ensure compliance with the technical specifications.

Packing

The packaging is sure that withstand any adverse conditions during transport and handling to the warehouse of cutomers.

Dial Century, Year, Month and Batch

In one of its sides the breaker is marked with permanent ink, year, month and batch.

Catalog

Attach catalogs indicating the technical specification

Shows

Submit sample of the product offered

Technical Warranty

2 YEARS

Place of Delivery

CNF&FOB

Delivery

25 DAYS
Categories
Miniature Circuit Breaker

Mcb model name of MB11145C from Meba

Meba type a mcb MB11145C

Mcb model name of MB11145C from Meba

Specification

Meba type a mcb MB11145C adopts advanced design technology, it has protective function as shortage as overload, and are used in lighting distribution system industry, commerce and dwelling, and protecting fractional electric motors. Meba type a mcb MB11145C also have many merits of high protective grade(up to IP20), high breaking capacity, reliable sensitive action, convenient, multiple assembling, long life etc. Meba type a mcb MB11145C are mainly adapted to the circuit of AC 50Hz, 230V in single pole; 400V in double, three, four poles for protecting overload and short circuit, meanwhile they are also used in turning on or off the electric apparatus and lighting circuit under the normal condition.

Parameter

Meba type a mcb MB11145C

Technical parameters:



Tropicalization

Relative Humidity

℃

93% RH at 25℃
50% RH at 40℃

Room Temperature

℃

-5℃ a 40℃

Electrical Properties

Rated at 40

A

6/10/16/20/25/32/40/50/63

Rated operating voltage at 40

Vac

240/415

Nominal Frequency

Hz

50/60

Interrupting Capacity at 230V

kA

6

Operating temperature

℃

40

Degree of Protection

IP20

Number of poles

1/2/3/4

Conductor cross section (minimum allowable)

mm2

25

Minimum number of power moves

6000

Minimum number of mechanical operations

20000

Operation curve

B/C/D

Current Trip Curve

A

Type B: 3 a 5 In
Type C: 5 a 10 In
Type D: 10 a 14 In

Characteristic Intervention

attach

Type Of Assembly

FOR RIEL DIN 35 mm

Features

MAGNETIC COIL: ensures the switching of short-circuit, speaking within the following ranges: 5 to 10 times rated current (Type C), 3 to 5 times rated current (Type B), 10 to 14 times rated current (Type D)

BIMETAL: ensures the breaker trip when overloaded.

ARC CHAMBER: effectively dissipates the electric arc that is generated by the opening contacts of the trigger mechanism in the presence of an overload or short circuit.

Present Certificates

CE CB

ISO 9001-2000 awarded by the competent certification body, Meba is qualified in the manufacturing of the object

IEC 60898 standards in the manufacture of the goods

Curve compliance issued Shot by an accredited laboratory for effect

Life, given by Meba to ensure that the life of the goods offered by at least 15 years.

Testing For Acceptance

Before receiving the circuit breakers(breakers), customers may perform the tests may be necessary to ensure compliance with the technical specifications.

Packing

The packaging is sure that withstand any adverse conditions during transport and handling to the warehouse of customers.

Dial Century, Year, Month and Batch

In one of its sides the breaker is marked with permanent ink, year, month and batch.

Catalog

Attach catalogs indicating the technical specification

Shows

Submit sample of the product offered

Technical Warranty

2 YEARS

Place of Delivery

CNF&FOB

Delivery

25 DAYS
Categories
Miniature Circuit Breaker

Mcb miniature circuit breaker MB2145C made by Meba

Meba type 2 mcb MB2145C

Mcb miniature circuit breaker MB2145C made by Meba

Specification

Meba type 2 mcb MB2145C, adopts advanced design technology, it has protective function as shortage as overload, and are used in lighting distribution system industry, commerce and dwelling, and protecting fractional electric motors. Meba type 2 mcb MB2145C also have many merits of high protective grade(up to IP20), high breaking capacity, reliable sensitive action, convenient, multiple assembling, long life etc. Meba type 2 mcb MB2145C, are mainly adapted to the circuit of AC 50Hz, 230V in single pole; 400V in double, three, four poles for protecting overload and short circuit, meanwhile they are also used in turning on or off the electric apparatus and lighting circuit under the normal condition.

Parameter

Meba type 2 mcb MB2145C

Technical parameters:

Tropicalization

Relative Humidity

℃

93% RH at 25℃
50% RH at 40℃

Room Temperature

℃

-5℃ a 40℃

Electrical Properties

Rated at 40

A

6/10/16/20/25/32/40/50/63

Rated operating voltage at 40

Vac

240/415

Nominal Frequency

Hz

50/60

Interrupting Capacity at 230V

kA

6

Operating temperature

℃

40

Degree of Protection

IP20

Number of poles

1/2/3/4

Conductor cross section (minimum allowable)

mm2

25

Minimum number of power moves

6000

Minimum number of mechanical operations

20000

Operation curve

B/C/D

Current Trip Curve

A

Type B: 3 a 5 In
Type C: 5 a 10 In
Type D: 10 a 14 In

Characteristic Intervention

attach

Type Of Assembly

FOR RIEL DIN 35 mm

Features

MAGNETIC COIL: ensures the switching of short-circuit, speaking within the following ranges: 5 to 10 times rated current (Type C), 3 to 5 times rated current (Type B), 10 to 14 times rated current (Type D)

BIMETAL: ensures the breaker trip when overloaded.

ARC CHAMBER: effectively dissipates the electric arc that is generated by the opening contacts of the trigger mechanism in the presence of an overload or short circuit.

Present Certificates

CE CB

ISO 9001-2000 awarded by the competent certification body, Meba is qualified in the manufacturing of the object

IEC 60898 standards in the manufacture of the goods

Curve compliance issued Shot by an accredited laboratory for effect

Life, given by Meba to ensure that the life of the goods offered by at least 15 years.

Testing For Acceptance

Before receiving the circuit breakers(breakers), customers may perform the tests may be necessary to ensure compliance with the technical specifications.

Packing

The packaging is sure that withstand any adverse conditions during transport and handling to the warehouse of customers.

Dial Century, Year, Month and Batch

In one of its sides the breaker is marked with permanent ink, year, month and batch.

Catalog

Attach catalogs indicating the technical specification

Shows

Submit sample of the product offered

Technical Warranty

2 YEARS

Place of Delivery

CNF&FOB

Delivery

25 DAYS
Categories
Miniature Circuit Breaker

Mcb MB17 made by Meba

Meba mcb MB17

Meba mcb MB17

Specification

Meba mcb MB17 adopts advanced design technology, it has protective function as shortage as overload, and are used in lighting distribution system industry, commerce and dwelling, and protecting fractional electric motors, and they also have many merits of high protective grade(up to IP20), high breaking capacity, reliable sensitive action, convenient, multiple assembling, long life etc. Meba mcb MB17 are mainly adapted to the circuit of AC 50Hz, 230V in single pole; 400V in double, three, four poles for protecting overload and short circuit, meanwhile Meba mcb MB17  are also used in turning on or off the electric apparatus and lighting circuit under the normal condition.

Parameter

Meba mcb MB17

Technical parameters:

1.For protecting cables and equipments against overload and short circuit.

2.General rules for choosing MCB.

a. Technical date of network at the point considered:

The earthing systems,short-circuit current at the circuit breaker installation point ,which must always be less than the breaking capacity of this device,network normal voltage.

b. There are 2 curve characteristic for magnetic operation:

B  curve(3-5 ln)protection and control of the circuits against length cables in TN and IT systems.

C  curve(5-10 ln)protection and control of the circuits against  overloads  and short-circuits;

protecton for resistive and inductive loads with low inrush current.

Standard IEC60898/GB10963
Product Certifications CE,ISO9001,SGS
Product Function Short circuit protection, Over current protection
Number of Poles 1P,2P,3P,4P
Rated Current(A) 10,16,20,25,32,40,50,63,80,100
Rated Voltage(V) AC 230/400V
Rated Frequency 50/60HZ
Electro-mechanical Endurance 6000
Energy Limiting Class 3
Tripping Curve B,C,D
Terminal Connection Height 19mm
Working Ambient Temperature -5°C~+40°C
Electrical Life(times) No less than 6000 operations
Mechanical Life(times) (o-c)No less than 20000 operations
Protection Degree IP20
Categories
Miniature Circuit Breaker

Meba mccb elcb LH125

Meba mccb elcb LH125

Meba mccb elcb LH125

Specification

Meba mccb elcb LH125 major export to South America, Middle East market, has light weight, small size, novel structure and excellent performance. They are mounted in the metal distribution board and used in guesthouses. block of fiats, high buildings, squares, airports, railway stations, plants and enterprises etc, in AC circuits 240V(single pole)up to 415V(3poie)50Hz for protection of overload short circuit and for circuit changeover in lighting system. Breaking capacity is 3KA. The items comply with BS&NEMA STANDARD.

Feature:

MAGNETIC COIL: ensures the switching of short-circuit, speaking within the following ranges: 5 to 10 times rated current (Type C), 3 to 5 times rated current ( Type B ), 10 to 20 times rated current ( Type D )

BIMETAL: ensures the breaker trip when overloaded.

ARC CHAMBER: effectively dissipates the electric arc that is generated by the opening contacts of the trigger mechanism in the presence of an overload or short circuit.

Parameter

Meba mccb elcb LH125

Technical parameters

ropicalization Relative Humidity ℃ 93% RH at 25℃
Room Temperature ℃ 10℃ a 60℃
Electrical Properties Rated at 40℃ A 6/10/15/20/30/40/50/63/80/100
Rated operating voltage at 40℃ Vac 120/240/415
Nominal Frequency Hz 50/60
Interrupting Capacity at 230V kA 3/10
Operating temperature ℃ -5℃ a +40℃
Degree of Protection IP20
Number of poles 1,2,3,4
Conductor cross section (minimum allowable) mm2 25
Minimum number of power moves 4000
Minimum number of mechanical operations 6000
Operation curve B/C/D
Current Trip Curve A Type B 3a 5 In
Type C 5 a 10 In
Type D 10 a 14 In
Characteristic Intervention attach
Type Of Assembly NEMA Type
Features MAGNETIC COIL: ensures the switching of short-circuit, speaking within the following ranges: 5 to 10 times rated current (Type C), 10 to 14 times rated current ( Type D )
BIMETAL: ensure the breaker trip when overloaded.
ARC CHAMBER: effectively dissipates the electric arc that is generated by the opening contacts of the trigger mechanism in the presence of an overload or short circuit.
Categories
Miniature Circuit Breaker

Mcb MB1426C from Meba

Meba type of mcb MB1426C

Mcb MB1426C from Meba

Specification

  • protecting against electrical leakage in the circuit
  • 50Hz or 60Hz, rated voltage single-phase 240V, three phases 415V
  • rated current up to 63A
  • protect the un-frequent switch-over of the circuit under normal conditions
  • cut off the power within the time of 0.1s automatically to protect the personal residual current
  • Meba type of mcb MB1426C conforms to IEC60898 IEC60947

Parameter

Meba type of mcb MB1426C

Tropicalization

Relative Humidity

℃

93% RH at 25℃
50% RH at 40℃

Room Temperature

℃

-5℃ a 40℃

Electrical Properties

Rated at 40

A

6/10/16/20/25/32/40/50/63

Rated operating voltage at 40

Vac

240/415

Nominal Frequency

Hz

50/60

Interrupting Capacity at 230V

kA

6

Operating temperature

℃

40

Degree of Protection

IP20

Number of poles

1/2/3/4

Conductor cross section (minimum allowable)

mm2

25

Minimum number of power moves

6000

Minimum number of mechanical operations

20000

Operation curve

B/C/D

Current Trip Curve

A

Type B: 3 a 5 In
Type C: 5 a 10 In
Type D: 10 a 14 In

Characteristic Intervention

attach

Type Of Assembly

FOR RIEL DIN 35 mm

Features

MAGNETIC COIL: ensures the switching of short-circuit, speaking within the following ranges: 5 to 10 times rated current (Type C), 3 to 5 times rated current (Type B), 10 to 14 times rated current (Type D)

BIMETAL: ensures the breaker trip when overloaded.

ARC CHAMBER: effectively dissipates the electric arc that is generated by the opening contacts of the trigger mechanism in the presence of an overload or short circuit.

Present Certificates

CE CB

ISO 9001-2000 awarded by the competent certification body, Meba is qualified in the manufacturing of the object

IEC 60898 standards in the manufacture of the goods

Curve compliance issued Shot by an accredited laboratory for effect

Life, given by Meba to ensure that the life of the goods offered by at least 15 years.

Testing For Acceptance

Before receiving the circuit breakers(breakers), customers may perform the tests may be necessary to ensure compliance with the technical specifications.

Packing

The packaging is sure that withstand any adverse conditions during transport and handling to the warehouse of customers.

Dial Century, Year, Month and Batch

In one of its sides the breaker is marked with permanent ink, year, month and batch.

Catalog

Attach catalogs indicating the technical specification

Shows

Submit sample of the product offered

Technical Warranty

2 YEARS

Place of Delivery

CNF&FOB

Delivery

25 DAYS

Gallery
