TND Type AC Automatic Voltage Regulator

Meba Sevro Motor Control System TND-1000VA

meba-sevro-motor-control-system-TND-1000VA

Meba Sevro Motor Control System TND-1000VA

Specification

General:

TND and TNS series single-phase and three-phase voltage stabilizer is developed on the basis of SVC, it not only bears all characteristics of SVC, but also has advantages of elegant appearance, luxury, economical and practical etc.

Application:

For office equipment, testing equipment, medical equipment, industrial automation equipment, household appliance, lighting system, communication system, etc. Provide kinds of electrical appliances with abundant electric power meeting different requirements.

Technical Parameter

Performance:

lnput voltage Single phase 160V~250V
Three phase 277V~430V(three phase four wire)
Output voltage Single phase 220V or 110V
Three phase line voltage 380V, phase voltage 220V
Accuracy of voltage stabilization 220V±3% 110V±6%
Frequency 50Hz/60Hz
Adjusting time ＜1s (when input voltage has a change of 10%)
Efficiency ＞90%
Over-voltage protection 246V±4V
Ambient temperature -5℃～+40℃
Relative humidity ≤90%
Waveform distoriton No additional waveform distortion
Load power factor 0.8
Dielectric strength 1500/min
lnsulation resistance ≥2MΩ



Model and Specification:

Phase Model Dimension Packing QTY
(kVA) (L*W*H) (L*W*H)
(mm) (mm)
Single Phase TND-0.5 220×120×150 340×290×410 4
TND-1 240×140×170 380×310×450 4
TND-1.5 240×140×170 380×310×450 4
TND-2 260×180×200 320×230×260 1
TND-3 320×190×230 370×230×300 1
TND-5 380×220×300 450×300×370 1
TND-7 380×220×330 450×300×370 1
TND-8 400×240×330 480×320×410 1
TND-10 400×240×330 680×320×410 1
TND-15 400×330×650 480×450×900 1
TND-20 400×330×650 480×450×900 1
TND-30 580×350×680 680×480×900 1
TND-45 530×430×1020 640×530×1120 1
TND-60 790×430×1290 900×650×1400 1
TND-80 790×430×1290 900×650×1400 1
Three phase TNS-1.5 400×360×170 520×480×280 1
TNS-3 420×380×190 540×500×310 1
TNS-4.5 420×380×190 540×500×310 1
TNS-6 370×280×690 480×400×780 1
TNS-9 350×330×780 480×450×900 1
TNS-15 400×370×710 520×480×800 1
TNS-20 460×430×790 600×550×890 1
TNS-30 460×430×790 600×550×890 1
TNS-45 650×430×950 780×550×1100 1
TNS-60 650×430×950 780×550×1100 1

Gallery

Meba Sevro Motor Control System TND-1000VA

  • Meba Sevro Motor Control System TND-1000VA
Categories
TND Type AC Automatic Voltage Regulator

Meba AC Stabilizer TND-10KVA

meba-ac-stabilizer-TND-10KVA

Meba AC Stabilizer TND-10KVA

Specification

General:

TND and TNS series single-phase and three-phase voltage stabilizer is developed on the basis of SVC, it not only bears all characteristics of SVC, but also has advantages of elegant appearance, luxury, economical and practical etc.

Application:

For office equipment, testing equipment, medical equipment, industrial automation equipment, household appliance, lighting system, communication system, etc. Provide kinds of electrical appliances with abundant electric power meeting different requirements.

Technical Parameter

Performance:

lnput voltage Single phase 160V~250V
Three phase 277V~430V(three phase four wire)
Output voltage Single phase 220V or 110V
Three phase line voltage 380V, phase voltage 220V
Accuracy of voltage stabilization 220V±3% 110V±6%
Frequency 50Hz/60Hz
Adjusting time ＜1s (when input voltage has a change of 10%)
Efficiency ＞90%
Over-voltage protection 246V±4V
Ambient temperature -5℃～+40℃
Relative humidity ≤90%
Waveform distoriton No additional waveform distortion
Load power factor 0.8
Dielectric strength 1500/min
lnsulation resistance ≥2MΩ



Model and Specification:

Phase Model Dimension Packing QTY
(kVA) (L*W*H) (L*W*H)
(mm) (mm)
Single Phase TND-0.5 220×120×150 340×290×410 4
TND-1 240×140×170 380×310×450 4
TND-1.5 240×140×170 380×310×450 4
TND-2 260×180×200 320×230×260 1
TND-3 320×190×230 370×230×300 1
TND-5 380×220×300 450×300×370 1
TND-7 380×220×330 450×300×370 1
TND-8 400×240×330 480×320×410 1
TND-10 400×240×330 680×320×410 1
TND-15 400×330×650 480×450×900 1
TND-20 400×330×650 480×450×900 1
TND-30 580×350×680 680×480×900 1
TND-45 530×430×1020 640×530×1120 1
TND-60 790×430×1290 900×650×1400 1
TND-80 790×430×1290 900×650×1400 1
Three phase TNS-1.5 400×360×170 520×480×280 1
TNS-3 420×380×190 540×500×310 1
TNS-4.5 420×380×190 540×500×310 1
TNS-6 370×280×690 480×400×780 1
TNS-9 350×330×780 480×450×900 1
TNS-15 400×370×710 520×480×800 1
TNS-20 460×430×790 600×550×890 1
TNS-30 460×430×790 600×550×890 1
TNS-45 650×430×950 780×550×1100 1
TNS-60 650×430×950 780×550×1100 1

Gallery

Meba AC Stabilizer TND-10KVA

  • Meba AC Stabilizer TND-10KVA

PDF Download

[Download not found] TND-10KVA AC Stabilizer suit for office equipment, test equipment, medical equipment, industrial automation equipment, household lighting system, communication system, etc.

Categories
Super Thin Type AC Automatic Voltage Regulator

Meba Single Phase Voltage Stabilizer SVC-S1500VA

meba-single-phase-voltage-stabilizer-SVC-S1500VA

Meba Single Phase Voltage Stabilizer SVC-S1500VA

Specification

General:

SVC – S ( super – thin type ) series single – phase voltage stabilize r also is developed on the basis of SVC, it has excellent performance and smart appearance, is a first-class product that is very thin and portable.

Application:

For office equipment, testing equipment, medical equipment, industrial automation equipment, household appliance, lighting system, communication system, etc. Provide kinds of electrical appliances with abundant electric power meeting different requirements.

Technical Parameter

Performance:

lnput voltage Single-phase 160V-250V
Output voltage Single-phase 220V and 110V
Accuracy of voltage stabilization 220V±3%and 110V±6%
frequency 50Hz/60Hz
Adjusting time ＜1s (when input voltage has a change of 10%)
Efficiency ＞90%
Over-voltage protection 246V±4V
Ambient temperature -5℃～+40℃
Relative humidity ≤90%
Waveform distortion No additional waveform distortion
Load power factor 0.8
Dielectric strength 1500V/min
lnsulation resistance ≥2MΩ



Model and Specification

Spec(KVA) Product size DXWXH(cm) Package size DXWXH(cm) Weight(kg) Qty
SVC-S0.5 26X19X8 48X32X38 3.7 6
SVC-S1 27X21X9 51X33X29 5.7 4
SVC-S1.5 27X21X9 51X33X29 6 4
SVC-S2 32X26X16 36X1X21 10.5 1
SVC-S3 32X26X16 36X31X21 13 1
SVC-S5 43X38X16 50X46X23 23 1

Gallery

Meba Single Phase Voltage Stabilizer SVC-S1500VA

  • Meba Single Phase Voltage Stabilizer SVC-S1500VA

PDF Download

[Download not found] SVC-S1.5KVA  Single Phase Voltage Stabilizer suit for office equipment, test equipment, medical equipment, industrial automation equipment, household lighting system, communication system, etc.

Categories
Super Thin Type AC Automatic Voltage Regulator

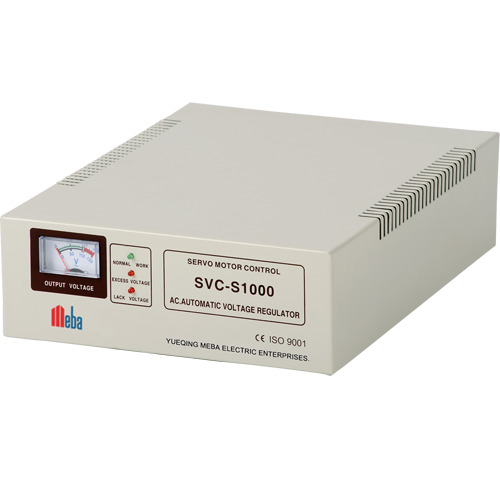

Meba Servo Stabilizer Manufacturers SVC-S1000VA

meba-servo-stabilizer-manufacturers-SVC-S1000VA

Meba Servo Stabilizer Manufacturers SVC-S1000VA

Specification

General:

SVC – S ( super – thin type ) series single – phase voltage stabilize r also is developed on the basis of SVC, it has excellent performance and smart appearance, is a first-class product that is very thin and portable.

Application:

For office equipment, testing equipment, medical equipment, industrial automation equipment, household appliance, lighting system, communication system, etc. Provide kinds of electrical appliances with abundant electric power meeting different requirements.

Technical Parameter

Performance:

lnput voltage Single-phase 160V-250V
Output voltage Single-phase 220V and 110V
Accuracy of voltage stabilization 220V±3%and 110V±6%
frequency 50Hz/60Hz
Adjusting time ＜1s (when input voltage has a change of 10%)
Efficiency ＞90%
Over-voltage protection 246V±4V
Ambient temperature -5℃～+40℃
Relative humidity ≤90%
Waveform distortion No additional waveform distortion
Load power factor 0.8
Dielectric strength 1500V/min
lnsulation resistance ≥2MΩ



Model and Specification

Spec(KVA) Product size DXWXH(cm) Package size DXWXH(cm) Weight(kg) Qty
SVC-S0.5 26X19X8 48X32X38 3.7 6
SVC-S1 27X21X9 51X33X29 5.7 4
SVC-S1.5 27X21X9 51X33X29 6 4
SVC-S2 32X26X16 36X1X21 10.5 1
SVC-S3 32X26X16 36X31X21 13 1
SVC-S5 43X38X16 50X46X23 23 1

Gallery

Meba Servo Stabilizer Manufacturers SVC-S1000VA

  • Meba Servo Stabilizer Manufacturers SVC-S1000VA

PDF Download

[Download not found] SVC-S1KVA Servo Stabilizer Manufacturers suit for office equipment, test equipment, medical equipment, industrial automation equipment, household lighting system, communication system, etc.

Categories
Super Thin Type AC Automatic Voltage Regulator

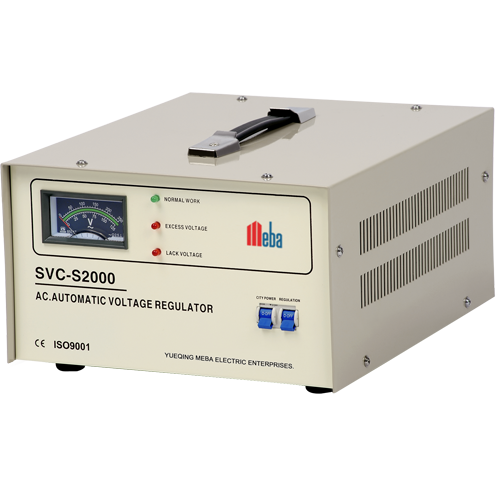

Meba Automatic Voltage Stabilizer SVC-S2000VA

meba-automatic-voltage-stabilizer-SVC-S2000VA

Meba Automatic Voltage Stabilizer SVC-S2000VA

Specification

General:

SVC – S ( super – thin type ) series single – phase voltage stabilize r also is developed on the basis of SVC, it has excellent performance and smart appearance, is a first-class product that is very thin and portable.

Application:

For office equipment, testing equipment, medical equipment, industrial automation equipment, household appliance, lighting system, communication system, etc. Provide kinds of electrical appliances with abundant electric power meeting different requirements.

Technical Parameter

Performance:

lnput voltage Single-phase 160V-250V
Output voltage Single-phase 220V and 110V
Accuracy of voltage stabilization 220V±3%and 110V±6%
frequency 50Hz/60Hz
Adjusting time ＜1s (when input voltage has a change of 10%)
Efficiency ＞90%
Over-voltage protection 246V±4V
Ambient temperature -5℃～+40℃
Relative humidity ≤90%
Waveform distortion No additional waveform distortion
Load power factor 0.8
Dielectric strength 1500V/min
lnsulation resistance ≥2MΩ



Model and Specification

Spec(KVA) Product size DXWXH(cm) Package size DXWXH(cm) Weight(kg) Qty
SVC-S0.5 26X19X8 48X32X38 3.7 6
SVC-S1 27X21X9 51X33X29 5.7 4
SVC-S1.5 27X21X9 51X33X29 6 4
SVC-S2 32X26X16 36X1X21 10.5 1
SVC-S3 32X26X16 36X31X21 13 1
SVC-S5 43X38X16 50X46X23 23 1

Gallery

Meba Automatic Voltage Stabilizer SVC-S2000VA

  • Meba Automatic Voltage Stabilizer SVC-S2000VA

PDF Download

[Download not found] SVC-S2KVA  Automatic Voltage Stabilizer suit for office equipment, test equipment, medical equipment, industrial automation equipment, household lighting system, communication system, etc.

Categories
Miniature Circuit Breaker

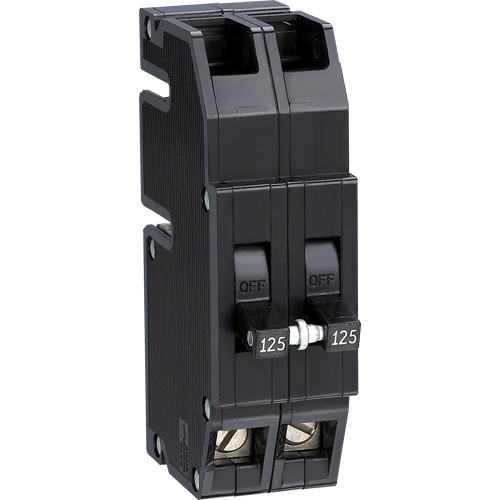

Meba the breakers MBGLD4A

Meba the breakersMBGLD4A

Meba the breakers MBGLD4A

Specification

Application:

Meba the breakers MBGLD4A is used in lighting distribution system or motor distribution system for protection overload and short-circuit in the system. The product is neoteric in structure, light in weight, reliable and excellent in performance. It has high breaking capacity, can trip quickly, and its case and items are adopted by high fire-resistant and shockproof plastics. The product, with long life, is mainly used in AC 50Hz/60Hz single-pole 230V or two, three, four pole 400V circuit for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit in normal case. The products comply with IEC 60898.

Technical Parameter

Technical parameters

Tropicalization Relative Humidity 93% RH at 25
50% RH at 40
Room Temperature -5 a 40
Electrical Properties Rated at 40 A 6/10/16/20/25/32/40/50/63
Rated operating voltage at 40 Vac 240/415
Nominal Frequency Hz 50/60
Interrupting Capacity at 230V kA 6
Operating temperature -5 a 40
Degree of Protection IP20
Number of poles 1/2/3/4
Conductor cross section (minimum allowable) mm2 25
Minimum number of power moves 4000
Minimum number of mechanical operations 8000
Operation curve B/C/D
Current Trip Curve A Type B: 3 a 5 In
Type C: 5 a 10 In
Type D: 10 a 14 In
Characteristic Intervention attach
Type Of Assembly FOR RIEL DIN 35mm
Features MAGNETIC COIL: ensures the switching of short-circuit, speaking within the following ranges: 5 to 10 times rated current (Type C), 3 to 5 times rated current ( Type B ), 10 to 14 times rated current ( Type D )
BIMETAL: ensures the breaker trip when overloaded.
ARC CHAMBER: effectively dissipates the electric arc that is generated by the opening contacts of the trigger mechanism in the presence of an overload or short circuit.

Gallery

Meba the breakers MBGLD4A

  • Meba the breakers MBGLD4A
Categories
Super Thin Type AC Automatic Voltage Regulator

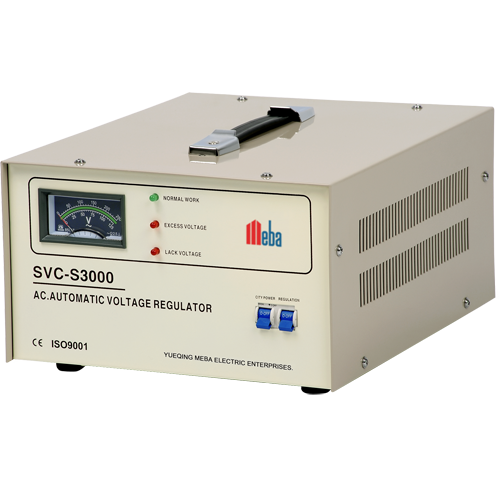

Meba Industrial Motor Voltage Regulator SVC-S3000VA

Meba Industrial Motor Voltage Regulator SVC-S3000VA

Specification

General:

SVC – S ( super – thin type ) series single – phase voltage stabilize r also is developed on the basis of SVC, it has excellent performance and smart appearance, is a first-class product that is very thin and portable.

Application:

For office equipment, testing equipment, medical equipment, industrial automation equipment, household appliance, lighting system, communication system, etc. Provide kinds of electrical appliances with abundant electric power meeting different requirements.

Technical Parameter

Performance:

lnput voltage Single-phase 160V-250V
Output voltage Single-phase 220V and 110V
Accuracy of voltage stabilization 220V±3%and 110V±6%
frequency 50Hz/60Hz
Adjusting time ＜1s (when input voltage has a change of 10%)
Efficiency ＞90%
Over-voltage protection 246V±4V
Ambient temperature -5℃～+40℃
Relative humidity ≤90%
Waveform distortion No additional waveform distortion
Load power factor 0.8
Dielectric strength 1500V/min
lnsulation resistance ≥2MΩ



Model and Specification

Spec(KVA) Product size DXWXH(cm) Package size DXWXH(cm) Weight(kg) Qty
SVC-S0.5 26X19X8 48X32X38 3.7 6
SVC-S1 27X21X9 51X33X29 5.7 4
SVC-S1.5 27X21X9 51X33X29 6 4
SVC-S2 32X26X16 36X1X21 10.5 1
SVC-S3 32X26X16 36X31X21 13 1
SVC-S5 43X38X16 50X46X23 23 1

Gallery

Meba Industrial Motor Voltage Regulator SVC-S3000VA

  • Meba Industrial Motor Voltage Regulator SVC-S3000VA

PDF Download

[Download not found] SVC-S3KVA  Industrial Motor Voltage Regulator suit for office equipment, test equipment, medical equipment, industrial automation equipment, household lighting system, communication system, etc.

Categories
Super Thin Type AC Automatic Voltage Regulator

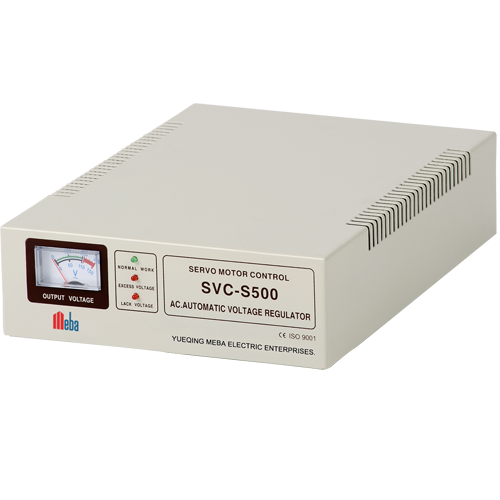

Meba Super Thin AC Stabilizer SVC-S500VA

meba-super-thin-ac-stabilizer-SVC-S500VA

Meba Super Thin AC Stabilizer SVC-S500VA

Specification

General:

SVC – S ( super – thin type ) series single – phase voltage stabilize r also is developed on the basis of SVC, it has excellent performance and smart appearance, is a first-class product that is very thin and portable.

Application:

For office equipment, testing equipment, medical equipment, industrial automation equipment, household appliance, lighting system, communication system, etc. Provide kinds of electrical appliances with abundant electric power meeting different requirements.

Technical Parameter

Performance:

lnput voltage Single-phase 160V-250V
Output voltage Single-phase 220V and 110V
Accuracy of voltage stabilization 220V±3%and 110V±6%
frequency 50Hz/60Hz
Adjusting time ＜1s (when input voltage has a change of 10%)
Efficiency ＞90%
Over-voltage protection 246V±4V
Ambient temperature -5℃～+40℃
Relative humidity ≤90%
Waveform distortion No additional waveform distortion
Load power factor 0.8
Dielectric strength 1500V/min
lnsulation resistance ≥2MΩ



Model and Specification

Spec(KVA) Product size DXWXH(cm) Package size DXWXH(cm) Weight(kg) Qty
SVC-S0.5 26X19X8 48X32X38 3.7 6
SVC-S1 27X21X9 51X33X29 5.7 4
SVC-S1.5 27X21X9 51X33X29 6 4
SVC-S2 32X26X16 36X1X21 10.5 1
SVC-S3 32X26X16 36X31X21 13 1
SVC-S5 43X38X16 50X46X23 23 1

Gallery

Meba Super Thin AC Stabilizer SVC-S500VA

  • Meba Super Thin AC Stabilizer SVC-S500VA

PDF Download

[Download not found] SVC-S500VA  Super Thin AC Stabilizer suit for office equipment, test equipment, medical equipment, industrial automation equipment, household lighting system, communication system, etc.

Categories
P Type AC Automatic Voltage Regulator

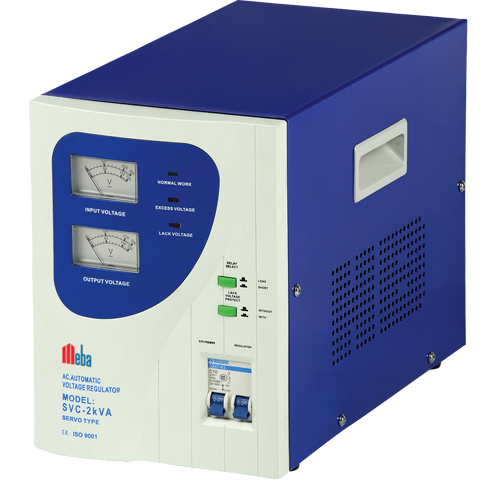

Meba Electrical AC Voltage Stabilizer SVC-P2KVA

meba-electrical-ac-voltage-stabilizer-SVC-P2KVA

Meba Electrical AC Voltage Stabilizer SVC-P2KVA

Specification

General:

SVC-P series single-phase voltage stabilizer not only bears all characteristics of SVC, but also has advantages of luxurious appearance, strong protection functions like over – voltage protection and under-voltage protection,

Besides, it is provided with selection for delay time, it is really an economical product with high ratio of performance and price.

Application:

For office equipment, test equipment, lighting systems, safety alarm systems, communication systems, medical equipment, duplicators, stereo sound equipment, industrial automatic equipment, color film developing equipment, digital control machine tools, checkout equipment, TV sets, office appliances.

Technical Parameter

Performance:

lnput voltage Single-phase 160V-250V
Output voltage Single-phase 220V and 110V
Accuracy of voltage stabilization 220V±3%and 110V±6%
frequency 50Hz/60Hz
Adjusting time ＜1s (when input voltage has a change of 10%)
Efficiency ＞90%
Over-voltage protection 246V±4V
Ambient temperature -5℃～+40℃
Relative humidity ≤90%
Waveform distortion No additional waveform distortion
Load power factor 0.8
Dielectric strength 1500V/min
lnsulation resistance ≥2MΩ



Model and Sepcificatiom:

Spec(KVA) Product size D*W*H(cm) Product size D*W*H(cm) Weight(kg) Qty
SVC-P0.5 22*14*20 39*29*47 4.5 4
SVC-P1 22*14*20 39*31*47 6 4
SVC-P1.5 22*14*20 39*31*47 6.5 4
SVC-P2 28*14*20 39*35*47 8 4
SVC-P3 34*21*29 42*29*36 14 1
SVC-P5 40*21*29 48*29*37 21.5 1

Gallery

Meba Electrical AC Voltage Stabilizer SVC-P2KVA

  • Meba Electrical AC Voltage Stabilizer SVC-P2KVA

PDF Download

[Download not found] SVC-P2KVA Electrical AC Voltage Stabilizer suit for office equipment, test equipment, medical equipment, industrial automation equipment, household lighting system, communication system, etc.

Categories
P Type AC Automatic Voltage Regulator

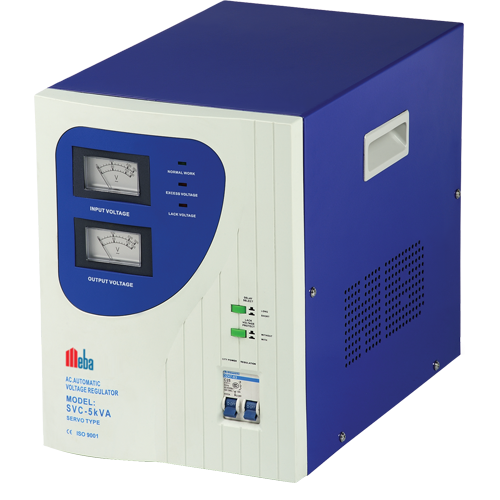

Meba Universal Meter Voltage Stabilizer SVC-P5KVA

meba-universal-meter-voltage-stabilizer-SVC-P5KVA

Meba Universal Meter Voltage Stabilizer SVC-P5KVA

Specification

General:

SVC-P series single-phase voltage stabilizer not only bears all characteristics of SVC, but also has advantages of luxurious appearance, strong protection functions like over – voltage protection and under-voltage protection,

Besides, it is provided with selection for delay time, it is really an economical product with high ratio of performance and price.

Application:

For office equipment, test equipment, lighting systems, safety alarm systems, communication systems, medical equipment, duplicators, stereo sound equipment, industrial automatic equipment, color film developing equipment, digital control machine tools, checkout equipment, TV sets, office appliances.

Technical Parameter

Performance:

lnput voltage Single-phase 160V-250V
Output voltage Single-phase 220V and 110V
Accuracy of voltage stabilization 220V±3%and 110V±6%
frequency 50Hz/60Hz
Adjusting time ＜1s (when input voltage has a change of 10%)
Efficiency ＞90%
Over-voltage protection 246V±4V
Ambient temperature -5℃～+40℃
Relative humidity ≤90%
Waveform distortion No additional waveform distortion
Load power factor 0.8
Dielectric strength 1500V/min
lnsulation resistance ≥2MΩ



Model and Sepcificatiom:

Spec(KVA) Product size D*W*H(cm) Product size D*W*H(cm) Weight(kg) Qty
SVC-P0.5 22*14*20 39*29*47 4.5 4
SVC-P1 22*14*20 39*31*47 6 4
SVC-P1.5 22*14*20 39*31*47 6.5 4
SVC-P2 28*14*20 39*35*47 8 4
SVC-P3 34*21*29 42*29*36 14 1
SVC-P5 40*21*29 48*29*37 21.5 1

Gallery

Meba Universal Meter Voltage Stabilizer SVC-P5KVA

  • Meba Universal Meter Voltage Stabilizer SVC-P5KVA

PDF Download

[Download not found] SVC-P5KVA Universal Meter Voltage Stabilizer suit for office equipment, test equipment, medical equipment, industrial automation equipment, household lighting system, communication system, etc.

Categories
P Type AC Automatic Voltage Regulator

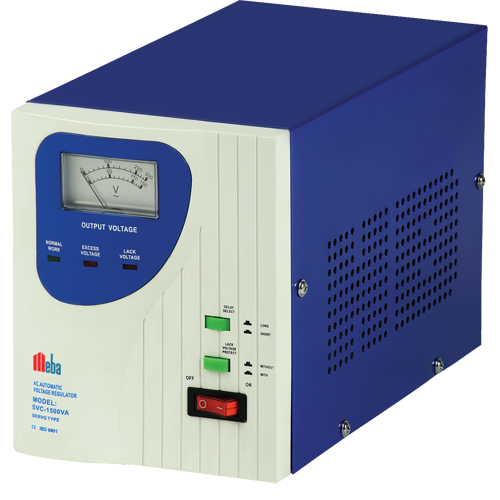

Meba High Precision SVC Regulator SVC-P1500VA

meba-high-precision-svc-regulator-SVC-P1500VA

Meba High Precision SVC Regulator SVC-P1500VA

Specification

General:

SVC-P series single-phase voltage stabilizer not only bears all characteristics of SVC, but also has advantages of luxurious appearance, strong protection functions like over – voltage protection and under-voltage protection,

Besides, it is provided with selection for delay time, it is really an economical product with high ratio of performance and price.

Application:

For office equipment, test equipment, lighting systems, safety alarm systems, communication systems, medical equipment, duplicators, stereo sound equipment, industrial automatic equipment, color film developing equipment, digital control machine tools, checkout equipment, TV sets, office appliances.

Technical Parameter

Performance:

lnput voltage Single-phase 160V-250V
Output voltage Single-phase 220V and 110V
Accuracy of voltage stabilization 220V±3%and 110V±6%
frequency 50Hz/60Hz
Adjusting time ＜1s (when input voltage has a change of 10%)
Efficiency ＞90%
Over-voltage protection 246V±4V
Ambient temperature -5℃～+40℃
Relative humidity ≤90%
Waveform distortion No additional waveform distortion
Load power factor 0.8
Dielectric strength 1500V/min
lnsulation resistance ≥2MΩ



Model and Sepcificatiom:

Spec(KVA) Product size D*W*H(cm) Product size D*W*H(cm) Weight(kg) Qty
SVC-P0.5 22*14*20 39*29*47 4.5 4
SVC-P1 22*14*20 39*31*47 6 4
SVC-P1.5 22*14*20 39*31*47 6.5 4
SVC-P2 28*14*20 39*35*47 8 4
SVC-P3 34*21*29 42*29*36 14 1
SVC-P5 40*21*29 48*29*37 21.5 1

Gallery

Meba High Precision SVC Regulator SVC-P1500VA

  • Meba High Precision SVC Regulator SVC-P1500VA

PDF Download

[Download not found] SVC-P1500VA High Precision SVC Regulator suit for office equipment, test equipment, medical equipment, industrial automation equipment, household lighting system, communication system, etc.

Categories
P Type AC Automatic Voltage Regulator

Meba Fully Automatic High Accuracy Vltage Stabilizer SVC-P500VA

meba-fully-automatic-high-accuracy-vltage-stabilizer-SVC-P500VA

Meba Fully Automatic High Accuracy Vltage Stabilizer SVC-P500VA

Specification

General:

SVC-P series single-phase voltage stabilizer not only bears all characteristics of SVC, but also has advantages of luxurious appearance, strong protection functions like over – voltage protection and under-voltage protection,

Besides, it is provided with selection for delay time, it is really an economical product with high ratio of performance and price.

Application:

For office equipment, test equipment, lighting systems, safety alarm systems, communication systems, medical equipment, duplicators, stereo sound equipment, industrial automatic equipment, color film developing equipment, digital control machine tools, checkout equipment, TV sets, office appliances.

Technical Parameter

Performance:

lnput voltage Single-phase 160V-250V
Output voltage Single-phase 220V and 110V
Accuracy of voltage stabilization 220V±3%and 110V±6%
frequency 50Hz/60Hz
Adjusting time ＜1s (when input voltage has a change of 10%)
Efficiency ＞90%
Over-voltage protection 246V±4V
Ambient temperature -5℃～+40℃
Relative humidity ≤90%
Waveform distortion No additional waveform distortion
Load power factor 0.8
Dielectric strength 1500V/min
lnsulation resistance ≥2MΩ



Model and Sepcificatiom:

Spec(KVA) Product size D*W*H(cm) Product size D*W*H(cm) Weight(kg) Qty
SVC-P0.5 22*14*20 39*29*47 4.5 4
SVC-P1 22*14*20 39*31*47 6 4
SVC-P1.5 22*14*20 39*31*47 6.5 4
SVC-P2 28*14*20 39*35*47 8 4
SVC-P3 34*21*29 42*29*36 14 1
SVC-P5 40*21*29 48*29*37 21.5 1

Gallery

Meba Fully Automatic High Accuracy Vltage Stabilizer SVC-P500VA

  • Meba Fully Automatic High Accuracy Vltage Stabilizer SVC-P500VA

PDF Download

[Download not found] SVC-P500VA Fully Automatic High Accuracy Vltage Stabilizer suit for office equipment, test equipment, medical equipment, industrial automation equipment, household lighting system, communication system, etc.

Categories
P Type AC Automatic Voltage Regulator

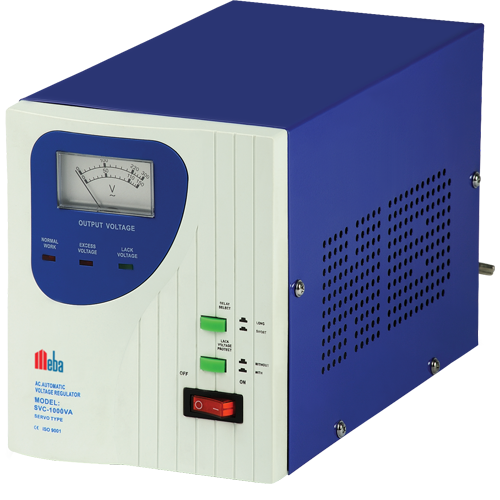

Meba Servo Stabilizer For Home SVC-P1000VA

Meba Servo Stabilizer For Home SVC-P1000VA

Meba Servo Stabilizer For Home SVC-P1000VA

Specification

General:

SVC-P series single-phase voltage stabilizer not only bears all characteristics of SVC, but also has advantages of luxurious appearance, strong protection functions like over – voltage protection and under-voltage protection,

Besides, it is provided with selection for delay time, it is really an economical product with high ratio of performance and price.

Application:

For office equipment, test equipment, lighting systems, safety alarm systems, communication systems, medical equipment, duplicators, stereo sound equipment, industrial automatic equipment, color film developing equipment, digital control machine tools, checkout equipment, TV sets, office appliances.

Technical Parameter

Performance:

lnput voltage Single-phase 160V-250V
Output voltage Single-phase 220V and 110V
Accuracy of voltage stabilization 220V±3%and 110V±6%
frequency 50Hz/60Hz
Adjusting time ＜1s (when input voltage has a change of 10%)
Efficiency ＞90%
Over-voltage protection 246V±4V
Ambient temperature -5℃～+40℃
Relative humidity ≤90%
Waveform distortion No additional waveform distortion
Load power factor 0.8
Dielectric strength 1500V/min
lnsulation resistance ≥2MΩ



Model and Sepcificatiom:

Spec(KVA) Product size D*W*H(cm) Product size D*W*H(cm) Weight(kg) Qty
SVC-P0.5 22*14*20 39*29*47 4.5 4
SVC-P1 22*14*20 39*31*47 6 4
SVC-P1.5 22*14*20 39*31*47 6.5 4
SVC-P2 28*14*20 39*35*47 8 4
SVC-P3 34*21*29 42*29*36 14 1
SVC-P5 40*21*29 48*29*37 21.5 1

Gallery

Meba Servo Stabilizer For Home SVC-P1000VA

  • Meba Servo Stabilizer For Home SVC-P1000VA

PDF Download

[Download not found] SVC-P1000VA Servo Stabilizer For Home suit for office equipment, test equipment, medical equipment, industrial automation equipment, household lighting system, communication system, etc.

Categories
O Type AC Automatic Voltage Regulator

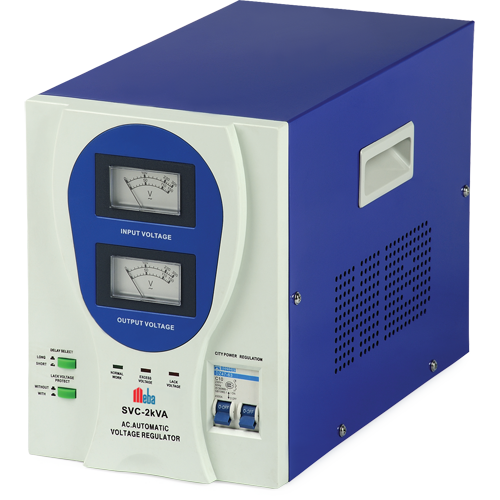

Meba Household Voltage Regulator SVC-O2KVA

meba-household-voltage-regulator-SVC-O2KVA

Meba Household Voltage Regulator SVC-O2KVA

Specification

General:

SVC-O series single-phase voltage regulators not only bear all the characteristics of SVC but also have advantages of luxurious appearance and strong protection functions.

Besides, it is provided with selection for delay time, it is really an economical product with high ratio of performance and price.

Application:

For office equipment, testing equipment, medical equipment, industrial automation equipment, household appliance, lighting system, communication system, etc. Provide kinds of electrical appliances with abundant electric power meeting different requirements.

Technical Parameter

Performance:

lnput voltage 150V~250V
Output voltage 220V or 110V
Accuracy of voltage stabilization 220V±3% 110V±6%
Frequency 50Hz/60Hz
Adjusting time ＜1s (when input voltage has a change of 10%)
Efficiency ＞90%
Over-voltage protection 246V±4V
Ambient temperature -5℃～+40℃
Relative humidity ≤90%
Waveform distoriton No additional waveform distortion
Load power factor 0.8
Dielectric strength 1500/min
lnsulation resistance ≥2MΩ



Model and Sepcificatiom:

Spec(KVA) Product size D*W*H(cm) Product size D*W*H(cm) Weight(kg) Qty
SVC-O0.5 22*14*20 39*29*47 4.5 4
SVC-O1 22*14*20 39*31*47 6 4
SVC-O1.5 22*14*20 39*31*47 6.5 4
SVC-O2 28*14*20 39*35*47 8 4
SVC-O3 34*21*29 42*29*36 14 1
SVC-O5 40*21*29 48*29*37 21.5 1

Gallery

Meba Household Voltage Regulator SVC-O2KVA

  • Meba Household Voltage Regulator SVC-O2KVA

PDF Download

[Download not found] SVC-O 2KVA Household Voltage Regulator suit for office equipment, test equipment, medical equipment, industrial automation equipment, household lighting system, communication system, etc.

Categories
O Type AC Automatic Voltage Regulator

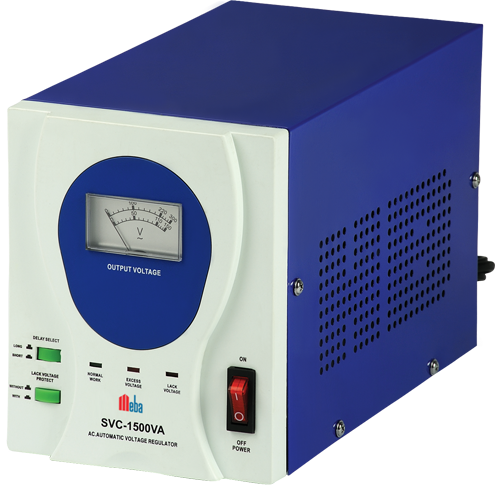

Meba Single Phase Voltage Regulators UPS SVC-O1500VA

Meba-single phase voltage regulators ups-SVC-O1500VA

Meba Single Phase Voltage Regulators UPS SVC-O1500VA

Specification

General:

SVC-O series single-phase voltage regulators not only bear all the characteristics of SVC but also have advantages of luxurious appearance and strong protection functions.

Besides, it is provided with selection for delay time, it is really an economical product with high ratio of performance and price.

Application:

For office equipment, testing equipment, medical equipment, industrial automation equipment, household appliance, lighting system, communication system, etc. Provide kinds of electrical appliances with abundant electric power meeting different requirements.

Technical Parameter

Performance:

lnput voltage 150V~250V
Output voltage 220V or 110V
Accuracy of voltage stabilization 220V±3% 110V±6%
Frequency 50Hz/60Hz
Adjusting time ＜1s (when input voltage has a change of 10%)
Efficiency ＞90%
Over-voltage protection 246V±4V
Ambient temperature -5℃～+40℃
Relative humidity ≤90%
Waveform distoriton No additional waveform distortion
Load power factor 0.8
Dielectric strength 1500/min
lnsulation resistance ≥2MΩ



Model and Sepcificatiom:

Spec(KVA) Product size D*W*H(cm) Product size D*W*H(cm) Weight(kg) Qty
SVC-O0.5 22*14*20 39*29*47 4.5 4
SVC-O1 22*14*20 39*31*47 6 4
SVC-O1.5 22*14*20 39*31*47 6.5 4
SVC-O2 28*14*20 39*35*47 8 4
SVC-O3 34*21*29 42*29*36 14 1
SVC-O5 40*21*29 48*29*37 21.5 1

Gallery

Meba Single Phase Voltage Regulators UPS SVC-O1500VA

  • Meba Single Phase Voltage Regulators UPS SVC-O1500VA

PDF Download

[Download not found] SVC-O 1.5KVA Single Phase Voltage Regulators  suit for office equipment, test equipment, medical equipment, industrial automation equipment, household lighting system, communication system, etc.

Categories
O Type AC Automatic Voltage Regulator

Meba UPS Power Regulator SVC-O5KVA

Meba ups power regulator SVC-O5KVA

Meba UPS Power Regulator SVC-O5KVA

Specification

General:

SVC-O series single-phase voltage regulators not only bear all the characteristics of SVC but also have advantages of luxurious appearance and strong protection functions.

Besides, it is provided with selection for delay time, it is really an economical product with high ratio of performance and price.

Application:

For office equipment, testing equipment, medical equipment, industrial automation equipment, household appliance, lighting system, communication system, etc. Provide kinds of electrical appliances with abundant electric power meeting different requirements.

Technical Parameter

Performance:

lnput voltage 150V~250V
Output voltage 220V or 110V
Accuracy of voltage stabilization 220V±3% 110V±6%
Frequency 50Hz/60Hz
Adjusting time ＜1s (when input voltage has a change of 10%)
Efficiency ＞90%
Over-voltage protection 246V±4V
Ambient temperature -5℃～+40℃
Relative humidity ≤90%
Waveform distoriton No additional waveform distortion
Load power factor 0.8
Dielectric strength 1500/min
lnsulation resistance ≥2MΩ



Model and Sepcificatiom:

Spec(KVA) Product size D*W*H(cm) Product size D*W*H(cm) Weight(kg) Qty
SVC-O0.5 22*14*20 39*29*47 4.5 4
SVC-O1 22*14*20 39*31*47 6 4
SVC-O1.5 22*14*20 39*31*47 6.5 4
SVC-O2 28*14*20 39*35*47 8 4
SVC-O3 34*21*29 42*29*36 14 1
SVC-O5 40*21*29 48*29*37 21.5 1

Gallery

Meba UPS Power Regulator SVC-O5KVA

  • Meba UPS Power Regulator SVC-O5KVA

PDF Download

[Download not found] SVC-O 5KVA UPS Power Regulator  suit for office equipment, test equipment, medical equipment, industrial automation equipment, household lighting system, communication system, etc.

Categories
O Type AC Automatic Voltage Regulator

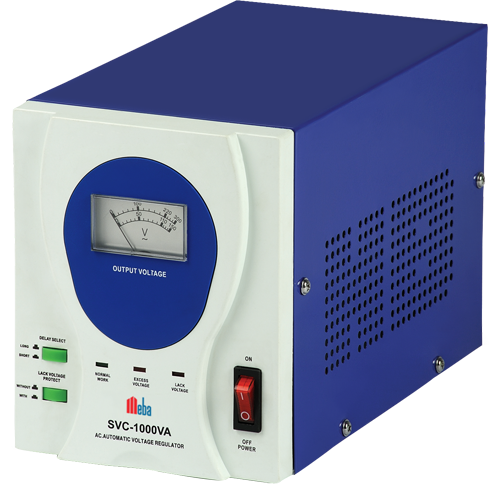

Meba UPS Power Supply SVC-O1000VA

meba-ups-power-supply-SVC-O1000VA

Meba UPS Power Supply SVC-O1000VA

Specification

General:

SVC-O series single-phase voltage regulators not only bear all the characteristics of SVC but also have advantages of luxurious appearance and strong protection functions.

Besides, it is provided with selection for delay time, it is really an economical product with high ratio of performance and price.

Application:

For office equipment, testing equipment, medical equipment, industrial automation equipment, household appliance, lighting system, communication system, etc. Provide kinds of electrical appliances with abundant electric power meeting different requirements.

Technical Parameter

Performance:

lnput voltage 150V~250V
Output voltage 220V or 110V
Accuracy of voltage stabilization 220V±3% 110V±6%
Frequency 50Hz/60Hz
Adjusting time ＜1s (when input voltage has a change of 10%)
Efficiency ＞90%
Over-voltage protection 246V±4V
Ambient temperature -5℃～+40℃
Relative humidity ≤90%
Waveform distoriton No additional waveform distortion
Load power factor 0.8
Dielectric strength 1500/min
lnsulation resistance ≥2MΩ



Model and Sepcificatiom:

Spec(KVA) Product size D*W*H(cm) Product size D*W*H(cm) Weight(kg) Qty
SVC-O0.5 22*14*20 39*29*47 4.5 4
SVC-O1 22*14*20 39*31*47 6 4
SVC-O1.5 22*14*20 39*31*47 6.5 4
SVC-O2 28*14*20 39*35*47 8 4
SVC-O3 34*21*29 42*29*36 14 1
SVC-O5 40*21*29 48*29*37 21.5 1

Gallery

Meba UPS Power Supply SVC-O1000VA

  • Meba UPS Power Supply SVC-O1000VA

PDF Download

[Download not found] SVC-O 1KVA UPS Power Supply  suit for office equipment, test equipment, medical equipment, industrial automation equipment, household lighting system, communication system, etc.

Categories
LCD Type AC Automatic Voltage Regulator

Meba LCD Meter Voltage Regulator SVC-C 10KVA

meba-lcd-meter-voltage-regulator-svc-c-10kva

Meba LCD Meter Voltage Regulator SVC-C 10KVA

Specification

General:

1. SVC-C(LCD type) series intelligent AC stabilized voltage supply is the second generation product developed by our company.

2. It adopts 8-digit CPU manufactured by world-famous samsung company, its voltage stabilizing precision and delllay time can be set according to need.

3. With protection functions of time lag, over voltage inverse time – delay, under-voltage, overload, excess temperature, mechanical fault, etc.

4. This type of product has characteristics of liquid crystal display,blue screen backlight and interface dynamic display, it can display the real time working state of the machine, when there is any abnormal, the interface will display relative indications accompanied with long or short alarming sound.

Application:

For office equipment, testing equipment, medical equipment, industrial automation equipment, household appliance, lighting system, communication system, etc. Provide kinds of electrical appliances with abundant electric power meeting different requirements.

Technical Parameter

Performance:

Input voltage Single-phase 160V-250V Overload protection value 2.8 time of rated power
Output voltage 0.5KVA-3KVA:Single-phase220Vand 110V5KVA-30KVA: Single-phase 220V Protection value for excess temperature 90
Accuracy of voltagestabilization At 220V, ±1% ±3% ±5%At 110V, ±2% ±6% ±10% Load power factor 0.8
Adjusting time Input voltage changes for 10%,it is 1s
Frequency 50Hz/60Hz Waveform distirtion No additional waveform distortion
Delay time Long 180s, short 5s Dielectric strength 1,500V/min
Over-voltageProtection value 250V/delay 5S;
275V/delay 2S295V/delay 1S;
305V/delay 0S		 Insulation resistanceInsularion class ≥2MClass E
Uder-voltageProtection value 180V/delay 5S Working environment Tem: -5%~+40Humidity:90%



Model and Specification:

Spec.(KVA) Product size DXWXH(cm) Package size DXWXH(cm) Weight(kg) Qty
SVC-C 0.5 27X15X19 42X32X47 5 4
SVC-C 1 27X15X19 42X32X47 6.5 4
SVC-C 1.5 27X15X19 42X32X47 7.5 4
SVC-C 2 26X24X19 34X32X50 14 2
SVC-C 3 29X22X24 62X38X34 16 2
SVC-C 5(Vertical ) 29X24X42 29X24X40 31X29X48 28.5 40 1 1
SVC-C15 SVC-C 10(Vertical ) 40X33X65 40X35X52 75 1
SVC-C20 58X35X68 52X45X74 110 1
SVC-C30 48X40X96 70X47X68 165 1
SVC series voltagstabilizers special for household appliances 2 33X33X13 60X52X106 38X38X20 11 1
3 33X33X13 38X38X20 14 1
5 43X34X15 52X42X25 21 1
8 50X36X18 60X44X32 32 1
10 50X36X18 60X44X32 37.5 1

Gallery

Meba LCD Meter Voltage Regulator SVC-C 10KVA

  • Meba LCD Meter Voltage Regulator SVC-C 10KVA

PDF Download

[Download not found] SVC-C 10KVA LCD Meter Voltage Regulator  suit for office equipment, test equipment, medical equipment, industrial automation equipment, household lighting system, communication system, etc.

Categories
O Type AC Automatic Voltage Regulator

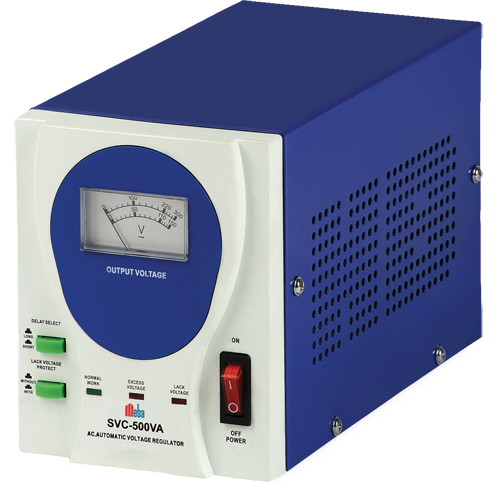

Meba Power Supply SVC-O500VA

meba-power-supply-SVC-O500VA

Meba Power Supply SVC-O500VA

Specification

General:

SVC-O series single-phase voltage regulators not only bear all the characteristics of SVC but also have advantages of luxurious appearance and strong protection functions.

Besides, it is provided with selection for delay time, it is really an economical product with high ratio of performance and price.

Application:

For office equipment, testing equipment, medical equipment, industrial automation equipment, household appliance, lighting system, communication system, etc. Provide kinds of electrical appliances with abundant electric power meeting different requirements.

Technical Parameter

Performance:

lnput voltage 150V~250V
Output voltage 220V or 110V
Accuracy of voltage stabilization 220V±3% 110V±6%
Frequency 50Hz/60Hz
Adjusting time ＜1s (when input voltage has a change of 10%)
Efficiency ＞90%
Over-voltage protection 246V±4V
Ambient temperature -5℃～+40℃
Relative humidity ≤90%
Waveform distoriton No additional waveform distortion
Load power factor 0.8
Dielectric strength 1500/min
lnsulation resistance ≥2MΩ



Model and Sepcificatiom:

Spec(KVA) Product size D*W*H(cm) Product size D*W*H(cm) Weight(kg) Qty
SVC-O0.5 22*14*20 39*29*47 4.5 4
SVC-O1 22*14*20 39*31*47 6 4
SVC-O1.5 22*14*20 39*31*47 6.5 4
SVC-O2 28*14*20 39*35*47 8 4
SVC-O3 34*21*29 42*29*36 14 1
SVC-O5 40*21*29 48*29*37 21.5 1

Gallery

Meba Power Supply SVC-O500VA

  • Meba Power Supply SVC-O500VA

PDF Download

[Download not found] SVC-O 500VA Power Supply suit for office equipment, test equipment, medical equipment, industrial automation equipment, household lighting system, communication system, etc.

Categories
LCD Type AC Automatic Voltage Regulator

Meba Wall Mounted Stabilizer SVC-C 2KVA

meba-wall-mounted-stabilizer-svc-c-2kva

Meba Wall Mounted Stabilizer SVC-C 2KVA

Specification

General:

1. SVC-C(LCD type) series intelligent AC stabilized voltage supply is the second generation product developed by our company.

2. It adopts 8-digit CPU manufactured by world-famous samsung company, its voltage stabilizing precision and delllay time can be set according to need.

3. With protection functions of time lag, over voltage inverse time – delay, under-voltage, overload, excess temperature, mechanical fault, etc.

4. This type of product has characteristics of liquid crystal display,blue screen backlight and interface dynamic display, it can display the real time working state of the machine, when there is any abnormal, the interface will display relative indications accompanied with long or short alarming sound.

Application:

For office equipment, testing equipment, medical equipment, industrial automation equipment, household appliance, lighting system, communication system, etc. Provide kinds of electrical appliances with abundant electric power meeting different requirements.

Technical Parameter

Performance:

Input voltage Single-phase 160V-250V Overload protection value 2.8 time of rated power
Output voltage 0.5KVA-3KVA:Single-phase220Vand 110V5KVA-30KVA: Single-phase 220V Protection value for excess temperature 90
Accuracy of voltagestabilization At 220V, ±1% ±3% ±5%At 110V, ±2% ±6% ±10% Load power factor 0.8
Adjusting time Input voltage changes for 10%,it is 1s
Frequency 50Hz/60Hz Waveform distirtion No additional waveform distortion
Delay time Long 180s, short 5s Dielectric strength 1,500V/min
Over-voltageProtection value 250V/delay 5S;
275V/delay 2S295V/delay 1S;
305V/delay 0S		 Insulation resistanceInsularion class ≥2MClass E
Uder-voltageProtection value 180V/delay 5S Working environment Tem: -5%~+40Humidity:90%



Model and Specification:

Spec.(KVA) Product size DXWXH(cm) Package size DXWXH(cm) Weight(kg) Qty
SVC-C 0.5 27X15X19 42X32X47 5 4
SVC-C 1 27X15X19 42X32X47 6.5 4
SVC-C 1.5 27X15X19 42X32X47 7.5 4
SVC-C 2 26X24X19 34X32X50 14 2
SVC-C 3 29X22X24 62X38X34 16 2
SVC-C 5(Vertical ) 29X24X42 29X24X40 31X29X48 28.5 40 1 1
SVC-C15 SVC-C 10(Vertical ) 40X33X65 40X35X52 75 1
SVC-C20 58X35X68 52X45X74 110 1
SVC-C30 48X40X96 70X47X68 165 1
SVC series voltagstabilizers special for household appliances 2 33X33X13 60X52X106 38X38X20 11 1
3 33X33X13 38X38X20 14 1
5 43X34X15 52X42X25 21 1
8 50X36X18 60X44X32 32 1
10 50X36X18 60X44X32 37.5 1

Gallery

Meba Wall Mounted Stabilizer SVC-C 2KVA

  • Meba Wall Mounted Stabilizer SVC-C 2KVA

PDF Download

[Download not found] SVC-C 2KVA Wall Mounted Stabilizer  suit for office equipment, test equipment, medical equipment, industrial automation equipment, household lighting system, communication system, etc.
