Meba Non-Insulated Spade Terminals SNB

Meba non insulated terminal SNB

Specification

 Non-Insulated Spade Terminals SNB

Cable size：0.5～1.5mm2（A.W.G.22～16)    max current：Imax=19A     material：purple copper

Item No
USA screw
screw dia.d2(mm)
Dimension(mm)
B
L
F
E
Dφ
dφ
SNB 1.25-3
#4
3.2
5.7
16.0
6.5
4.8
3.4
1.7
SNBS 1.25-3.5
#6
3.7
5.7
16.0
6.5
SNBL 1.25-3.5
#6
3.7
6.4
16.0
6.5
SNBS 1.25-4
#8
4.3
6.4
16.0
6.5
SNBM 1.25-4
#8
4.3
7.2
16.0
6.5
SNBL 1.25-4
#8
4.3
8.1
16.0
6.5
SNBS 1.25-5
#10
5.3
8.1
16.0
6.5
SNBL 1.25-5
#10
5.3
9.5
16.0
6.5
SNBS 1.25-6
1/4
6.4
9.5
16.0
6.5
SNBL 1.25-6
1/4
8.4
12.0
22.0
11.0

Cable size：1.5～2.5mm2（A.W.G.16～14)    max current：Imax=27A     material：purple copper

Item No
USA screw
screw dia.d2(mm)
Dimension(mm)
B
L
F
E
Dφ
dφ
SNB 2-3
#4
3.2
5.7
16.0
6.5
4.8
4.1
2.3
SNBS 2-3.5
#6
3.7
5.7
16.0
6.5
SNBL 2-3.5
#6
3.7
6.0
16.0
6.5
SNBS 2-4
#8
4.3
6.4
16.0
6.5
SNBM 2-4
#8
4.3
7.2
16.0
6.5
SNBL 2-4
#8
4.3
8.1
16.0
6.5
SNBS 2-5
#10
5.3
8.1
16.0
6.5
SNBL 2-5
#10
5.3
9.5
16.0
6.5
SNBS 2-6
1/4
6.4
9.5
16.0
6.5
  SNBL 2-6
1/4
6.4
12.0
22.0
11.0

Cable size：2.5～4mm2（A.W.G.14～12)    max current：Imax=37A     material：purple copper

Item No
USA screw
screw dia.d2(mm)
Dimension(mm)
B
L
F
E
Dφ
dφ
SNB 3.5-3
#8
3.2
5.7
18.3
7.0
6.0
5.0
3.0
SNB 3.5-4
#10
4.3
8.0
18.3
7.0
SNB 3.5-5
#10
5.3
8.0
18.3
7.0
SNB 3.5-6
1/4
6.4
12.0
21.5
12.1

Cable size：4～6mm2（A.W.G.12～10)    max current：Imax=48A     material：purple copper

Item No
USA screw
screw dia.d2(mm)
Dimension(mm)
B
L
F
E
Dφ
dφ
SNB 5.5-3.5
#6
3.7
8.3
19.5
7.5
6.8
5.6
3.4
SNBS 5.5-4
#8
4.3
8.3
19.5
7.5
SNBL 5.5-4
#8
4.3
9.0
19.5
7.5
SNB 5.5-5
#10
5.3
9.0
19.5
7.5
SNBS 5.5-6
1/4
6.4
9.0
19.5
7.5
SNBL 5.5-6
1/4
6.4
12.0
25.5
12.0
SNB 5.5-8
5/16
8.4
14.0
24.5
11.5

material：purple copper　    thickness：1.2mm   1.4mm   1.7mm

Item No
USA screw
screw dia.d2(mm)
Dimension(mm)
B
L
F
E
Dφ
dφ
SNB 8-4
#8
4.3
8.7
23.0
6.0
8.5
7.2
4.5
SNB 8-5
#10
5.3
12.0
24.5
5.7
8.5
7.2
4.5
SNB 8-6
1/4
6.4
12.0
24.5
5.7
8.5
7.2
4.5
SNB 8-8
5/16
8.4
14.5
28.0
8.3
8.5
7.2
4.5
SNB 14-6
1/4
6.4
12.0
28.0
7.5
10.5
9.0
5.8
SNB 14-8
5/16
8.4
14.0
28.0
7.5
10.5
9.0
5.8
SNB 22-8
5/16
8.4
14.0
34.5
9.0
12.0
11.5
7.7

Dimension:

SNB Furcate Naked Terminal Dimension

Categories
Terminals and Connectors

Meba Insulated Spade Terminals SV series

Meba insulated terminals SV1

Specification

Insulated Spade Terminals

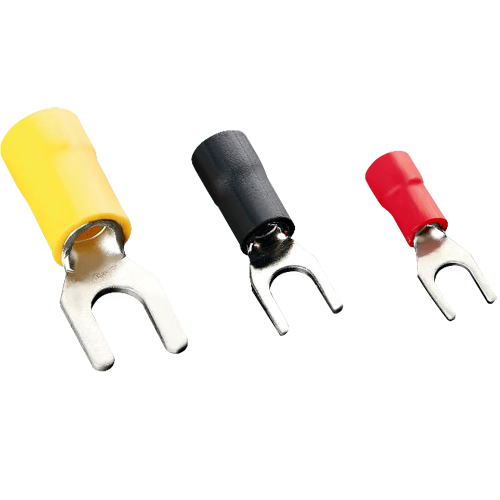

SV Series Insulated Spade Terminals Image

Cable size：0.5～1.5mm2（A.W.G.22～16)    max current：Imax=19A  material：purple copper

Item No
USA screw
screw dia.d2(mm)
Dimension(mm)
color
B
L
F
H
Dφ
SV 1.25-3
#4
3.2
5.7
21.2
6.5
10.0
4.3
red
SVS 1.25-3.5
#6
3.7
5.7
21.2
6.5
SVL 1.25-3.5
#6
3.7
6.4
21.2
6.5
SVS 1.25-4
#8
4.3
6.4
21.2
6.5
SVM 1.25-4
#8
4.3
7.2
21.2
6.5
SVL 1.25-4
#8
4.3
8.1
21.2
6.5
SVS 1.25-5
#10
5.3
8.1
21.2
6.5
SVL 1.25-5
#10
5.3
9.5
21.2
6.5
SVS 1.25-6
1/4
6.4
9.5
21.2
6.5
SVL 1.25-6
1/4
6.4
12.0
27.2
11.0

Cable size：1.5～2.5mm2（A.W.G.16～14)    max current：Imax=27A     material：purple copper　

Item No
USA screw
screw dia.d2(mm)
Dimension(mm)
color
B
L
F
H
Dφ
SV 2-3
#4
3.2
5.7
21.2
6.5
10.0
4.9
blue
SVS 2-3.5
#6
3.7
5.7
21.2
6.5
SVL 2-3.5
#6
3.7
6.0
21.2
6.5
SVS 2-4
#8
4.3
6.4
21.2
6.5
SVM 2-4
#8
4.3
7.2
21.2
6.5
SVL 2-4
#8
4.3
8.1
21.2
6.5
SVS 2-5
#10
5.3
8.1
21.2
6.5
SVL 2-5
#10
5.3
9.5
21.2
6.5
SVS 2-6
1/4
6.4
9.5
21.2
6.5
SVL 2-6
1/4
6.4
12.0
27.2
11.0

Cable size：2.5～4mm2（A.W.G.14～12)    max current：Imax=37A     material：purple copper

Item No
USA screw
screw dia.d2(mm)
Dimension(mm)
color
B
L
F
H
Dφ
SV 3.5-3
#4
3.2
5.7
24.8
7.0
13.0
6.2
black
SV 3.5-4
#8
4.3
8.0
24.8
7.0
SV 3.5-5
#10
5.3
8.0
24.8
7.0
SV 3.5-6
1/4
6.4
12.0
28.0
12.1
SV 3.5-8
16-5
8.4
12.0
33.7
13.7

Cable size：4～6mm2（A.W.G.12～10)    max current：Imax=48A     material：purple copper

Item No
USA screw
screw dia.d2(mm)
Dimension(mm)
color
B
L
F
H
Dφ
SV 5.5-3.5
#6
3.7
8.3
25.2
7.5
13.0
6.7
yellow
SVS 5.5-4
#8
4.3
8.3
25.2
7.5
SVL 5.5-4
#8
4.3
9.0
25.2
7.5
SV 5.5-5
#10
5.3
9.0
25.2
7.5
SVS 5.5-6
1/4
6.4
9.0
25.2
7.5
SVL 5.5-6
1/4
6.4
12.0
31.2
12.0
SV 5.5-8
5/16
8.4
14.0
30.0
11.5

Dimension:

SV Series Insulated Spade Terminals Dimension

Categories
Junction Box

Meba telephone junction box BT150×110×70

Meba telephone junction box BT150×110×70

Specification

Meba telephone junction box BT150×110×70  this water proof junction box is made of ABS, PC etc, elegant external shape, high firmness, IP65 waterproof class. This product is suitable for indoor and outdoor electrical ,electronic,communication,fire equipment ,control    panel .terminal BOX,PCB BOX,shipping,oil chemical,large factories,coastal factories, discharging terminal  equipment,dirty waste water treatment facilities,environmental hazards facilities,etc.

Parameter

Technical Parameter:

Meba telephone junction box BT150×110×70

1.Waterproof junction box purpose:
Electrical, electronics, communication, fire fighting,Equipment, control panel, terminal box, large factory, coastal plant, environmental,Hazard facility, etc.

Materials can be selected according to the customer’s requirements.

2. Features:

1) Easy and safe to use

2) The branch line runs parallel to the main cable

3) High moisture resistance and excellent mechanical protection

4) Full range of sizes available

Available sizes as following:

BA Specification/Dimension L W H Holes IP Class
BA 50*50 50 50 4 IP44
BA 80*50 80 50 4 IP44
BA 85*85*50 85 85 50 7 IP44
BA 100*100*70 100 100 70 7 IP65
BA 150*110*70 150 110 70 10 IP65
BA 150*150*70 150 150 70 7 IP65
BA 200*100*70 200 100 70 8 IP65
BA 200*155*80 200 155 80 10 IP65
BA 255*200*80 255 200 80 12 IP65
BA 300*250*120 300 250 120 12 IP65
BA 400*350*120 400 350 120 16 IP65
BT  Specification/Dimension L W H Holes IP Class
BT 50*50 50 50 4 IP44
BT 80*50 80 50 4 IP44
BT 85*85*50 85 85 50 7 IP44
BT 100*100*70 100 100 70 7 IP65
BT 150*110*70 150 110 70 10 IP65
BT 150*150*70 150 150 70 7 IP65
BT 200*100*70 200 100 70 8 IP65
BT 200*155*80 200 155 80 10 IP65
BT 255*200*80 255 200 80 12 IP65
BT 300*250*120 300 250 120 12 IP65
BT 400*350*120 400 350 120 16 IP65



Junction box dimension
Junction box dimension
Categories
Junction Box

Meba service panel BA80X50

Meba service panel BA80X50

Specification

Meba service panel BA80X50  this water proof junction box is made of ABS, PC etc, elegant external shape, high firmness, IP65 waterproof class. This product is suitable for indoor and outdoor electrical ,electronic,communication,fire equipment ,control    panel .terminal BOX,PCB BOX,shipping,oil chemical,large factories,coastal factories, discharging terminal  equipment,dirty waste water treatment facilities,environmental hazards facilities,etc.



Parameter

Technical Parameter:

Meba service panel BA80X50

1.Waterproof junction box purpose:
Electrical, electronics, communication, fire fighting,Equipment, control panel, terminal box, large factory, coastal plant, environmental,Hazard facility, etc.

Materials can be selected according to the customer’s requirements.

2. Features:

1) Easy and safe to use

2) The branch line runs parallel to the main cable

3) High moisture resistance and excellent mechanical protection

4) Full range of sizes available

Available sizes as following:

BA Specification/Dimension L W H Holes IP Class
BA 50*50 50 50 4 IP44
BA 80*50 80 50 4 IP44
BA 85*85*50 85 85 50 7 IP44
BA 100*100*70 100 100 70 7 IP65
BA 150*110*70 150 110 70 10 IP65
BA 150*150*70 150 150 70 7 IP65
BA 200*100*70 200 100 70 8 IP65
BA 200*155*80 200 155 80 10 IP65
BA 255*200*80 255 200 80 12 IP65
BA 300*250*120 300 250 120 12 IP65
BA 400*350*120 400 350 120 16 IP65
BT  Specification/Dimension L W H Holes IP Class
BT 50*50 50 50 4 IP44
BT 80*50 80 50 4 IP44
BT 85*85*50 85 85 50 7 IP44
BT 100*100*70 100 100 70 7 IP65
BT 150*110*70 150 110 70 10 IP65
BT 150*150*70 150 150 70 7 IP65
BT 200*100*70 200 100 70 8 IP65
BT 200*155*80 200 155 80 10 IP65
BT 255*200*80 255 200 80 12 IP65
BT 300*250*120 300 250 120 12 IP65
BT 400*350*120 400 350 120 16 IP65



Junction box dimension
Junction box dimension
Categories
Junction Box

Meba power junction box BT255×200×80

Meba power junction box BT255×200×80

Specification

Meba power junction box BT255×200×80 this water proof junction box is made of ABS, PC etc, elegant external shape, high firmness, IP65 waterproof class. This product is suitable for indoor and outdoor electrical ,electronic,communication,fire equipment ,control    panel .terminal BOX,PCB BOX,shipping,oil chemical,large factories,coastal factories, discharging terminal  equipment,dirty waste water treatment facilities,environmental hazards facilities,etc.

Parameter

Technical Parameter:

Meba power junction box BT255×200×80

1.Waterproof junction box purpose:
Electrical, electronics, communication, fire fighting,Equipment, control panel, terminal box, large factory, coastal plant, environmental,Hazard facility, etc.

Materials can be selected according to the customer’s requirements.

2. Features:

1) Easy and safe to use

2) The branch line runs parallel to the main cable

3) High moisture resistance and excellent mechanical protection

4) Full range of sizes available

Available sizes as following:

BA Specification/Dimension L W H Holes IP Class
BA 50*50 50 50 4 IP44
BA 80*50 80 50 4 IP44
BA 85*85*50 85 85 50 7 IP44
BA 100*100*70 100 100 70 7 IP65
BA 150*110*70 150 110 70 10 IP65
BA 150*150*70 150 150 70 7 IP65
BA 200*100*70 200 100 70 8 IP65
BA 200*155*80 200 155 80 10 IP65
BA 255*200*80 255 200 80 12 IP65
BA 300*250*120 300 250 120 12 IP65
BA 400*350*120 400 350 120 16 IP65
BT  Specification/Dimension L W H Holes IP Class
BT 50*50 50 50 4 IP44
BT 80*50 80 50 4 IP44
BT 85*85*50 85 85 50 7 IP44
BT 100*100*70 100 100 70 7 IP65
BT 150*110*70 150 110 70 10 IP65
BT 150*150*70 150 150 70 7 IP65
BT 200*100*70 200 100 70 8 IP65
BT 200*155*80 200 155 80 10 IP65
BT 255*200*80 255 200 80 12 IP65
BT 300*250*120 300 250 120 12 IP65
BT 400*350*120 400 350 120 16 IP65
Junction box dimension
Junction box dimension
Categories
Junction Box

Meba outdoor electrical box-BA300×250×120

Meba outdoor electrical box-BA300×250×120

Specification

Meba outdoor electrical box-BA300×250×120  this water proof junction box is made of ABS, PC etc, elegant external shape, high firmness, IP65 waterproof class. This product is suitable for indoor and outdoor electrical ,electronic,communication,fire equipment ,control    panel .terminal BOX,PCB BOX,shipping,oil chemical,large factories,coastal factories, discharging terminal  equipment,dirty waste water treatment facilities,environmental hazards facilities,etc.

Parameter

Technical Parameter:

Meba outdoor electrical box-BA300×250×120

1.Waterproof junction box purpose:
Electrical, electronics, communication, fire fighting,Equipment, control panel, terminal box, large factory, coastal plant, environmental,Hazard facility, etc.

Materials can be selected according to the customer’s requirements.

2. Features:

1) Easy and safe to use

2) The branch line runs parallel to the main cable

3) High moisture resistance and excellent mechanical protection

4) Full range of sizes available

Available sizes as following:

BA　Specification/Dimension L W H Holes IP Class
BA 50*50 50 50 4 IP44
BA 80*50 80 50 4 IP44
BA 85*85*50 85 85 50 7 IP44
BA 100*100*70 100 100 70 7 IP65
BA 150*110*70 150 110 70 10 IP65
BA 150*150*70 150 150 70 7 IP65
BA 200*100*70 200 100 70 8 IP65
BA 200*155*80 200 155 80 10 IP65
BA 255*200*80 255 200 80 12 IP65
BA 300*250*120 300 250 120 12 IP65
BA 400*350*120 400 350 120 16 IP65
BT  Specification/Dimension L W H Holes IP Class
BT 50*50 50 50 4 IP44
BT 80*50 80 50 4 IP44
BT 85*85*50 85 85 50 7 IP44
BT 100*100*70 100 100 70 7 IP65
BT 150*110*70 150 110 70 10 IP65
BT 150*150*70 150 150 70 7 IP65
BT 200*100*70 200 100 70 8 IP65
BT 200*155*80 200 155 80 10 IP65
BT 255*200*80 255 200 80 12 IP65
BT 300*250*120 300 250 120 12 IP65
BT 400*350*120 400 350 120 16 IP65



Junction box dimension
Junction box dimension
Categories
Junction Box

Meba outdoor junction box BT200×155×80

Meba outdoor junction box BT200×155×80

Specification

Meba outdoor junction box BT200×155×80 this water proof junction box is made of ABS, PC etc, elegant external shape, high firmness, IP65 waterproof class. This product is suitable for indoor and outdoor electrical ,electronic,communication,fire equipment ,control    panel .terminal BOX,PCB BOX,shipping,oil chemical,large factories,coastal factories, discharging terminal  equipment,dirty waste water treatment facilities,environmental hazards facilities,etc.



Parameter

Technical Parameter:

Meba outdoor junction box BT200×155×80

1.Waterproof junction box purpose:
Electrical, electronics, communication, fire fighting,Equipment, control panel, terminal box, large factory, coastal plant, environmental,Hazard facility, etc.

Materials can be selected according to the customer’s requirements.

2. Features:

1) Easy and safe to use

2) The branch line runs parallel to the main cable

3) High moisture resistance and excellent mechanical protection

4) Full range of sizes available

Available sizes as following:

BA Specification/Dimension L W H Holes IP Class
BA 50*50 50 50 4 IP44
BA 80*50 80 50 4 IP44
BA 85*85*50 85 85 50 7 IP44
BA 100*100*70 100 100 70 7 IP65
BA 150*110*70 150 110 70 10 IP65
BA 150*150*70 150 150 70 7 IP65
BA 200*100*70 200 100 70 8 IP65
BA 200*155*80 200 155 80 10 IP65
BA 255*200*80 255 200 80 12 IP65
BA 300*250*120 300 250 120 12 IP65
BA 400*350*120 400 350 120 16 IP65
BT  Specification/Dimension L W H Holes IP Class
BT 50*50 50 50 4 IP44
BT 80*50 80 50 4 IP44
BT 85*85*50 85 85 50 7 IP44
BT 100*100*70 100 100 70 7 IP65
BT 150*110*70 150 110 70 10 IP65
BT 150*150*70 150 150 70 7 IP65
BT 200*100*70 200 100 70 8 IP65
BT 200*155*80 200 155 80 10 IP65
BT 255*200*80 255 200 80 12 IP65
BT 300*250*120 300 250 120 12 IP65
BT 400*350*120 400 350 120 16 IP65



Junction box dimension
Junction box dimension
Categories
Front Board Mounted KWH Meters

Meba-digital electric front installed meter-MB073PG

Meba-digital electric meter-MB073PG

Specification

Application

 Meba digital electric front installed meter MB073PG is a kind of new style single phase two wire active energy watt-hour meter, it is designed on the basis of original DD862 single phase electromechanical meter, and fully absorb new technologies about electromechanical meter from domestic and abroad. The meter completely accord with relevant technical requirements of class 2 single phase active energy meter stipulated in international standard IEC 62053-11. It can accurate and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net, it is use for setting indoor or out door meter box. The meter has novel design, rational structure, and it can display total energy consumption by drum wheel mechanical register. It has following features: high overload, power loss, long-life, specious appearance, etc.
Technical Data

Model Accuracy Reference Voltage(V) Current specifications(A) Starting current(A) Insulation performance
MB073PG Class 2 127
230		 5(20)
10(40)
20(80)
30(100)		 0.025
0.05
0.1
0.15		 AC voltage 2kv for 1 minute,
1.2/50us waveform
pulse voltage 6kv

[/acc_item]
[acc_item title=”Installing Diagram“]

Dimension for MB031AL
Dimension for MB031AL

Wiring digram for MB073PG
Wiring digram for MB073PG



Features

1. Front board three fixed installation, the cover is made of high definition transparent glass material molded overall, the bottom of the meter and the terminal is made of quality bakelite material which is moisture-resistant, fire-retardant, high temperature molded overall. It has following features: good weatherability, high rigid, specious appearance, etc.
2. The meter frame adopt aluminum molding with excellent mechanical strength, stable structure and anti-impact.
3. Voltage components and current components is used of double insulation structure, has good electrical characteristics.
4. Standard configuration bottom bearing is used of double gem bearing, oriented bearing is made of high wear resistance copper alloy bush and stainless steel needle. It has following features: long life and minimal friction, etc. May select magnetic thrust bearing (Product Configuration code is PA) or magnetic suspension (Product Configuration code is PM).
5. All kinds of adjustment mechanism adopt no step shifting mechanism. The meter starting and creeping needn’t to be adjust which is finished by anti-creeping hole of disc and convenient for adjusting by users.
6. Standard configuration 5 digits display by drum wheel mechanical register, may select 6 digits display by drum wheel mechanical register (Product Configuration code is PJ).
7. Standard configuration without the device which can prevent retrograde, may select add the function of prevent retrograde. (Please specified when ordering).
8. Single component measure single phase two wire active energy consumption. Complying with standard IEC 62053-11.
9. Direct connect operation, there are two types wiring you may select. Standard configuration type 1B wiring, may select type 1A wiring (Product Configuration code is PH).
10. Extension terminals cover, in order to protect to use safety.

Gallery

Categories
Residual Current Circuit Breaker

Meba Earth Leakage Circuit Breaker MPFIM4

meba earth leakage circuit breaker MPFIM4

Specification

Earth Leakage Circuit Breaker(ELCB), Residual Current Device(RCD), Residual Current Circuit Breaker(RCCB)
Brand Name: Meba
Model Number: MPFIM4
Type: Residual Current Circuit Breaker or Residual Current Device
Poles Number: 2P

Application：

1. MPFIM4, Residual Current Devices for earth leakage detection.

2. It is to be used in association with miniature circuit breakers, its function is to detect earth leakage current and open the connected circuit to protect people and equipment, major used in industrial application.

3. These devices are designed to meet the Earth Leakage Protection Standards of the IEC: IEC/EN 61008.

Merits：

Good quality , high breaking capability, updated structure,quick trip and guide installation, competitive price,excellent and safe performance,beautiful and compact appearance, etc .

Mounting Requirements:

1. Circumstance temperature -5°C ~ +40°C, average temperature not exceeding 35°C.
2. Altitude above sea level less than 2000 m.
3. Humidity not exceeding 50% at 40°C and not exceeding 90% at 25°C.
4. Installation class II or III.
5. Pollution class 2.
6. Installation method DIN Rail mounting type.
7. The external magnetism shall not be more than 5 times of terrestrial one.
8. Product shall be installed vertically at the place where there shall be no severe impact and vibration. The product is switched on when the handle is at upper position.

Technical parameter

1. Electromagnetic and Electronic type
2. 35mm wide for 4pole Din Rail installation.
3. Standsrd: IEC1008/EN61008
4. Rated Voltage(Un): 2pole, 230V AC
5. Rated Current(In): 25, 40, 63A
6. Rated residual operating current(I△n): 30, 100, 300, 500mA
7. Rated residual non-operating current(I△no): 0.5 I△n
8. Residual current off-time: ≤0.1s
9. Minimum value of rated breaking capacity(lm): 630A
10. Rated conditional short-circuit capacity (lnc): 6KA

Dimensions(mm):

MPFIM4 RCCB Dimension

PDF Download

[Download not found]Meba Earth Leakage Circuit Breaker MPFIM4 open a circuit automatically in the event of an earth fault between phase and earth and/or netural and earth.

Categories
Residual Current Circuit Breaker

Meba Residual Current Eevice PF-4P

meba residual current device PF-4P

Specification

Earth Leakage Circuit Breaker(ELCB), Residual Current Device(RCD), Residual Current Circuit Breaker(RCCB)
Brand Name: Meba
Model Number: OLL7-4
Type: Residual Current Circuit Breaker or Residual Current Device
Poles Number: 2P

Application：

1. OLL7-4, Residual Current Devices for earth leakage detection.

2. It is to be used in association with miniature circuit breakers, its function is to detect earth leakage current and open the connected circuit to protect people and equipment, major used in industrial application.

3. These devices are designed to meet the Earth Leakage Protection Standards of the IEC: IEC/EN 61008.

Merits：

Good quality , high breaking capability, updated structure,quick trip and guide installation, competitive price,excellent and safe performance,beautiful and compact appearance, etc .

Mounting Requirements:

1. Circumstance temperature -5°C ~ +40°C, average temperature not exceeding 35°C.
2. Altitude above sea level less than 2000 m.
3. Humidity not exceeding 50% at 40°C and not exceeding 90% at 25°C.
4. Installation class II or III.
5. Pollution class 2.
6. Installation method DIN Rail mounting type.
7. The external magnetism shall not be more than 5 times of terrestrial one.
8. Product shall be installed vertically at the place where there shall be no severe impact and vibration. The product is switched on when the handle is at upper position.

Technical parameter

1. Electromagnetic and Electronic type
2. 35mm wide for 2 pole Din Rail installation.
3. Standsrd: IEC1008/EN61008
4. Rated Voltage(Un): 2pole, 230V AC
5. Rated Current(In): 25, 40, 63A
6. Rated residual operating current(I△n): 30, 100, 300, 500mA
7. Rated residual non-operating current(I△no): 0.5 I△n
8. Residual current off-time: ≤0.1s
9. Minimum value of rated breaking capacity(lm): 630A
10. Rated conditional short-circuit capacity (lnc): 10KA

Flexibilit:
With a wide range of currents and rated trip current available, the appropriate level of protection can be chosen for specific applications for either personnel or equipment protection.

Dimensions(mm):

PF-4P Dimension

PDF Download

[Download not found]Meba Residual Current Eevice PF-4P open a circuit automatically in the event of an earth fault between phase and earth and/or netural and earth.

Categories
Residual Current Circuit Breaker

Meba Electrical Rccb RCD PF-2P

meba electrical rccb PF-2P

Specification

Earth Leakage Circuit Breaker(ELCB), Residual Current Device(RCD), Residual Current Circuit Breaker(RCCB)
Brand Name: Meba
Model Number: OLL7-4
Type: Residual Current Circuit Breaker or Residual Current Device
Poles Number: 2P

Application：

1. OLL7-4, Residual Current Devices for earth leakage detection.

2. It is to be used in association with miniature circuit breakers, its function is to detect earth leakage current and open the connected circuit to protect people and equipment, major used in industrial application.

3. These devices are designed to meet the Earth Leakage Protection Standards of the IEC: IEC/EN 61008.

Merits：

Good quality , high breaking capability, updated structure,quick trip and guide installation, competitive price,excellent and safe performance,beautiful and compact appearance, etc .

Mounting Requirements:

1. Circumstance temperature -5°C ~ +40°C, average temperature not exceeding 35°C.
2. Altitude above sea level less than 2000 m.
3. Humidity not exceeding 50% at 40°C and not exceeding 90% at 25°C.
4. Installation class II or III.
5. Pollution class 2.
6. Installation method DIN Rail mounting type.
7. The external magnetism shall not be more than 5 times of terrestrial one.
8. Product shall be installed vertically at the place where there shall be no severe impact and vibration. The product is switched on when the handle is at upper position.

Technical parameter

1. Electromagnetic and Electronic type
2. 35mm wide for 2 pole Din Rail installation.
3. Standsrd: IEC1008/EN61008
4. Rated Voltage(Un): 2pole, 230V AC
5. Rated Current(In): 25, 40, 63A
6. Rated residual operating current(I△n): 30, 100, 300, 500mA
7. Rated residual non-operating current(I△no): 0.5 I△n
8. Residual current off-time: ≤0.1s
9. Minimum value of rated breaking capacity(lm): 630A
10. Rated conditional short-circuit capacity (lnc): 10KA

Flexibilit:
With a wide range of currents and rated trip current available, the appropriate level of protection can be chosen for specific applications for either personnel or equipment protection.

Dimensions(mm):

PDF Download

[Download not found]Meba Electrical Rccb RCD PF-2P open a circuit automatically in the event of an earth fault between phase and earth and/or netural and earth.

Categories
Residual Current Circuit Breaker

Meba Rcd Electrical Safety Device OLL7-4 4P

meba rccb breaker OLL7-4 4P

Specification

Earth Leakage Circuit Breaker(ELCB), Residual Current Device(RCD), Residual Current Circuit Breaker(RCCB)
Brand Name: Meba
Model Number: OLL7-4
Type: Residual Current Circuit Breaker or Residual Current Device
Poles Number: 4P

Application：

1. OLL7-4, Residual Current Devices for earth leakage detection.

2. It is to be used in association with miniature circuit breakers, its function is to detect earth leakage current and open the connected circuit to protect people and equipment, major used in industrial application.

3. These devices are designed to meet the Earth Leakage Protection Standards of the IEC: IEC/EN 61008.

Merits：

Good quality , high breaking capability, updated structure,quick trip and guide installation, competitive price,excellent and safe performance,beautiful and compact appearance, etc .

Mounting Requirements:

1. Circumstance temperature -5°C ~ +40°C, average temperature not exceeding 35°C.
2. Altitude above sea level less than 2000 m.
3. Humidity not exceeding 50% at 40°C and not exceeding 90% at 25°C.
4. Installation class II or III.
5. Pollution class 2.
6. Installation method DIN Rail mounting type.
7. The external magnetism shall not be more than 5 times of terrestrial one.
8. Product shall be installed vertically at the place where there shall be no severe impact and vibration. The product is switched on when the handle is at upper position.

Technical parameter

1. Electromagnetic and Electronic type
2. 70mm wide for 2 pole Din Rail installation.
3. Standsrd: IEC1008/EN61008
4. Rated Voltage(Un): 2pole, 230V AC
5. Rated Current(In): 25, 40, 63A
6. Rated residual operating current(I△n): 30, 100, 300, 500mA
7. Rated residual non-operating current(I△no): 0.5 I△n
8. Residual current off-time: ≤0.1s
9. Minimum value of rated breaking capacity(lm): 630A
10. Rated conditional short-circuit capacity (lnc): 10KA

PDF Download

[Download not found]Meba Rcd Electrical Safety Device OLL7-4 4P open a circuit automatically in the event of an earth fault between phase and earth and/or netural and earth.

Categories
Residual Current Circuit Breaker

Meba Earth Leakage Protection OLL7-4 2P

meba elcb circuit OLL7-4 2P

Specification

Earth Leakage Circuit Breaker(ELCB), Residual Current Device(RCD), Residual Current Circuit Breaker(RCCB)
Brand Name: Meba
Model Number: OLL7-4
Type: Residual Current Circuit Breaker or Residual Current Device
Poles Number: 2P

Application：

1. OLL7-4, Residual Current Devices for earth leakage detection.

2. It is to be used in association with miniature circuit breakers, its function is to detect earth leakage current and open the connected circuit to protect people and equipment, major used in industrial application.

3. These devices are designed to meet the Earth Leakage Protection Standards of the IEC: IEC/EN 61008.

Merits：

Good quality , high breaking capability, updated structure,quick trip and guide installation, competitive price,excellent and safe performance,beautiful and compact appearance, etc .

Mounting Requirements:

1. Circumstance temperature -5°C ~ +40°C, average temperature not exceeding 35°C.
2. Altitude above sea level less than 2000 m.
3. Humidity not exceeding 50% at 40°C and not exceeding 90% at 25°C.
4. Installation class II or III.
5. Pollution class 2.
6. Installation method DIN Rail mounting type.
7. The external magnetism shall not be more than 5 times of terrestrial one.
8. Product shall be installed vertically at the place where there shall be no severe impact and vibration. The product is switched on when the handle is at upper position.

Technical parameter

1. Electromagnetic and Electronic type
2. 35mm wide for 2 pole Din Rail installation.
3. Standsrd: IEC1008/EN61008
4. Rated Voltage(Un): 2pole, 230V AC
5. Rated Current(In): 25, 40, 63A
6. Rated residual operating current(I△n): 30, 100, 300, 500mA
7. Rated residual non-operating current(I△no): 0.5 I△n
8. Residual current off-time: ≤0.1s
9. Minimum value of rated breaking capacity(lm): 630A
10. Rated conditional short-circuit capacity (lnc): 10KA

PDF Download

[Download not found]Meba Earth Leakage Protection OLL7-4 2P open a circuit automatically in the event of an earth fault between phase and earth and/or netural and earth.

Categories
Junction Box

Meba light junction box BT80×50

Meba light junction box BT80×50

Specification

Meba light junction box BT80×50 this water proof junction box is made of ABS, PC etc, elegant external shape, high firmness, IP65 waterproof class. This product is suitable for indoor and outdoor electrical ,electronic,communication,fire equipment ,control    panel .terminal BOX,PCB BOX,shipping,oil chemical,large factories,coastal factories, discharging terminal  equipment,dirty waste water treatment facilities,environmental hazards facilities,etc.

Parameter

Technical Parameter:

Meba light junction box BT80×50

1.Waterproof junction box purpose:
Electrical, electronics, communication, fire fighting,Equipment, control panel, terminal box, large factory, coastal plant, environmental,Hazard facility, etc.

Materials can be selected according to the customer’s requirements.

2. Features:

1) Easy and safe to use

2) The branch line runs parallel to the main cable

3) High moisture resistance and excellent mechanical protection

4) Full range of sizes available

Available sizes as following:

BA　Specification/Dimension L W H Holes IP Class
BA 50*50 50 50 4 IP44
BA 80*50 80 50 4 IP44
BA 85*85*50 85 85 50 7 IP44
BA 100*100*70 100 100 70 7 IP65
BA 150*110*70 150 110 70 10 IP65
BA 150*150*70 150 150 70 7 IP65
BA 200*100*70 200 100 70 8 IP65
BA 200*155*80 200 155 80 10 IP65
BA 255*200*80 255 200 80 12 IP65
BA 300*250*120 300 250 120 12 IP65
BA 400*350*120 400 350 120 16 IP65
BT  Specification/Dimension L W H Holes IP Class
BT 50*50 50 50 4 IP44
BT 80*50 80 50 4 IP44
BT 85*85*50 85 85 50 7 IP44
BT 100*100*70 100 100 70 7 IP65
BT 150*110*70 150 110 70 10 IP65
BT 150*150*70 150 150 70 7 IP65
BT 200*100*70 200 100 70 8 IP65
BT 200*155*80 200 155 80 10 IP65
BT 255*200*80 255 200 80 12 IP65
BT 300*250*120 300 250 120 12 IP65
BT 400*350*120 400 350 120 16 IP65
Junction box dimension
Junction box dimension
Categories
Junction Box

Meba junction boxes BT85×85×50

Meba junction boxes BT85×85×50

Specification

Meba junction boxes BT85×85×50 this water proof junction box is made of ABS, PC etc, elegant external shape, high firmness, IP65 waterproof class. This product is suitable for indoor and outdoor electrical ,electronic,communication,fire equipment ,control    panel .terminal BOX,PCB BOX,shipping,oil chemical,large factories,coastal factories, discharging terminal  equipment,dirty waste water treatment facilities,environmental hazards facilities,etc.

Parameter

 Technical Parameter:

Meba junction boxes BT85×85×50

1.Waterproof junction box purpose:

Electrical, electronics, communication, fire fighting,Equipment, control panel, terminal box, large factory, coastal plant, environmental,Hazard facility, etc. Materials can be selected according to the customer’s requirements.

2. Features:

1) Easy and safe to use

2) The branch line runs parallel to the main cable

3) High moisture resistance and excellent mechanical protection

4) Full range of sizes available

Available sizes as following:

BA　Specification/Dimension L W H Holes IP Class
BA 50*50 50 50 4 IP44
BA 80*50 80 50 4 IP44
BA 85*85*50 85 85 50 7 IP44
BA 100*100*70 100 100 70 7 IP65
BA 150*110*70 150 110 70 10 IP65
BA 150*150*70 150 150 70 7 IP65
BA 200*100*70 200 100 70 8 IP65
BA 200*155*80 200 155 80 10 IP65
BA 255*200*80 255 200 80 12 IP65
BA 300*250*120 300 250 120 12 IP65
BA 400*350*120 400 350 120 16 IP65
BT  Specification/Dimension L W H Holes IP Class
BT 50*50 50 50 4 IP44
BT 80*50 80 50 4 IP44
BT 85*85*50 85 85 50 7 IP44
BT 100*100*70 100 100 70 7 IP65
BT 150*110*70 150 110 70 10 IP65
BT 150*150*70 150 150 70 7 IP65
BT 200*100*70 200 100 70 8 IP65
BT 200*155*80 200 155 80 10 IP65
BT 255*200*80 255 200 80 12 IP65
BT 300*250*120 300 250 120 12 IP65
BT 400*350*120 400 350 120 16 IP65



Junction box dimension
Junction box dimension
Categories
Junction Box

Meba junction box electrical ED-85×85×50

Meba junction box electrical ED-85×85×50

Specification

Meba junction box electrical ED-85×85×50 this water proof junction box is made of ABS, PC etc, elegant external shape, high firmness, IP65 waterproof class. This product is suitable for indoor and outdoor electrical ,electronic,communication,fire equipment ,control    panel .terminal BOX,PCB BOX,shipping,oil chemical,large factories,coastal factories, discharging terminal  equipment,dirty waste water treatment facilities,environmental hazards facilities,etc.

Parameter

Technical Parameter:

Meba junction box electrical ED-85×85×50

1.Waterproof junction box purpose:
Electrical, electronics, communication, fire fighting,Equipment, control panel, terminal box, large factory, coastal plant, environmental,Hazard facility, etc.

Materials can be selected according to the customer’s requirements.

2. Features:

1) Easy and safe to use

2) The branch line runs parallel to the main cable

3) High moisture resistance and excellent mechanical protection

4) Full range of sizes available

Available sizes as following:

BA　Specification/Dimension L W H Holes IP Class
BA 50*50 50 50 4 IP44
BA 80*50 80 50 4 IP44
BA 85*85*50 85 85 50 7 IP44
BA 100*100*70 100 100 70 7 IP65
BA 150*110*70 150 110 70 10 IP65
BA 150*150*70 150 150 70 7 IP65
BA 200*100*70 200 100 70 8 IP65
BA 200*155*80 200 155 80 10 IP65
BA 255*200*80 255 200 80 12 IP65
BA 300*250*120 300 250 120 12 IP65
BA 400*350*120 400 350 120 16 IP65
BT  Specification/Dimension L W H Holes IP Class
BT 50*50 50 50 4 IP44
BT 80*50 80 50 4 IP44
BT 85*85*50 85 85 50 7 IP44
BT 100*100*70 100 100 70 7 IP65
BT 150*110*70 150 110 70 10 IP65
BT 150*150*70 150 150 70 7 IP65
BT 200*100*70 200 100 70 8 IP65
BT 200*155*80 200 155 80 10 IP65
BT 255*200*80 255 200 80 12 IP65
BT 300*250*120 300 250 120 12 IP65
BT 400*350*120 400 350 120 16 IP65



Junction box dimension
Junction box dimension
Categories
Junction Box

Meba junction box BA85x85x50

Meba junction box BA85x85x50

Specification

Meba junction box BA85x85x50 this water proof junction box is made of ABS, PC etc, elegant external shape, high firmness, IP65 waterproof class. This product is suitable for indoor and outdoor electrical ,electronic,communication,fire equipment ,control    panel .terminal BOX,PCB BOX,shipping,oil chemical,large factories,coastal factories, discharging terminal  equipment,dirty waste water treatment facilities,environmental hazards facilities,etc.

Parameter

Technical Parameter:

Meba junction box BA85x85x50

1.Waterproof junction box purpose:
Electrical, electronics, communication, fire fighting,Equipment, control panel, terminal box, large factory, coastal plant, environmental,Hazard facility, etc.

Materials can be selected according to the customer’s requirements.

2. Features:

1) Easy and safe to use

2) The branch line runs parallel to the main cable

3) High moisture resistance and excellent mechanical protection

4) Full range of sizes available

Available sizes as following:

BA　Specification/Dimension L W H Holes IP Class
BA 50*50 50 50 4 IP44
BA 80*50 80 50 4 IP44
BA 85*85*50 85 85 50 7 IP44
BA 100*100*70 100 100 70 7 IP65
BA 150*110*70 150 110 70 10 IP65
BA 150*150*70 150 150 70 7 IP65
BA 200*100*70 200 100 70 8 IP65
BA 200*155*80 200 155 80 10 IP65
BA 255*200*80 255 200 80 12 IP65
BA 300*250*120 300 250 120 12 IP65
BA 400*350*120 400 350 120 16 IP65
BT  Specification/Dimension L W H Holes IP Class
BT 50*50 50 50 4 IP44
BT 80*50 80 50 4 IP44
BT 85*85*50 85 85 50 7 IP44
BT 100*100*70 100 100 70 7 IP65
BT 150*110*70 150 110 70 10 IP65
BT 150*150*70 150 150 70 7 IP65
BT 200*100*70 200 100 70 8 IP65
BT 200*155*80 200 155 80 10 IP65
BT 255*200*80 255 200 80 12 IP65
BT 300*250*120 300 250 120 12 IP65
BT 400*350*120 400 350 120 16 IP65



Junction box dimension

Junction box dimension

Categories
Residual Current Circuit Breaker

Meba Rcd Electrical Safety OLL7-3 4P

meba rcd elcb OLL7-3 4P

Specification

Earth Leakage Circuit Breaker(ELCB), Residual Current Device(RCD), Residual Current Circuit Breaker(RCCB)
Brand Name: Meba
Model Number: OLL7-3
Type: Residual Current Circuit Breaker or Residual Current Device
Poles Number: 4P

Application：

1. OLL7-3, Residual Current Devices for earth leakage detection.

2. It is to be used in association with miniature circuit breakers, its function is to detect earth leakage current and open the connected circuit to protect people and equipment, major used in industrial application.

3. These devices are designed to meet the Earth Leakage Protection Standards of the IEC: IEC/EN 61008.

Merits：

Good quality , high breaking capability, updated structure,quick trip and guide installation, competitive price,excellent and safe performance,beautiful and compact appearance, etc .

Mounting Requirements:

1. Circumstance temperature -5°C ~ +40°C, average temperature not exceeding 35°C.
2. Altitude above sea level less than 2000 m.
3. Humidity not exceeding 50% at 40°C and not exceeding 90% at 25°C.
4. Installation class II or III.
5. Pollution class 2.
6. Installation method DIN Rail mounting type.
7. The external magnetism shall not be more than 5 times of terrestrial one.
8. Product shall be installed vertically at the place where there shall be no severe impact and vibration. The product is switched on when the handle is at upper position.

Techincal paraeter

1. Electromagnetic and Electronic type
2. 70mm wide for 2 pole Din Rail installation.
3. Standsrd: IEC1008/EN61008
4. Rated Voltage(Un): 2pole, 230V AC
5. Rated Current(In): 25, 40, 63A
6. Rated residual operating current(I△n): 30, 100, 300, 500mA
7. Rated residual non-operating current(I△no): 0.5 I△n
8. Residual current off-time: ≤0.1s
9. Minimum value of rated breaking capacity(lm): 630A
10. Rated conditional short-circuit capacity (lnc): 6KA

PDF Download

[Download not found]Meba Rcd Electrical Safety OLL7-3 4P open a circuit automatically in the event of an earth fault between phase and earth and/or netural and earth.

Categories
Junction Box

Meba fuse box BA50x50

Meba fuse box BA50x50

Specification

Meba fuse box BA50x50  this water proof junction box is made of ABS, PC etc, elegant external shape, high firmness, IP65 waterproof class. This product is suitable for indoor and outdoor electrical ,electronic,communication,fire equipment ,control    panel .terminal BOX,PCB BOX,shipping,oil chemical,large factories,coastal factories, discharging terminal  equipment,dirty waste water treatment facilities,environmental hazards facilities,etc.

Parameter

Technical Parameter:

Meba fuse box BA50x50

1.Waterproof junction box purpose:
Electrical, electronics, communication, fire fighting,Equipment, control panel, terminal box, large factory, coastal plant, environmental,Hazard facility, etc.

Materials can be selected according to the customer’s requirements.

2. Features:

1) Easy and safe to use

2) The branch line runs parallel to the main cable

3) High moisture resistance and excellent mechanical protection

4) Full range of sizes available

Available sizes as following:

BA　Specification/Dimension L W H Holes IP Class
BA 50*50 50 50 4 IP44
BA 80*50 80 50 4 IP44
BA 85*85*50 85 85 50 7 IP44
BA 100*100*70 100 100 70 7 IP65
BA 150*110*70 150 110 70 10 IP65
BA 150*150*70 150 150 70 7 IP65
BA 200*100*70 200 100 70 8 IP65
BA 200*155*80 200 155 80 10 IP65
BA 255*200*80 255 200 80 12 IP65
BA 300*250*120 300 250 120 12 IP65
BA 400*350*120 400 350 120 16 IP65
BT  Specification/Dimension L W H Holes IP Class
BT 50*50 50 50 4 IP44
BT 80*50 80 50 4 IP44
BT 85*85*50 85 85 50 7 IP44
BT 100*100*70 100 100 70 7 IP65
BT 150*110*70 150 110 70 10 IP65
BT 150*150*70 150 150 70 7 IP65
BT 200*100*70 200 100 70 8 IP65
BT 200*155*80 200 155 80 10 IP65
BT 255*200*80 255 200 80 12 IP65
BT 300*250*120 300 250 120 12 IP65
BT 400*350*120 400 350 120 16 IP65
Junction box dimension
Junction box dimension
Categories
Junction Box

Meba gang box BA255×200×80

Meba gang box BA255×200×80

Specification

Meba gang box BA255×200×80 this water proof junction box is made of ABS, PC etc, elegant external shape, high firmness, IP65 waterproof class. This product is suitable for indoor and outdoor electrical ,electronic,communication,fire equipment ,control    panel .terminal BOX,PCB BOX,shipping,oil chemical,large factories,coastal factories, discharging terminal  equipment,dirty waste water treatment facilities,environmental hazards facilities,etc.

Parameter

Technical Parameter:

Meba gang box BA255×200×80

1.Waterproof junction box purpose:
Electrical, electronics, communication, fire fighting,Equipment, control panel, terminal box, large factory, coastal plant, environmental,Hazard facility, etc.

Materials can be selected according to the customer’s requirements.

2. Features:

1) Easy and safe to use

2) The branch line runs parallel to the main cable

3) High moisture resistance and excellent mechanical protection

4) Full range of sizes available

Available sizes as following:

BA　Specification/Dimension L W H Holes IP Class
BA 50*50 50 50 4 IP44
BA 80*50 80 50 4 IP44
BA 85*85*50 85 85 50 7 IP44
BA 100*100*70 100 100 70 7 IP65
BA 150*110*70 150 110 70 10 IP65
BA 150*150*70 150 150 70 7 IP65
BA 200*100*70 200 100 70 8 IP65
BA 200*155*80 200 155 80 10 IP65
BA 255*200*80 255 200 80 12 IP65
BA 300*250*120 300 250 120 12 IP65
BA 400*350*120 400 350 120 16 IP65
BT  Specification/Dimension L W H Holes IP Class
BT 50*50 50 50 4 IP44
BT 80*50 80 50 4 IP44
BT 85*85*50 85 85 50 7 IP44
BT 100*100*70 100 100 70 7 IP65
BT 150*110*70 150 110 70 10 IP65
BT 150*150*70 150 150 70 7 IP65
BT 200*100*70 200 100 70 8 IP65
BT 200*155*80 200 155 80 10 IP65
BT 255*200*80 255 200 80 12 IP65
BT 300*250*120 300 250 120 12 IP65
BT 400*350*120 400 350 120 16 IP65



Junction box dimension
Junction box dimension
