Residual Current Circuit Breaker

Meba Residual Current Device CF-364

meba Residual Current Circuit Breaker CF364

Specification

Earth Leakage Circuit Breaker(ELCB), Residual Current Device(RCD), Residual Current Circuit Breaker(RCCB)
Brand Name: Meba
Model Number: CF-364
Type: Residual Current Circuit Breaker or Residual Current Device
Poles Number: 4P

Specification：

1. CF-364, Residual Current Devices for earth leakage detection. It is to be used in association with miniature circuit breakers.

2. Its function is to detect earth leakage current and open the connected circuit to protect people and equipment, major used in industrial application.

3. These devices are designed to meet the Earth Leakage Protection Standards of the IEC: IEC/EN 61008.

Merits：

Good quality , high breaking capability, updated structure,quick trip and guide installation, competitive price,excellent and safe performance,beautiful and compact appearance, etc .

Technical parameter

1. Electromagnetic and Electronic type
2. 35mm wide for 4 pole Din Rail installation.
3. Standsrd: IEC1008/EN61008
4. Rated Voltage(Un): 4pole, 230V AC
5. Rated Current(In): 25, 40, 63A
6. Rated residual operating current(I△n): 30, 100, 300, 500mA
7. Rated residual non-operating current(I△no): 0.5 I△n
8. Residual current off-time: ≤0.1s
9. Minimum value of rated breaking capacity(lm): 630A
10. Rated conditional short-circuit capacity (lnc): 6KA

PDF Download

[Download not found]Meba Residual Current  Device CF-364  is precise in structure, less elements, without auxiliary power and high working reliability.

Categories
Surge Protective Device

Meba lightning arrester MBD6-40

Meba lightening arrester MBD6-4

Specification

Meba lightning arrester MBD6-40

Parameter

Meba lightning arrester MBD6-40

Installation

– MBD6-40 is mounted between LPZ1 or LPZ2 zone and LPZ3 zone. The cross sectional area of multi-strand soft copper conductor to be connected: 2.5 – 35 mm2. It is used in distribution boxes of living house, computer center, communication equipment, electronic equipment and control equipment or nearest socket box.
– MBD6-40 is mounted between LPZ0B or LPZ1 zone and LPZ2 zone. The cross sectional area of multi-strand soft copper conductor to be connected: 2.5 – 35 mm2.

The Contact
Contact for remote communication can be provided for SPD, the contact has one pair for transferring, 11 as middle position, 12 and 11 opened under SPD acting, 14 and 11 closed under SPD acting, 11 and 14 as NO contact . If one or more of modules of SPD is invalid, the contact will be closed and send fault signal.

Model and Signification

Technical Parameter

Model and specification MBD6-20 MBD6-40 MBD6-60
Maxi continuous operating voltage 420 385 320 275 420 385 320 275 420 385 320 275
Voltage protective level 1.8 1.5 1.3 1.2 2.0 1.8 1.6 1.3 2.5 2.0 1.8 1.6
Maxi discharging current 20 40 60
Nominal discharging current 10 20 30
Response time <25
Protection grade IP20
Indication of invalidation Aging invalidation: white: Normal, red: invalidation
Application Protection for in line
Remote signal Function Can also picking
Remarks Other maxi continuous operating voltage Can be customized

Outside Size Fig

Categories
Residual Current Circuit Breaker

Meba Residual Current Circuit Breaker CF-362

meba rccb CF362

Specification

Earth Leakage Circuit Breaker(ELCB), Residual Current Device(RCD), Residual Current Circuit Breaker(RCCB)
Brand Name: Meba
Model Number: CF-362
Type: Residual Current Circuit Breaker or Residual Current Device
Poles Number: 2P

Specification：

1. CF-362, Residual Current Devices for earth leakage detection. It is to be used in association with miniature circuit breakers.

2. Its function is to detect earth leakage current and open the connected circuit to protect people and equipment, major used in industrial application.

3. These devices are designed to meet the Earth Leakage Protection Standards of the IEC: IEC/EN 61008.

Merits：

Good quality , high breaking capability, updated structure,quick trip and guide installation, competitive price,excellent and safe performance,beautiful and compact appearance, etc .

Technical parameter

1. Electromagnetic and Electronic type
2. 35mm wide for 2 pole Din Rail installation.
3. Standsrd: IEC1008/EN61008
4. Rated Voltage(Un): 2pole, 230V AC
5. Rated Current(In): 25, 40, 63A
6. Rated residual operating current(I△n): 30, 100, 300, 500mA
7. Rated residual non-operating current(I△no): 0.5 I△n
8. Residual current off-time: ≤0.1s
9. Minimum value of rated breaking capacity(lm): 630A
10. Rated conditional short-circuit capacity (lnc): 6KA

PDF Download

[Download not found] Meba Residual Current Circuit Breaker CF-362  is precise in structure, less elements, without auxiliary power and high working reliability.

Categories
Limit Switch

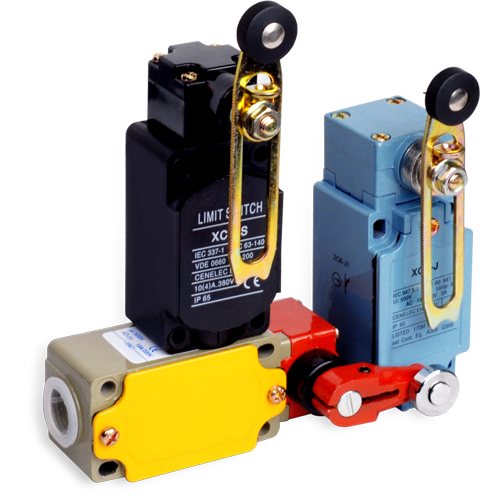

Meba limit switches XCK

Meba limit switches XCK

Specification

Meba limit switches XCK  are applicable to AC control circuits of 40 to 60Hz, with a voltage up to 500V or DC control circuits with a voltage up to 600V, and a current up to 10A to convert a mechanical signal into an electrical signal for the purpose of controlling mechanical movement or performing sequential control.

Function and Characteristics:

*Long life, high reliability.
*Safe reliable basic switch.
*Variety of levers and connect terminals.
*A variety of models with low operating force to high force are sensitivity.
*Nice appearance, tight configuration, characteristic, quick action and high sensitivity.
*Mainly used in microwave oven, air condition, electric cooker, dishwasher, cleaner, humidifier, Water heater, electric drill, joystick, TV game, time recorder, solder gun, mixer, Food processor, juice maker, alarm, mixer, shredder machine, etc.

Parameter

Meba limit switches XCK  are ideal electrical control switches in mechanical and other industries. They have features of complete specifications and varieties of types, compact structure, nice appearance, excellent performance, flexible and reliable action, easy installation, operation, maintenance and adjustment.

XCK-j XCK-S XCK-T
Categories
Metal Distribution Board

Meba Metal Electrical Panel GTL412C

meba electrical panel GTL412C

Application

1. This is an assembly of electro-conductive parts consisting of miniature circuit breakers (MCB) of various rating, isolator switch, busbar, neutral & earth bars, all enclosed in a steel metal case for circuits of single-phase or three phase.

2. They contain equipment for protecting, switching and controlling cables and apparatus.

3. Distribution boards are used in private, commercial and industrial installations, for distribution of power to final sub-circuits, such as lighting circuits and small rated power circuits.

4. It could be surfaced mounted or flushed mounted with removable cover and breakable inters on both top and bottom sides for cable entries.

Technical Parameter

Product Number Guide

Technical Data

Product Number Front Type Main Ampere Rating 1″Spaces 1/2″Spaces Total 1-pole Spaces
1 Pole 2 Pole 1 Pole 2 Pole
GTL240S Surface 40 2 1 4 1 4
GTL412C Combination 125 4 2 8 3 8
GTL612F Flush 125 6 3 12 4 12
GTL612FD Flush 125 6 3 12 4 12
GTLM612FM Flush 125 6 3 12 4 12
GTL612S Surface 125 6 3 12 4 12
GTL612SD Surface 125 6 3 12 4 12
GTLM612SM Surface 125 6 3 12 4 12
GTL812F Flush 125 8 4 16 8 16
GTL812FD Flush 125 8 4 16 8 16
GTLM812FM Flush 125 8 4 16 8 16
GTL812S Surface 125 8 4 16 8 16
GTL812SD Surface 125 8 4 16 8 16
GTLM812SM Surface 125 8 4 16 8 16
GTLM1212C Combination 200 12 6 24 10 24
GTLM1212CM Combination 200 12 6 24 10 24
GTLM1620C Combination 200 16 8 32 14 32
GTLM1620CM Combination 200 16 8 32 14 32
GTLM2020C Combination 200 20 10 40 18 40
GTLM2020CM Combination 200 20 10 40 18 40
GTLM2412CM Combination 125 24 12 – – 24
GTLM2420C Combination 200 24 12 42 18 42
GTLM2420CM Combination 200 24 12 42 18 42
GTLM3220C Combination 200 32 16 16 6 32
GTLM3220CM Combination 200 32 16 16 6 32
GTLM4020C Combination 200 40 20 – – 40
GTLM4020CM Combination 200 40 20 – – 40
GTLM4222C Combination 225 42 20 – – 42
GTLM4222CM Combination 225 42 20 – – 42

PDF Downlaod

[Download not found]  Meba Metal Electrical Panel GTL412C Wider enclosure offers ease or wiring and move heat dissipation.

Categories
Limit Switch

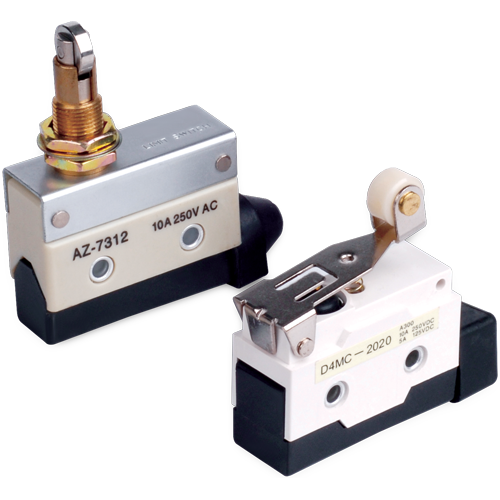

Meba limit switch AZ7312

Meba limit switch AZ7312

Specification

Meba limit switch AZ7312 are applicable to AC control circuits of 40 to 60Hz, with a voltage up to 500V or DC control circuits with a voltage up to 600V, and a current up to 10A to convert a mechanical signal into an electrical signal for the purpose of controlling mechanical movement or performing sequential control.

Parameter

Meba limit switch AZ7312 are ideal electrical control switches in mechanical and other industries. They have features of complete specifications and varieties of types, compact structure, nice appearance, excellent performance, flexible and reliable action, easy installation, operation, maintenance and adjustment.

Meba limit switch AZ7312

Categories
Limit Switch

Meba high limit switch XCKP

Meba high limit switch XCKP

Specification

Meba high limit switch XCKP are applicable to AC control circuits of 40 to 60Hz, with a voltage up to 500V or DC control circuits with a voltage up to 600V, and a current up to 10A to convert a mechanical signal into an electrical signal for the purpose of controlling mechanical movement or performing sequential control.

Function and Characteristics:

*Long life, high reliability.
*Safe reliable basic switch.
*Variety of levers and connect terminals.
*A variety of models with low operating force to high force are sensitivity.
*Nice appearance, tight configuration, characteristic, quick action and high sensitivity.
*Mainly used in microwave oven, air condition, electric cooker, dishwasher, cleaner, humidifier, Water heater, electric drill, joystick, TV game, time recorder, solder gun, mixer, Food processor, juice maker, alarm, mixer, shredder machine, etc.

Parameter

Meba high limit switch XCKP are ideal electrical control switches in mechanical and other industries. They have features of complete specifications and varieties of types, compact structure, nice appearance, excellent performance, flexible and reliable action, easy installation, operation, maintenance and adjustment.

XCK-P

Categories
Motor Siren

Meba Industrial Electric Motor Siren MS190

Meba industrial electric motor siren MS190

Specification

Content:

1. Industrial Electric Moter Siren with the external diameter of 80/100mm which makes the output of 40W sound volume.

2. Suitable for warning information of small hoist, light transfer cars and the inside of small vessel.

3. Body standard color : RED

4. Material : STEEL & ABS

5. Insulation resistance : 100MΩ(at 500 VDC)

6. Dielectric strength : 500VAC, 50/60Hz in 1 minute

7. Protection class : IP44



Technical Data:

Model Voltage Current(A) Frequency(Hz) Decibel Packing Size QTY Weight
MS-190 DC12V 6 50/60 114dB 44.5*23*48cm 40pcs 16kg
DC24V 2.5 50/60 114dB 16kg
AC110V 0.9 50/60 114dB 22kg
AC220V 0.43 50/60 114dB 22kg



Features:

1. Special motor: High-quality motor, rotating speed of 10000 rev / sec.
2. Duration: Sustainable working hours to 40 minutes.



Shape:

meba-ms190-motor-siren-shape

Categories
Motor Siren

Meba Electric Motor Sirens MS290A

meba electric motor sirens MS290A

Specification

Content:

1. Electric Moter Sirens with the external diameter of 80/100mm which makes the output of 40W sound volume.

2. Suitable for warning information of small hoist, light transfer cars and the inside of small vessel.

3. Body standard color : RED

4. Material : STEEL & ABS

5. Insulation resistance : 100MΩ(at 500 VDC)

6. Dielectric strength : 500VAC, 50/60Hz in 1 minute

7. Protection class : IP44



Technical Data:

Model Voltage Current(A) Frequency(Hz) Decibel Packing Size QTY Weight
MS-290A DC12V 5.8 60 116dB 53.5*34*41.5cm 24pcs 16kg
DC24V 2.1 60 116dB 16kg
AC110V 1.6 60 116dB 22kg
AC220V 0.8 60 116dB 22kg



Features:

1. Special motor: High-quality motor, rotating speed of 10000 rev / sec.
2. Duration: Sustainable working hours to 40 minutes.



Shape:

meba-ms209-motor-siren















Categories
Star Delta Starter

Meba star delta starter LC3-D093

Meba star delta starter LC3-D093

Specification

Meba star delta starter LC3-D093 is suitable for starting motor in the circuit ofAC 50/60Hz, voltage up to 660V and current up to 95A. It is provided with a timer for automatic changeover of start-delta to reduce the voltage and current of motor starter. It complies with IEC947-4-1.

Parameter

Meba star delta starter LC3-D093

Technical Data
Type Rated operating current (A) 3-phase motor capacity(kw)
AC3 AC3 Loaded
220V 380V 415V 440V
LC3-D093 9 4 7.5 7.5 7.5
LC3-D123 12 5.5 11 11 11
LC3-D183 18 11 18.5 22 22
LC3-D253 25 11 22 22 22
LC3-D323 32 15 25 30 30
LC3-D403 40 18.5 37 37 37
LC3-D503 50 30 55 59 59
LC3-D653 65 32 55 59 59
LC3-D803 80 37 75 75 75
LC3-D953 95 45 80 80 80
Categories
Star Delta Starter

Meba star delta motor LC3-D653

Meba star delta motor LC3-D653

Specification

Meba star delta motor LC3-D653 is suitable for starting motor in the circuit ofAC 50/60Hz, voltage up to 660V and current up to 95A. It is provided with a timer for automaticchangeover of start-delta to reduce the voltage and current of motor starter. It complies with IEC947-4-1.

Parameter

Meba star delta motor LC3-D653

Technical Data
Type Rated operating current (A) 3-phase motor capacity(kw)
AC3 AC3 Loaded
220V 380V 415V 440V
LC3-D093 9 4 7.5 7.5 7.5
LC3-D123 12 5.5 11 11 11
LC3-D183 18 11 18.5 22 22
LC3-D253 25 11 22 22 22
LC3-D323 32 15 25 30 30
LC3-D403 40 18.5 37 37 37
LC3-D503 50 30 55 59 59
LC3-D653 65 32 55 59 59
LC3-D803 80 37 75 75 75
LC3-D953 95 45 80 80 80
Categories
Magnetic Starter Or Motor Starter

Meba starter magnetic switch LE1D23

Meba starter magnetic switch LE1D23

Specification

Meba starter magnetic switch LE1D23 is mainly applied to circuit of AC 50 or 60HZ, voltage up to 550V for far distance making and breaking circuit and frequently starting and controlling motor. It has the features of small volume, light weight, safe and reliable performance etc.

Parameter

Meba starter magnetic switch LE1D23

Technical Data
LE1-D AC telemecanique magnetic motor starter switch

Specifications

Product mode No.and specificatiol LE1-09 and 12 Double in sulated,protected to IP429(3) or IP659(4)
Enclosure LE1-18 and 25 Double in sulated,protected to IP427(3) or IP557(4)
LE1-32 ~ 95 Metal, IP55 to IP559
Control(2 push buttons moufited on enclosure cover) LE1-09 ~ 95 1 Green start button ’I’, ‘I’ Red stop/Teset buttion “O”
Connections LE1-09 ~ 95 Electricol power and control recircuit connections



LE1-D AC telemecanique magnetic motor starter switch

Standard control circuit voltages

Volts 24 42 48 110 220/230 230 240 380/400 400 415 440
50/60Hz B7 D7 E7 F7 M7 P7 U7 Q7 V7 N7 R7



LE1-D AC telemecanique magnetic motor starter switch

Maximum power AC3 duty(KW) Rated current (A) Type of enclosure Code number Suitable thermal relay
220V 230V 380V 400V 415V 440V 500V 660V 690V Long Life Normal life
2.2 4 4 4 4 4 9 IP42
IP65		 LE1-D094
LE1-D093		 LR2 D1312
LR2 D1314
3 5.5 5.5 5.5 5.5 5.5 12 IP45
IP55		 LE1-D124
LE1-D123		 LE1-D094
LE1-D093		 LR2 D1316
4 7.5 9 9 10 10 18 IP42
IP55		 LE1-D188
LE1-D185		 LE1-D124
LE1-D123		 LR2 D1321
5.5 11 11 11 15 15 25 IP42
IP55		 LE1-D258
LE1-D255		 LE1-D188
LE1-D185		 LR2 D1322
LR2 D2353
7.5 15 15 15 18.5 18.5 32 IP55 LE1-D325 LE1-D258
LE1-D255		 LR2 D2355
11 18.5 22 22 22 30 40 IP55 LE1-D405 LE1-D325 LR2 D3353
LR2 D3355
15 22 25 30 30 33 50 IP55 LE1-D505 LE1-D405 LR2 D3357
LR2 D3359
18.5 30 37 37 37 37 65 IP55 LE1-D655 LE1-D505 LR2 D3361
22 37 45 45 55 45 80 IP55 LE1-D805 LE1-D655 LR2 D3363
LR2 D3365
25 45 45 45 55 45 95 IP55 LE1-D955 LE1-D805 LR2 D3365
Categories
Magnetic Starter Or Motor Starter

Meba magnetic starter LE1D13

Meba magnetic starter LE1D13

Specification

Meba magnetic starter LE1D13 is mainly applied to circuit of AC 50 or 60HZ, voltage up to 550V for far distance making and breaking circuit and frequently starting and controlling motor. It has the features of small volume, light weight, safe and reliable performance etc.

Parameter

Meba magnetic starter LE1D13

Technical Data
LE1-D AC telemecanique magnetic motor starter switch

Specifications

Product mode No.and specificatiol LE1-09 and 12 Double in sulated,protected to IP429(3) or IP659(4)
Enclosure LE1-18 and 25 Double in sulated,protected to IP427(3) or IP557(4)
LE1-32 ~ 95 Metal, IP55 to IP559
Control(2 push buttons moufited on enclosure cover) LE1-09 ~ 95 1 Green start button ’I’, ‘I’ Red stop/Teset buttion “O”
Connections LE1-09 ~ 95 Electricol power and control recircuit connections



LE1-D AC telemecanique magnetic motor starter switch

Standard control circuit voltages

Volts 24 42 48 110 220/230 230 240 380/400 400 415 440
50/60Hz B7 D7 E7 F7 M7 P7 U7 Q7 V7 N7 R7



LE1-D AC telemecanique magnetic motor starter switch

Maximum power AC3 duty(KW) Rated current (A) Type of enclosure Code number Suitable thermal relay
220V 230V 380V 400V 415V 440V 500V 660V 690V Long Life Normal life
2.2 4 4 4 4 4 9 IP42
IP65		 LE1-D094
LE1-D093		 LR2 D1312
LR2 D1314
3 5.5 5.5 5.5 5.5 5.5 12 IP45
IP55		 LE1-D124
LE1-D123		 LE1-D094
LE1-D093		 LR2 D1316
4 7.5 9 9 10 10 18 IP42
IP55		 LE1-D188
LE1-D185		 LE1-D124
LE1-D123		 LR2 D1321
5.5 11 11 11 15 15 25 IP42
IP55		 LE1-D258
LE1-D255		 LE1-D188
LE1-D185		 LR2 D1322
LR2 D2353
7.5 15 15 15 18.5 18.5 32 IP55 LE1-D325 LE1-D258
LE1-D255		 LR2 D2355
11 18.5 22 22 22 30 40 IP55 LE1-D405 LE1-D325 LR2 D3353
LR2 D3355
15 22 25 30 30 33 50 IP55 LE1-D505 LE1-D405 LR2 D3357
LR2 D3359
18.5 30 37 37 37 37 65 IP55 LE1-D655 LE1-D505 LR2 D3361
22 37 45 45 55 45 80 IP55 LE1-D805 LE1-D655 LR2 D3363
LR2 D3365
25 45 45 45 55 45 95 IP55 LE1-D955 LE1-D805 LR2 D3365
Categories
Magnetic Starter Or Motor Starter

Meba magnetic motor starter LE1D33

Meba magnetic motor starter LE1D33

Specification

Meba magnetic motor starter LE1D33  is mainly applied to circuit of AC 50 or 60HZ, voltage up to 550V for far distance making and breaking circuit and frequently starting and controlling motor. It has the features of small volume, light weight, safe and reliable performance etc.

Parameter

Meba magnetic motor starter LE1D33

Technical Data
LE1-D AC telemecanique magnetic motor starter switch

Specifications

Product mode No.and specificatiol LE1-09 and 12 Double in sulated,protected to IP429(3) or IP659(4)
Enclosure LE1-18 and 25 Double in sulated,protected to IP427(3) or IP557(4)
LE1-32 ~ 95 Metal, IP55 to IP559
Control(2 push buttons moufited on enclosure cover) LE1-09 ~ 95 1 Green start button ’I’, ‘I’ Red stop/Teset buttion “O”
Connections LE1-09 ~ 95 Electricol power and control recircuit connections



LE1-D AC telemecanique magnetic motor starter switch

Standard control circuit voltages

Volts 24 42 48 110 220/230 230 240 380/400 400 415 440
50/60Hz B7 D7 E7 F7 M7 P7 U7 Q7 V7 N7 R7



LE1-D AC telemecanique magnetic motor starter switch

Maximum power AC3 duty(KW) Rated current (A) Type of enclosure Code number Suitable thermal relay
220V 230V 380V 400V 415V 440V 500V 660V 690V Long Life Normal life
2.2 4 4 4 4 4 9 IP42
IP65		 LE1-D094
LE1-D093		 LR2 D1312
LR2 D1314
3 5.5 5.5 5.5 5.5 5.5 12 IP45
IP55		 LE1-D124
LE1-D123		 LE1-D094
LE1-D093		 LR2 D1316
4 7.5 9 9 10 10 18 IP42
IP55		 LE1-D188
LE1-D185		 LE1-D124
LE1-D123		 LR2 D1321
5.5 11 11 11 15 15 25 IP42
IP55		 LE1-D258
LE1-D255		 LE1-D188
LE1-D185		 LR2 D1322
LR2 D2353
7.5 15 15 15 18.5 18.5 32 IP55 LE1-D325 LE1-D258
LE1-D255		 LR2 D2355
11 18.5 22 22 22 30 40 IP55 LE1-D405 LE1-D325 LR2 D3353
LR2 D3355
15 22 25 30 30 33 50 IP55 LE1-D505 LE1-D405 LR2 D3357
LR2 D3359
18.5 30 37 37 37 37 65 IP55 LE1-D655 LE1-D505 LR2 D3361
22 37 45 45 55 45 80 IP55 LE1-D805 LE1-D655 LR2 D3363
LR2 D3365
25 45 45 45 55 45 95 IP55 LE1-D955 LE1-D805 LR2 D3365
Categories
Europe Type Box

Meba Flush Mounted 12way Indoor Use AC Box Enclosure LGD-12ways(N)

Specification

1.  HK  series Modular distribution boxes/distribution boards are mainly used in the circuit of AC 50Hz, rated voltage 220V/380V, and acted to install the modular combination equipment.

2. It is widely used in the family, high building, house, station, port, airport, commercial house, hospital, cinema, enterprises and so on occassions.

3. The plastic unit of the HA Surface series Modular distribution boxes/distribution boards adopt ABS material with the characteristics of flame-proof, impulse proof, excellent insulation property and so on.

4.This distribution boxes/ boards enclosure confirm to standard IEC-493-1.

Technical Parameter

Structure:
1. This distribution boxes/distribution boards enclosure is provided with elegant appearance and reasonable structures; Installation and dismounting are easy.

2. The products are designed according to the requirement of standardization, generalization and seriation, which make the products with excellent interchangeability.

3. This distribution box has 4way, 6way, 8way, 10way, 12way, 15way, 18way, 24way upto 36way.

Features:

1.  Panel is the ABS material for the engineering, high strength,never change color, the transparent material is PC.

2. Cover push-type opening and closing
Face covering of the distribution box adopts the push-type opening and closing mode, the face mask can be opened by pressing lightly, the self-locking positioning hinge structure is
provided when opening.

3. Wiring design of the power distribution box
The guide rail support plate can be lifted to the highest movable point, it is no longer limited by the narrow space when installing the wire. To install easily, the switch of the distribution box is set up with the wire groove and wire pipe exit-holes, which are easy to use for a variety of wire grooves and wire pipes.

Dimension(mm):

LGD-12ways(N) Dimension

Type Lenght(mm) Width(mm) Height(mm)
LGD 3ways 115 138 75
LGD 6ways 180 155 90
LGD 8ways 190 220 90
LGD 12ways 298 198 100
LGD 18ways 415 212 90
LGD 24ways 300 323 90

PDF Download

Meba Flush Mounted 12way Indoor Use AC Box Enclosure LGD-12ways(N)  is in line with IEC-493-1 standard,attractive and durable, safe and reliable, which is widely used in various places such as factory, mansion, residence, shopping center and so on.

Categories
Magnetic AC Contactor

Meba ac contactors LC1K0910 series

Meba contactors LC1K0910

Specification

Meba ac contactors LC1K0910  is used in ac circuit of 50Hz/60Hz, rated voltage up to 690V, rated current up to 12A, to connect/disconnect or other frequent control of the main circuit and ac motors. They can be conveniently connected to auxiliary contacts and proper thermal relays to protect circuit from overloading. They feature traverse double breaking points, block and zero flash over design, with multi-function combination, small volume, and reliable performance. They are perfect replacement for France TE Lc1-K, LC1-E series products, can be widely applied to magnify/switch signal in micro-electronic interface.

Parameter

Meba ac contactors LC1K0910

Technical Data


For motor control, from 6 to 12A(AC-3)
For the control of distribution circuits, up to 20A(AC-1)
Control circuit: A. C or D. C.
And it is suitable for using in LC1-K /LC2-K /LP1-K /LP2-K.

china hot selling magnetic ac contactor lc1k



Outline and Mounting Dimension

china hot selling magnetic ac contactor lc1k

Categories
Luxury Box

Meba Wiring Electrical Switch MBL6-63

meba wiring electrical switch MBL6-63

Specification

1.  MBW  series Modular distribution boxes/distribution boards are mainly used in the circuit of AC 50Hz, rated voltage 220V/380V, and acted to install the modular combination equipment.

2. It is widely used in the family, high building, house, station, port, airport, commercial house, hospital, cinema, enterprises and so on occassions.

3. The plastic unit of the HA Surface series Modular distribution boxes/distribution boards adopt ABS material with the characteristics of flame-proof, impulse proof, excellent insulation property and so on.

4.This distribution boxes/ boards enclosure confirm to standard IEC-493-1.

Technical Parameter

Structure:
1. This distribution boxes/distribution boards enclosure is provided with elegant appearance and reasonable structures; Installation and dismounting are easy.

2. The products are designed according to the requirement of standardization, generalization and seriation, which make the products with excellent interchangeability.

3. This distribution box has 4way, 6way, 8way, 10way, 12way, 15way, 18way, 24way upto 36way.

Features:

1. Design of super-large and clear luminous bars,soft and elegant outline.

2. Humanized circuitry symbols, printed display of control circuit breaker, clear and elegant.

3.  The guide-rail shoe plate has round hole, it is able to regulate the cover of distribution box to level position.

Dimension(mm):

Concealed mounted & Open Mounted

Model

Length(mm)

Width(mm)

Height(mm)

MBW2-4ways

137

161

82

MBW4-6ways

208

208

95

MBW7-9ways

261

208

95

MBW10-13ways

334

208

95

MBW14-16ways

390

208

95

MBW20-26ways

334

416

95

MBW28-32ways

390

416

95

PDF Download

Meba Wiring Electrical Switch MBL6-63 is divided into two kinds,concealed mounted type and open mounted type. It is with plastic panel and iron/plastic bottom. Two terminals (ground connection and zero connection) in the box are easy for the user wiring and routing.

Categories
Luxury Box

Meba electric power distribution board MBW37-39ways

meba panel board MBW37-39ways

Specification

1.  MBW  series Modular distribution boxes/distribution boards are mainly used in the circuit of AC 50Hz, rated voltage 220V/380V, and acted to install the modular combination equipment.

2. It is widely used in the family, high building, house, station, port, airport, commercial house, hospital, cinema, enterprises and so on occassions.

3. The plastic unit of the HA Surface series Modular distribution boxes/distribution boards adopt ABS material with the characteristics of flame-proof, impulse proof, excellent insulation property and so on.

4.This distribution boxes/ boards enclosure confirm to standard IEC-493-1.

Technical Parameter

Structure:
1. This distribution boxes/distribution boards enclosure is provided with elegant appearance and reasonable structures; Installation and dismounting are easy.

2. The products are designed according to the requirement of standardization, generalization and seriation, which make the products with excellent interchangeability.

3. This distribution box has 4way, 6way, 8way, 10way, 12way, 15way, 18way, 24way upto 36way.

Features:

1. Design of super-large and clear luminous bars,soft and elegant outline.

2. Humanized circuitry symbols, printed display of control circuit breaker, clear and elegant.

3.  The guide-rail shoe plate has round hole, it is able to regulate the cover of distribution box to level position.

Dimension(mm):

Concealed mounted & Open Mounted

Model

Length(mm)

Width(mm)

Height(mm)

MBW2-4ways

137

161

82

MBW4-6ways

208

208

95

MBW7-9ways

261

208

95

MBW10-13ways

334

208

95

MBW14-16ways

390

208

95

MBW20-26ways

334

416

95

MBW28-32ways

390

416

95

PDF Download

Meba electric power distribution board MBW37-39ways is divided into two kinds,concealed mounted type and open mounted type. It is with plastic panel and iron/plastic bottom. Two terminals (ground connection and zero connection) in the box are easy for the user wiring and routing.

Categories
Luxury Box

Meba Load Centrecenter MBW24-26ways

meba load centrecenter MBW24-26ways

Specification

1.  MBW  series Modular distribution boxes/distribution boards are mainly used in the circuit of AC 50Hz, rated voltage 220V/380V, and acted to install the modular combination equipment.

2. It is widely used in the family, high building, house, station, port, airport, commercial house, hospital, cinema, enterprises and so on occassions.

3. The plastic unit of the HA Surface series Modular distribution boxes/distribution boards adopt ABS material with the characteristics of flame-proof, impulse proof, excellent insulation property and so on.

4.This distribution boxes/ boards enclosure confirm to standard IEC-493-1.

Technical Parameter

Structure:
1. This distribution boxes/distribution boards enclosure is provided with elegant appearance and reasonable structures; Installation and dismounting are easy.

2. The products are designed according to the requirement of standardization, generalization and seriation, which make the products with excellent interchangeability.

3. This distribution box has 4way, 6way, 8way, 10way, 12way, 15way, 18way, 24way upto 36way.

Features:

1. Design of super-large and clear luminous bars,soft and elegant outline.

2. Humanized circuitry symbols, printed display of control circuit breaker, clear and elegant.

3.  The guide-rail shoe plate has round hole, it is able to regulate the cover of distribution box to level position.

Dimension(mm):

Concealed mounted & Open Mounted

Model

Length(mm)

Width(mm)

Height(mm)

MBW2-4ways

137

161

82

MBW4-6ways

208

208

95

MBW7-9ways

261

208

95

MBW10-13ways

334

208

95

MBW14-16ways

390

208

95

MBW20-26ways

334

416

95

MBW28-32ways

390

416

95



PDF Download

Meba Load Centrecenter MBW24-26ways is divided into two kinds,concealed mounted type and open mounted type. It is with plastic panel and iron/plastic bottom. Two terminals (ground connection and zero connection) in the box are easy for the user wiring and routing.



Categories
Magnetic AC Contactor

Meba motor contactor 3RT1015

Meba motor contactor 3RT1015

Specification

Meba motor contactor 3RT1015 is suitable for using in the circuits the rated voltage up to 660V AC 50Hz or 60Hz, rated current up to 620A, for making & breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, time delay & machine-interlocking contactor, star-delta starter. with the thermal relay, it is combined into the electromagnetic starter. The Contactor is produced according to IEC 60947-4.

Parameter

Meba motor contactor 3RT1015

Technical Data
Standard power ratings of 3-phase motors 50/60 Hz in category AC-3 Rated operational current in AC-3 up to 440V(A) Rated operational current in AC-1 up to 440V(A) Reference
230V(kW) 400V(kW) 500V(kW) 690V(kW) 1000V(kW)
2.2 3 35 4 – 7 18 3RT-10 15
3 4 4.5 5.5 – 9 22 3RT-10 16
3 5.5 5.5 5.5 – 12 22 3RT-10 17
3 4 4.5 4.5 – 9 40 3RT-10 23
3 5.5 7.5 7.5 – 12 40 3RT-10 24
4 7.5 10 11 – 17 40 3RT-10 25
5.5 11 11 11 – 25 40 3RT-10 26
7.5 15 18.5 18.5 – 32 50 3RT-10 34
11 18.5 22 22 – 40 60 3RT-10 35
15 22 30 22 – 50 55 3RT-10 36
18.5 30 37 45 30 65 100 3RT-10 44
22 37 45 55 37 80 120 3RT-10 45
22 45 55 55 37 95 120 3RT-10 46

Gallery
