Magnetic AC Contactor

Meba auxiliary contact 3RH1911

Meba auxiliary contact 3RH1911

Specification

Meba auxiliary contact 3RH1911  is suitable for using in the circuits the rated voltage up to 660V AC 50Hz or 60Hz, rated current up to 620A, for making & breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, time delay & machine-interlocking contactor, star-delta starter. with the thermal relay, it is combined into the electromagnetic starter. The Contactor is produced according to IEC 60947-4.

Parameter

Meba auxiliary contact 3RH1911

Technical Data

Model

Rated current

Type

Voltage

S00

3RT1016-1AB01

24V

3RT-1016

9A

3RT1016-1AK61

120V

3RT1016-1AR11

220V

con(INA+ONC)

440V

S0

3RT1016-1AB60

120V

3RT-1026

9A

3RT1016-1AN20

220V

3RT1016-1AR10

440V

3RT1034-1AJ16

115V

3RT-1034

S2

3RT1034-1AN16

220V

32A

3RT1034-1AR16

440V

S2

3RT1036-1AJ16

115V

3RT-1036

50A

3RT1036-1AN16

220V

3RT1036-1AR16

440V

S3

3RT1045-1AJ16

115V

3RT-1045

80A

3RT1045-1AN16

220V

3RT1045-1AR16

440V
Categories
Magnetic AC Contactor

Meba magnetic contact 3RT1045

Meba magnetic contact 3RT1045

Specification

Meba magnetic contact 3RT1045 is suitable for using in the circuits the rated voltage up to 660V AC 50Hz or 60Hz, rated current up to 620A, for making & breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, time delay & machine-interlocking contactor, star-delta starter. with the thermal relay, it is combined into the electromagnetic starter. The Contactor is produced according to IEC 60947-4.

Parameter

Meba magnetic contact 3RT1045

Features:

1) Circuit requirements:
A) Frequency: 50Hz / 60Hz
B) Rated voltage: AC 230V400V, 500V AND 690V
C) Rated current: From 7A-95A
2) Production standards: IEC30947, VDE0660
3) Used for AC motors with frequent starting
4) Contactor type: 2NC, NO+NC, 2NO, 2NO+2NC, 4NO, 4NC, 1NO+1NC, 3NC+3NO
5) Delay range: 0.1~180S

Technical Data

Model

Rated current

Type

Voltage

S00

3RT1016-1AB01

24V

3RT-1016

9A

3RT1016-1AK61

120V

3RT1016-1AR11

220V

con(INA+ONC)

440V

S0

3RT1016-1AB60

120V

3RT-1026

9A

3RT1016-1AN20

220V

3RT1016-1AR10

440V

3RT1034-1AJ16

115V

3RT-1034

S2

3RT1034-1AN16

220V

32A

3RT1034-1AR16

440V

S2

3RT1036-1AJ16

115V

3RT-1036

50A

3RT1036-1AN16

220V

3RT1036-1AR16

440V

S3

3RT1045-1AJ16

115V

3RT-1045

80A

3RT1045-1AN16

220V

3RT1045-1AR16

440V
Categories
Magnetic AC Contactor

Meba contactor telemecanique type CLC1-D150

Meba contactor telemecanique type CLC1-D150

Specification

Meba contactor telemecanique type CLC1-D150

Meba contactor telemecanique type CLC1-D150  is suitable for using in the circuits the rated voltage up to 660V AC 50Hz or 60Hz, rated current up to 620A, for making & breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, time delay & machine-interlocking contactor, star-delta starter. with the thermal relay, it is combined into the electromagnetic starter. The Contactor is produced according to IEC 60947-4.

Parameter

Meba contactor telemecanique type CLC1-D150

Technical Data

Specification

Model

Rated  current  AC3  Ue  ≤   440V

Rated  heating  current  AC10  ≤ 40°

Rated  power  AC3                                                                  Three-phase  motor  0≤ 40°

Rated  power  AC4  Three-phase  motor  0≤ 40

220/440V

380/400V

400V

500V

600/690V

1000V

200/230V

380/400V

440V

500V

A

A

KW

KW

KW

KW

KW

KW

KW

KW

KW

KW

CLC1-D115

115

200

30

55

59

75

80

75

9

18.5

18.5

30

CLC1-D150

150

250

40

75

80

90

100

90

11

22

22

37

CLC1-D170

170

250

55

90

100

110

110

100

22

40

45

51

CLC1-D205

205

275

63

110

110

120

129

100

25

45

51

59

CLC1-D245

245

315

75

132

132

160

160

147

30

55

63

75

CLC1-D300

300

400

100

160

200

200

220

160

37

63

75

80

CLC1-D410

410

500

110

220

250

250

280

185

40

75

80

90

CLC1-D475

475

700

147

265

280

335

335

335

45

80

100

110

CLC1-D620

620

1000

200

335

400

450

450

450

55

100

110

132

External  dimensions  &   Installation  dimensions

Type

Amax

Bmax

Cmax

a

b

φ

CLC1-D115/150/170

120

158

132

100± 0.70

130± 0.80

6.5

CLC1-D205

170

175

182

80± 0.60

106± 0.70/120± 0.70

6.5

CLC1-D245

170

198

182

CLC1-D300

215

208

220

96± 0.70

106± 0.70/120± 0.70

6.5

CLC1-D410

215

216

220

170± 0.90

180± 0.80

8.5

CLC1-D475

235

240

235

CLC1-D620

320

310

260

180± 0.80

180± 0.80

10.5
Categories
Magnetic AC Contactor

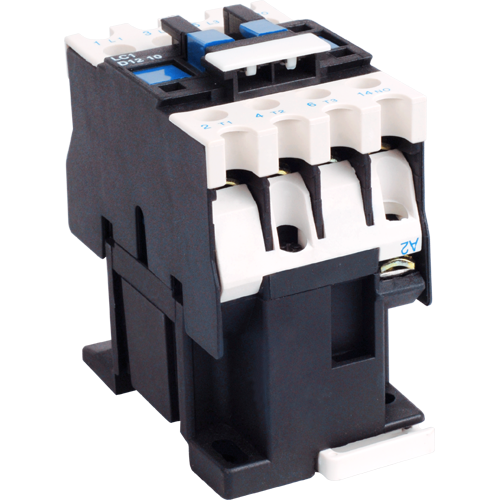

Meba magnetic switch CLC1-D12

Meba magnetic switch CLC1-D12

Specification

Meba magnetic switch CLC1-D12 is suitable for using in the circuits up to the rated voltage 660V AC 50Hz or 60Hz, rated current up to 620A, for making, breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The products comply with IEC60947-4.

Parameter

Meba magnetic switch CLC1-D12

Technical Data
Model  D09  D12  D18  D25  D32  D40  D50  D65
Rated working ccurrent(A)  AC3  9  12  18  25  32  40  50  65
 AC4 3.5  5  7.7  8.5  12  18.5  24  28
AC3 capacity of
3 squirrel-cage
motor AC3(KW)		  220/230V 2.2  3  4  8.5  7.5  11  15  18.5
 380/400V  4  5.5  7.5  11  15  18.5  22  30
 415V  4  5.5  9  11  15  22  25  37
 500V  5.5  7.5  10  15  18.5  22  30  37
 660/900V  5.5  7.5  10  15  18.5  30  33  37
Rated heat current(A)  20  20  32  40  50  60  80  80
 Electrical life  AC3×10 4  100  100  100  100  80  80  60  60
 AC4×10 4  20  20  20  20  20  15  15  15
 Mechanical life×10 4  1000  1000  1000  1000  800  800  800  800
 Number of the contacts      3P+NO 3P+NC+NO
