Digital Display Type AC Automatic Voltage Regulator

Meba Power Regulator SVC-E 3KVA

Meba Power Regulator SVC-E 3KVA

Specification

General:

SVC-E Series (digital display type) single-phase voltage stabilizers adopts digital display technology, it can display the delay time, output voltage and protection state automatically and has advantage of time delay, over voltage & under voltage protection, automatic alarming, etc.

This voltage stabilizer is of common type, it has the function of connecting through the commercial power. It has excellent features, such as elegant appearance, compact structure, light weight, small waveform distortion, high efficiency, stable and reliable performance and so on.

Application:

For office equipment, test equipment, lighting systems, safety alarm systems, communication systems, medical equipment, duplicators, stereo sound equipment, industrial automatic equipment, color film developing equipment, digital control machine tools, checkout equipment, TV sets, office appliances.

Performance:

Input voltage Single phase 160V-250V
Output voltage 1. 0.5KVA~3KVA: Single -phase 220V and 110V
2. 5KVA~30KVA: Single -phase 220V
Voltage stabilizing precision 220V±3% 110V±6%
Frequency 50Hz/60Hz
Adjustable time <1s(when input voltage has a change of 10%)
Efficiency ＞90%
Over-voltage protection 246V±4V
Delay time Long 5min±2min, short 5s±2s
Ambient temperature -5℃ – +40℃
Relative humidity ≤90%
Waveform distortion No additional waveform distortion
Load power factor 0.8
Dielectric strength 1500V/1min
lnsulation resistance ≥2MΩ



Model and Sepc:

Spec(KVA) Product size Package size Weight Qty
D*W*H(cm) D*W*H(cm) (kg)
Single-phase two-wire (desk type) SVC-0.5 17*19*13 44*25*35 5 4
SVC-1 20*22*16 50*28*40 7 4
SVC-1.5 20*22*16 50*28*40 8 4
SVC-2 26*24*19 34*32*50 14 2
SVC-3 29*22*24 62*38*34 16 2
SVC-5 46*24*29 54*32*27 27 1
SVC-8 57*27*24 71*40*35 40 1
SVC-10 57*27*24 71*40*35 41 1
Single-phase two-wire (vertical type) SVC-5 29*24*40 31*29*48 28.5 1
SVC-8 29 *24*42 40*35*52 39 1
SVC-10 29*24*42 40*35*52 40 1
SVC-15 40*33*65 48*45*90 75 1
SVC-20 58*35*68 68*48*90 110 1
SVC-30 53*43*102 64*53*112 165 1
SVC-45 79*43*129 90*65*140 200 1
SVC-60 79*43*129 90*65*140 250 1

PDF Download

[Download not found] SVC-E 3KVA Power Regulator suit for office equipment, test equipment, medical equipment, industrial automation equipment, household lighting system, communication system, etc.

Categories
Digital Display Type AC Automatic Voltage Regulator

Meba Voltage Regulator SVC-E 500VA

Meba Voltage Regulator SVC-E 500VA

Specification

General:

SVC-E Series (digital display type) single-phase voltage stabilizers adopts digital display technology, it can display the delay time, output voltage and protection state automatically and has advantage of time delay, over voltage & under voltage protection, automatic alarming, etc.

This voltage stabilizer is of common type, it has the function of connecting through the commercial power. It has excellent features, such as elegant appearance, compact structure, light weight, small waveform distortion, high efficiency, stable and reliable performance and so on.

Application:

For office equipment, test equipment, lighting systems, safety alarm systems, communication systems, medical equipment, duplicators, stereo sound equipment, industrial automatic equipment, color film developing equipment, digital control machine tools, checkout equipment, TV sets, office appliances.

Performance:

Input voltage Single phase 160V-250V
Output voltage 1. 0.5KVA~3KVA: Single -phase 220V and 110V
2. 5KVA~30KVA: Single -phase 220V
Voltage stabilizing precision 220V±3% 110V±6%
Frequency 50Hz/60Hz
Adjustable time <1s(when input voltage has a change of 10%)
Efficiency ＞90%
Over-voltage protection 246V±4V
Delay time Long 5min±2min, short 5s±2s
Ambient temperature -5℃ – +40℃
Relative humidity ≤90%
Waveform distortion No additional waveform distortion
Load power factor 0.8
Dielectric strength 1500V/1min
lnsulation resistance ≥2MΩ



Model and Sepc:

Spec(KVA) Product size Package size Weight Qty
D*W*H(cm) D*W*H(cm) (kg)
Single-phase two-wire (desk type) SVC-0.5 17*19*13 44*25*35 5 4
SVC-1 20*22*16 50*28*40 7 4
SVC-1.5 20*22*16 50*28*40 8 4
SVC-2 26*24*19 34*32*50 14 2
SVC-3 29*22*24 62*38*34 16 2
SVC-5 46*24*29 54*32*27 27 1
SVC-8 57*27*24 71*40*35 40 1
SVC-10 57*27*24 71*40*35 41 1
Single-phase two-wire (vertical type) SVC-5 29*24*40 31*29*48 28.5 1
SVC-8 29 *24*42 40*35*52 39 1
SVC-10 29*24*42 40*35*52 40 1
SVC-15 40*33*65 48*45*90 75 1
SVC-20 58*35*68 68*48*90 110 1
SVC-30 53*43*102 64*53*112 165 1
SVC-45 79*43*129 90*65*140 200 1
SVC-60 79*43*129 90*65*140 250 1

PDF Download

[Download not found] SVC-E 500VA Power Regulator suit for office equipment, test equipment, medical equipment, industrial automation equipment, household lighting system, communication system, etc.

Categories
U Type AC Automatic Voltage Regulator

Meba Power Regulator SVC-U500VA

meba-power-regulator-SVC-U500VA

Meba Power Regulator SVC-U500VA

Specification

General:

SVC-U series single-phase voltage regulators not only bear all the characteristics of SVC but also have advantages of luxurious appearance and strong protection functions.

Application:

For office equipment, testing equipment, medical equipment, industrial automation equipment, household appliance, lighting system, communication system, etc. Provide kinds of electrical appliances with abundant electric power meeting different requirements.



Technical Data

lnput voltage 150V~250V
Output voltage 220V or 110V
Accuracy of voltage stabilization 220V±3% 110V±6%
Frequency 50Hz/60Hz
Adjusting time ＜1s (when input voltage has a change of 10%)
Efficiency ＞90%
Over-voltage protection 246V±4V
Ambient temperature -5℃～+40℃
Relative humidity ≤90%
Waveform distoriton No additional waveform distortion
Load power factor 0.8
Dielectric strength 1500/min
lnsulation resistance ≥2MΩ

Gallery

Meba Power Regulator SVC-U500VA

  • Meba Power Regulator SVC-U500VA
Categories
U Type AC Automatic Voltage Regulator

Meba Strong Automatic Voltage Regulators SVC-U1500VA

meba-strong-automatic-voltage-regulators-SVC-U1500VA

Meba Strong Automatic Voltage Regulators SVC-U1500VA

Specification

General:

SVC-U series single-phase voltage regulators not only bear all the characteristics of SVC but also have advantages of luxurious appearance and strong protection functions.

Application:

For office equipment, testing equipment, medical equipment, industrial automation equipment, household appliance, lighting system, communication system, etc. Provide kinds of electrical appliances with abundant electric power meeting different requirements.



Performance:

lnput voltage 150V~250V
Output voltage 220V or 110V
Accuracy of voltage stabilization 220V±3% 110V±6%
Frequency 50Hz/60Hz
Adjusting time ＜1s (when input voltage has a change of 10%)
Efficiency ＞90%
Over-voltage protection 246V±4V
Ambient temperature -5℃～+40℃
Relative humidity ≤90%
Waveform distoriton No additional waveform distortion
Load power factor 0.8
Dielectric strength 1500/min
lnsulation resistance ≥2MΩ

Gallery

Meba Strong Automatic Voltage Regulators SVC-U1500VA

  • Meba Strong Automatic Voltage Regulators SVC-U1500VA

PDF Download

[Download not found] SVC-U1.5KVA Strong Automatic Voltage Regulators suit for office equipment, test equipment, medical equipment, industrial automation equipment, household lighting system, communication system, etc.

Categories
U Type AC Automatic Voltage Regulator

Meba Tested Automatic Voltage Regulator SVC-U1000VA

meba-tested-automatic-voltage-regulator-SVC-U1000VA

Meba Tested Automatic Voltage Regulator SVC-U1000VA

Specification

General:

SVC-U series single-phase voltage regulators not only bear all the characteristics of SVC but also have advantages of luxurious appearance and strong protection functions.

Application:

For office equipment, testing equipment, medical equipment, industrial automation equipment, household appliance, lighting system, communication system, etc. Provide kinds of electrical appliances with abundant electric power meeting different requirements.

Technical Parameter

Performance:

lnput voltage 150V~250V
Output voltage 220V or 110V
Accuracy of voltage stabilization 220V±3% 110V±6%
Frequency 50Hz/60Hz
Adjusting time ＜1s (when input voltage has a change of 10%)
Efficiency ＞90%
Over-voltage protection 246V±4V
Ambient temperature -5℃～+40℃
Relative humidity ≤90%
Waveform distoriton No additional waveform distortion
Load power factor 0.8
Dielectric strength 1500/min
lnsulation resistance ≥2MΩ

Gallery

Meba Tested Automatic Voltage Regulator SVC-U1000VA

  • Meba Tested Automatic Voltage Regulator SVC-U1000VA

PDF Download

[Download not found] SVC-U1KVA Tested Automatic Voltage Regulator suit for office equipment, test equipment, medical equipment, industrial automation equipment, household lighting system, communication system, etc.

Categories
Japanese Imitation Fully Automatic AC Voltage Regulator

Meba Stabilizer For AC Application SVCJ-1500VA

meba-stabilizer-for-ac-SVCJ-1500VA

Meba Stabilizer For AC Application SVCJ-1500VA

Specification

General:

1. SVC single – phase and three -phase high accuracy full-automatic AC voltage stabilizer is one kind of our dominant products, made up of contact auto voltage regulator, servo motor, automatic control circuit, etc.

2. When the power network voltage fluctuates or the load varies, automatic sampling control circuit will send signal to drive the servo motor which can adjust the position of carbon brush of auto voltage regulator, then, the output voltage will be adjusted to rated value and get a steady state.

3. This voltage stabilizer is of common type, it has the function of connecting through the commercial power. Compared with other voltage stabilizers, it has the advantage of great variety, complete specification, nice appearance and obvious features of high efficiency, no wave distortion, reliable performance, working continually for long time,

4. Besides, it is provided with short time delay and over voltage protection, and the long time delay and under voltage protection also can be set according to user requirement. This product is an ideal stabilized voltage supply, widely used in any locations requiring electricity and ensures your power device can run normally.

Application:

For office equipment, testing equipment, medical equipment, industrial automation equipment, household appliance, lighting system, communication system, etc. Provide kinds of electrical appliances with abundant electric power meeting different requirements.

Technical Parameter

Performance:

Single-phase input voltage 160v-250v
Single-phase output voltage 0.5KAV-3KAV 220Vand 110v 5KAV-3KAV 220V
Three-phase output voltage Phase voltage 160V-250V Wire voltage 277V-430V
three-phase output voltage Phase voltage 220V Wire voltage 380V
Accuracy of voltage stabilization 220V±3% 110V±6%
Frequency 50Hz/60Hz
Adjustable time <1s(when input voltage has a change of 10%)
Ambient temperature -5℃ – +40℃
Waveform distortion No additional waveform distortion
Load power factor 0.8
Dielectric strength 1500V/1min
lnsulation resistance ≥2MΩ



Model and Sepcificatiom:

Spec(VA) Product size DXWXH(cm) Package size DXWXH(cm) Weight (kg) Qty
Single-phase two-wire(desk type) SVC-500 17X19X13 44X25X35 5.0 4
SVC-1000 20X22X16 50X28X40 7.0 4
SVC-1500 20X22X16 50X28X40 8.0 4
SVC-2000 26X24X19 34X32X50 14 2
SVC-3000 29X22X24 62X38X34 16 2
SVC-5000 46X24X19 54X32X27 27 1
SVC-8000 57X27X24 71X40X35 40 1
SVC-10000 57X27X24 70X40X35 41 1
Three-phase four-wire SVC-1500 40X36X17 52X48X28 18 1
SVC-3000 42X38X19 54X50X31 23 1
SVC-4500 42X38X19 54X50X31 27 1
SVC-6000 37X28X68 48X40X78 39 1
SVC-9000 35X33X78 48X45X90 48 1
SVC-15000 43X38X73 55X51X90 85 1
Single-phase two-wire(desk type) SVC-5000 29X24X40 31X29X48 28.5 1
SVC-8000 29X24X42 40X35X52 39 1
SVC-10000 29X24X42 40X35X52 40 1
SVC-15000 40X33X65 48X45X90 75 1
SVC-20000 58X35X68 68X48X90 110 1
SVC-30000 53X43X102 64X53X112 165 1
SVC-45000 79X43X129 90X65X140 200 1
SVC-60000 79X43X129 90X65X140 250 1
Three-phase four-wire SVC-20000 43X51X91 64X55X106 124 1
SVC-30000 43X51X91 64X55X106 131 1
SVC-45000 65X43X95 78X55X110 197 1
SVC-60000 77X55X100 90X67X115 260 1
SVC-80000 77X55X100 90X67X115 290 1
SVC-100000 77X55X100 90X67X115 350 1

Gallery

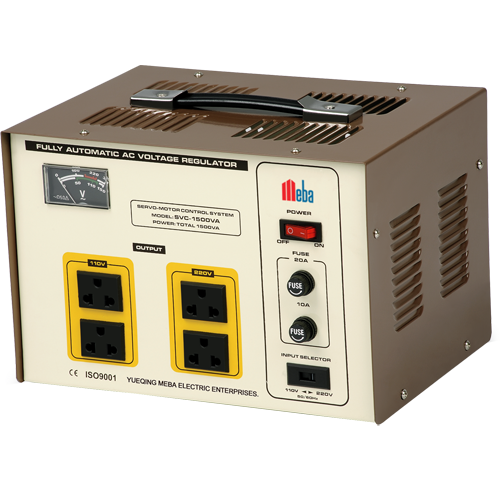

Meba Stabilizer For AC Application SVCJ-1500VA

  • Meba Stabilizer For AC Application SVCJ-1500VA

PDF Download

[Download not found] SVCJ-1500VA Stabilizer For AC Application suit for office equipment, test equipment, medical equipment, industrial automation equipment, household lighting system, communication system, etc.

Categories
Japanese Imitation Fully Automatic AC Voltage Regulator

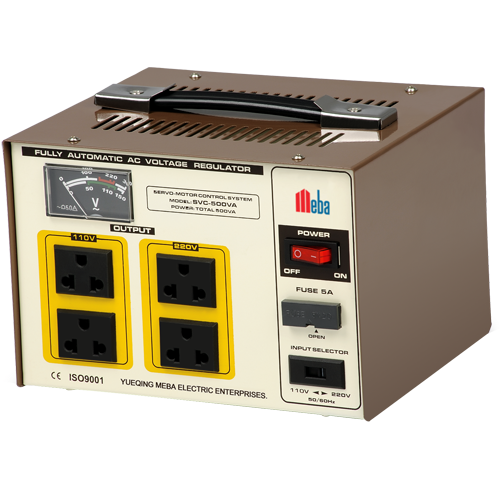

Meba Power Regulator SVCJ-500VA

meba-power-regulator-SVCJ-500VA

Meba Power Regulator SVCJ-500VA

Specification

General:

1. SVC single – phase and three -phase high accuracy full-automatic AC voltage stabilizer is one kind of our dominant products, made up of contact auto voltage regulator, servo motor, automatic control circuit, etc.

2. When the power network voltage fluctuates or the load varies, automatic sampling control circuit will send signal to drive the servo motor which can adjust the position of carbon brush of auto voltage regulator, then, the output voltage will be adjusted to rated value and get a steady state.

3. This voltage stabilizer is of common type, it has the function of connecting through the commercial power. Compared with other voltage stabilizers, it has the advantage of great variety, complete specification, nice appearance and obvious features of high efficiency, no wave distortion, reliable performance, working continually for long time,

4. Besides, it is provided with short time delay and over voltage protection, and the long time delay and under voltage protection also can be set according to user requirement. This product is an ideal stabilized voltage supply, widely used in any locations requiring electricity and ensures your power device can run normally.

Application:

For office equipment, testing equipment, medical equipment, industrial automation equipment, household appliance, lighting system, communication system, etc. Provide kinds of electrical appliances with abundant electric power meeting different requirements.

Technical Parameter

Performance:

Single-phase input voltage 160v-250v
Single-phase output voltage 0.5KAV-3KAV 220Vand 110v 5KAV-3KAV 220V
Three-phase output voltage Phase voltage 160V-250V Wire voltage 277V-430V
three-phase output voltage Phase voltage 220V Wire voltage 380V
Accuracy of voltage stabilization 220V±3% 110V±6%
Frequency 50Hz/60Hz
Adjustable time <1s(when input voltage has a change of 10%)
Ambient temperature -5℃ – +40℃
Waveform distortion No additional waveform distortion
Load power factor 0.8
Dielectric strength 1500V/1min
lnsulation resistance ≥2MΩ



Model and Sepcificatiom:

Spec(VA) Product size DXWXH(cm) Package size DXWXH(cm) Weight (kg) Qty
Single-phase two-wire(desk type) SVC-500 17X19X13 44X25X35 5.0 4
SVC-1000 20X22X16 50X28X40 7.0 4
SVC-1500 20X22X16 50X28X40 8.0 4
SVC-2000 26X24X19 34X32X50 14 2
SVC-3000 29X22X24 62X38X34 16 2
SVC-5000 46X24X19 54X32X27 27 1
SVC-8000 57X27X24 71X40X35 40 1
SVC-10000 57X27X24 70X40X35 41 1
Three-phase four-wire SVC-1500 40X36X17 52X48X28 18 1
SVC-3000 42X38X19 54X50X31 23 1
SVC-4500 42X38X19 54X50X31 27 1
SVC-6000 37X28X68 48X40X78 39 1
SVC-9000 35X33X78 48X45X90 48 1
SVC-15000 43X38X73 55X51X90 85 1
Single-phase two-wire(desk type) SVC-5000 29X24X40 31X29X48 28.5 1
SVC-8000 29X24X42 40X35X52 39 1
SVC-10000 29X24X42 40X35X52 40 1
SVC-15000 40X33X65 48X45X90 75 1
SVC-20000 58X35X68 68X48X90 110 1
SVC-30000 53X43X102 64X53X112 165 1
SVC-45000 79X43X129 90X65X140 200 1
SVC-60000 79X43X129 90X65X140 250 1
Three-phase four-wire SVC-20000 43X51X91 64X55X106 124 1
SVC-30000 43X51X91 64X55X106 131 1
SVC-45000 65X43X95 78X55X110 197 1
SVC-60000 77X55X100 90X67X115 260 1
SVC-80000 77X55X100 90X67X115 290 1
SVC-100000 77X55X100 90X67X115 350 1

Gallery

Meba Power Regulator SVCJ-500VA

  • Meba Power Regulator SVCJ-500VA

PDF Download

[Download not found] SVCJ-500VA Power Regulator suit for office equipment, test equipment, medical equipment, industrial automation equipment, household lighting system, communication system, etc.

Categories
Japanese Imitation Fully Automatic AC Voltage Regulator

Meba Japan Type Voltage Regulator SVCJ-1000VA

suit for office equipment, test equipment,medical equipment,household lighting system, communication system

Meba Japan Type Voltage Regulator SVCJ-1000VA

Specification

General:

1. SVC single – phase and three -phase high accuracy full-automatic AC voltage stabilizer is one kind of our dominant products, made up of contact auto voltage regulator, servo motor, automatic control circuit, etc.

2. When the power network voltage fluctuates or the load varies, automatic sampling control circuit will send signal to drive the servo motor which can adjust the position of carbon brush of auto voltage regulator, then, the output voltage will be adjusted to rated value and get a steady state.

3. This voltage stabilizer is of common type, it has the function of connecting through the commercial power. Compared with other voltage stabilizers, it has the advantage of great variety, complete specification, nice appearance and obvious features of high efficiency, no wave distortion, reliable performance, working continually for long time,

4. Besides, it is provided with short time delay and over voltage protection, and the long time delay and under voltage protection also can be set according to user requirement. This product is an ideal stabilized voltage supply, widely used in any locations requiring electricity and ensures your power device can run normally.

Application:

For office equipment, testing equipment, medical equipment, industrial automation equipment, household appliance, lighting system, communication system, etc. Provide kinds of electrical appliances with abundant electric power meeting different requirements.

Technical Parameter

Performance:

Single-phase input voltage 160v-250v
Single-phase output voltage 0.5KAV-3KAV 220Vand 110v 5KAV-3KAV 220V
Three-phase output voltage Phase voltage 160V-250V Wire voltage 277V-430V
three-phase output voltage Phase voltage 220V Wire voltage 380V
Accuracy of voltage stabilization 220V±3% 110V±6%
Frequency 50Hz/60Hz
Adjustable time <1s(when input voltage has a change of 10%)
Ambient temperature -5℃ – +40℃
Waveform distortion No additional waveform distortion
Load power factor 0.8
Dielectric strength 1500V/1min
lnsulation resistance ≥2MΩ



Model and Sepcificatiom:

Spec(VA) Product size DXWXH(cm) Package size DXWXH(cm) Weight (kg) Qty
Single-phase two-wire(desk type) SVC-500 17X19X13 44X25X35 5.0 4
SVC-1000 20X22X16 50X28X40 7.0 4
SVC-1500 20X22X16 50X28X40 8.0 4
SVC-2000 26X24X19 34X32X50 14 2
SVC-3000 29X22X24 62X38X34 16 2
SVC-5000 46X24X19 54X32X27 27 1
SVC-8000 57X27X24 71X40X35 40 1
SVC-10000 57X27X24 70X40X35 41 1
Three-phase four-wire SVC-1500 40X36X17 52X48X28 18 1
SVC-3000 42X38X19 54X50X31 23 1
SVC-4500 42X38X19 54X50X31 27 1
SVC-6000 37X28X68 48X40X78 39 1
SVC-9000 35X33X78 48X45X90 48 1
SVC-15000 43X38X73 55X51X90 85 1
Single-phase two-wire(desk type) SVC-5000 29X24X40 31X29X48 28.5 1
SVC-8000 29X24X42 40X35X52 39 1
SVC-10000 29X24X42 40X35X52 40 1
SVC-15000 40X33X65 48X45X90 75 1
SVC-20000 58X35X68 68X48X90 110 1
SVC-30000 53X43X102 64X53X112 165 1
SVC-45000 79X43X129 90X65X140 200 1
SVC-60000 79X43X129 90X65X140 250 1
Three-phase four-wire SVC-20000 43X51X91 64X55X106 124 1
SVC-30000 43X51X91 64X55X106 131 1
SVC-45000 65X43X95 78X55X110 197 1
SVC-60000 77X55X100 90X67X115 260 1
SVC-80000 77X55X100 90X67X115 290 1
SVC-100000 77X55X100 90X67X115 350 1

Gallery

Meba Japan Type Voltage Regulator SVCJ-1000VA

  • Meba Japan Type Voltage Regulator SVCJ-1000VA

PDF Download

[Download not found] SVCJ-1000VA Japan Type Voltage Regulator suit for office equipment, test equipment, medical equipment, industrial automation equipment, household lighting system, communication system, etc.

Categories
Digital Display Type AC Automatic Voltage Regulator

Meba AC Power Voltage Regulator SVC-E 500VA

meba-ac-power-voltage-regulator-svc-e-500va

Specification

General:

SVC-E Series (digital display type) single-phase voltage stabilizers adopts digital display technology, it can display the delay time, output voltage and protection state automatically and has advantage of time delay, over voltage & under voltage protection, automatic alarming, etc.

This voltage stabilizer is of common type, it has the function of connecting through the commercial power. It has excellent features, such as elegant appearance, compact structure, light weight, small waveform distortion, high efficiency, stable and reliable performance and so on.

Application:

For office equipment, test equipment, lighting systems, safety alarm systems, communication systems, medical equipment, duplicators, stereo sound equipment, industrial automatic equipment, color film developing equipment, digital control machine tools, checkout equipment, TV sets, office appliances.

Performance:

Input voltage Single phase 160V-250V
Output voltage 1. 0.5KVA~3KVA: Single -phase 220V and 110V
2. 5KVA~30KVA: Single -phase 220V
Voltage stabilizing precision 220V±3% 110V±6%
Frequency 50Hz/60Hz
Adjustable time <1s(when input voltage has a change of 10%)
Efficiency ＞90%
Over-voltage protection 246V±4V
Delay time Long 5min±2min, short 5s±2s
Ambient temperature -5℃ – +40℃
Relative humidity ≤90%
Waveform distortion No additional waveform distortion
Load power factor 0.8
Dielectric strength 1500V/1min
lnsulation resistance ≥2MΩ



Model and Sepc:

Spec(KVA) Product size Package size Weight Qty
D*W*H(cm) D*W*H(cm) (kg)
Single-phase two-wire (desk type) SVC-0.5 17*19*13 44*25*35 5 4
SVC-1 20*22*16 50*28*40 7 4
SVC-1.5 20*22*16 50*28*40 8 4
SVC-2 26*24*19 34*32*50 14 2
SVC-3 29*22*24 62*38*34 16 2
SVC-5 46*24*29 54*32*27 27 1
SVC-8 57*27*24 71*40*35 40 1
SVC-10 57*27*24 71*40*35 41 1
Single-phase two-wire (vertical type) SVC-5 29*24*40 31*29*48 28.5 1
SVC-8 29 *24*42 40*35*52 39 1
SVC-10 29*24*42 40*35*52 40 1
SVC-15 40*33*65 48*45*90 75 1
SVC-20 58*35*68 68*48*90 110 1
SVC-30 53*43*102 64*53*112 165 1
SVC-45 79*43*129 90*65*140 200 1
SVC-60 79*43*129 90*65*140 250 1

PDF Download

[Download not found] SVC-E 500VA AC Power Voltage Regulator suit for office equipment, test equipment, medical equipment, industrial automation equipment, household lighting system, communication system, etc.
