Meba-wide range flashlights-BW7100B

Post author By meba_admin
Post date 10/01/2014
No Comments on Meba-wide range flashlights-BW7100B

Specification

Application

Meba wide range flashlights BW7100B is applicable to mobile lighting in Zone 1 and Zone 2 explosive and flammable places. And is ideal for use in military,oilfield,mining,electric power site,and any other hazardous environment.

Certification:

CE, RoHS, China explosion proof certificate

Ex Code:Ex d II C T6

GB Certificate:NLE08410

Ingress protection:IP67

Patent No.: 200830285920.8

200820169089.4

Standard:

GB3836.1-2000 GB3836.2-2000

Technical Data

Description	Unit	BW7100A	BW7100B
Rated voltage	V	3.7	3.7
Power	W	5	12
Rated capacity of battery	mAh	6300	6300
luminous flux	Lm	380/240	770/280
Highintensity lighting time	h	8	3~4
Lowintensity lighting time	h	16	10
Time of charging	h	8~10	8~10
Service life of bulb	h	100,000	100,000
Service life of battery	Recycled	≈1000	≈1000
Dimension	mm	φ74×190	φ74×190
Net weight	kg	0.7	0.7
inner box size	mm	222×140×80	222×140×80
Carton No.	piece	12	12
Dimension	mm	500×310×245	500×310×245
Gross weight	Kg	11.7	11.7

Features

. It uses large power LED light source which gives 8 fold more light over the normal LED torch.The service life of the bulb can reaches 100,000hours.The reflector cup is subjected to the high tech finishing treatment.With the high reflection rate,the effective lighting range can reaches more than 600 meters.

.The shell is made of aluminium alloy materials.

.It has the highest flameproof grade,approved for safe use in potentially explosive gas,vapour,and mist atmosphere .

.It adopts high capacity lithium battery for charging. Its protection panel is very safe.

.Charging voltage: AC100V-AC240V 50Hz/60Hz.

.It can be used even on rainy days.

.It is of highest explosion-proof grade, with very excellent explosion-proof and anti-static functions.

.It boasts human-oriented power showing and low voltage warning functions, so that the user can check the battery level at any time. When the battery runs out, the flashlight will flash quickly, indicating charging, without influences on normal work.

.The internal circuit of the flashlight has the high intensity light and operating light design, which can be shifted easily by pressing the button.

. The charger is controlled intelligently by the chip inside, with multi-protection functions.

Gallery

Online Catalogue

LED Flashlight

Meba-mini signal led flashlight-ZW7610

Post author By meba_admin
Post date 10/01/2014
No Comments on Meba-mini signal led flashlight-ZW7610

Specification

Application

Meba mini signal led flashlight ZW7610 is used at railway,aviation and other transportation area and some special fields,serving as normal illumination and emergency lighting .

Ingress Protection:IP65
LED light source

Technical Data

Specification		unit	ZW7610
Rated voltage		V	3.7
Rated capacity		mAh	4400
current	Work Light	mA	380
	Rear light on the bottom		20
Light Output		lm	170
Effective beam range		m	120
Average service life		h	100,000
runtime		h	≥10
recharging time		h	12
Battery Recharge Cycle			≈1000
dimension		mm	Φ66×172
Net weight		g	265

[/acc_item] [/accordion]

[/tab_item] [tab_item title=”Features“]

1.It uses CREE LED light source,with 100,000hours service life. The reflector adopts hi-tech surface finishing technology, enable a high light reflectivity. The beam range can exceed 100 meters.

2.It is sealed to IP65 preventing the ingress of water;The housing is made of PC material, drop resistant to 1 meter. It can withstand high and low temperature suitable to be used in all kinds of harsh environment.

3.The rear light on its tail is ideal as a personal indicator to identify the position of the users. It eliminates the danger and ensure the user’s safety in the dark.

4.Use of the latest large bulk capacity lithiumiron battery with long service life improves reliability and eliminates ‘ memory ‘ affect.

5.Easy to carry.

Features

Gallery

Online Catalogue

LED Flashlight

Meba-high intensive led explosion proof light-ZW7710A

Post author By meba_admin
Post date 10/01/2014
No Comments on Meba-high intensive led explosion proof light-ZW7710A

Specification

Application

Meba high intensive led explosion proof light ZW7710A uses the latest technology to give excellent performance,robustness and reliability in the most extreme conditions. It is widely used in the fields of public security departments, railway,military,police,patrol,transportation, civil aviation, forestry and customs inspection etc.

1) led tactical police flashlight
2) 3W 1W , IP66
3) lithium battery
4) highlight,lowlight, strobe light
5) car charger

The flashlight includes:

1)1xflashlight

2)1xlithium battery

3)1x 100-240VAC charger

4)1x12v car charger

5)1x short belt

6)1xgift box

[/acc_item]

[acc_item title=”Technical Data“]

Description	Unit	ZW7710
Light source	Brand	CREE LED
Rated voltage	V	3.7
Light source Power	W	3
Rated capacity	Ah	2.1
High intensity light flux	Lm	210
Low intensity light flux	Lm	≥60
High intensityrun time	h	≥4
Low intensityrun time	h	10
Time of charging	h	5~7
Effective lighting distance	m	≥200
Service life of bulb	h	≥100,000
Service life of battery	Recycled	≈1000
Dimension	mm	φ35×150
Net weight	g	190
Inner box size	mm	215×155×45
Carton No.	piece	10
Carton dimension	mm	465×235×175
Gross weight	Kg	4.7

Features

Features

1)Light Source: CREE LED

2)Ingress protection: IP66.

3)The lamp enclosure is sealed to IP66,preventing the ingress of dust and sealing against

water in all condition except long time submersion.

4)Feature: Have attach head, can be use to defend. Anti skid body.

5)Long service life:100,000 hours, environmental friendly.

6)The low intensity light, high intensity light and strobe light can be shifted freely.

7)The sealed structure allows the flashlight work normally 1 meter underwater.

The extreme robustness alloy material is able to withstand the intense drop and impact.

8)Material: aluminium alloy material .

9)Powered by lithium battery (included), no memory effect.

10)Recharge voltage: AC100V-AC240V 50Hz/60Hz or 12V

11)Charger:AC220V mains charger and 12V vehicle charger.

Gallery

Meba-high intensive led explosion proof light-ZW7710A

Online Catalogue

LED Flashlight

Meba-multifunction mini signal flashlights-ZW7600

Post author By meba_admin
Post date 10/01/2014
No Comments on Meba-multifunction mini signal flashlights-ZW7600

Specification

Application

Meba multifunction mini signal flashlights ZW7600 is used at railway, airline and other transporting industries and some special fields, serving as signal indication, safety warning and operation lighting.

1) CREE LED White Green Red LED Signal Torch
2) rechargeable lithium battery
3) IP65, 85 lumen
4) runtime:>10 hours
5) CE

Technical Data

Description				Unit	ZW7600
Rated voltage				V	3.7
Rated capacity of battery				mAh	4000
current	worklight			mA	380
	Signal light				120
	Rear light on the tail				20
luminous flux				Lm	85
Continuous operation time			lighting	h	≥10
			signal		>30
Time of charge				h	6-8
Service life of bulb				h	≥100,000
Service life of battery				Recycled	1000
Dimension		outer diameter		mm	Φ66
		Leight			172
Net weight				g	265
graphic carton dimension				mm	222×140×80
Carton No.				piece	12
Carton dimension				mm	500×310×245
Gross weight				Kg	6.7

Features

.Protection grade: IP65.

.Any two of the red, yellow and green signals can be chosen for allocation. It boasts strong signal indication, with the visibility as far as 5,000m.

. It uses CREE brand LED light source, with the service life as long as 100,000 hours. The reflector

adopts hi-tech surface treatment with high reflect efficiency.The lighting distance is over 100m .

and the visual distance can exceed 5000m. Any two of the the red,yellow,green light is optional as the signal light.

. It can be used on rainy days as it is fully sealed.It has a strong impact resistance against the drop from 1 meter height.

. The rear light on its tail is ideal as a personal indicator to identify the safety of workers in the dark.

. Lithium battery for charging .Large bulk capacity, long service life,low discharge and environment protection.

. Charging voltage: AC100V-AC240V 50Hz/60Hz.

. It has pretty outlook,and very light which makes it comfortable to hold it by hand .Besides this,we supply a convenient removable shoulder strap.

Gallery

Meba-multifunction mini signal flashlights-ZW7600

Online Catalogue

LED Flashlight

Meba-flashlight intensive mini signal-ZW7710

Post author By meba_admin
Post date 10/01/2014
No Comments on Meba-flashlight intensive mini signal-ZW7710

Specification

Application

Meba flashlight intensive mini signal ZW7710 uses the latest technology to give excellent performance,robustness and reliability in the most extreme conditions. It is widely used in the fields of public security departments, railway,military,police,patrol,transportation, civil aviation, forestry and customs inspection etc.

1) led tactical police flashlight
2) 3W 1W , IP66
3) lithium battery
4) highlight,lowlight, strobe light
5) car charger

The flashlight includes:

1)1xflashlight

2)1xlithium battery

3)1x 100-240VAC charger

4)1x12v car charger

5)1x short belt

6)1xgift box

Technical Data

Description	Unit	ZW7710
Light source	Brand	CREE LED
Rated voltage	V	3.7
Light source Power	W	3
Rated capacity	Ah	2.1
High intensity light flux	Lm	210
Low intensity light flux	Lm	≥60
High intensity run time	h	≥4
Low intensity run time	h	10
Time of charging	h	5~7
Effective lighting distance	m	≥200
Service life of bulb	h	≥100,000
Service life of battery	Recycled	≈1000
Dimension	mm	φ35×150
Net weight	g	190
Inner box size	mm	215×155×45
Carton No.	piece	10
Carton dimension	mm	465×235×175
Gross weight	Kg	4.7

Features

1)Light Source: CREE LED

2)Ingress protection: IP66.

3)The lamp enclosure is sealed to IP66,preventing the ingress of dust and sealing against

water in all condition except long time submersion.

4)Feature: Have attach head, can be use to defend. Anti skid body.

5)Long service life:100,000 hours, environmental friendly.

6)The low intensity light, high intensity light and strobe light can be shifted freely.

7)The sealed structure allows the flashlight work normally 1 meter underwater.

The extreme robustness alloy material is able to withstand the intense drop and impact.

8)Material: aluminium alloy material .

9)Powered by lithium battery (included), no memory effect.

10)Recharge voltage: AC100V-AC240V 50Hz/60Hz or 12V

11)Charger:AC220V mains charger and 12V vehicle charger.

Gallery

Meba-flashlight intensive mini signal-ZW7710

Online Catalogue

LED Flashlight

Meba-adjustable led explosion proof flashlight-BW7500

Post author By meba_admin
Post date 10/01/2014
No Comments on Meba-adjustable led explosion proof flashlight-BW7500

Specification

Application

Meba adjustable led explosion proof flashlight BW7500 is ideal for the night work tasks in explosive area such as fire fighting,gas station,power station ,police,inspection and other hazardous areas .

Ingress Protection:IP67
Standard:GB3836.1,GB3836.2,
IEC60079-1:2007,MOD

Technical Data

Specification	unit	BW7500A	BW7500B	BW7500C
Rated voltage	V	3.7	3.7	3.7
Rated power	W	5	3	1
Rated capacity	mAh	4400	4400	4400
Light Output (high)	lm	432	285	149
Light Output (low)	lm	186	150	100
Effective Beam Range	m	450	250	150
Runtime (high)	h	3	6	12
Runtime (low)	h	10	10	20
Recharge Time	h	8-10	8-10	8-10
Service Life	h	100,000	100,000	100,000
Battery Recharge Cycle		≈1000	≈1000	≈1000
Dimension	mm	Φ40×210	Φ40×210	Φ40×210
Net weight	g	300	300	300

Features

1.It adopts CREE LED light source with high efficiency. BW7500A’s effect beam range can reach 700meters. High intensity light and low intensity light are switchable.

2.This product has battery status indication and low battery warning function, Operator can check the battery status at any time. Towards the end of discharge, the beam flashes off repeatedly, warning recharging is required.

3.It is sealed to IP67, water proof to 1 meter. Powered by lithium battery which provide a long service life and low discharge performance.

4.The flashlight surface adopts anti skidding treatment. Easy to carry.

5.The charging, discharging, constant current controlled by the chip with multiple protection.

Gallery

Meba-adjustable led explosion proof flashlight-BW7500

Online Catalogue

Terminal Block

Meba Wieland Terminal Block Connector MBT110

Post author By meba_admin
Post date 09/01/2014
No Comments on Meba Wieland Terminal Block Connector MBT110

Specification

Insulated Terminal Copper Ground Bar :

1. PA ,Polyamide 66,94-2 grade .Inflaming retarding,Working termpertaure:-30°C to 110°C.
2. PE,Polypropylene,Inflaming retarding,low transparency,low rigidity,goog bounce impact force,Working termpertaure:-30°C to 100°C.
3. ABS, good resist dissolve ,good bounce impact fore,Working termpertaure:-20°C to 100°C.
4. Brass.Scews is iron plated zinc.
5. Voltage:250 to 450V
6. Color: according to sample pictures or customized.

Advantages:

1) High precision
2) Excellent inoxidability
3) Great ingredient accuracy and high intensity
4) High corrosion resistance
5) Our own mold workshop and injection molding workshop
6) OEM Service
7) Prompt Delivery
8) Small Order Accept
9) Tolerance: ± 0.3mm
10) Certificate: CE&RoHS&OTHERS
11) Free sample

All products that we supplied have the feature of safety, reliable, convenient and cheaper in price. Good in power conductor, lower in contact resistance, full range of specification. Customer satisfaction is our greatest pursuit !

Technical Parameter

Item NO.	Spec.	L	L1	l2	H	W	Φ	Screw Size	Plastic Setting
Item NO.	W×H	mm						Screw Size	Plastic Setting
MBT110-6P	1.2		81	51	33	29	6(2×8)	Standard	PA
MBT110-8P	1.2		96	66	33	29	6(2×8)	Standard	PA
MBT110-10P	1.2		111	81	33	29	6(2×8)	Standard	PA
MBT110-12P	1.2		126	96	33	29	6(2×8)	Standard	PA
MBT110-14P	1.2		141	111	33	29	6(2×8)	Standard	PA

Drawing:

PDF Download

Meba Wieland Terminal Block Connector MBT110 feature of safety, reliable, convenient and cheaper in price. Good in power conductor, lower in contact resistance, full range of specification.

Tags insulated terminal copper ground bar, Wieland Terminal Block Connector

Terminal Block

Meba Insulated Terminal Copper Ground Bar MBT14

Post author By meba_admin
Post date 09/01/2014
No Comments on Meba Insulated Terminal Copper Ground Bar MBT14

Specification

Insulated Terminal Copper Ground Bar :

Advantages:

Technical Parameter

Item NO.	Spec.	L	L1	l2	H	W	Φ	Screw Size	Plastic Setting
Item NO.	W×H	mm						Screw Size	Plastic Setting
MBT14-6P	1.2		81	51	33	29	6(2×8)	Standard	PA
MBT14-8P	1.2		96	66	33	29	6(2×8)	Standard	PA
MBT14-10P	1.2		111	81	33	29	6(2×8)	Standard	PA
MBT14-12P	1.2		126	96	33	29	6(2×8)	Standard	PA
MBT14-14P	1.2		141	111	33	29	6(2×8)	Standard	PA

Drawing:

PDF Download

Meba Insulated Terminal Copper Ground Bar MBT14 feature of safety, reliable, convenient and cheaper in price. Good in power conductor, lower in contact resistance, full range of specification.

Tags insulated terminal copper ground bar, nylon cable terminal block, wieland terminal block

Terminal Block

Meba high current connector terminal MBTB1004

Post author By meba_admin
Post date 09/01/2014
No Comments on Meba high current connector terminal MBTB1004

Specifications

Summarize and trait:

1. TC Series Terminal Block Connector Sliecting thermosetting plastic, safety factor of big current is more reliable. Board type screw crinm commecting technology as structure parts.

2. Rated AC voltage 600V. Rated current of connecting conduct piece with seven specifications of 60、100、150、200、300、400、600A.

3. The cross-section 10-300mm², which is the biggest closure flow terminal.

4. It can be divided into 3P、4P flat bolt installation according to arrangcmcnt, it will be more reliable with OT、UT termination point for connecting big current in different kind electric device.

Technical Parameter

TC-603		TC-604		TC-1002
wire section:	14mm²	wire section:	14mm²	wire section:	22mm²
rated current:	60A	rated current:	60A	rated current:	100A
voltage:	600V	voltage:	600V	voltage:	600V
wide/high/thick:	85/43/32.5mm	wide/high/thick:	112/43/32.5mm	wide/high/thick:	68/54.5/37.8mm
TC-1003		TC-1004		TC-1503
wire section:	22mm²	wire section:	22mm²	wire section:	60mm²
rated current:	100A	rated current:	100A	rated current:	150A
voltage:	600V	voltage:	600V	voltage:	600V
wide/high/thick:	104/55.4/37.8mm	wide/high/thick:	136/55.5/37.8mm	wide/high/thick:	117/67/40.8mm
TC-1504		TC-2003		TC-2004
wire section:	60mm²	wire section:	100mm²	wire section:	100mm²
rated current:	150A	rated current:	200A	rated current:	200A
voltage:	600V	voltage:	600V	voltage:	600V
wide/high/thick:	157/67/40.8mm	wide/high/thick:	134/72/46.5mm	wide/high/thick:	177/72/46.5mm
TC-3003		TC-3004		TC-4003
wire section:	150mm²	wire section:	150mm²	wire section:	200mm²
rated current:	300A	rated current:	300A	rated current:	400A
voltage:	600V	voltage:	600V	voltage:	600V
wide/high/thick:	164/90.5/50.6mm	wide/high/thick:	220/98.4/50.6mm	wide/high/thick:	164/90.5/50.6mm
TC-4004		TC-6003		TC-6004
wire section:	200mm²	wire section:	300mm²	wire section:	300mm²
rated current:	400A	rated current:	600A	rated current:	600A
voltage:	600V	voltage:	600V	voltage:	600V
wide/high/thick:	220/89.4/50.6mm	wide/high/thick:	205/100/75mm	wide/high/thick:	275/100/75mm

PDF Download

Meba high current connector terminal MBTB1004 Rated current is 100A, there has 60-600A big ampere terminal block for connecting big current indifferent kind electric device.

Tags COPPER TERMINAL BLOCKS, high current connector terminal

Terminal Block

Meba Fixed Terminal Blocks MBTB1512

Post author By meba_admin
Post date 09/01/2014
No Comments on Meba Fixed Terminal Blocks MBTB1512

Specifications

Summarize and trait:

1. TB Series Terminal Block Sliecting thermosetting plastic, safety factor of big current is more reliable. Board type screw crinm commecting technology as structure parts.

2. Rated AC voltage 600V. Rated current of connecting conduct piece with seven specifications of 60、100、150、200、300、400、600A.

3. The cross-section 10-300mm², which is the biggest closure flow terminal.

Technical Parameter

TB-1503		TB-1504		TB-1505
wire section:	0.5-1.5mm²	wire section:	0.5-1.5mm²	wire section:	0.5-1.5mm²
rated current:	15A	rated current:	15A	rated current:	15A
voltage:	600V	voltage:	600V	voltage:	600V
wide/high/thick:	46.5/22/17.5mm	wide/high/thick:	55.5/22/17.5mm	wide/high/thick:	63/22/17.5mm
TB-1506		TB-1510		TB-1512
wire section:	0.5-1.5mm²	wire section:	0.5-1.5mm²	wire section:	0.5-1.5mm²
rated current:	15A	rated current:	15A	rated current:	15A
voltage:	600V	voltage:	600V	voltage:	600V
wide/high/thick:	73.5/22/17.5mm	wide/high/thick:	103/22/17.5mm	wide/high/thick:	128.5/22/17.5mm
TB-2503		TB-2504		TB-2505
wire section:	0.5-2.5mm²	wire section:	0.5-2.5mm²	wire section:	0.5-2.5mm²
rated current:	25A	rated current:	25A	rated current:	25A
voltage:	600V	voltage:	600V	voltage:	600V
wide/high/thick:	55/30/19mm	wide/high/thick:	67/30/19mm	wide/high/thick:	67/30/19mm
TB-2506		TB-2510		TB-2512
wire section:	0.5-2.5mm²	wire section:	0.5-2.5mm²	wire section:	0.5-2.5mm²
rated current:	25A	rated current:	25A	rated current:	25A
voltage:	600V	voltage:	600V	voltage:	600V
wide/high/thick:	91/30/19mm	wide/high/thick:	140/30/19mm	wide/high/thick:	163/30/19mm
TB-3503		TB-3504		TB-3506
wire section:	0.5-2.5mm²	wire section:	0.5-2.5mm²	wire section:	0.5-2.5mm²
rated current:	35A	rated current:	35A	rated current:	35A
voltage:	600V	voltage:	600V	voltage:	600V
wide/high/thick:	50/30/19mm	wide/high/thick:	67/30/19mm	wide/high/thick:	91/30/19mm
TB-3512		TB-4503		TB-4504
wire section:	0.5-2.5mm²	wire section:	1.5-4mm²	wire section:	1.5-4mm²
rated current:	35A	rated current:	45A	rated current:	45A
voltage:	600V	voltage:	600V	voltage:	600V
wide/high/thick:	163/30/19mm	wide/high/thick:	70/38/23.5mm	wide/high/thick:	85/38/23.5mm
TB-4505		TB-4506		TB-4512
wire section:	1.5-4mm²	wire section:	1.5-4mm²	wire section:	1.5-4mm²
rated current:	45A	rated current:	45A	rated current:	45A
voltage:	600V	voltage:	600V	voltage:	600V
wide/high/thick:	102.5/38/23.5mm	wide/high/thick:	120.5/38/23.5mm	wide/high/thick:	222/38/23.5mm
TB-60A/3P		TB-60A/4P 6P/12P		TB-100A/3P/4P 6P/12P
wire section:	2.5-6mm²	wire section:	2.5-6mm²	wire section:	2.5-10mm²
rated current:	60A	rated current:	60A	rated current:	100A
voltage:	600V	voltage:	600V	voltage:	600V
wide/high/thick:	125/34/22mm	wide/high/thick:	200/34/22mm	wide/high/thick:	170/39/23mm

PDF Download

Meba Fixed Terminal Blocks MBTB1512 for connecting big current in different kind electric device. Cover use reinforced plastic, ensures heat-resistance, good toughness and no crack

Tags Fixed Terminal Blocks, Fixed Terminal Board

Terminal Block

Meba Copper busbar or earth netural bar MBT25

Post author By meba_admin
Post date 09/01/2014
No Comments on Meba Copper busbar or earth netural bar MBT25

Specification

Brass link,Copper busbar or earth netural bar :

1. Brass, Screw is iron plated zinc.
2. Note: Can make as request in difference length , holes etc.
3. Coating :Brass bar,high strength and hardness,wear-resisting property high,chemical resistance good .Natural, Nickle Plated, Tin Plated or any coating .
4. Voltage:250-500V
5. Color: silver

Advantages:
1) High precision
2) Excellent inoxidability
3) Great ingredient accuracy and high intensity
4) High corrosion resistance
5) Our own mold workshop and injection molding workshop
6) OEM Service
7) Prompt Delivery
8) Small Order Accept
9) Tolerance: ± 0.3mm
10) Certificate: CE&RoHS&OTHERS
11) Free sample

Technical Parameter

Item	W*H	L	L1	L2	H	W	Φ	Screw Size	Materila
MBT25-5P	2×15	103	9103	88				M5×10	Brass、Screw
MBT25-10P	2×15	127	127	113				M5×10	Brass、Screw
MBT25-15P	2×15	163	163	148				M5×10	Brass、Screw

Drawing:

PDF Download

Meba Copper busbar or earth netural bar MBT25 feature of safety, reliable, convenient and cheaper in price. Good in power conductor, lower in contact resistance, full range of specification.

Tags Copper busbar or earth netural bar, earth netural bar

Fixed Professional Light

Meba-anti dazzle lamps-ZY8600

Post author By meba_admin
Post date 09/01/2014
No Comments on Meba-anti dazzle lamps-ZY8600

Specification

Application

Meba anti dazzle lamps ZY8600 is designed for the poer distributionroom,plants ,water pump certers,boiler rooms,boiler rooms ,passages,coal storage,stadium,stations etc.

Ingress Protection : IP65

Technical Data

Rated voltage	AC220V/50Hz
Anti corrosion grade	WF2
Insulation Grade	I
Spacing Height Ratio	2
Screw Thread	G3/4″
Cable Diameter	Φ8mm~Φ10mm
Size	270×230×300mm
Total weight	6kg

Features

1.Famous brand light source and electrical appliance. And it is 20% brighter comparing with the other brand lamp.

2.When open the upper cover, the lamp will power off automatically, making the operation safer.

3.It adopts the imported advanced transparent part, ensure the lamp with gentle light, anti dazzle, and no shadow area. It can effectively avoid visual fatigue caused to operators during the operation.

4.high strength housing with high quality rubber seal and power coated finish for long term use in the all kinds of humid, high temperature, corrosive, harsh environment.

5.Multiple Mounting options. Customer can choose seated mounting, ceiling mounting, pendant mounting etc, according to the application.

6.The guard is optional according customer requirements.

Gallery

Online Catalogue

[Download not found]

Fixed Professional Light

Meba-ceiling lamps-ZY8510

Post author By meba_admin
Post date 09/01/2014
No Comments on Meba-ceiling lamps-ZY8510

Specification

Application

Meba ceiling lamps ZY8510 is ideal for use as industrial lighting in electric power, metallurgy and other large plant rooms,large plant,and other indoor and outdoor area.

Ingress Protection:IP65

Technical Data

Rated voltage	AC220V/50Hz
Anti corrosion grade	WF2
Insulation Grade	I
High space ratio	1.5
Dimeter	Φ8mm~Φ10mm
Size	Φ490×510mm
Total weight	11.4kg

Features

1.The light source adopts the international famous brand, reliable performance, the brightness 20% higher than similar products,average service life is long, decrease the troubles and inconvenience of frequent replacement bulbs

2.The light body humanized design, clasp type electrical box can unarmed open, easy installation and maintenance

3.Reflector is made of import material. High reflecting effect, ideal for all kinds high bay for fixed illumination.

4.Unique structure design and light weight material for great dustproof, waterproof, corrosion resistance and anti rust.

Gallery

Online Catalogue

[Download not found]

Fixed Professional Light

Meba-shock proof led floodlight-ZY8310

Post author By meba_admin
Post date 09/01/2014
No Comments on Meba-shock proof led floodlight-ZY8310

Specification

Application

Meba shock proof led floodlight ZY8310 is ideal to use as spotlighting in all kinds of plant ,workshop, construction site, electric power station, and some other indoor and outdoor site.

Technical Data

Rated voltage	AC220V/50Hz
Anti corrosion grade	WF2
Insulation Grade	I
High space ratio	2.2
Dimeter	Φ8mm~Φ10mm
Size	Lamp:Φ426×445mm
Size	Ballast:325×215×150mm
Total weight	Lamp: 7.2kg
Total weight	Ballast: 8kg

Features

1.Adopts famous international brand light source with stable performance,gives 20% more light over the other manufacturers.

2.Average light source lifetime is 12000 hours. Low maintenance.

3.The special device on the bottom of the lamp can allow the air get inside so that to balance the internal and external pressure differential and eliminate the water vapor condensation inside the lamp.

4. The shock proof structure can avoids the break of bracket as well as bulb falling off from the lamp when there is intense shock.

5.The ballast box is separated from the lamp. With the sizable finned stripe on the housing, it guarantee the ballast box a higher heat dissipation which is expect to prolong the ballast service life.

6.The buckle replacing the screws design on the housing, making it more easy to open the ballast box by hand.

7.Light weight aluminum alloy with latest spray coating technique. Anti rust, corrosion resistant. Ideal for any extreme condition.

8.The binding technique on the edge of the housing are expected to enhance the waterproof, dust proof characteristics.

9.We can also supply shock absorber according to customer’s requirement. So that to guarantee the lamp safety during the usage on vehicle or other device where there are harsh vibration.

Gallery

Online Catalogue

[Download not found]

Terminal Block

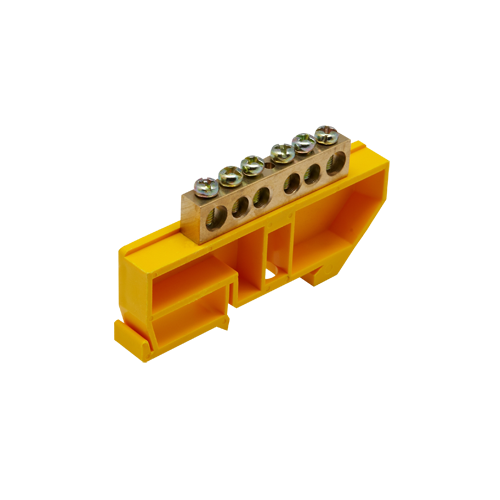

Meba Comb busbar terminal MBCT06H

Post author By meba_admin
Post date 09/01/2014
No Comments on Meba Comb busbar terminal MBCT06H

Specification

Comb busbar terminal :

1, ABS, good resist dissolve, good bounce impact fore, working temperature: -20°C to 70°C.
2, PE. Polypropylene, Inflaming retarding, low transparency, low rigidity, good bounce impact force, working temperature:-40°C to 65°C.
3, Brass, screw is iron plated zinc.
4,Voltage: 250-450V.
5, Color: according sample picture or customized.

Advantages:

Technical Parameter

Item	W*H	L	L1	L2	H	W	Φ	Screw Size	Plastic Setting
MBCT06H-6P	6×9	58	90	35	43	12	5.2	M4×7	PA、ABS
MBCT08H-8P	6×9	60	90	35	43	12	5.2	M4×7	PA、ABS
MBCT010H-10P	6×9	73	90	35	43	12	5.2	M4×7	PA、ABS
MBCT012H-12P	6×9	86	90	35	43	12	5.2	M4×7	PA、ABS
MBCT014H-14P	6×9	99	90	35	43	12	5.2	M4×7	PA、ABS
MBCT016H-16P	6×9	112	90		43	12	5.2	M4×7	PA、ABS

Drawing:

PDF Download

Meba Comb busbar terminal MBCT06H feature of safety, reliable, convenient and cheaper in price. Good in power conductor, lower in contact resistance, full range of specification.

Tags Comb busbar terminal, dumb terminal with din rail

Terminal Block

Meba Connection Terminal Box MBT215

Post author By meba_admin
Post date 09/01/2014
No Comments on Meba Connection Terminal Box MBT215

Specification

TECHNICAL DATA
• Rated insulation voltage 500V
• Fixed on DIN rail or on panel with 2 screws
• Insulated screen for each brass bar
• Offset realization of the feed-in holes to permit an easier wiring of the conductors
• PA,Polyamide66,94-2 grade,inflaming retarding, working
• Tempertaure:-30 °C to110 °C
• Voltage:250-450

MATERIALS
• Brass
• Iron screws
• Plastic body: Polycarbonate V0 according to UL94

COMPLYING WITH STANDARDS
• Conformity to standard EN 60947-1

DETAILS
• Releasing device adopted on all the bars
• Possibility of removing all the bars for an easy wiring

Technical Parameter

Item No.	Bus Bar Spec.	No. Of Bus Bar	Conductors with starfix temules X-section(mm²)	Cond. wout ferr. X-section(mm²)	Dimensions(LWH)(mm)
MBT207	5* Φ 5.3mm 2* Φ 7.5mm	2	1.5 to 6 6 to 16	2.5 to 6 10 to 25	654250
MBT211	7* Φ 5.3mm 2* Φ 7.5mm 2* Φ 9mm	2	1.5 to 6 6 to 16 10 to 16	2.5 to 6 10 to 25 10 to 35	1004250
MBT215	11* Φ 5.3mm 2* Φ 7.5mm 2* Φ 9mm	2	1.5 to 6 6 to 16 10 to 16	2.5 to 6 10 to 25 10 to 35	1354250
MBT407	5* Φ 5.3mm 2* Φ 7.5mm	4	1.5 to 6 6 to 16	2.5 to 6 10 to 25	658550
MBT411	7* Φ 5.3mm 2* Φ 7.5mm 2* Φ 9mm	4	1.5 to 6 6 to 16 10 to 16	2.5 to 6 10 to 25 10 to 35	1008550
MBT415	11* Φ 5.3mm 2* Φ 7.5mm 2* Φ 9mm	4	1.5 to 6 6 to 16 10 to 16	2.5 to 6 10 to 25 10 to 35	1358550

PDF Download

Meba Connection Terminal Box MBT215 feature of safety, reliable, convenient and cheaper in price. Good in power conductor, lower in contact resistance, full range of specification.

Tags Connection terminal Box, terminal connection box

Fixed Professional Light

Meba-emergent led lamp-ZY8810-ZY8820

Post author By meba_admin
Post date 09/01/2014
No Comments on Meba-emergent led lamp-ZY8810-ZY8820

Specification

Application

Meba emergent led lamp ZY8810-ZY8820 is applicable to lighting in workshops, warehouses, trenches, tunnels, or other emergency lighting.

floodlight/lamp
emergency function
IP65,WF2
pretty outlook

Technical Data

ORDERING REFERENCE	Light Source	Rated Wattage(W)	luminous flux(Lm)	Average Useful Time(h)
ZY8810A/ZY8820A	LED	12	560	50,000
ZY8810B/ZY8820B	LED	6	400	50,000
ZY8810C/ZY8820C	LED	6	400	50,000

ITEM	UNIT	ZY8810A/ZY8820A		ZY8810A/ZY8820B		ZY8810A/ZY8820C
Voltage	V(AC/DC)	220/24/36
wattage	W	12		6		6
Luminous Flux	Lm	560		400		400
Average service Time	h	≥100,000
Lighting Service in Time	>10		>10		>10
Charging Time	<m7
Battery Service Time	≈1000
Dimension	mm	180×130×65
Weight	Kg	2

Features

1.ZY8810 can be used for normal lighting, as well as for emergency cases. ZY8820 is only applied for emergency lighting and is usually off. Both ZY8810 and ZY8820 can start the emergency lighting when the main power supply is cut off. They can also be connected with external switch, which is started when the power supply is off.

2.It uses GREE white light LED. The average service life of the light source reaches as long as 50,000 hours and it is maintenance free for a long time.

3.It adopts the wide voltage design Ac(110~260)V, 20~40 (low voltage model).

4.The transparent part is made of the imported anti-bullet rubber materials, with anti-dazzle design. Featuring gentle light, even lighting and no dazzle, it can effectively avoid visual fatigue caused to operators during the operation.

5.The shell is made of light aluminum materials, which is resistant to wearing, corrosion, water and dust.

6.The emergency power supply uses lithium polymer batteries, which is characterized by safety, high efficiency and long service life.

7.Human oriented design: the emergency functions can be shifted both automatically and manually.

Gallery

Online Catalogue

[Download not found]

Fixed Professional Light

Meba-designed led light-ZY8800

Post author By meba_admin
Post date 09/01/2014
No Comments on Meba-designed led light-ZY8800

Specification

Application

Meba designed led light ZY8800 is applicable to flood lighting in warehouses, trenches, tunnels and some other public places .

1.IP65 6W or 12W LED Floodlight

2.110V-260V 20-40V
3.100,000hrs energy saving glare free
4.aluminium shell

Technical Data

ITEM	UNIT	ZY8800A	ZY8800B
Voltage	V(ACVC)	220/24/36
wattage	W	12	6
Luminous Flux	lm	560	400
Average Service Time	h	≥100,000
Dimension	mm	180×130×65mm
Weight	Kg	1

Features

It uses GREE white light LED as light source.The average service life of the lamp can reaches as long as 100,000hours and it is maintenance free for a long time.

· It adopts the wide voltage design AC(110~260)V, Ac/DC (20~40)V.

· The transparent part is made of the imported PC materials, with anti-dazzle design. Featuring gentle light, even lighting and no dazzle, it can effectively avoid visual fatigue caused to operators during the operation.

· The shell is made of light aluminum materials, which is resistant to wearing, corrosion, water and dust.

Gallery

Online Catalogue

[Download not found]

Fixed Professional Light

Meba-high efficient projecting lamp-ZY8320

Post author By meba_admin
Post date 09/01/2014
No Comments on Meba-high efficient projecting lamp-ZY8320

Specification

Application

Meba high efficient projecting lamp ZY8320 is applicable to large range lighting in various plants, construction sites, engineering machinery areas, and other indoor and outdoor places.

efficient factory/construction yard floodlight
Ceramic Metal Halide,70/150W,7300/15000Lm
180 degree turning angle
alloy,IP65
Technical Data

Rated Voltage	AC220V/50Hz
Ingress Protection	IP65
Anticorrosion Grade	WF2
Insulation Grade	I
Cable Diameter	3 core Ø10mm
Dimension	315 ×φ265mm
Weight	3.8Kg

Features

It uses ceramic metal halide lamp as the light source which can save 70% energy comparing with the incandescent lamp.

. The average service life of the lamp is 24,000 hours.

. Strong resistant to corrosion, water and dust, applicable to various harsh environments.

.It can be mounted on pedestal ,wall or ceiling, and its angle is adjustable within +90°~-60°.

.Tripods can be provided upon clients’ request.

Gallery

Meba-high efficient projecting lamp-ZY8320

Online Catalogue

[Download not found]

Fixed Professional Light

Meba-led floodlight-ZY8140

Post author By meba_admin
Post date 09/01/2014
No Comments on Meba-led floodlight-ZY8140

Specification

Application

Meba led floodlight ZY8140 is widely applicable to the floodlighting of the roads or passages for the plants, stations, large facilities, stadiums, tunnels and bridges . It can be used for normal lighting, as well as emergency power fail illumination for emergency cases. ZY8140B is only applied for emergency lighting and is usually off. Both Type A and Type B can start the emergency lighting automatically during the power outrage.They can also be connected with external switch which controlling the emergency lighting manually.

CREE LED workshop light lamp floodlight
18/36W,1980/3960Lm,
emergency lighting time:18W/150min,36W/90min
180degree turn angle
Technical Data

Rated Voltage	AC220V/24V/36V
Rated Voltage	DC220V/24V/36V
Lighting Time in Emergency	18W/150min
Lighting Time in Emergency	36W/90min
Ingress Grade	IP65
Anti corrosion Grade	WF2
Insulation Grade	I
Cable Diameter	Ø8mm – Ø10mm
Dimension	370 ×279×136mm
Weight	3.6Kg

Model No.

Light Source

Rated Wattage(W)

luminous flux(Lm)

Light source service life(h)

ZY8140A-L18

ZY8140B-L18

LED

1980

100,000

ZY8140A-L36

ZY8140B-L36

LED

3960

100,000

Features

· It uses LED light source, with very excellent heat radiation effects, effectively solving the problem of too fast weakening of the light source due to too high temperature .

· The LED light source is expected to last the product lifetime.The average service life of the light source is over 100,000 hours.Therefore it is very low maintenance.

· The LED light source can save almost 90% energy comparing with the incandescent and 60% over the energy saving lamp.

· Adjustable lock is designed for the bracket, especially suitable for places with large vibration.

· The buckle design is applied for the lamp body, very easy to install and repair.

· The shell is made of light alloy material and the surface is subjected to the spraying treatment.all of them ensure the strong resistant to corrosion, water and dust.It is applicable to various harsh environments.

· It can be mounted in pedestal, on ceiling or side wall, and the lamp is adjustable with in 180 degrees vertically.

Gallery

Online Catalogue

[Download not found]
