Meba fan temperature controller CXTD-9000

Post author By meba_admin
Post date 26/12/2013
No Comments on Meba fan temperature controller CXTD-9000

Specification

Meba fan temperature controller CXTD-9000

1. Four different kinds input types(thermocouple dual input, hot resistance dual input, linear dual input, RTD and linear dual input )
2. Linear meter main input supports extraction and small signal excision.
3. Switching value control can distribute to main, deputy input randomly.
4. Max. with 5 switching values output, one is responsible for monitor in put section of line break, thermocouple break, resistance break, other 4 for on-off control or programmable dual timing, counting or intelligent photoelectric alarm.
5. May realize associating alarm control mode.
6. Main, deputy input supports simulation output independently.
7. Main, deputy input support calculating.
8. 8 kinds of alarm control mode for choice.
9. Use 85 <VAC switching power supply.

Parameter

Meba fan temperature controller CXTD-9000

Technical Parameter:

Outline Dimension		outline dimension is 160x80m(length*height) (holing dimension 152x76m)
	S	outline dimension is 80x160mm (holing dimension is 76x152mm)
	A	outline dimension is 96x96mm (holing dimension 92x92mm)
	D	outline dimension is 72x72mm (holing dimension 68x68mm mm)
	9	design code(intelligent series)
Control Output	0	no control output
	2	two relays alarm(randomly distributes to main, deputy input)
	3	three relays alarm(randomly distributes to main, deputy input)
	4	four relays alarm(randomly distributes to main, deputy input)
	9	user’s special requirement for control output mode(remark in ordering)
Alarm Function	0	no alarm function
	2	Special responsible for thermocouple break, resistance break, line break alarm.
	3	realize associated alarm to a relay with two specified value combination
	4	SP3 selectively monitors three switching values to realize intelligent photoelectrical alarm with silencing and time
	9	user’s special requirement for alarm function
Transmitting Output	0	no transmitting output
	1	main or deputy input independently transmitting output
	2	(main input± deputy input)x(Lup-Ldo)
	3	(main input± deputy input)x(Lup-Ldo)+shifting+ PFS
	9	user’s other requirement for transmitting output(remark in ordering )
Input Mode	1	when main/deputy input are same thermocouple K,E,S,B,J etc(when same sensor is necessary, remarking in ordering )
	2	when main/deputy input are same thermal resistance pt100. Cu50 etc. (when sensor is necessary, remarking in ordering)
	3	when main/deputy input are same current or voltage (when same sensor is necessary, remarking in ordering )
	4	Main input is pt100, deputy input is linear current or voltage (remark value of current and voltage in ordering )
Feeding		no 24V feeding output
Feeding	P	24V feeding output
Power Supply		switching power supply85 ~264AC
Power Supply	D	24V power supply
Communication		no communication interface function
Communication	T	A RS458 communication interface function cation

Gallery

PDF Download

Tags fan temperature controller, temperature controller, temperature regulator

Front Board Mounted KWH Meters

Meba-standard active meter -MB341AM

Post author By meba_admin
Post date 26/12/2013
No Comments on Meba-standard active meter -MB341AM

Specification

Application

Meba standard active meter MB341AM is a kind of three phase four wire three tariffs (time-sharing billing)active energy meter, the meter completely accord with relevant technical requirements of class 1 three phase active energy meter stipulated in international standard IEC 62053-21. It can accurate and directly measure 50Hz or 60Hz active energy consumption from three phase four wire AC electricity net, it is use for setting indoor or out door meter box. This meter has seven digits LCD displays shows various consumption data and information. And there are far infrared and RS485 communication module in it. It is use for setting and reading the meter. Contact with all kind of AMR system conveniently. It has following features: good reliability, light weight, specious nice appearance, convenient installation, etc.

Technical Data

Model	Accuracy	Reference Voltage(V)	Current specifications(A)	Starting current(A)	Insulation performance
MB341AM	Class 1	3X127/220 3X230/440	5(30) 10(60) 20(100)	0.02 0.04 0.08	AC voltage 4kv for 1 minute, 1.2/50us waveform pulse voltage 6kv

Installing Diagram

Features

1. Front board three fixed installation, up and down mounting holes center distance is 198-212 mm, users can choose any one by themselves.
2. Have three tariffs, may select 12 daily period of times. You can set the date arbitrary which can automatic read the meter every month. May select single tariff function in weekend. (Please specified when ordering)
3. There are a clock and Maintenance-free backup lithium batteries in it. Battery capacity detection and display all the time. It can keep the electricity data for 12 months. The data can be kept forever after power cut off.
4. May select cycle display (default) or push the button itemized display, we can set the cycle display, it can display 14 data at most. Can select the data which displayed. The decimal median which displayed can choose set one or two.
5. There are a polarity port of pulse output passive closed and a nonpolarity port of pulse output passive distant, the output rate is 10 or 100 imp/kWh (can select), Complying with standard IEC 62053-31 and DIN 43864.
6. There are far infrared and a port of RS485 communication data. It is use for setting and reading the meter. Set and operation have password protection, communication agreement complying with standard DL/T645-1997.
7. Ten LED instructions respectively power supply state, signal of energy impulse, the direction of the flow of load current, the state rates just now and the data communications state.
8. Single direction three components measure three phase four wire active energy consumption. It is nothing with direction of the flow of load current. Complying with standard IEC 62053-21.
9. Standard configuration for direct connect operation, type 16B wiring, we can also choose another type of wiring, and use CT (Product Configuration code is AO) and PT & CT (Product Configuration code is AQ), type 48B wiring for operation.
10. Standard configuration extension terminals cover, in order to protect to use safety, may select short terminals cover. (Product Configuration code is AL).

Gallery

Online Catalogue

[Download not found]

Tags electromechanical meter

Front Board Mounted KWH Meters

Meba-electronic energy meters-MB321JF

Post author By meba_admin
Post date 26/12/2013
No Comments on Meba-electronic energy meters-MB321JF

Specification

Application

Meba electronic energy meters MB321JF is a kind of new style three phase four wire active energy meter, it adopt micro-electronics technique, and imported large scale integrate circuit, use advanced technique of digital and SMT techniques, etc. The meter completely accord with relevant technical requirements of class 1 three phase active energy meter stipulated in international standard IEC 62053-21. It can accurate and directly measure 50Hz or 60Hz active energy consumption from three phase four wire AC electricity net, it is use for setting indoor or out door, and this meter has seven digits LCD displays shows the active energy consumption. It has following features: good reliability, small volume, light weight, specious nice appearance, convenient installation, etc.

Technical Data

Model	Accuracy	Reference Voltage(V)	Current specifications(A)	Starting current(A)	Insulation performance
MB321JF	Class 1	3X127/220 3X230/440	5(30) 10(60) 20(100)	0.02 0.04 0.08	AC voltage 4kv for 1 minute, 1.2/50us waveform pulse voltage 6kv

Installing Diagram

Features

1. Front board three fixed installation, up and down mounting holes center distance is 198-212 mm, users can choose any one by themselves.
2. Seven digits display LCD, standard configuration 6+1 digits display (999999.1kWh). May select 5+2 digits display (Please specified when ordering).
3. Standard configuration only a polarity port of pulse output passive, may select add a nonpolarity port of pulse output passive distant (Product Configuration code is DH). And contact with all kind of AMR system conveniently, Complying with standard IEC 62053-31 and DIN 43864.
4. Four LED instructions respectively power supply state and signal of energy impulse.
5. Automatic detection the direction of the flow of load current. And Instructions on individual LED.
6. Single direction three components measure three phase four wire active energy consumption. It is nothing with direction of the flow of load current. Complying with standard IEC 62053-21.
7. Standard configuration direct connect operation, type 16B wiring, we can also choose another type of wiring, and use CT (Product Configuration code is HF) and PT & CT (Product Configuration code is IF) for operation, it is type 48B wiring.
8. Standard configuration extension terminals cover, in order to protect to use safety, may select short terminals cover. (Product Configuration code is JC).

Gallery

Online Catalogue

[Download not found]

Front Board Mounted KWH Meters

Meba-digital energy meter-MB321DT

Post author By meba_admin
Post date 26/12/2013
No Comments on Meba-digital energy meter-MB321DT

Specification

Application

Meba digital energy meter MB321DT is a kind of new style three phase four wire active energy meter, it adopt micro-electronics technique, and imported large scale integrate circuit, use advanced technique of digital and SMT techniques, etc. The meter completely accord with relevant technical requirements of class 1 three phase active energy meter stipulated in international standard IEC 62053-21. It can accurate and directly measure 50Hz or 60Hz active energy consumption from three phase four wire AC electricity net, it is use for setting indoor or out door, it can display total energy consumption by step motor type impulse register. It has following features: good reliability, small volume, light weight, specious nice appearance, convenient installation, etc.

Technical Data

Model	Accuracy	Reference Voltage(V)	Current specifications(A)	Starting current(A)	Insulation performance
MB321DT	Class 1	3X127/220 3X230/440	5(30) 10(60) 20(100)	0.02 0.04 0.08	AC voltage 4kv for 1 minute, 1.2/50us waveform pulse voltage 6kv

Features

1. Front board three fixed installation, up and down mounting holes center distance is 198-212 mm, users can choose any one by themselves.
2. 6 digits display (999999KWh) by step motor type impulse register.
3. Standard configuration only a polarity port of pulse output passive, may select add a nonpolarity port of pulse output passive distant (Product Configuration code is DI). And contact with all kind of AMR system conveniently, Complying with standard IEC 62053-31 and DIN 43864.
4. Four LED instructions respectively power supply state and signal of energy impulse.
5. Standard configuration don’t detection direction of the flow of load current. May select automatic detection the direction of the flow of load current. And Instructions on individual LED. (Please specified when ordering)
6. Single direction three components measure three phase four wire active energy consumption. It is nothing with direction of the energy of load current. Complying with standard IEC 62053-21.
7. Standard configuration direct connect operation , type 16B wiring, we can also choose another type of wiring, and use 5+1 digits display by impulse register, CT (Product Configuration code is DV) and PT & CT (Product Configuration code is DX) for operation, it is type 48B wiring.
8. Standard configuration extension terminals cover, in order to protect to use safety, may select short terminals cover. (Product Configuration code is EI).

Gallery

Online Catalogue

[Download not found]

Front Board Mounted KWH Meters

Meba-electric power meter-MB313MF

Post author By meba_admin
Post date 26/12/2013
No Comments on Meba-electric power meter-MB313MF

Specification

Application

Meba electric power meter MB313MF is a kind of new style single phase two wire active energy meter, it adopt micro-electronics technique, and imported large scale integrate circuit, use advanced technique of digital and SMT techniques, etc. The meter completely accord with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC 62053-21. It can accurate and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net, it is use for setting indoor or setting out door directly, and this meter has seven digits LCD displays shows the active energy consumption. And there is a maintenance-free lithium batteries in it, use for displaying power cut reading. It has following features: good reliability, small volume, light weight, specious nice appearance, convenient installation, etc.

Technical Data

Model	Accuracy	Reference Voltage(V)	Current specifications(A)	Starting current(A)	Insulation performance
MB313MF	Class 1	127 230	5(30) 10(60) 20(100)	0.02 0.04 0.08	AC voltage 4kv for 1 minute, 1.2/50us waveform pulse voltage 6kv

Installing Diagram

Features

1. Front board three fixed installation, the cover is made of PC material which is transparent and anti-UV molded overall, the bottom and the terminal of the meter are made of black glass fiber which can fire-retardant and enhanced PC material, and the IP rating up to IP56. It has following features: good weatherability, anti-impact, good insulation performance, specious appearance, etc.
2. Standard configuration the bottom and the terminal of the meter are closed by the screw of the meter, may select the bottom and the terminal of the meter are closed by ultrasonic. (Please specified when ordering).
3. Seven digits display LCD, standard configuration 6+1 digits display (999999.1kWh,). May select 5+2 digits display (Please specified when ordering).
4. There is a maintenance-free lithium batteries in it, use for displaying power cut reading.
5. Standard configuration one port of pulse output passive (polarity), May select increase a distant port of pulse output passive (nonpolarity). And contact with all kind of AMR system conveniently, Complying with standard IEC 62053-31 and DIN 43864.
6. Two LED instructions respectively power supply state (green) and signal of energy impulse (red).
7. Automatic detection the direction of the flow of load current. And Instructions on individual LED. (Only yellow energy impulse signal when working, that is meaning the direction of the flow of load current reverse).
8. Single direction single component measure single phase two wire active energy consumption. It is nothing with direction of the flow of load current. Complying with standard IEC 62053-21.
9. Direct connect operation, there are two types wiring you may select. Standard configuration type 1B wiring, may select type 1A wiring (Product Configuration code is DS).
10. Standard configuration extension terminals cover, in order to protect to use safety, may select short terminals cover. (Product Configuration code is MC).

Gallery

Online Catalogue

[Download not found]

Tags energy power meters

Front Board Mounted KWH Meters

Meba-electronic read metering-MB314MF

Post author By meba_admin
Post date 26/12/2013
No Comments on Meba-electronic read metering-MB314MF

Specification

Application

Meba electronic read metering MB314MF is adopt micro-electronics technique, and imported large scale integrate circuit, use advanced technique of digital and SMT techniques, etc. The meter completely accord with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC 62053-21. It can accurate and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net, it is use for setting indoor or out door, and this meter has seven digits LCD displays shows the active energy consumption. And there is a maintenance-free lithium battery in it, use for displaying power cut reading. It has following features: good reliability, small volume, light weight, specious nice appearance, convenient installation, etc.

Technical Data

Model	Accuracy	Reference Voltage(V)	Current specifications(A)	Starting current(A)	Insulation performance
MB314MF	Class 1	127 230	5(30) 10(60) 20(100)	0.02 0.04 0.08	AC voltage 4kv for 1 minute, 1.2/50us waveform pulse voltage 6kv

Installing Diagram

Features

1. Front board three fixed installation, up and down mounting holes center distance is 126-141 mm, users can choose any one by themselves.
2. Seven digits display LCD, standard configuration 6+1 digits display (999999.1kWh). May select 5+2 digits display (Please specified when ordering).
3. There is a maintenance-free lithium battery in it, use for displaying power cut reading.
4. Standard configuration one port of pulse output passive (polarity), May select increase a distant port of pulse output passive (nonpolarity). And contact with all kind of AMR system conveniently, Complying with standard IEC 62053-31 and DIN 43864.
5. Two LED instructions signal of energy impulse (red) and direction of the flow of load current (yellow).
6. Automatic detection the direction of the flow of load current. And when only yellow LED display, that is meaning the direction of the flow of load current reverse.
7. Single direction single component measurement single phase two wire active energy consumption. It is nothing with direction of the flow of load current. Complying with standard IEC 62053-21.
8. Direct connect operation, there are two types wiring you may select. Standard configuration type 1B wiring, may select type 1A wiring (Product Configuration code is DS).
9. Standard configuration extension terminals cover, in order to protect to use safety, may select short terminals cover. (Product Configuration code is MC).

Gallery

Online Catalogue

[Download not found]

Tags digital metering

Temperature Controller

Meba fan controller CXTE-9000

Post author By meba_admin
Post date 26/12/2013
No Comments on Meba fan controller CXTE-9000

Specification

Meba fan controller CXTE-9000

Parameter

Meba fan controller CXTE-9000

Technical Parameter:

Outline Dimension		outline dimension is 160x80m(length*height) (holing dimension 152x76m)
	S	outline dimension is 80x160mm (holing dimension is 76x152mm)
	A	outline dimension is 96x96mm (holing dimension 92x92mm)
	D	outline dimension is 72x72mm (holing dimension 68x68mm mm)
	9	design code(intelligent series)
Control Output	0	no control output
	2	two relays alarm(randomly distributes to main, deputy input)
	3	three relays alarm(randomly distributes to main, deputy input)
	4	four relays alarm(randomly distributes to main, deputy input)
	9	user’s special requirement for control output mode(remark in ordering)
Alarm Function	0	no alarm function
	2	Special responsible for thermocouple break, resistance break, line break alarm.
	3	realize associated alarm to a relay with two specified value combination
	4	SP3 selectively monitors three switching values to realize intelligent photoelectrical alarm with silencing and time
	9	user’s special requirement for alarm function
Transmitting Output	0	no transmitting output
	1	main or deputy input independently transmitting output
	2	(main input± deputy input)x(Lup-Ldo)
	3	(main input± deputy input)x(Lup-Ldo)+shifting+ PFS
	9	user’s other requirement for transmitting output(remark in ordering )
Input Mode	1	when main/deputy input are same thermocouple K,E,S,B,J etc(when same sensor is necessary, remarking in ordering )
	2	when main/deputy input are same thermal resistance pt100. Cu50 etc. (when sensor is necessary, remarking in ordering)
	3	when main/deputy input are same current or voltage (when same sensor is necessary, remarking in ordering )
	4	Main input is pt100, deputy input is linear current or voltage (remark value of current and voltage in ordering )
Feeding		no 24V feeding output
Feeding	P	24V feeding output
Power Supply		switching power supply85 ~264AC
Power Supply	D	24V power supply
Communication		no communication interface function
Communication	T	A RS458 communication interface function cation

Gallery

PDF Download

Tags fan controller, temperature controller

Front Board Mounted KWH Meters

Meba-electricity reading meter-MB071QB

Post author By meba_admin
Post date 26/12/2013
No Comments on Meba-electricity reading meter-MB071QB

Specification

Application

Meba electricity reading meter MB071QB is a kind of new style single phase two wire active energy meter, it is on the basis of original single phase electromechanical meter, and fully absorb new technologies about electromechanical meter from domestic and abroad, and development long-life technology. The meter completely accord with relevant technical requirements of class 2 single phase active energy meter stipulated in international standard IEC 62053-11. It can accurate and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net, it is use for setting indoor or out door meter box, and it can display total energy consumption by drum wheel mechanical register. It has following features: high overload, power loss, long-life, specious appearance, etc.

Technical Data

Model	Accuracy	Reference Voltage(V)	Current specifications(A)	Starting current(A)	Insulation performance
MB071QB	Class 2	127 230	5(30) 10(60) 20(100)	0.025 0.05 0.1	AC voltage 4kv for 1 minute, 1.2/50us waveform pulse voltage 8kv

Installing Diagram

Features

1. Front board three fixed installation, the bottom of the meter and the terminal is made of quality bakelite material which is moisture-resistant, fire-retardant, high temperature molded overall. The cover is also made of bakelite material and has a transparent glass window. It has following features: good weatherability, high rigid, good insulation performance, etc.
2. The meter frame adopt aluminum molding with excellent mechanical strength, stable structure and anti-impact.
3. Voltage components and current components is used of double insulation structure, has good electrical characteristics.
4. Standard configuration bottom bearing is used of double gem bearing, oriented bearing is made of high wear resistance copper alloy bush and stainless steel needle. It has following features: long life and minimal friction, etc. May select magnetic thrust bearing (Product Configuration code is QD) or magnetic suspension (Product Configuration code is QP).
5. All kinds of adjustment mechanism adopt no step shifting mechanism. The meter starting and creeping needn’t to be adjust which is finished by anti-creeping hole of disc and convenient for adjusting by users.
6. Standard configuration 6 digits display by drum wheel mechanical register, may select 5 digits display by drum wheel mechanical register (Product Configuration code is QG).
7. Standard configuration without the device which can prevent retrograde, may select add the function of prevent retrograde. (Please specified when ordering).
8. Standard configuration without handle, may select add a handle for carrying the meter conveniently. (Please specified when ordering).
9. Single component measure single phase two wire active energy consumption. Complying with standard IEC 62053-11.
10. Direct connect operation, there are two types wiring you may select. Standard configuration type 1B wiring, may select type 1A wiring (Product Configuration code is QK).
11. Extension terminals cover, in order to protect to use safety.

Gallery

Online Catalogue

[Download not found]

Tags intellgient meter

Temperature Controller

Meba digital temperature controller XMTD

Post author By meba_admin
Post date 26/12/2013
No Comments on Meba digital temperature controller XMTD

Specification

Meba digital temperature controller XMTD

The XMT series meter,compared to traditional XC series moving coil meter and TDW meter,owns merits of high precision,strong shock resistance ability,good reliability,simple installation,clear reading,no parallax and long distance observation support etc.it has two digits,three digits,time proportion type,silicon controlled concessive adjusting function,PID type etc and can be added overrun alarm function according requirement on adjusting mode and its renewed product based on XC series product,widely used for -2001800 temperature measure and auto control of different industries such as metallurgy,textile,machinery,oven,refrigeration chemical industry, medical treatment and so on, and also can be used for parameters measure,display and control when equipped to sensor.

Meba digital temperature controller XMTD

Our SG series temp controller totally adopts imported elements with small volume, light weight, beautiful outline, good reliability, strong shock resistance and anti-jamming. It is widely used and can absolutely replace imported meter of same category.

Parameter

Meba digital temperature controller XMTD

Technical Parameter:

Input Signal	Thermocouple(xx1type)RTD(xx2type)voltage(xx3type)resisance(xx4type)current(xx5type)
Adjusting Mode	Two digits adjusting(x0xtype)three digits adjusting(x2xtype)Time proportion adjusting(x6xtype)silicon controlled zero cross(x7xtype)silicon controlled three phases zero cross(x8xtype)PID adjusting(x9xtype)
Outline&installing dimension	Outline dimension 160×80mm installing dimension 152×76mm
Rated voltage of power supply	AC220V±10% 50/60Hz
Precison	Display precision 0.1 class,control precision may reach ±1
Work environment	Temperature 050,relative hunidity≤85%
Output capacity of contact	Relay connection point 5A 250VAC,voltage of no connection point DC12V for SSR use
Proportion cycle	Relay:30secs,no connection point:2 secs.
Power consumption	≤5W
Temperature range	Thermocouple 01800 RTD -200600

Gallery

XMT digital temperature controller

PDF Download

Tags digital temperature controller, temperature controller

Front Board Mounted KWH Meters

Meba-single phase electronic meter-MB314TH

Post author By meba_admin
Post date 26/12/2013
No Comments on Meba-single phase electronic meter-MB314TH

Specification

Application

Meba single phase electronic meter MB314TH is a kind of new style single phase two wire active energy meter, it adopt micro-electronics technique, and imported large scale integrate circuit, use advanced technique of digital and SMT techniques, etc. The meter completely accord with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC 62053-21. It can accurate and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net, it is use for setting indoor or out door, and it can display total energy consumption by step motor type impulse register. It has following features: good reliability, small volume, light weight, specious nice appearance, convenient installation, etc.

Technical Data

Model	Accuracy	Reference Voltage(V)	Current specifications(A)	Starting current(A)	Insulation performance
MB314TH	Class 1	127 230	5(30) 10(60) 20(100)	0.02 0.04 0.08	AC voltage 4kv for 1 minute, 1.2/50us waveform pulse voltage 6kv

Installing Diagram

Features

1. Front board three fixed installation, up and down mounting holes center distance is 126-141 mm, users can choose any one by themselves.
2. Standard configuration 5+1 digits display (99999.1kWh) by step motor type impulse register. May select 6+1 digits display (Product Configuration code is UC).
3. Standard configuration one port of pulse output passive (polarity), May select increase a distant port of pulse output passive (nonpolarity). And contact with all kind of AMR system conveniently, Complying with standard IEC 62053-31 and DIN 43864.
4. Two LED instructions signal of energy impulse (red) and direction of the flow of load current (yellow).
5. Automatic detection the direction of the flow of load current. And when only yellow LED display, that is meaning the direction of the flow of load current reverse.
6. Single direction single component measure single phase two wire active energy consumption. It is nothing with direction of the flow of load current. Complying with standard IEC 62053-21.
7. Direct connect operation, there are two types wiring you may select. Standard configuration type 1A wiring, may select type 1B wiring (Product Configuration code is AH).
8. Standard configuration extension terminals cover, in order to protect to use safety, may select short terminals cover. (Product Configuration code is TG).

Gallery

Meba-single phase electronic meter-MB314TH

Online Catalogue

[Download not found]

Tags electronic meter technique

Front Board Mounted KWH Meters

Meba-power intelligent energy meters-MB074OJ

Post author By meba_admin
Post date 26/12/2013
No Comments on Meba-power intelligent energy meters-MB074OJ

Specification

Application

Meba power intelligent energy meters MB074OJ is a kind of new style single phase two wire active energy meter, it is designed on the basis of original DD862 single phase electromechanical meter, and fully absorb new technologies about electromechanical meter from domestic and abroad. The meter completely accord with relevant technical requirements of class 2 single phase active energy meter stipulated in international standard IEC 62053-11. It can accurate and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net, it is use for setting indoor or out door meter box. The meter has novel design, rational structure, and it can display total energy consumption by drum wheel mechanical register. It has following features: high overload, power loss, long-life, specious appearance, etc.Technical Data

Model	Accuracy	Reference Voltage(V)	Current specifications(A)	Starting current(A)	Insulation performance
MB073QJ	Class 2	127 230	5(20) 10(40) 20(80) 30(100)	0.025 0.05 0.1 0.15	AC voltage 4kv for 1 minute, 1.2/50us waveform pulse voltage 8kv

Installing Diagram

Features

Gallery

Meba-power intelligent energy meters-MB074OJ

Online Catalogue

[Download not found]

Tags special power meter

Temperature Controller

Meba digital temperature controller SG-761

Post author By meba_admin
Post date 26/12/2013
No Comments on Meba digital temperature controller SG-761

Specification

Meba digital temperature controller SG-761

Meba digital temp controller SG-761 totally adopts imported elements with small volume, light weight, beautiful outline, good reliability, strong shock resistance and anti-jamming. It is widely used and can absolutely replace imported meter of same category. Already CE certificated.

Meba digital temperature controller SG-761

Parameter

Meba digital temp controller SG-761

Technical Parameter:

Dimensions(mm)	48mm X 48mm 48mm X 96mm 72mm X 72mm 96H X 96W X 110D
Temp.Range	DIGIT SETTING:0-99.9,0-199,0-299,0-399,0-999
Input indication	CA(K,J),PT100Ω
Setting precision	Less than ±1% full scale or range display	Less than 0.5% full scale or range display
Indicating precision	Less than ±2
Control Action	ON/OFF only,proportion type(PD)
Output Mode	Relay connection point 5A 250VAC,voltage of non ecting point 12VDC for SSR use
Rated Voltage	AC: 110V/220V/380V/±10% , 50/60Hz
Proportion Cycle	Relay:15secs,Non connection point:2secs
Power Consumption	About:3W
Accessory Function	sense for temperature sensing line breaking
Ambient Temperature	-10°C +55

Gallery

PDF Download

Tags digital temperature controller, temperature controller, temperature regulator

Front Board Mounted KWH Meters

Meba-electricity energy meter-MB073WB

Post author By meba_admin
Post date 26/12/2013
No Comments on Meba-electricity energy meter-MB073WB

Specification

Application

Meba electricity energy meter MB073WB is a kind of new style single phase two wire active energy meter, it is designed on the basis of original DD862 single phase electromechanical meter, and fully absorb new technologies about electromechanical meter from domestic and abroad. The meter completely accord with relevant technical requirements of class 2 single phase active energy meter stipulated in international standard IEC 62053-11. It can accurate and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net, it is use for setting indoor or out door meter box. The meter has novel design, rational structure, and it can display total energy consumption by drum wheel mechanical register. It has following features: high overload, power loss, long-life, specious appearance, etc. Technical Data

Model	Accuracy	Reference Voltage(V)	Current specifications(A)	Starting current(A)	Insulation performance
MB073WB	Class 2	127 230	5(20) 10(40) 20(80) 30(100)	0.025 0.05 0.1 0.15	AC voltage 4kv for 1 minute, 1.2/50us waveform pulse voltage 86kv

Installing Diagram

Features

1. Front board two fixed installation, the cover is made of PC material which is transparent and anti-UV molded overall, the bottom of the meter is made of black glass fiber which can fire-retardant and enhanced PC material, and the terminal is made of quality bakelite material which is moisture-resistant, fire-retardant, high temperature molded overall. It has following features: good weatherability, anti-impact, specious appearance, etc.
2. The meter frame adopt aluminum molding with excellent mechanical strength, stable structure and anti-impact.
3. Voltage components and current components is used of double insulation structure, has good electrical characteristics.
4. Standard configuration the meter adopt magnetic thrust bottom bearing, oriented bearing is made of lubrication graphite bush and stainless steel needle. It has following features: small abrasion, long life and minimal friction, etc. May select double gem bearing (Product Configuration code is WH).
5. All kinds of adjustment mechanism adopt no step shifting mechanism. The meter starting and creeping needn’t to be adjust which is finished by anti-creeping hole of disc and convenient for adjusting by users.
6. Standard configuration 5 digits display by drum wheel mechanical register, may select 6 digits display by drum wheel mechanical register (Product Configuration code is WE).
7. Standard configuration without the device which can prevent retrograde, may select add the function of prevent retrograde. (Please specified when ordering).
8. Single component measure single phase two wire active energy consumption. Complying with standard IEC 62053-11.
9. Direct connect operation, there are two types wiring you may select. Standard configuration type 1A wiring, may select type 1B wiring (Product Configuration code is WA).
10. Extension terminals cover, in order to protect to use safety.

Gallery

Online Catalogue

[Download not found]

Temperature Controller

Meba digital temp controller SG-771

Post author By meba_admin
Post date 26/12/2013
No Comments on Meba digital temp controller SG-771

Specification

Meba digital temp controller SG-771

Meba digital temp controller SG-771 totally adopts imported elements with small volume, light weight, beautiful outline, good reliability, strong shock resistance and anti-jamming. It is widely used and can absolutely replace imported meter of same category. Already CE certificated.

Meba digital temp controller SG-771

Parameter

Meba digital temp controller SG-771

Technical Parameter:

Dimensions(mm)	48mm X 48mm 48mm X 96mm 72mm X 72mm 96H X 96W X 110D
Temp.Range	DIGIT SETTING:0-99.9,0-199,0-299,0-399,0-999
Input indication	CA(K,J),PT100Ω
Setting precision	Less than ±1% full scale or range display	Less than 0.5% full scale or range display
Indicating precision	Less than ±2
Control Action	ON/OFF only,proportion type(PD)
Output Mode	Relay connection point 5A 250VAC,voltage of non ecting point 12VDC for SSR use
Rated Voltage	AC: 110V/220V/380V/±10% , 50/60Hz
Proportion Cycle	Relay:15secs,Non connection point:2secs
Power Consumption	About:3W
Accessory Function	sense for temperature sensing line breaking
Ambient Temperature	-10°C +55

Gallery

PDF Download

Tags digital temp controller, temperature regulator

Proximity Switch

Meba Inductive Proximity Sensor LM5

Post author By meba_admin
Post date 26/12/2013
No Comments on Meba Inductive Proximity Sensor LM5

Specification

Specification

Model explanation of proximity switch:

Number	Composition	Code and Definition
1	Switch catalogue	LM: inductance type; CM: capactitance type; SM:Hall type; AM:safety explosion- proof type; XM: mimic linear type
2	Outward appearance code	■: Cylinder type; F: Angular column type and plane installation type
3	Working voltage	30: 6-36VDC; 310: 5-24VDC; 320: 12-60VDC; 20: 90-250VAC; 210: 24-250VAC; 220: 380VAC; 40: 12-240VDC/24-240AC; 50: Special voltage
4	Detection distance	01: 1mm; 05:5mm; 10:10mm
5	Output form	N: Three-line DC NPN output; P: Three-line DC PNP output; L: Two-line DC output; ■: AC two-wire output; J: Relay output; NP: NPN+PNP output
6	Output state	A: NO; B: NC; C: NO+NC; MU: Mimic voltage; MI: Mimic current
7	Subsidiary functions	T: With connector; Y: Water proof, oil proof; I: Special requirement; H: High temp resistance; R: Ring type

Main features:

– Compact volume

– high precision of repeated location

– Diversified exterior structures

– Good performance of anti-interference.

– Many output forms

– High on-off frequency

– Wide voltage range

– Dust proof,vibration proof,water proof and oil proof.

– With short-circuit protection and inverted connecting protection.

– Long service life

Technical Parameters(Inductive Proximity Sensor LM5):

Model NO.	Detection distance	Working voltage	Output		Flush
Model NO.	Detection distance	Working voltage	Form	State	Flush
LM5-3001NA	1mm	DC6-36V	NPN	NO	Flush
LM5-3001PA	1mm	DC6-36V	PNP	NO	Flush

Tags Inductive Proximity Sensor, Inductive Proximity Switch

Terminals and Connectors

Meba Insulated Flange Spade Terminals FSV

Post author By meba_admin
Post date 26/12/2013
No Comments on Meba Insulated Flange Spade Terminals FSV

Specification

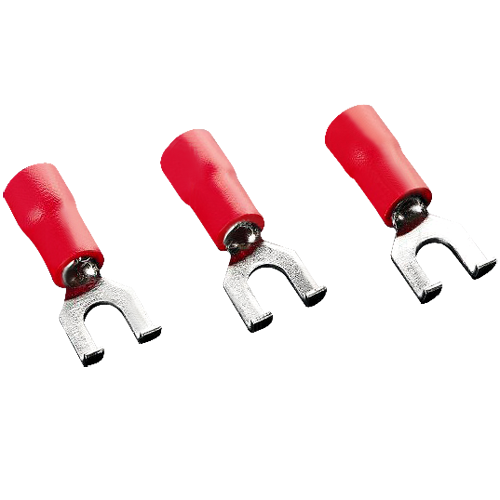

Insulated Flange Spade Terminals FSV series

Cable size：0.5～1.5mm²（A.W.G 22～16) Max current：Imax=19A Material：Purple Copper

Item No

USA screw

screw dia.d2
(mm)

Dimension(mm)

Color

Dφ

LSV 1.25-3.5

3.7

6.4

21.2

6.5

10.0

4.3

red

LSVS 1.25-4

4.3

7.2

21.2

6.5

LSVL 1.25-4

4.3

8.1

21.2

6.5

LSVS 1.25-5

#10

5.3

8.1

21.2

6.5

LSVL 1.25-5

#10

5.3

9.5

21.2

6.5

Cable size：1.5～2.5mm²（A.W.G 16～14) Max current：Imax=27A Material：Purple Copper

Item No

USA screw

screw dia.d2
(mm)

Dimension(mm)

Color

Dφ

LSV 2-3.5

3.7

6.0

21.2

6.5

10.0

4.9

blue

LSVS 2-4

4.3

7.2

21.2

6.5

LSVL 2-4

4.3

8.1

21.2

6.5

LSVS 2-5

#10

5.3

8.1

21.2

6.5

LSVL 2-5

#10

5.3

9.5

21.2

6.5

Cable size：4～6mm²（A.W.G 12～10) Max current：Imax=48A Material：Purple Copper

Item No

USA screw

screw dia.d2
(mm)

Dimension(mm)

Color

Dφ

LSV 5.5-3.5

3.7

8.3

25.2

7.5

13.0

6.7

yellow

LSV 5.5-4

4.3

8.3

25.2

7.5

LSV 5.5-5

#10

5.3

9.0

23.9

7.5

LSV 5.5-6

1/4

6.4

12.0

31.2

12.0

Dimension:

Usage:

1. The product is applied for kinds of industrial and mining enterprises such as steel smelting,prtrochemical industry,electric power,electron ,railway,construction,airport, mine,stope,water supply and drain processing factory ,port,store,hotel and so on.

2. it is also for mating and maintenance fittings of device power and connectors imported from abroad, so it is a new generation ideal power supply unit.

Gallery

PDF Download

Tags Insulated Flange Spade Terminals

Front Board Mounted KWH Meters

Meba-tested meters-MB071VB

Post author By meba_admin
Post date 26/12/2013
No Comments on Meba-tested meters-MB071VB

Specification

Application

Meba-tested meters-MB071VB is a kind of new style single phase two wire active energy meter, it is on the basis of original single phase electromechanical meter, and fully absorb new technologies about electromechanical meter from domestic and abroad, and development long-life technology. The meter completely accord with relevant technical requirements of class 2 single phase active energy meter stipulated in international standard IEC 62053-11. It can accurate and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net, it is use for setting indoor or out door meter box, and it can display total energy consumption by drum wheel mechanical register. It has following features: high overload, power loss, long-life, specious appearance, etc.
Technical Data

Model	Accuracy	Reference Voltage(V)	Current specifications(A)	Starting current(A)	Insulation performance
MB071VB	Class 2	127 230	5(30) 10(60) 20(100)	0.025 0.05 0.1	AC voltage 4kv for 1 minute, 1.2/50us waveform pulse voltage 8kv

Installing Diagram

**Dimension for Meba-tested meters-MB071VB**

**Wiring diagram for Meba-tested meters-MB071VB**

Features

1. Front board three fixed installation, the bottom of the meter and the terminal is made of quality bakelite material which is moisture-resistant, fire-retardant, high temperature molded overall. The cover is also made of bakelite material and has a transparent glass window. It has following features: good weatherability, high rigid, specious appearance, etc.
2. The meter frame adopt top-quality steel plate once molding with excellent mechanical strength, stable structure and anti-impact.
3. Voltage components is used of all closed vacuum pouring coil by epoxy resin. Current components is used of double insulation structure, has good electrical characteristics.
4. The meter adopt magnetic thrust bottom bearing, oriented bearing is made of lubrication graphite bush and stainless steel needle. It has following features: small abrasion, long life and minimal friction, etc.
5. All kinds of adjustment mechanism adopt no step shifting mechanism. The meter starting and creeping needn’t to be adjust which is finished by anti-creeping hole of disc and convenient for adjusting by users.
6. Standard configuration 5 digits display by drum wheel mechanical register, may select 6 digits display by drum wheel mechanical register (Product Configuration code is VE).
7. Single component measure single phase two wire active energy consumption. Complying with standard IEC 62053-11.
8. Direct connect operation, there are two types wiring you may select. Standard configuration type 1A wiring, may select type 1B wiring (Product Configuration code is VA).
9. Standard configuration extension terminals cover, in order to protect to use safety, may select short terminals cover. (Product Configuration code is RB).

Gallery

Online Catalogue

[Download not found]

Tags energy meter

Temperature Controller

Meba automatic temperature control E5C4

Post author By meba_admin
Post date 26/12/2013
No Comments on Meba automatic temperature control E5C4

Specification

Meba automatic temperature control E5C4

Meba automatic temperature control E5C4 Good reliability Strong anti-jamming and shock resistant ability

Meba automatic temperature control E5C4

Our E5 series meter totally adopts imported elements with small volume,light weight,beautiful outline ,good reliability ,strong shock resistance and anti-jamming. It can be widely used for temperature measure and auto control in different industries like plastic machinery ,rubber machinery ,packing machinery ,dress, food and printing & dyeing etc.

Parameter

Technical Parameter:

Meba automatic temperature control E5C4

Main Technical Parameter:

Temp.Range	0-99.9,0-199,0-299,0-399,0-999
Input indication	(K,J),PT100Ω
Setting precision	Less than ±1% full scale or range display	Less than 0.5% full scale or range display
Indicating precision	Less than ±2
Control Action	ON/OFF only,proportion type(PD)
Output Mode	Relay connection point 5A 250VAC,voltage of non ecting point 12VDC for SSR use
Rated Voltage	AC: 110V/220V/380V/±10% , 50/60Hz
Proportion Cycle	Relay:15secs,Non connection point:2secs
Power Consumption	3W
Ambient Temperature	-10°C~ +55°C

Signification of meter model

E5EM, E5EN, E5C2, E5C3, E5C4

EM: code dialing set, wqrp indication,outline dimension 48×96×110mm

EN: code dialing set, digit display,outline dimension 48×96×110mm

C2: knob set, no indication, outline dimension 48×48×110mm

C3: code dialing set, no indication,outline dimension 48×48×110mm

C4: code dialing set, digit display,outline dimension 48×48×110mm

Gallery

PDF Download

Tags automatic temperature control, temperature controller

Terminals and Connectors

Meba Closed-End Wire Connectors CE Series

Post author By meba_admin
Post date 26/12/2013
No Comments on Meba Closed-End Wire Connectors CE Series

Specification

Closed-End Wire Connectors

Item No	Dimension(mm)			Wire range		Color
Item No	A	B	C	A.W.G.	mm²	Color
CE1	2.60	7.80	18.00	22-16	0.5-1.5	Nature
CE2	3.10	9.50	19.70	16-14	1.5-2.5	Nature
CE5	4.40	12.50	25.50	12-18	4-6	Nature
CE8	5.30	14.60	27.70	8	6-10	Nature
PB1	2.3	6.6	15.2	22-16	0.5-1.5	Nature
PB2	3.1	6.9	15.2	16-14	1.5-2.5	Nature
PB5	4.0	10.0	17.8	12-10	4-6	Nature
PB8	5.0	12.6	22.0	8	6-10	Nature

Dimension:

Usage:

2. it is also for mating and maintenance fittings of device power and connectors imported from abroad, so it is a new generation ideal power supply unit.

Gallery

PDF Download

Tags Closed-End Wire Connectors, crimp connectors

Terminals and Connectors

Meba Insulated Bullet Female Disconnects FRD

Post author By meba_admin
Post date 26/12/2013
No Comments on Meba Insulated Bullet Female Disconnects FRD

Specification

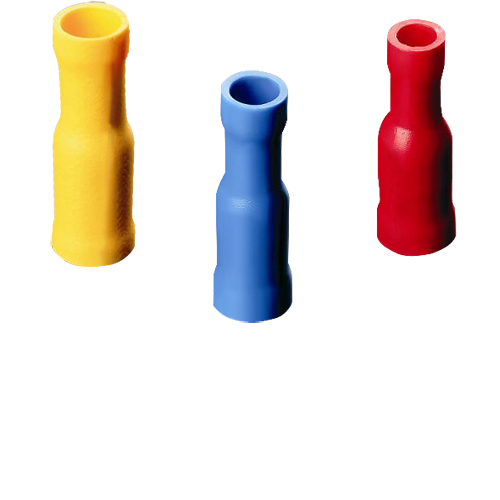

Insulated Bullet Female Disconnects FRD series

Wire range: 0.5~1.5mm²(A.W.G. 22~16) Imax=10A

Item No	Dimension(mm)					Color
Item No	bφ	F	Dφ	H	L	Color
FRD1.25-156	4.0	6.3	1.7	13.0	24.0	Red
FRD1.25-176	4.5	6.3	1.7	13.0	24.0	Red

Wire range: 1.5~2.5mm²(A.W.G. 16~14) Imax=15A

Item No	Dimension(mm)					Color
Item No	bφ	F	Dφ	H	L	Color
FRD2-156	4.0	6.3	2.3	14.0	24.5	Blue
FRD2-176	4.5	6.3	2.3	14.0	24.5
FRD2-195	5.0	7.0	2.3	14.0	24.5

Wire range: 4~6mm² (A.W.G. 12~10) Imax=24A

Item No	Dimension(mm)					Color
Item No	bφ	F	Dφ	H	L	Color
FRD5.5-195	5.0	7.0	3.4	14.0	29.5	Yellow

Dimension:

Usage:

2. it is also for mating and maintenance fittings of device power and connectors imported from abroad, so it is a new generation ideal power supply unit.

Gallery

PDF Download

Tags bullet wire connectors, Insulated Bullet Female Disconnects
