Miniature Circuit Breaker

Meba mcb circuit breaker MBLPN2

Meba mcb circuit breaker MBLPN2

Specification

Meba mcb circuit breaker MBLPN2  can protect and control of circuit against overload and short circuit, in building installation-such as houses, offices, commercial complex, motor system(D curve) and industrial installation-for switching, control, protection and regulation of electrical circuits. Also in switch-gear panels, railway and marine application.Applicable to terminal and pin/fork type busbar connection,Protection against both overload and short circuit High short-circuit capacity

Parameter

Meba mcb circuit breaker MBLPN2

Technical parameters

Tropicalization Relative Humidity 93% RH at 25
50% RH at 40
Room Temperature -5 a 40
Electrical Properties Rated at 40 A 6/10/16/20/25/32/40/50/63
Rated operating voltage at 40 Vac 240/415
Nominal Frequency Hz 50/60
Interrupting Capacity at 230V kA 6
Operating temperature 40
Degree of Protection IP20
Number of poles 1/2/3/4
Conductor cross section (minimum allowable) mm2 25
Minimum number of power moves 4000
Minimum number of mechanical operations 8000
Operation curve B/C/D
Current Trip Curve A Type B: 3 a 5 In
Type C: 5 a 10 In
Type D: 10 a 14 In
Characteristic Intervention attach
Type Of Assembly FOR RIEL DIN 35 mm
Categories
Miniature Circuit Breaker

Meba mcb circuit breaker MBJ6

Meba mcb circuit breaker MBJ6

Specification

Meba mcb circuit breaker MBJ6 series miniature circuit breaker applies to industrial, commercial, lighting and electric machine distribution system with AC415V, 50/60Hz, rated working current up to 100A to protect against overload and short circuit. The item is installed into plug-in type mounting base. It’s conformity with GB10963, IEC60898 standards.

Parameter

Meba mcb circuit breaker MBJ6

Technical parameters

Tropicalization Relative Humidity 93% RH at 25
50% RH at 40
Room Temperature -5 a 40
Electrical Properties Rated at 40 A 6/10/16/20/25/32/40/50/63
Rated operating voltage at 40 Vac 240/415
Nominal Frequency Hz 50/60
Interrupting Capacity at 230V kA 6
Operating temperature -5 a 40
Degree of Protection IP20
Number of poles 1/2/3/4
Conductor cross section (minimum allowable) mm2 25
Minimum number of power moves 4000
Minimum number of mechanical operations 8000
Operation curve B/C/D
Current Trip Curve A Type B: 3 a 5 In
Type C: 5 a 10 In
Type D: 10 a 14 In
Characteristic Intervention attach
Type Of Assembly FOR RIEL DIN 35mm
Features MAGNETIC COIL: ensures the switching of short-circuit, speaking within the following ranges: 5 to 10 times rated current (Type C), 3 to 5 times rated current ( Type B ), 10 to 14 times rated current ( Type D )
BIMETAL: ensures the breaker trip when overloaded.
ARC CHAMBER: effectively dissipates the electric arc that is generated by the opening contacts of the trigger mechanism in the presence of an overload or short circuit.
Categories
Miniature Circuit Breaker

Meba mcb breaker MB47 type

Meba mcb breaker MB47 type

Specification

Meba mcb breaker MB47 type series miniature circuit breaker applies to industrial, commercial, lighting and electric machine distribution system with AC415V, 50/60Hz, rated working current up to 100A to protect against overload and short circuit. The item is installed into plug-in type mounting base. It’s conformity with GB10963, IEC60898 standards.

Parameter

Meba mcb breaker MB47 type

Technical parameters

Tropicalization Relative Humidity 93% RH at 25
50% RH at 40
Room Temperature -5 a 40
Electrical Properties Rated at 40 A 6/10/16/20/25/32/40/50/63
Rated operating voltage at 40 Vac 240/415
Nominal Frequency Hz 50/60
Interrupting Capacity at 230V kA 6
Operating temperature 40
Degree of Protection IP20
Number of poles 1/2/3/4
Conductor cross section (minimum allowable) mm2 25
Minimum number of power moves 4000
Minimum number of mechanical operations 8000
Operation curve B/C/D
Current Trip Curve A Type B: 3 a 5 In
Type C: 5 a 10 In
Type D: 10 a 14 In
Characteristic Intervention attach
Type Of Assembly FOR RIEL DIN 35 mm
Features MAGNETIC COIL: ensures the switching of short-circuit, speaking within the following ranges: 5 to 10 times rated current (Type C), 3 to 5 times rated current ( Type B ), 10 to 14 times rated current ( Type D )
BIMETAL: ensures the breaker trip when overloaded.
ARC CHAMBER: effectively dissipates the electric arc that is generated by the opening contacts of the trigger mechanism in the presence of an overload or short circuit.
Present Certificates CE CB
ISO 9001-2000 awarded by the competent certification body, Meba is qualified in the manufacturing of the object
IEC 60898 standards in the manufacture of the goods
Curve compliance issued Shot by an accredited laboratory for effect



Categories
Din-Rail Mounted Energy Meters

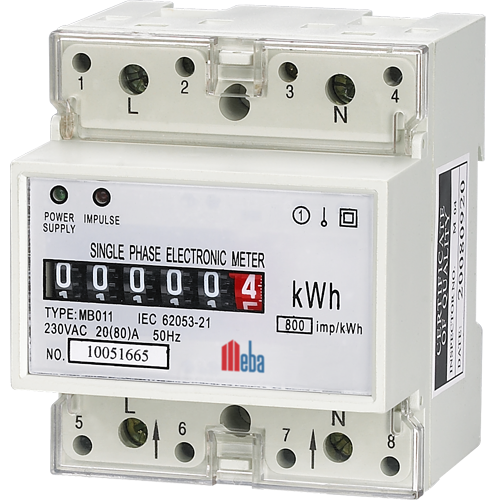

Meba-single phase electronic digital energy meter-MB011

Meba-counter single phase electronic din rail active kwh meter-MB011

Specification

Application

Meba-single phase electronic digital energy meter-MB011 is a kind of new style single phase two wire active energy meter, it adopt micro-electronics technique, and imported large scale integrate circuit, use advanced technique of digital and SMT techniques, etc. It has its completely independent intellectual property rights and minimum size. It has already passed the test of the international authority KEMA. The meter completely accord with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC 62053-21. It can accurate and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net, it can display total energy consumption by step motor type impulse register. It has following features: good reliability, small volume, light weight, specious nice appearance, convenient installation, etc. This meter has already got the patent certificate from China State Intellectual Property Office at present. Patent certificate NO. ZL 2006 3 0119356.3, any other country patent certificate are in assessing.
Technical Data

Model Accuracy Reference Voltage(V) Current specifications(A) Starting current(A) Insulation performance
MB011 Class 1 127
230		 5(30)
10(50)
20(100)		 0.02
0.04
0.08		 AC voltage 4kv for 1 minute,
1.2/50us  waveform
impulse voltage 6kv

Installing Diagram

MB011GC-Single-Phase-Electronic-DIN-Rail-Active-KWH-Meter
MB011-Single-Phase-Electronic-DIN-Rail-Active-KWH-Meter

Wiring diagram (Type S)



MB011-Single-Phase-Electronic-DIN-Rail-Active-KWH-Meter-1
MB011-Single-Phase-Electronic-DIN-Rail-Active-KWH-Meter-1

Features

● 35mm standard DIN rail installation, complying with standard DIN EN50022.
● Single pole width (Modulus 17.5mm), complying with standard DIN43880.
● Standard configuration 6+1 digits display (999999.1kWh) by step motor type impulse register. May select 5+1 digits display
(99999.1kWh).
● Standard configuration pulse output passive (polarity), May select distant pulse output passive (nonpolarity). And contact with
all kind of AMR system conveniently, Complying with standard IEC 62053-31 and DIN 43864.
●  Bicolor LED instructions power supply state (green) and signal of energy impulse (red).
●  Automatic detection the direction of the flow of load current. And instructions (Only red energy impulse signal when working ,If no green instructions power supply, that is meaning the direction of the flow of load current reverse).
● Single direction measurement single phase two wire active power consumption. It is nothing with direction of the trend of load current. Complying with standard IEC 62053-21.
●  Directly connect and use, there are two types wiring you may select. Standard configuration type S connection, may select type U connection (Product Configuration code is US).
● Extension terminals cover, in order to protect to use safety.

Gallery

Online Catalogue

[Download not found]
Categories
NS Moulded Case Circuit Breaker

Meba NEW NS NSX Compact MCCB NS-100N

meba mcb and mccb NS100N

Application

Specification
Application:

1. NS series Compact MCCB the rated insulating voltage is 750V, suitable for AC 50Hz(60Hz), rated working voltage 690V or below, rated working current is 12.5A to 1250A of circuit.

2. Used in distributing electric energy, and non-frequent breaking in the normal conditions, protecting the current & equipment from overload&under voltage, circuit breaker with rated frame current 400A or below can be used in motor’s non-frequent start, breaking during working, protecting motor from overload, short circuit&under-voltage.

3. The product conforms to IEC60947-2 standard.

Classification:

1. Installation way: Mounted vertically, Horizontal installation;
2. By use of circuit breaker usage: Distribution protection, Motor protection;
3. According to the mode of wiring points: Front panel wiring, Back panel wiring , Plug-in connection;
4. According to the mode of operation: direct operating handle, External turning the handle operations, electric operation;
5. By release type distinction: instantaneous action release (magnetic release), thermal + electromagnetic release (duplex); electronic release;
6.  Poles Number: 3poles, 4poles;

Accessories

Meba-NS-Accessories



Accessories Rated operating voltage Consumption For type
Pick-up Seal-in
Shunt release(MX) 24V   <10VA   <5VA  NS-100 ~  630
100V
220/230V
380/400V
Under-voltage release(UN) 220/230V <10VA <5VA
380/400V
Accessories Rated operating voltage Rated operating current For type
AC12 AC15
Auxiliary contact(OF) 380/400V 6 3 NS-100 ~  630
Alarm contact(AL) 380/400V 6 3

Rotary handle

◆A. Direct rotary handle
Degree of protection:IP40
Function:
1) suitability for isolation
2) indication of three positions 0(off) I(on) and tripped
3) press ush to trip?button, can trip-free
4) visibility of and access to trip unit settings
5) the circuit breaker can be locked in the off position by one to three padlocks, diameter 5 to 8mm(not supplied)
◆B. Extended rotary handle
Degree of protection:IP55
Function:
1) Suitability for isolation
2) Indication of three positions 0(off) I(on) and tripped
3) Visibility of and access to trip unit settings when the door is open
4) Door opening prevented when circuit breaker is on
5) The circuit breaker can be locked in the off position by one to three padlocks, diameter 5 to 8mm(not supplied). Locking prevents opening of the switchboard door
Installation: Circuit breaker may be mounted vertically, horizontally or flat on their back without any derating of characteristics.
Fix: Mounting on backplate, mounting on rails
Connection: Front panel connection, black panel connection, plug-in connection

Technical Parameter

Specification:

Type Pole No. Rated insulating voltage(V) Rated operating voltage(V) Rated ultimate short circuit breaking capacity Icu(KA) at 380/415V Rated services short circuit breaking capacity Ics at 380/415V(KA) Operation performace Utiliza-tim Category
ON OFF
NS-100N 3, 4 pole 750 690 and below 25 25 1500 8500 A
NS-100H 70 70
NS-100L 150 150
NS-160N 36 36 1000 7000
NS-160H 70 70
NS-160L 150 150
NS-250N 36 36 1000 7000
NS-250H 70 70
NS-250L 150 150
NS-400N 45 45 1000 4000
NS-400H 70 70
NS-400L 150 150
NS-630N 45 45 1000 4000
NS-630H 70 70
NS-630L 150 450
NS-1250N 3 pole 50 37.5 1000 4000
NS-1600N 50 37.5

Note:
1. The N-pole breaker has no protection which closing and opening with the other three poles.
2. The type of thermal magnetic for NS-400/630 has no four poles.

Outline and Installation Dimension:

meba-outline-and-installation-dimension

Trip unit main technical parameter:

Type Rated Current In(A) Note
NS-100 12.5,16,20,25,32,40,50,63,80,100 T adjustable(0.8-1In)
M adjustable(5-10In)
NS-160 16,20,25,32,40,50,68,80,100,125,160
NS-250 160,180,200,225,250
NS-400 315,350,400
NS-630 400,500,630
NS-1250 800,1000,1250 T adjustable(0.8-1In)
M fixed
NS-1600 1000,1250,1600

PDF Download

[Download not found] NS  100A 3P Compact MCCB is developed breaker with high breaking capactiry and widely used in home, building or commercail

Categories
Miniature Circuit Breaker

Meba mcb breaker MB45DC

Meba mcb breaker MB45DC

Specification

Meba mcb breaker MB45DC series miniature circuit breaker applies to industrial, commercial, lighting and electric machine distribution system with AC415V, 50/60Hz, rated working current up to 100A to protect against overload and short circuit. The item is installed into plug-in type mounting base. It’s conformity with GB10963, IEC60898 standards.

Parameter

Meba mcb breaker MB45DC

Technical parameters

Frame rated current Imm (A) Pole Width/Pole (18mm times) Rated Voltage (V) Rated Current In(A) Rated limit short circuit capacity Instantaneous breaking type
Breaking current Icu(A) Time T(ms)
63 1 1 DC125 1, 2, 3, 4, 5, 6, 10, 15, 16, 20, 25, 32, 40, 50, 63A 10000 10 C, D
2 2 DC250
3 3 DC440 6000 10 C, D

Time-current operation

Tes Type Test Current First Condition Time limit release or un-release Expect result Note
a C,D 1.13ln Cold t≥1h(ln≤63) Un-Release
b C,D 1.45ln Containue A Type Test t<1h(ln≤63) Release Current in within 5 steadily up
c C 8ln Cold t≥0.1s Un-Release Closed auxiliary switch processing power
12ln t<0.1s Release
d D 10ln Cold t≥0.1s Un-Release
14ln t<0.1s Release

Time-current charateristic curve

Categories
Miniature Circuit Breaker

Meba mcb breaker DPN MB32

Meba mcb breaker DPN MB32

Specification

  • applies to industrial, commercial, lighting and electric machine distribution system
  • protect against overload and short circuit
  • AC415V, 50/60Hz, rated working current up to 100A
  • The item is installed into plug-in type mounting base
  • It’s conformity with GB10963, IEC60898 standards.

Parameter

Meba mcb breaker DPN MB32

Tropicalization Relative Humidity 93% RH at 25
Room Temperature 10 a 60
Electrical Properties Rated at 40 A 6/10/16/20/25/32/40
Rated operating voltage at 40 Vac 240/415
Nominal Frequency Hz 50/60
Interrupting Capacity at 230 V kA 4.5
Operating temperature 40
Degree of Protection IP20
Number of poles 1P+N
Conductor cross section (minimum allowable) mm2 25
Minimum number of power moves 5000
Minimum number of mechanical operations 10000
Operation curve C
Current Trip Curve A 5 a 10 In
Characteristic Intervention attach
Type Of Assembly FOR RIEL DIN 35 mm
Features MAGNETIC COIL: ensures the switching of short-circuit, speaking within the following ranges: 5 to 10 times rated current (Type C).
BIMETAL: ensures the breaker trip when overloaded.
ARC CHAMBER: effectively dissipates the electric arc that is generated by the opening contacts of the trigger mechanism in the presence of an overload or short circuit.



Categories
Fuse Modular Devices

Meba fuses MBR47

Meba fuses MBR47

Specification

Meba fuses MBR47 have protective function as shortage as overload, and used in lighting distribution system, industry, commerce, and protect fractional electric motors. And they also have many merits of high protective grade(up to IP20),high break capacity, reliable sensitive action, convenient, multi-pole assembling, long life etc. They are mainly adapted to the circuit of AC 50Hz,230V in single pole,400V in double, three, four poles for protecting overload and short circuit. Meanwhile, they are also used in turning on or off the electric apparatus and lighting circuit under the normal condition.

Parameter

Meba fuses MBR47

Manufacturing Standards IEC 60898 IEC60947
Tropicalization Relative Humidity ℃ 93% RH at 25℃
Room Temperature ℃ 10℃ a 60℃
Electrical Properties Rated at 40℃ A 6/10/16/20/25/32/40/50/63
Rated operating voltage at 40℃ Vac 240/415
Nominal Frequency Hz 50/60
Interrupting Capacity at 230V kA 6
Operating temperature ℃ 40
Degree of Protection IP20
Number of poles 1/2/3/4
Conductor cross section (minimum allowable) mm2 25
Minimum number of power moves 4000
Minimum number of mechanical operations 10000
Operation curve B/C/D
Current Trip Curve A 5 a 10 In
Characteristic Intervention attach
Type Of Assembly FOR RIEL DIN 35 mm



Categories
Fuse Modular Devices

Meba fuses MBS941N

Meba fuses MBS941N

Specification

 Meba fuses MBS941N have protective function as shortage as overload, and used in lighting distribution system, industry, commerce, and protect fractional electric motors. And they also have many merits of high protective grade(up to IP20),high break capacity, reliable sensitive action, convenient, multi-pole assembling, long life etc. They are mainly adapted to the circuit of AC 50Hz,230V in single pole,400V in double, three, four poles for protecting overload and short circuit. Meanwhile, they are also used in turning on or off the electric apparatus and lighting circuit under the normal condition.

Parameter

 Meba fuses MBS941N
Manufacturing Standards IEC 60898 IEC60947
Tropicalization Relative Humidity ℃ 93% RH at 25℃
Room Temperature ℃ 10℃ a 60℃
Electrical Properties Rated at 40℃ A 6/10/16/20/25/32/40/50/63
Rated operating voltage at 40℃ Vac 240/415
Nominal Frequency Hz 50/60
Interrupting Capacity at 230V kA 6
Operating temperature ℃ 40
Degree of Protection IP20
Number of poles 1/2/3/4
Conductor cross section (minimum allowable) mm2 25
Minimum number of power moves 4000
Minimum number of mechanical operations 10000
Operation curve B/C/D
Current Trip Curve A 5 a 10 In
Characteristic Intervention attach
Type Of Assembly FOR RIEL DIN 35 mm



Categories
Miniature Circuit Breaker

Meba Isolator switch MB162-3P

Meba Isolator switch MB162-3P

Specification

MEBA ISOLATOR SWITCH MB162-3P is mainly used in AC50/60Hz single pole 230V or two, three, four pole 400V voltage for overload and short-circuit protection as well as for un-frequent on-and-off switching electric equipment and lighting circuit under normal condition, the product is suitable for industry, business, building, residence, etc. It’s conformity with GB10963, IEC60898 standards.

Parameter

MEBA ISOLATOR SWITCH MB162-3P

Manufacturing Standards IEC 60947-3
Tropicalization Relative Humidity ℃ 93% RH at 25℃
Room Temperature ℃ -5℃ a 40℃
Electrical Properties Rated at 40℃ A 63/80/100/125A
Rated operating voltage at 40℃ Vac 240/415
Nominal Frequency Hz 50/60
Interrupting Capacity kA 4.5/6
Operating temperature ℃ -5℃  a 40℃
Degree of Protection IP20
Number of poles 1/2/3/4
Conductor cross section (minimum allowable) mm2 25
Minimum number of power moves 4000
Minimum number of mechanical operations 8000
Operation curve /
Current Trip Curve A /
Characteristic Intervention attach
Type Of Assembly FOR RIEL DIN 35mm
Present Certificates CE
ISO 9001-2000
IEC 60947-3 standards
Life, given by us to ensure that the life of the goods offered by at least 5 years.
Categories
Isolator Modular Devices

Meba electrical isolator MBHVS

Meba electrical isolator MBHVS

Specification

Meba electrical isolator MBHVS

Protection and control of circuit against overload and short circuit, in building installation-such as houses, offices, commercial complex, motor system(D curve) and industrial installation-for switching, control, protection and regulation of electrical circuits. Also in switchgear panels, railway and marine application. Applicable to terminal and pin/fork type busbar connection Protection against both overload and short circuit. High short-circuit capacity

Parameter

Meba electrical isolator MBHVS

Manufacturing Standards IEC 60947-3
Tropicalization Relative Humidity 93% RH at 25
Room Temperature -5 a 40
Electrical Properties Rated at 40 A 6/16/20/25/32/40/50/63/80/100
Rated operating voltage at 40 Vac 240/415
Nominal Frequency Hz 50/60
Interrupting Capacity kA 4.5/6
Operating temperature -5 a 40
Degree of Protection IP20
Number of poles 1/2/3/4
Conductor cross section (minimum allowable) mm2 25
Minimum number of power moves 4000
Minimum number of mechanical operations 8000
Operation curve /
Current Trip Curve A /
Characteristic Intervention attach
Type Of Assembly FOR RIEL DIN 35mm
Present Certificates CE
ISO 9001-2000
IEC 60947-3 standards
Life, given by us to ensure that the life of the goods offered by at least 5 years.
Testing For Acceptance Before receiving the circuit breakers (breakers), customers may perform the tests may be necessary to ensure compliance with the technical specifications.
Categories
MTmax Moulded Case Circuit Breaker

Meba Molded Case Breaker Protector MTmax-1250A-3P

Tmax 1250A 3P Moulded Case Breaker Protector

Application

1. MTmax series moulded case breaker is the lasted model, suitable for circuit AC 50Hz/60Hz, rated voltage up to AC 660V, rated operating current up to 1600A.

2. It features normal structure, reliable performance, high breaking capacity, used for power distribution and protecting the circuit and electrical equipment against overload and short circuit.

3. It complies with standard of IEC60947-2.

Classification:

1. Installation way: Mounted vertically, Horizontal installation;
2. By use of circuit breaker usage: Distribution protection, Motor protection;
3. According to the mode of wiring points: Front panel wiring, Back panel wiring , Plug-in connection;
4. According to the mode of operation: direct operating handle, External turning the handle operations, electric operation;
5. By release type distinction: instantaneous action release (magnetic release), thermal + electromagnetic release (duplex); electronic release;
6. Poles Number: 3poles, 4poles;

Specification

Type Rated current(A) PoleNo Rated perating voltage(V) Ultimate short circuit breaking capacity(KA) Short circuit breaking(KA)
AC380V(400) AC660V(690) DC250 AC380V(400)
TM6-125S 12.5,16,20,25,32,40,50,63,80,100,125



2P

3P

4P

 ≥30 15 – – 7.5
TM6-125H 25 – 20 16
TM6-160S 16,20,32,40,50,63.80,100,125,160

380V

660V

 35 8 20 18
TM6-160H 50 10 40 25
TM6-250S 100,125,160,180,200,225,250 35 10 40 18
TM6-250H 50 16 40 30
TM6-400S 200,225,250,315,350,400 35 16 18 18
TM6-400H 65 25 48 48
TM6-630S 400,500,630 50 20 30 30
TM6-630 80 30 60 60
TM6-800S 500,630,700,800 50 20 30 30
TM6-800H 80 30 60 60
TM6-1250S 500,600,630,800,1000,1250 50 10 35 37



Working condition:
1.The altitude not exceeding 2000m
2.The ambient temperature is from +40°Cto -5°C
3.Ambient environment is free from explosive danger and air or dust, which may cause corrosion of metal or weakness of insulation.
4.Ambient environment is free from erosion of rain or snow.
5.Pollution degree 3
6.Over-voltage category III

Trip characteristic:
The thermodynamic release of the breaker has the advantages of inverse time-delay while the magnetic release the instantaneous operation as shown on table 2(distribution circuit breaker)and table 3(motor protection circuit breaker).

PDF Download

[Download not found] MEBA MTmax 1250A 3P  molded case breaker protector  is big ampere circuit breaker  with high breaking capacity match with RCCB, MCB  use  to protection power distribution equipment safety.

Categories
MTmax Moulded Case Circuit Breaker

Meba MCCB With Thermal Magnetic Trip Unit Moulded Case Breaker MTmax-800A-3P

meba mccb abb Tmax-800A

Application

1. MTmax series moulded case circuit breaker is the lasted model, suitable for circuit AC 50Hz/60Hz, rated voltage up to AC 660V, rated operating current up to 1600A.

2. It features normal structure, reliable performance, high breaking capacity, used for power distribution and protecting the circuit and electrical equipment against overload and short circuit.

3. It complies with standard of IEC60947-2.

Classification:

1. Installation way: Mounted vertically, Horizontal installation;
2. By use of circuit breaker usage: Distribution protection, Motor protection;
3. According to the mode of wiring points: Front panel wiring, Back panel wiring , Plug-in connection;
4. According to the mode of operation: direct operating handle, External turning the handle operations, electric operation;
5. By release type distinction: instantaneous action release (magnetic release), thermal + electromagnetic release (duplex); electronic release;
6.  Poles Number: 3poles, 4poles;

Specification

Type Rated current(A) PoleNo Rated perating voltage(V) Ultimate short circuit breaking capacity(KA) Short circuit breaking(KA)
AC380V(400) AC660V(690) DC250 AC380V(400)
TM6-125S 12.5,16,20,25,32,40,50,63,80,100,125



2P

3P

4P

 ≥30 15 – – 7.5
TM6-125H 25 – 20 16
TM6-160S 16,20,32,40,50,63,80,100,125,160

380V

660V

 35 8 20 18
TM6-160H 50 10 40 25
TM6-250S 100,125,160,180,200,225,250 35 10 40 18
TM6-250H 50 16 40 30
JM6-400S 200,225,250,315,350,400 35 16 18 18
TM6-400H 65 25 48 48
TM6-630S 400,500,630 50 20 30 30
TM6-630 80 30 60 60
TM6-800S 500,630,700,800 50 20 30 30
TM6-800H 80 30 60 60
TM6-1250S 500,600,630,800,1000,1250 50 10 35 37



Working condition:
1.The altitude not exceeding 2000m
2.The ambient temperature is from +40°Cto -5°C
3.Ambient environment is free from explosive danger and air or dust, which may cause corrosion of metal or weakness of insulation.
4.Ambient environment is free from erosion of rain or snow.
5.Pollution degree 3
6.Over-voltage category III

Trip characteristic:
The thermodynamic release of the breaker has the advantages of inverse time-delay while the magnetic release the instantaneous operation as shown on table 2(distribution circuit breaker)and table 3(motor protection circuit breaker).

PDF DownLoad

[Download not found]Meab 800A 3Pole mccb with thermal magnetic trip unit has reliable performance, high breaking capacit etc feature.

Categories
Fuse Modular Devices

Meba electric fuses type MBV1PC

Meba electric fuses type MBV1PC

Specification

Meba electric fuses type MBV1PC

Protection and control of circuit against overload and short circuit, in building installation-such as houses, offices, commercial complex, motor system(D curve) and industrial installation-for switching, control, protection and regulation of electrical circuits. Also in switchgear panels, railway and marine application. Applicable to terminal and pin/fork type busbar connection Protection against both overload and short circuit. High short-circuit capacity

Parameter

Meba electric fuses type MBV1PC

Manufacturing Standards IEC 60898 IEC60947
Tropicalization Relative Humidity ℃ 93% RH at 25℃
Room Temperature ℃ -5℃ a 40℃
Electrical Properties Rated at 40℃ A 6/10/16/20/25/32/40/50/63
Rated operating voltage at 40℃ Vac 240/415
Nominal Frequency Hz 50/60
Interrupting Capacity at 230V kA 4.5
Operating temperature ℃ -5 a 40℃
Degree of Protection IP20
Number of poles 1/2/3/4
Conductor cross section (minimum allowable) mm2 25
Minimum number of power moves 4000
Minimum number of mechanical operations 10000
Operation curve B/C/D
Current Trip Curve A 5 a 10 In
Characteristic Intervention attach
Type Of Assembly FOR RIEL DIN 35 mm
Operation Indicator Window The circuit breaker have an operating window color display that shows the state in which it is (connected or disconnected).
Features MAGNETIC COIL: ensures the switching of short-circuit, speaking within the following ranges: 5 to 10 times rated current (Type C), 3 to 5 times rated current (Type B), 10 to 14 times rated current (Type D)
BIMETAL: ensures the breaker trip when overloaded.
ARC CHAMBER: effectively dissipates the electric arc that is generated by the opening contacts of the trigger mechanism in the presence of an overload or short circuit.
Categories
MTmax Moulded Case Circuit Breaker

Meba 400A 3Pole SACE MCCB MTmax-400A-3P

meba mccb abb Tmax 400A 3P

Application

1. MTmax series moulded case  breaker is the lasted model, suitable for circuit AC 50Hz/60Hz, rated voltage up to AC 660V, rated operating current up to 1600A.

2. It features normal structure, reliable performance, high breaking capacity, used for power distribution and protecting the circuit and electrical equipment against overload and short circuit.

3. It complies with standard of IEC60947-2.

Classification:

1. Installation way: Mounted vertically, Horizontal installation;
2. By use of circuit breaker usage: Distribution protection, Motor protection;
3. According to the mode of wiring points: Front panel wiring, Back panel wiring , Plug-in connection;
4. According to the mode of operation: direct operating handle, External turning the handle operations, electric operation;
5. By release type distinction: instantaneous action release (magnetic release), thermal + electromagnetic release (duplex); electronic release;
6.  Poles Number: 3poles, 4poles;

Specification

Type Rated current(A) PoleNo Rated perating voltage(V) Ultimate short circuit breaking capacity(KA) Short circuit breaking(KA)
AC380V(400) AC660V(690) DC250 AC380V(400)
TM6-125S 12.5,16,20,25,32,40,50,63,80,100,125



2P

3P

4P

 ≥30 15 – – 7.5
TM6-125H 25 – 20 16
TM6-160S 16,20,32,40,50,63,80,100,125,160

380V

660V

 35 8 20 18
TM6-160H 50 10 40 25
TM6-250S 100,125,160,180,200,225,250 35 10 40 18
TM6-250H 50 16 40 30
JM6-400S 200,225,250,315,350,400 35 16 18 18
TM6-400H 65 25 48 48
TM6-630S 400,500,630 50 20 30 30
TM6-630 80 30 60 60
TM6-800S 500,630,700,800 50 20 30 30
TM6-800H 80 30 60 60
TM6-1250S 500,600,630,800,1000,1250 50 10 35 37

Working condition:
1.The altitude not exceeding 2000m
2.The ambient temperature is from +40°Cto -5°C
3.Ambient environment is free from explosive danger and air or dust, which may cause corrosion of metal or weakness of insulation.
4.Ambient environment is free from erosion of rain or snow.
5.Pollution degree 3
6.Over-voltage category III

Trip characteristic:
The thermodynamic release of the breaker has the advantages of inverse time-delay while the magnetic release the instantaneous operation as shown on table 1(distribution circuit breaker)and table 2(motor protection circuit breaker).

PDF Download

[Download not found]   MEBA 400A 3P SACE MCCB with high breaking capacity match with RCCB, MCB  use  to protection power distribution equipment safty.

Categories
Fuse Modular Devices

Meba electric fuse MBQF

Meba electric fuse MBQF

Specification

Meba electric fuse MBQF

– Branch circuit protection
– Telecom power distribution
– Power conditioning
– Automatic control systems
– Power supplies
– Power conversion systems
– UPS equipment
– Control machines
– Generator sets

Parameter

Meba electric fuse MBQF

Technical Data

Max. AC Voltage 230/400 VAC
Max. Interrupting Capacity 5kA rms
Min. Current Rating 0.5A
Max. Current Rating 1=125A
3=100A
Agency Recognition of Approvals IEC 60947-2
SANS VC8036
SANS 156
QF Range
Special Supply Authority/Industrial Circuit Breaker-5KA
Type Poles Voltage KA MCB Width(mm) STD Pack Rating(A)
QF-1(13) 1 230VAC 5 13 (1 Module) 12 10 15 20 25
QF-3(13) 3 400VAC 5 39 (3 Module) 4 10 15 20 25
QF-1(19) 1 230VAC 5 19.5 (1 Module) 12 10 15 20 25 30 35 40 45 50 63
QF-3(19) 3 400VAC 5 58.5 (3 Module) 4 10 15 20 25 30 35 40 45 50 63
QF-1(26) 1 230VAC 5 26 (2 Module) 12 10 15 20 25 32 40 45 50 63 70 80 100 125
QF-3(26) 3 400VAC 5 78 (3 Module) 4 10 15 20 25 32 40 45 50 63 70 80 100
Switch Disconnectors 6KA, mini and DIN Rail Mounting, 45 mm Escutcheon
Type Poles Voltage KA MCB Width(mm) STD Pack Rating(A)
QF-1(13)-D 1 230VAC 6 13 (1 Module) 12 10 15 20 25
QF-3(13)-D 3 415VAC 6 39 (3 Module) 4 10 15 20 25
QF-1(18)-D 1 240VAC 6 18 (1 Module) 12 10 15 20 25 30 35 40 45 50 63
QF-3(18)-D 3 415VAC 6 54 (3 Module) 4 10 15 20 25 30 35 40 45 50 63
QF-1(26)-D 1 240VAC 5 26 (2 Module) 12 10 15 20 25 32 40 45 50 63 70 80 100 125
QF-3(26)-D 3 415VAC 5 78 (3 Module) 4 10 15 20 25 32 40 45 50 63 70 80 100
Categories
Miniature Circuit Breaker

Meba main circuit breaker MBH6

Meba main circuit breaker MBH6

Specification

Meba main circuit breaker MBH6 is mainly used in AC50/60Hz single pole 230V or two, three, four pole 400V voltage for overload and short-circuit protection as well as for un-frequent on-and-off switching electric equipment and lighting circuit under normal condition, the product is suitable for industry, business, building, residence, etc. It’s conformity with GB10963, IEC60898 standards.

Parameter

Meba main circuit breaker MBH6

Manufacturing Standards IEC 60947-3
Tropicalization Relative Humidity ℃ 93% RH at 25℃
Room Temperature ℃ -5℃ a 40℃
Electrical Properties Rated at 40℃ A 6-63A
Rated operating voltage at 40℃ Vac 240/415
Nominal Frequency Hz 50/60
Interrupting Capacity kA 4.5/6
Operating temperature ℃ -5℃  a 40℃
Degree of Protection IP20
Number of poles 1/2/3/4
Conductor cross section (minimum allowable) mm2 25
Minimum number of power moves 4000
Minimum number of mechanical operations 8000
Operation curve /
Current Trip Curve A /
Characteristic Intervention attach
Type Of Assembly FOR RIEL DIN 35mm
Present Certificates CE
ISO 9001-2000
IEC 60947-3 standards
Life, given by us to ensure that the life of the goods offered by at least 5 years.
Categories
Miniature Circuit Breaker

Meba isolator circuit breaker MB162

Specification

Meba isolator circuit breaker MB162-1P is mainly used in AC50/60Hz single pole 230V or two, three, four pole 400V voltage for overload and short-circuit protection as well as for un-frequent on-and-off switching electric equipment and lighting circuit under normal condition, the product is suitable for industry, business, building, residence, etc. It’s conformity with GB10963, IEC60898 standards.

Parameter

Meba isolator circuit breaker MB162-1P

Standard IEC60898
Number of poles 1P, 2P, 3P, 4P
Rated current(In) 6, 10, 16, 20, 25, 32, 40, 50, 63
Rated voltage(Un) AC240/415V
Rated frequency 50/60Hz
Tripping curve B, C, D
Release action characteristics Time delay 1.13In>1h Non-trip
1.45In<1h trip
2.55In 1s-60S trip
Instantaneous(Curve C) 5In>0.1s Non-trip
10In<0.1s trip
Magnetic releases operate B curve:between 3 and 5In
C curve:between 5 and 10In
D curve:between 10 and 15In
Rated breaking capacity (Lcn) 3000A
Endurance >2500
Circumstance temperature -5 to +40℃
Electrical life >6000times
Mechanical life 20000 times
Tropical ration Treatment 2(RH95%, at 55℃)
Protection degree IP20



PDF Download

[Download not found]
Categories
Miniature Circuit Breaker

Meba insulator circuit breaker MBS

Meba insulator circuit breaker MBS

Specification

Meba insulator circuit breaker MBS is mainly used in AC50/60Hz single pole 230V or two, three, four pole 400V voltage for overload and short-circuit protection as well as for un-frequent on-and-off switching electric equipment and lighting circuit under normal condition, the product is suitable for industry, business, building, residence, etc. It’s conformity with GB10963, IEC60898 standards.

Parameter

Meba insulator circuit breaker MBS

Standard IEC60898
Number of poles 1P, 2P, 3P, 4P
Rated current(In) 6, 10, 16, 20, 25, 32, 40, 50, 63
Rated voltage(Un) AC240/415V
Rated frequency 50/60Hz
Tripping curve B, C, D
Release action characteristics Time delay 1.13In>1h Non-trip
1.45In<1h trip
2.55In 1s-60S trip
Instantaneous(Curve C) 5In>0.1s Non-trip
10In<0.1s trip
Magnetic releases operate B curve:between 3 and 5In
C curve:between 5 and 10In
D curve:between 10 and 15In
Rated breaking capacity (Lcn) 3000A
Endurance >2500
Circumstance temperature -5 to +40℃
Electrical life >6000times
Mechanical life 20000 times
Tropical ration Treatment 2(RH95%, at 55℃)
Protection degree IP20
Categories
Miniature Circuit Breaker

Meba insulator circuit breaker MBL7

Meba insulator circuit breaker MBL7

Specification

Meba insulator circuit breaker MBL7 is mainly used in AC50/60Hz single pole 230V or two, three, four pole 400V voltage for overload and short-circuit protection as well as for un-frequent on-and-off switching electric equipment and lighting circuit under normal condition, the product is suitable for industry, business, building, residence, etc. It’s conformity with GB10963, IEC60898 standards.

Parameter

Meba insulator circuit breaker MBL7

Standard IEC60898
Number of poles 1P, 2P, 3P, 4P
Rated current(In) 6, 10, 16, 20, 25, 32, 40, 50, 63
Rated voltage(Un) AC240/415V
Rated frequency 50/60Hz
Tripping curve B, C, D
Release action characteristics Time delay 1.13In>1h Non-trip
1.45In<1h trip
2.55In 1s-60S trip
Instantaneous(Curve C) 5In>0.1s Non-trip
10In<0.1s trip
Magnetic releases operate B curve:between 3 and 5In
C curve:between 5 and 10In
D curve:between 10 and 15In
Rated breaking capacity (Lcn) 3000A
Endurance >2500
Circumstance temperature -5 to +40℃
Electrical life >6000times
Mechanical life 20000 times
Tropical ration Treatment 2(RH95%, at 55℃)
Protection degree IP20
