Residual Current Circuit Breaker With Over Current Protection

Meba residual current circuit breaker with overload protection electrical rcbo MBB1

Meba residual current circuit breaker with overload protection electrical rcbo MBB1

is Electronic Type, used for AC 50HZ or 60HZ, single pole and two poles 230V; three poles and four poles 400V, rated current is up to 40A. It can automatically and immediately cut off power supply once someone suffers from electric shock or leakage current above specified value. It can effectively protect personal security and avoid the damage to equipments. This RCBO can also function as overload and short-circuit protection and un-frequent changeover of line under normal condition.
It is suitable for industry, business, building and residence, etc.
The product is conformity with GB16917.1, IEC61009-1 standards.

Meba residual current circuit breaker with overload protection electrical rcbo MBB1

Techincal Data
1. Rated current: 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A.
2. Rated residual operating current: 0.01A, 0.03A.
3. Tripping characteristics: C.
4. Icn: 6000A
5. Rated residual current operated making and breaking capacity Im: 500A
6. Rated residual non-operated current: Ino: 0.5InOverall and Mounting DimensionsDimensions B(mm)

1 pole 2 pole 3 pole 4 pole
54 72 117 135

Meba residual current circuit breaker with overload protection electrical rcbo MBB1

Techincal Data
1. Rated current: 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A.
2. Rated residual operating current: 0.01A, 0.03A.
3. Tripping characteristics: C.
4. Icn: 6000A
5. Rated residual current operated making and breaking capacity Im: 500A
6. Rated residual non-operated current: Ino: 0.5InOverall and Mounting DimensionsDimensions B(mm)

1 pole 2 pole 3 pole 4 pole
54 72 117 135
Categories
TSM Surface

Meba Rcbo Consumer Unit TSM-12ways Surface

1. MB-TS Surface series Modular distribution boxes/distribution boards are mainly used in the circuit of AC 50Hz, rated voltage 220V/380V, and acted to install the modular combination equipment.

2. It is widely used in the family, high building, house, station, port, airport, commercial house, hospital, cinema, enterprises and so on occassions.

3. The plastic unit of the MB-TS Surface series Modular distribution boxes/distribution boards adopt ABS material with the characteristics of flame-proof, impulse proof, excellent insulation property and so on.

4.This distribution boxes/ boards enclosure confirm to standard BS EN60439-3, JB/T7121-93.

Structure and Feature
1. This distribution boxes/distribution boards enclosure is provided with elegant appearance and reasonable structures; Installation and dismounting are easy.

2. The products are designed according to the requirement of standardization, generalization and seriation, which make the products with excellent interchangeability.

3. This distribution box has 4way, 6way, 8way, 10way, 12way, 15way, 18way, 24way upto 36way.

Dimension(mm)

TSM Surface Series Dimension

Type Lenght Width Height
MB-TS 4ways 112 200 95
MB-TS 6ways 148 200 95
MB-TS 8ways 184 200 95
MB-TS 10ways 222 200 95
MB-TS 12ways 256 200 95
MB-TS 15ways 310 200 95
MB-TS 18ways 365 222 95
MB-TS 24ways 271 325 97
MB-TS 36ways 271 462 100
[Download not found]

Meba Rcbo Consumer Unit TSM-12ways Surface is divided into two kinds,concealed and open mounted type. It is with plastic panel and plastic/iron bottom. Two terminals (ground connection and zero connection) in the box are easy for the user wiring and routing.

Categories
MB-LS

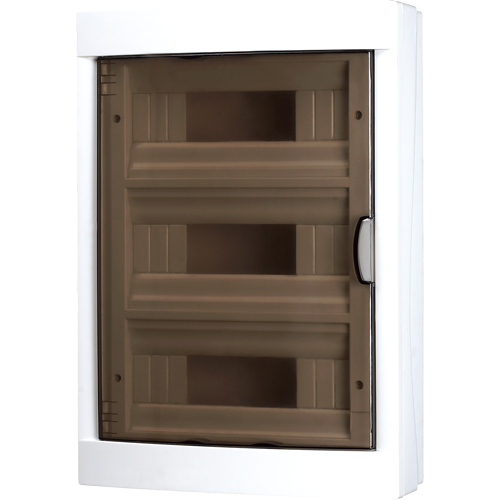

Meba PVC Bottom Distribution Board MB-LS 36ways

1. MB-LS Surface type series Modular distribution boxes/distribution boards are mainly used in the circuit of AC 50Hz, rated voltage 220V/380V, and acted to install the modular combination equipment.

2. It is widely used in the family, high building, house, station, port, airport, commercial house, hospital, cinema, enterprises and so on occassions.

3. The plastic unit of the MB-LS modular distribution boxes/distribution boards adopt ABS material with the characteristics of flame-proof, impulse proof, excellent insulation property and so on.

4. This distribution boxes/boards enclosure confirm to standard BS EN60439-3, JB/T7121-93.

Structure and Feature:
1. This distribution boxes/distribution boards enclosure is provided with elegant appearance and reasonable structures; Installation and dismounting are easy.

2. The products are designed according to the requirement of standardization, generalization and seriation, which make the products with excellent interchangeability.

3. This distribution box has 6way, 8way,12way, 16way, 24way and 36way.

Dimension(mm):

MB-LS Series Dimension

Type Lenght Width Height
MB-LS 6ways 185 141 100
MB-LS 8ways 230 175 100
MB-LS 12ways 308 290 100
MB-LS 16ways 233 290 104
MB-LS 24ways 314 344 104
MB-LS 36ways 314 440 104
[Download not found]

Meba PVC Bottom Distribution Board MB-LS 36ways equipped is luxury and attractive, the face covering colors are dark green and brown (provided according to the color needs of the different interior residential designs except for the standard colors). The design of the face covering gives a noble and elegant feeling.
