Luxury Box

Meba Fuse Box MBB24-26ways

1.  MBB  series Modular distribution boxes/distribution boards are mainly used in the circuit of AC 50Hz, rated voltage 220V/380V, and acted to install the modular combination equipment.

2. It is widely used in the family, high building, house, station, port, airport, commercial house, hospital, cinema, enterprises and so on occassions.

3. The plastic unit of the HA Surface series Modular distribution boxes/distribution boards adopt ABS material with the characteristics of flame-proof, impulse proof, excellent insulation property and so on.

4.This distribution boxes/ boards enclosure confirm to standard IEC-493-1.

Structure:
1. This distribution boxes/distribution boards enclosure is provided with elegant appearance and reasonable structures; Installation and dismounting are easy.

2. The products are designed according to the requirement of standardization, generalization and seriation, which make the products with excellent interchangeability.

3. This distribution box has 4way, 6way, 8way, 10way, 12way, 15way, 18way, 24way upto 36way.

Features:

1. Design of super-large and clear luminous bars,soft and elegant outline.

2. Humanized circuitry symbols, printed display of control circuit breaker, clear and elegant.

3.  The guide-rail shoe plate has round hole, it is able to regulate the cover of distribution box to level position.

Dimension(mm):

Concealed mounted & Open Mounted

Model

Length(mm)

Width(mm)

Height(mm)

MBB2-4ways

137

161

82

MBB4-6ways

208

208

95

MBB7-9ways

261

208

95

MBB10-13ways

334

208

95

MBB14-16ways

390

208

95

MBB20-26ways

334

416

95

MBB28-32ways

390

416

95



Meba Fuse Box MBB24-26ways  is divided into two kinds,concealed mounted type and open mounted type. It is with plastic panel and iron bottom.This product is applicable to the modular terminal circuit with AC of 50HZ, rated voltages of 220V and 380V.



Categories
TSM Flush

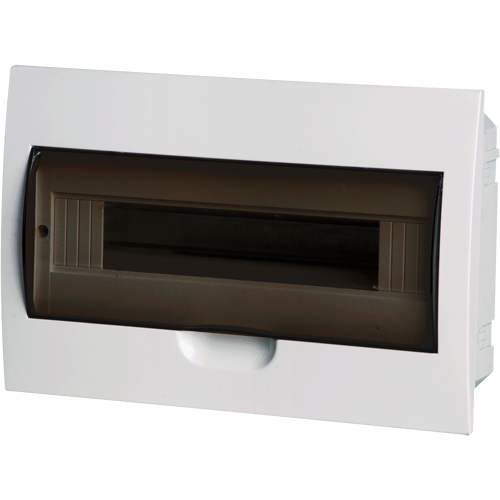

Meba Power Breaker Box TSM-15ways Flush

1. MB-TF Flush series Modular distribution boxes/distribution boards are mainly used in the circuit of AC 50Hz, rated voltage 220V/380V, and acted to install the modular combination equipment.

2. It is widely used in the family, high building, house, station, port, airport, commercial house, hospital, cinema, enterprises and so on occassions.

3. The plastic unit of the MB-TS Surface series Modular distribution boxes/distribution boards adopt ABS material with the characteristics of flame-proof, impulse proof, excellent insulation property and so on.

4.This distribution boxes/ boards enclosure confirm to standard BS EN60439-3, JB/T7121-93.[/tab_item]

Structure and Feature
1. This distribution boxes/distribution boards enclosure is provided with elegant appearance and reasonable structures; Installation and dismounting are easy.

2. The products are designed according to the requirement of standardization, generalization and seriation, which make the products with excellent interchangeability.

3. This distribution box has 4way, 6way, 8way, 10way, 12way, 15way, 18way, 24way upto 36way.

Dimension(mm):

Metal Base Size

TSM Flush Series Metal Base Dimension

Iron Base Dimension

Type Lenght Width Height
TSM-2ways 99 140 60
TSM-4ways 107 190 85
TSM-6ways 143 190 85
TSM-8ways 179 190 85
TSM-10ways 222 200 85
TSM-12ways 250 190 85
TSM-15ways 306 190 85
TSM-18ways 361 217 85
TSM-24ways 252 310 85
TSM-36ways 290 475 85
TSM-45ways 473 326 76

Dark Plastic Crates Against the Wall-size

TSM Flush Series Dark Plastic Crates Against the Wall-size

Plastics Base Dimension

Type Lenght Width Height
TSM-2ways 90 140 60
TSM-4ways 112 200 66
TSM-6ways 150 200 66
TSM-8ways 184 200 66
TSM-10ways 222 200 66
TSM-12ways 256 200 66
TSM-15ways 310 200 66
TSM-18ways 365 220 76
TSM-24ways 257 310 76
TSM-36ways 293 455 76
TSM-45ways 473 326 76

Dark Plastic Cover Surface Size
TSM Flush Series Dark Plastic Cover Surface Size
Iron Base Dimension

Type Lenght Width Height B
TSM-2ways 95 150 27 75
TSM-4ways 136 222 27 86
TSM-6ways 172 222 27 122
TSM-8ways 208 222 27 158
TSM-12ways 280 222 27 230
TSM-15ways 334 222 27 283
TSM-18ways 398 252 27 338
TSM-24ways 300 345 27 232
TSM-36ways 341 505 27 265
TSM-45ways 365 505 27 285

Meba Power Breaker Box TSM-15ways Flush is divided into two kinds,concealed and open mounted type. It is with plastic panel and plastic/iron bottom. Two terminals (ground connection and zero connection) in the box are easy for the user wiring and routing.
