Meba fuse box BA50x50

Meba fuse box BA50x50

Specification

Meba fuse box BA50x50  this water proof junction box is made of ABS, PC etc, elegant external shape, high firmness, IP65 waterproof class. This product is suitable for indoor and outdoor electrical ,electronic,communication,fire equipment ,control    panel .terminal BOX,PCB BOX,shipping,oil chemical,large factories,coastal factories, discharging terminal  equipment,dirty waste water treatment facilities,environmental hazards facilities,etc.

Parameter

Technical Parameter:

Meba fuse box BA50x50

1.Waterproof junction box purpose:
Electrical, electronics, communication, fire fighting,Equipment, control panel, terminal box, large factory, coastal plant, environmental,Hazard facility, etc.

Materials can be selected according to the customer’s requirements.

2. Features:

1) Easy and safe to use

2) The branch line runs parallel to the main cable

3) High moisture resistance and excellent mechanical protection

4) Full range of sizes available

Available sizes as following:

BA　Specification/Dimension L W H Holes IP Class
BA 50*50 50 50 4 IP44
BA 80*50 80 50 4 IP44
BA 85*85*50 85 85 50 7 IP44
BA 100*100*70 100 100 70 7 IP65
BA 150*110*70 150 110 70 10 IP65
BA 150*150*70 150 150 70 7 IP65
BA 200*100*70 200 100 70 8 IP65
BA 200*155*80 200 155 80 10 IP65
BA 255*200*80 255 200 80 12 IP65
BA 300*250*120 300 250 120 12 IP65
BA 400*350*120 400 350 120 16 IP65
BT  Specification/Dimension L W H Holes IP Class
BT 50*50 50 50 4 IP44
BT 80*50 80 50 4 IP44
BT 85*85*50 85 85 50 7 IP44
BT 100*100*70 100 100 70 7 IP65
BT 150*110*70 150 110 70 10 IP65
BT 150*150*70 150 150 70 7 IP65
BT 200*100*70 200 100 70 8 IP65
BT 200*155*80 200 155 80 10 IP65
BT 255*200*80 255 200 80 12 IP65
BT 300*250*120 300 250 120 12 IP65
BT 400*350*120 400 350 120 16 IP65
Junction box dimension
Junction box dimension
Categories
Luxury Box

Meba Fuse Box MBB24-26ways

meba fuse box MBB24-26ways

Specification

1.  MBB  series Modular distribution boxes/distribution boards are mainly used in the circuit of AC 50Hz, rated voltage 220V/380V, and acted to install the modular combination equipment.

2. It is widely used in the family, high building, house, station, port, airport, commercial house, hospital, cinema, enterprises and so on occassions.

3. The plastic unit of the HA Surface series Modular distribution boxes/distribution boards adopt ABS material with the characteristics of flame-proof, impulse proof, excellent insulation property and so on.

4.This distribution boxes/ boards enclosure confirm to standard IEC-493-1.

Technical Parameter

Structure:
1. This distribution boxes/distribution boards enclosure is provided with elegant appearance and reasonable structures; Installation and dismounting are easy.

2. The products are designed according to the requirement of standardization, generalization and seriation, which make the products with excellent interchangeability.

3. This distribution box has 4way, 6way, 8way, 10way, 12way, 15way, 18way, 24way upto 36way.

Features:

1. Design of super-large and clear luminous bars,soft and elegant outline.

2. Humanized circuitry symbols, printed display of control circuit breaker, clear and elegant.

3.  The guide-rail shoe plate has round hole, it is able to regulate the cover of distribution box to level position.

Dimension(mm):

Concealed mounted & Open Mounted

Model

Length(mm)

Width(mm)

Height(mm)

MBB2-4ways

137

161

82

MBB4-6ways

208

208

95

MBB7-9ways

261

208

95

MBB10-13ways

334

208

95

MBB14-16ways

390

208

95

MBB20-26ways

334

416

95

MBB28-32ways

390

416

95



PDF Download

Meba Fuse Box MBB24-26ways  is divided into two kinds,concealed mounted type and open mounted type. It is with plastic panel and iron bottom.This product is applicable to the modular terminal circuit with AC of 50HZ, rated voltages of 220V and 380V.



Categories
MB-LF

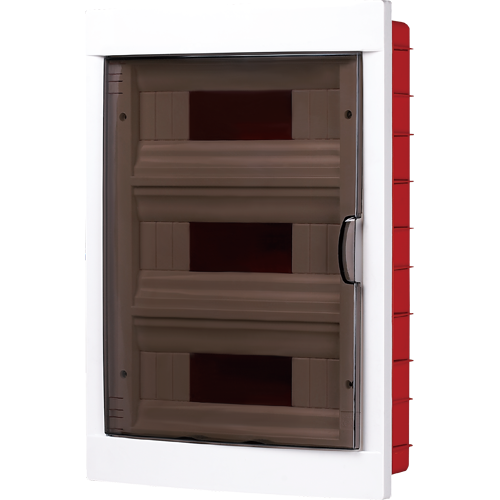

Meba Electrical Distribution Board MB-LF 36ways

Specification

1. MB-LF Flush type series Modular distribution boxes/distribution boards are mainly used in the circuit of AC 50Hz, rated voltage 220V/380V, and acted to install the modular combination equipment.

2. It is widely used in the family, high building, house, station, port, airport, commercial house, hospital, cinema, enterprises and so on occassions.

3. The plastic unit of the MB-LF modular distribution boxes/distribution boards adopt ABS material with the characteristics of flame-proof, impulse proof, excellent insulation property and so on.

4. This distribution boxes/ boards enclosure confirm to standard BS EN60439-3, JB/T7121-93.

Technical Parameter

Structure and Feature:
1. This distribution boxes/distribution boards enclosure is provided with elegant appearance and reasonable structures; Installation and dismounting are easy.

2. The products are designed according to the requirement of standardization, generalization and seriation, which make the products with excellent interchangeability.

3. This distribution box has 6way, 8way,12way, 16way, 24way and 36way.

Dimension(mm):

Type H1 H2 H3 L L1 W1 W
MB-LF 6ways 60 74 99.5 185 172 130 141
MB-LF 8ways 60 74 99.5 230 216.2 165.2 175
MB-LF 12ways 60 74 99.5 308 296.2 200.2 209
MB-LF 16ways 59 73 103 233 219.2 279.2 290
MB-LF 24ways 59 73 103 314 299.2 333.2 344
MB-LF 36ways 59 73 103 314 299.2 428.7 110

PDF Downlaod

[Download not found] Meba Electrical Distribution Board MB-LF 36ways equipped with transpartent/non-transparent door, door open upward 90 degrees & use Insulating, self-extinguishing fire material. flush mounting and surface mounting available,plenty of space for smooth and easy wiring, double row of copper
