Terminal Block

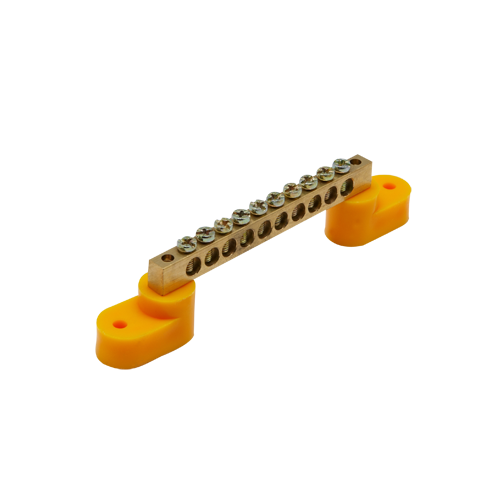

Meba Neutral Copper Bar With Holder MBCT010H2Y

Meba busbar systems MBCT010H2Y

Specification

Material:
1, Plastic Setting:
a.PA,Polyamide 66, 94-2 grade. Inflaming retarding, working temperature: -30°C to 110°C.
b.ABS, good resist dissolve, good bounce impact fore, working temperature: -20°C to 70°C.
2, Brass, screw is iron plated zinc.
3,Voltage: 250-450V.
4,Color: according sample picture or customized.

Advantages:
1) High precision
2) Excellent inoxidability
3) Great ingredient accuracy and high intensity
4) High corrosion resistance
5) Our own mold workshop and injection molding workshop
6) OEM Service
7) Prompt Delivery
8) Small Order Accept
9) Tolerance: ± 0.3mm
10) Certificate: CE&RoHS&OTHERS
11) Free sample

All products that we supplied  have  the feature of safety, reliable, convenient and cheaper in price. Good in power conductor, lower in contact resistance, full range of specification. Customer  satisfaction is our greatest pursuit !

Technical Parameter

MBCT010H2Y–6*9mm² Series Copper Terminal Block

MBCT010H2Y Copper Terminal Block Dimension

Way Mounting Dimensions (L) mm Dimensions (L1) mm Sectioncross Of Bass mm²
4 69.5 85.5*13 6*9
6 82.5 95.5*13 6*9
8 95.5 108.5*13 6*9
10 108.5 121.5*13 6*9
12 121.5 134.5*13 6*9
14 134.5 147.5*13 6*9
16 147.5 160.5*13 6*9

MBCT010H2G–8*12mm² Series Copper Terminal Block

MBCT010H2G Copper Terminal Block Dimension

Way Mounting Dimensions (L) mm Dimensions (L1) mm Sectioncross Of Bass mm²
4 69 85*15.8 8*12
6 84 100*15.8 8*12
8 99 115*15.8 8*12
10 114 130*15.8 8*12
12 129 145*15.8 8*12
14 144 160*15.8 8*12
16 159 175*15.8 8*12

PDF Download

Meba Neutral Copper Bar With Holder MBCT010H2Y feature of safety, reliable, convenient and cheaper in price. Good in power conductor, lower in contact resistance, full range of specification.

Categories
Terminal Block

Meba Busbar Protection MBCT010H

vMeba Busbar Protection MBCT010H

Specification

Material:
1, Plastic Setting:
a.PA,Polyamide 66, 94-2 grade. Inflaming retarding, working temperature: -30°C to 110°C.
b.ABS, good resist dissolve, good bounce impact fore, working temperature: -20°C to 70°C.
2, Brass, screw is iron plated zinc.
3,Voltage: 250-450V.
4,Color: according sample picture or customized.

Advantages:
1) High precision
2) Excellent inoxidability
3) Great ingredient accuracy and high intensity
4) High corrosion resistance
5) Our own mold workshop and injection molding workshop
6) OEM Service
7) Prompt Delivery
8) Small Order Accept
9) Tolerance: ± 0.3mm
10) Certificate: CE&RoHS&OTHERS
11) Free sample

All products that we supplied  have  the feature of safety, reliable, convenient and cheaper in price. Good in power conductor, lower in contact resistance, full range of specification. Customer  satisfaction is our greatest pursuit !

Technical Parameter

MBCT07H Series Copper Terminal Block

MBCT07H Dimension

Way Mounting Dimensions (L) mm Dimensions (L1) mm Sectioncross Of Bass mm²
7 35*7.5 50*21 6*9
8 35*7.5 57*21 6*9
10 35*7.5 71.5*21 6*9
12 35*7.5 84.5*21 6*9
13 35*7.5 91*21 6*9
15 35*7.5 104*21 6*9

PDF Download

Meba Busbar Protection MBCT010H feature of safety, reliable, convenient and cheaper in price. Good in power conductor, lower in contact resistance, full range of specification.

Categories
Terminal Block

Meba Din Rail Insulated Terminal MBCT015H

Meba power bus-bar MBCT015H

Specification

Material:
1, Plastic Setting:
a.PA,Polyamide 66, 94-2 grade. Inflaming retarding, working temperature: -30°C to 110°C.
b.ABS, good resist dissolve, good bounce impact fore, working temperature: -20°C to 70°C.
2, Brass, screw is iron plated zinc.
3,Voltage: 250-450V.
4,Color: according sample picture or customized.

Advantages:
1) High precision
2) Excellent inoxidability
3) Great ingredient accuracy and high intensity
4) High corrosion resistance
5) Our own mold workshop and injection molding workshop
6) OEM Service
7) Prompt Delivery
8) Small Order Accept
9) Tolerance: ± 0.3mm
10) Certificate: CE&RoHS&OTHERS
11) Free sample

All products that we supplied  have  the feature of safety, reliable, convenient and cheaper in price. Good in power conductor, lower in contact resistance, full range of specification. Customer  satisfaction is our greatest pursuit !

Technical Parameter

MBCT015H Series Copper Terminal Block

MBCT07H Dimension



Way Mounting Dimensions (L) mm Dimensions (L1) mm Sectioncross Of Bass mm²
7 35*7.5 50*21 6*9
8 35*7.5 57*21 6*9
10 35*7.5 71.5*21 6*9
12 35*7.5 84.5*21 6*9
13 35*7.5 91*21 6*9
15 35*7.5 104*21 6*9

PDF Download

Meba Din Rail Insulated Terminal MBCT015H feature of safety, reliable, convenient and cheaper in price. Good in power conductor, lower in contact resistance, full range of specification.

Categories
Magnetic AC Contactor

Meba contactor for ac CLC1-D80

Meba contactor for ac CLC1-D80

Specification

Meba contactor for ac CLC1-D80, is suitable for using in the circuits up to the rated voltage 660V AC 50Hz or 60Hz, rated current up to 620A, for making, breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The products comply with IEC60947-4.

Parameter

Meba contactor for ac CLC1-D80

Technical Data
Type LC1-D09 LC1-D12 LC1-D18 LC1-D25 LC1-D32 LC1-D40 LC1-D50 LC1-D65 LC1-D80 LC1-D95
Rated working current (A) AC3 9 12 18 25 32 40 50 65 80 95
AC4 3.5 5 7.7 8.5 12 18.5 24 28 37 44
Standard power ratingsof 3-phase motors 50/60Hz in category AC-3 220/230V 2.2 3 4 5.5 7.5 11 15 18.5 22 25
380/400V 4 5.5 7.5 11 15 18.5 22 30 37 45
415V 4 5.5 9 11 15 22 25 37 45 45
500V 5.5 7.5 10 15 18.5 22 30 37 55 55
660/690V 5.5 7.5 10 15 18.5 30 33 37 45 55
Rated heat current (A) 20 20 32 40 50 60 80 80 125 125
Electrical life AC3 (x10 4 ) 100 100 100 100 80 80 60 60 60 60
AC4 (x10 4 ) 20 20 20 20 20 15 15 15 10 10
Mechanical life (x10 4 ) 1000 1000 1000 1000 800 800 800 800 600 600
Number of the contacts 3P+NO 3P+NC+NO
Categories
Magnetic AC Contactor

Meba contactor ac unit CLC1-D25

Meba contactor ac unit CLC1-D25

Meba contactor ac unit CLC1-D25

Specification

Meba contactor ac unit CLC1-D25 is suitable for using in the circuits up to the rated voltage 660V AC 50Hz or 60Hz, rated current up to 620A, for making, breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The products comply with IEC60947-4.

Parameter

Meba contactor ac unit CLC1-D25

Technical Data
Type LC1-D09 LC1-D12 LC1-D18 LC1-D25 LC1-D32 LC1-D40 LC1-D50 LC1-D65 LC1-D80 LC1-D95
Rated working current (A) AC3 9 12 18 25 32 40 50 65 80 95
AC4 3.5 5 7.7 8.5 12 18.5 24 28 37 44
Standard power ratingsof 3-phase motors 50/60Hz in category AC-3 220/230V 2.2 3 4 5.5 7.5 11 15 18.5 22 25
380/400V 4 5.5 7.5 11 15 18.5 22 30 37 45
415V 4 5.5 9 11 15 22 25 37 45 45
500V 5.5 7.5 10 15 18.5 22 30 37 55 55
660/690V 5.5 7.5 10 15 18.5 30 33 37 45 55
Rated heat current (A) 20 20 32 40 50 60 80 80 125 125
Electrical life AC3 (x10 4 ) 100 100 100 100 80 80 60 60 60 60
AC4 (x10 4 ) 20 20 20 20 20 15 15 15 10 10
Mechanical life (x10 4 ) 1000 1000 1000 1000 800 800 800 800 600 600
Number of the contacts 3P+NO 3P+NC+NO
Categories
Magnetic AC Contactor

Meba ac contactor CLC1-D09

Meba ac contactor CLC1-D09

Specification

Meba ac contactor CLC1-D09 is suitable for using in the circuits up to the rated voltage 660V AC 50Hz or 60Hz, rated current up to 620A, for making, breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The products comply with IEC60947-4.

Parameter

Meba ac contactor CLC1-D09

Technical Data
Type LC1-D09 LC1-D12 LC1-D18 LC1-D25 LC1-D32 LC1-D40 LC1-D50 LC1-D65 LC1-D80 LC1-D95
Rated working current (A) AC3 9 12 18 25 32 40 50 65 80 95
AC4 3.5 5 7.7 8.5 12 18.5 24 28 37 44
Standard power ratingsof 3-phase motors 50/60Hz in category AC-3 220/230V 2.2 3 4 5.5 7.5 11 15 18.5 22 25
380/400V 4 5.5 7.5 11 15 18.5 22 30 37 45
415V 4 5.5 9 11 15 22 25 37 45 45
500V 5.5 7.5 10 15 18.5 22 30 37 55 55
660/690V 5.5 7.5 10 15 18.5 30 33 37 45 55
Rated heat current (A) 20 20 32 40 50 60 80 80 125 125
Electrical life AC3 (x10 4 ) 100 100 100 100 80 80 60 60 60 60
AC4 (x10 4 ) 20 20 20 20 20 15 15 15 10 10
Mechanical life (x10 4 ) 1000 1000 1000 1000 800 800 800 800 600 600
Number of the contacts 3P+NO 3P+NC+NO
Categories
Terminal Block

Meba Copper Bar With Holder MBCT07H

Meba busbar electrical MBCT07H

Specification

Material:
1, Plastic Setting:
a.PA,Polyamide 66, 94-2 grade. Inflaming retarding, working temperature: -30°C to 110°C.
b.ABS, good resist dissolve, good bounce impact fore, working temperature: -20°C to 70°C.
2, Brass, screw is iron plated zinc.
3,Voltage: 250-450V.
4,Color: according sample picture or customized.

Advantages:
1) High precision
2) Excellent inoxidability
3) Great ingredient accuracy and high intensity
4) High corrosion resistance
5) Our own mold workshop and injection molding workshop
6) OEM Service
7) Prompt Delivery
8) Small Order Accept
9) Tolerance: ± 0.3mm
10) Certificate: CE&RoHS&OTHERS
11) Free sample

All products that we supplied  have  the feature of safety, reliable, convenient and cheaper in price. Good in power conductor, lower in contact resistance, full range of specification. Customer  satisfaction is our greatest pursuit !

Technical Parameter

MBCT07H Series Copper Terminal Block

MBCT07H Dimension

Way Mounting Dimensions (L) mm Dimensions (L1) mm Sectioncross Of Bass mm²
7 35*7.5 50*21 6*9
8 35*7.5 57*21 6*9
10 35*7.5 71.5*21 6*9
12 35*7.5 84.5*21 6*9
13 35*7.5 91*21 6*9
15 35*7.5 104*21 6*9

PDF Download

Meba Copper Bar With Holder MBCT07H feature of safety, reliable, convenient and cheaper in price. Good in power conductor, lower in contact resistance, full range of specification.

Categories
Terminal Block

Meba Electric Terminal Block MBCT012H

Meba electrical bus MBCT012H

Specification

Material:
1, Plastic Setting:
a.PA,Polyamide 66, 94-2 grade. Inflaming retarding, working temperature: -30°C to 110°C.
b.ABS, good resist dissolve, good bounce impact fore, working temperature: -20°C to 70°C.
2, Brass, screw is iron plated zinc.
3,Voltage: 250-450V.
4,Color: according sample picture or customized.

Advantages:
1) High precision
2) Excellent inoxidability
3) Great ingredient accuracy and high intensity
4) High corrosion resistance
5) Our own mold workshop and injection molding workshop
6) OEM Service
7) Prompt Delivery
8) Small Order Accept
9) Tolerance: ± 0.3mm
10) Certificate: CE&RoHS&OTHERS
11) Free sample

Technical Parameter

MBCT004H-6*9 Series:

MBCT004H Dimension

Way Mounting Dimensions (L) mm Dimensions (L1) mm Sectioncross Of Bass mm²
4 48.2 59.2*12.2 6*9
6 65.4 76.4*12.2 6*9
8 82.6 93.6*12.2 6*9
10 99.8 110.8*12.2 6*9
12 117 128*12.2 6*9



MBCT010H-8*12Series:

MBCT004H Dimension

Way Mounting Dimensions (L) mm Dimensions (L1) mm Sectioncross Of Bass mm²
4 48.2 59.2*12.2 8*12
6 65.4 76.4*12.2 8*12
8 82.6 93.6*12.2 8*12
10 99.8 110.8*12.2 8*12
12 117 128*12.2 8*12

PDF Download

Meba Electric Terminal Block MBCT012H feature of safety, reliable, convenient and cheaper in price. Good in power conductor, lower in contact resistance, full range of specification.

Categories
Terminal Block

Meba Copper Bar MBCT010H

Meba copper bar MBCT010H

Specification

Material:
1, Plastic Setting:
a.PA,Polyamide 66, 94-2 grade. Inflaming retarding, working temperature: -30°C to 110°C.
b.ABS, good resist dissolve, good bounce impact fore, working temperature: -20°C to 70°C.
2, Brass, screw is iron plated zinc.
3,Voltage: 250-450V.
4,Color: according sample picture or customized.

Advantages:
1) High precision
2) Excellent inoxidability
3) Great ingredient accuracy and high intensity
4) High corrosion resistance
5) Our own mold workshop and injection molding workshop
6) OEM Service
7) Prompt Delivery
8) Small Order Accept
9) Tolerance: ± 0.3mm
10) Certificate: CE&RoHS&OTHERS
11) Free sample

Technical Parameter

MBCT004H-6*9 Series:

MBCT004H Dimension



Way Mounting Dimensions (L) mm Dimensions (L1) mm Sectioncross Of Bass mm²
4 48.2 59.2*12.2 6*9
6 65.4 76.4*12.2 6*9
8 82.6 93.6*12.2 6*9
10 99.8 110.8*12.2 6*9
12 117 128*12.2 6*9



MBCT010H-8*12Series:

MBCT010H Dimension

Way Mounting Dimensions (L) mm Dimensions (L1) mm Sectioncross Of Bass mm²
4 48.2 59.2*12.2 8*12
6 65.4 76.4*12.2 8*12
8 82.6 93.6*12.2 8*12
10 99.8 110.8*12.2 8*12
12 117 128*12.2 8*12

PDF Download

Meba Copper Bar MBCT010H feature of safety, reliable, convenient and cheaper in price. Good in power conductor, lower in contact resistance, full range of specification.

Categories
Fuse Modular Devices

Meba Electrical Din Rail Fuse MBLS503

Meba electrical fuse MBLS503

Meba electrical fuse MBLS503

Specification

Meba electrical fuse MBLS503,

Parameter

Meba electrical fuse MBLS503

Technical parameters:

Categories
Terminal Block

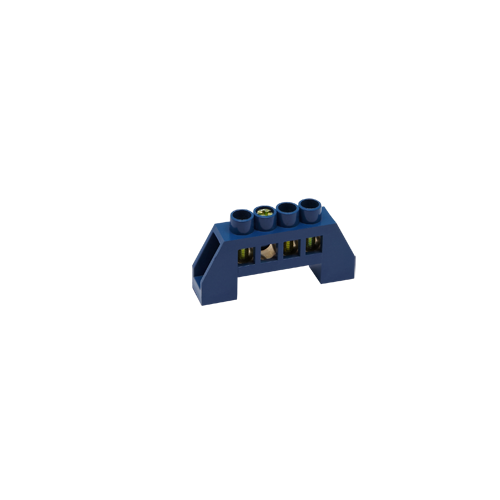

Meba Brass Earthing Terminal Block MBCT004H

Meba busbar copper MBCT004H

Specification

Material:
1, Plastic Setting:
a.PA,Polyamide 66, 94-2 grade. Inflaming retarding, working temperature: -30°C to 110°C.
b.ABS, good resist dissolve, good bounce impact fore, working temperature: -20°C to 70°C.
2, Brass, screw is iron plated zinc.
3,Voltage: 250-450V.
4,Color: according sample picture or customized.

Advantages:
1) High precision
2) Excellent inoxidability
3) Great ingredient accuracy and high intensity
4) High corrosion resistance
5) Our own mold workshop and injection molding workshop
6) OEM Service
7) Prompt Delivery
8) Small Order Accept
9) Tolerance: ± 0.3mm
10) Certificate: CE&RoHS&OTHERS
11) Free sample

Technical Parameter

MBCT004H-6*9 Series:

MBCT004H Dimension

Way Mounting Dimensions (L) mm Dimensions (L1) mm Sectioncross Of Bass mm²
4 48.2 59.2*12.2 6*9
6 65.4 76.4*12.2 6*9
8 82.6 93.6*12.2 6*9
10 99.8 110.8*12.2 6*9
12 117 128*12.2 6*9



MBCT010H-8*12Series:

MBCT010H Dimension

Way Mounting Dimensions (L) mm Dimensions (L1) mm Sectioncross Of Bass mm²
4 48.2 59.2*12.2 8*12
6 65.4 76.4*12.2 8*12
8 82.6 93.6*12.2 8*12
10 99.8 110.8*12.2 8*12
12 117 128*12.2 8*12

PDF Download

Meba Brass Earthing Terminal Block MBCT004H feature of safety, reliable, convenient and cheaper in price. Good in power conductor, lower in contact resistance, full range of specification.

Categories
Electrical Accessories

Meba Pin Type Breaker Busbar

Meba busbar

Specification

Product Information

1.  The serial Busbar is new product launched by our company according to the market requirement, which break through the connection ways of small circuit breaker for years extend the interface and reduce the power loss and temperature increasing.

2. Because it lays inside the insulation slot and can’t be touched by people, it is the character of safe reliable timesaving convenience and inexpensiveness and etc.

3. It is very popular with customers for good electric conduction low contacting resistance and full qualification, which mad for copper.

4. Its performance and technology have already passed the test of relative department, which full meet the standard of the nation.

5. Our company produces almost all kinds of busbars for MCB, which have good versatility and practicality. It has advantages of security and convenience to install and widely used in construction electrical devices such as low-voltage box, distribution box, illuminated box and so on.

Technical Parameter

1.  Material: Fire-resistance PVC and red copper
2. Applicable ambient temperature: -25 to +50 degree
3. Standard length: 1m, special length to be made upon request
4. Shape: pin type,fork type
5.Rated current:63,125A
6.Rated insulating voltage:500V AC
7. Flammability of plastic part:class 1

Performance

Material:brass
Screw: Iron plated zinc
Voltage:250-450V
We can according to customer supply different size,such as,different length,width,hole.  Brass bar,high strength and hardness,wear-resisting property high,chemical resistance good .Natural, Nickle Plated, Tin Plated or any coating.

[/acc_item]
[/accordion]

[/tab_item]

[tab_item title=”Technical Parameter”]

Meba-u-pin-busbar

Meba-u-pin-busbar-drawing

Copper thickness(mm) 2.0 1.5 1.2 1.0
Relative Current(A) ≤100 ≤63 ≤40 ≤32

PDF Download

It can be combinated to install directly by ednd user according to any type and quantity of MCBs,thus can avoid the “cut-the busbar” inconvenience when the old style busbar used.

Categories
Terminal Block

Meba One Meter Copper Terminal Block MBCT015

Meba ground bus MBCT015

Specification

Feature:
1. PE, Polyethylene, good pliability, transparence, extensibility, resist dissolve, radiation . Working Temperature: – 40°C to 65°C
2. PA, Polyamide 66, 94V-2 grade. inflaming retarding, good resist dissolve, good bounce impact force,
3.  Working Temperature: – 30°C to 110°C
4.  Brass, screw is Iron plated zinc.
5. Voltage: 250 – 450V
6. Color: Neutral as standard

Performance:
Material:brass
Screw: Iron plated zinc
Voltage:250-450V
We can according to customer supply different size,such as,different length,width,hole.  Brass bar,high strength and hardness,wear-resisting property high,chemical resistance good .Natural, Nickle Plated, Tin Plated or any coating ..

Technical Parameter

Product description:

The present of Busbar changed the outdated connection ways of miniature circuit breaker(MCB) to a new connection way with the characteristic of wider contact area, lower power consumption and low temperature-rise.

Our company produces almost all kinds of busbars of MCB, which have good versatility and practicability. It has advantages of security and convenience to install and widely used in construction electrical devices such as low-voltage power box, distribution box, illuminated bo0x and so on.

Sectioncross Of Bass (W * H) Wiring Hole Way (m) Pressure line screws (m)
6*8 5 133 M4*8
6*9 5.2 133 M4*8
8*8 5.2 133 M4*8
7*9 5.2 133 M4*10
9*9 5.5 116 M5*10
8*10 6 116 M5*10
8*12 6.2 116 M5*10
10*10 6 116 M5*10
14*14 7 109 M6*12
16*16 9 78 M6*12
3*15 43 M8*10
3*20 43 M8*10
3*25 43 M8*10
3*30 43 M8*10

PDF Download

Meba One Meter Copper Terminal Block MBCT015 Pressure line screws is M8*10, one meter copper termianl block has 43 holes.

Categories
Terminal Block

Meba Copper Terminal Bar MBCT012

Meba bus bar electrical MBCT012

Specification

Feature:
1. PE, Polyethylene, good pliability, transparence, extensibility, resist dissolve, radiation . Working Temperature: – 40°C to 65°C
2. PA, Polyamide 66, 94V-2 grade. inflaming retarding, good resist dissolve, good bounce impact force,
3.  Working Temperature: – 30°C to 110°C
4.  Brass, screw is Iron plated zinc.
5. Voltage: 250 – 450V
6. Color: Neutral as standard

Performance:
Material:brass
Screw: Iron plated zinc
Voltage:250-450V
We can according to customer supply different size,such as,different length,width,hole.  Brass bar,high strength and hardness,wear-resisting property high,chemical resistance good .Natural, Nickle Plated, Tin Plated or any coating ..

Technical Parameter

Sectioncross Of Bass (W * H) Wiring Hole Way (m) Pressure line screws (m)
6*8 5 133 M4*8
6*9 5.2 133 M4*8
8*8 5.2 133 M4*8
7*9 5.2 133 M4*10
9*9 5.5 116 M5*10
8*10 6 116 M5*10
8*12 6.2 116 M5*10
10*10 6 116 M5*10
14*14 7 109 M6*12
16*16 9 78 M6*12
3*15 43 M8*10
3*20 43 M8*10
3*25 43 M8*10
3*30 43 M8*10

PDF Download

Meba Copper Terminal Bar MBCT012 Pressure line screws is M5*10, one meter copper termianl block has 116holes.

Categories
Waterproof Switch

Meba Outdoor Waterproof Socket Box M66CV520

Meba weatherproof boxes M66CV520

Specification

The 56 series includes extensive range of one piece combination switched sockets. Optional key locking

OFF facility (quote “ CVK” when ordering keylock type, e.g. item no. 56cvk310). For NEON indicator option

add :N” after catalogue number.

We can provide industrial plug/isolator switc/socket outdoor waterproof/combinational switched socket/terminal junction boxes/switchws and socket outlets etc various kinds of box.

Technical Parameter

Item No.

56CV310

56CV315

56CV313

56CV316/110

56CV316/240

56CV320

56CV332
Rated voltage Ue (50Hz)   Volts

250

250

1230

110

230

250

250
Rated thermal current      Amps

10

15

13

16

16

20

32
Description

Switched N/Z

 Aust socket

Switched N/Z

Aust socket

Switched British

 socket

Switched

CEE17-4h

socket

(yellow)

Switched

CEE17-4h

socket

(Blue)

Switched

 AS1323

 socket

Switched

AS1323

 socket
Switch description

1 way

single pole

1 way

double pole

1 way

double pole

1 way

double pole

1 way

double pole

1 way

double pole

1 way

double pole
Utilization category

AS3133 250V             Amps

AS23A 240V               Amps

KW

10AXM50

15

2.2

16AXM120

 15

2.2

16AXM120

15

2.2

16AXM120

15

 2.2

16AXM120

15

2.2

20AXM150

21

3.0

32AXM150

28

3.0
Cable cross section solid or min

stranded mm2     Max

0.75

1.6

1.0

 16

1.0

 16

1.0

 16

1.0

16

1.0

 16

1.0

 16
Socket number of pins

including (earth)

3

3

3

3

3

3

3
Socket configuration
Cable cross sections solid or

min strandedmm2    Max

10

10

10

10

10

10

10

10

10

10

10

10

10

10
IP rating

IP66

IP66

IP66

IP66 without

plug IP44

 with plug

IP66

without

 plug

IP44

withplug

IP66

IP66

PDF Download

Meba Outdoor Waterproof Socket Box M66CV520 suitable for outdoor switching use in different weather condition. lncluded in the range are single, double and triple pole switches from 20 to 63 Amps. The base mounted mechanism provides for easier termination and more wiring room.

Categories
Waterproof Switch

Meba waterproof box with safety isolating switch MBCS

Meba isolation switch MBCS

Specification

Description:
MEBA offers a comprehensive range of isolating switches designed with safety in mind. In stand-alone and enclosed formats, this switch range are padlockable and available in yellow/red or grey/black making it ideal for any electrical isolation requirement, such as repair, maintenance, installation and inspection.

Safety Isolating Switch’s Feature:

1. Large padlockable red/yellow or grey/black handles

2. High IP 66 rating for safety isolating switch.

3. Easy to install and operate

4. Comprehensive range, 10 to 40 A models

5. High breaking capacity with 12.5 mm contact air gap

6. Easy snap-on fitting of auxiliary switches

Technical Parameter

Rated operational current & 415V AC21 Motor application, 415V AC23
Power rating Current rating Locked rotor M rating Terminal capacity
25A 7.5kW 16A 250A 16 Cu
40A 11kW 20A 270A 16 Cu

PDF Download

Meba waterproof box with safety isolating switch MBCS suitable for outdoor switching use in different weather condition. lncluded in the range are single, double and triple pole switches from 20 to 63 Amps. The base mounted mechanism provides for easier termination and more wiring room.

Categories
Waterproof Switch

Meba Outdoor Isolator Switch Box UKF-20

Meba isolation switch MBI20

Specification

Description:
UKF&UKW isolator is rigidly built to withstand more than just the vagaries of the weather,
it is designed also for frequent switching even on severe load such as switching of motor
loads or other highly inductive load. Suitable to be mounted in outdoor and indoor for diverse environment.

Features:
Switching ON & OFF on-load
Padlockable handle with 7mm hole in OFF position
Dual 25mm threaded conduit entries on top and bottom
IP66 rating prevents from heavy dust and water ingress

Technical Parameter

Standard: IEC/EN60947-3, AS/NZS 3947
Rated Voltage: 240/415V AC
Rated Frequency: 50/60Hz
Utilizatioin Category: AC22A/AC23A
Number of Pole: 1, 2, 3, 4 pole
IP Protection: IP66

Model

Current

Phase & Voltage

IP rating

UKF 1P

20A

20A 250V single pole, surface switch terminals accommodate 16mm^2 cable, M rating 220

IP56

UKF 1P

35A

35A 250V single pole, terminals accommodate 16mm^2 cable, M rating 220

IP56

UKF 1P

63A

63A 250V single pole, terminals accommodate 16mm^2 cable, M rating 220

IP56

UKF 2P

20A

20A 440V Double pole, terminals accommodate 16mm^2 cable, M Rating 180

IP56

UKF 2P

35A

35A 440V Double pole, terminals accommodate 16mm^2 cable, M Rating 180

IP56

UKF 2P

63A

63A 440V Double pole, terminals accommodate 16mm^2 cable, M Rating 180

IP56

UKF 3P

20A

20A 440V Triple pole, terminals accommodate 16mm^2 cable, M Rating 180

IP56

UKF 3P

35A

35A 440V Triple pole, terminals accommodate 16mm^2 cable, M Rating 180

IP56

UKF 3P

63A

63A 440V Triple pole, terminals accommodate 16mm^2 cable, M Rating 180

IP56

UKF 4P

20A

25A 440V Triple pole with 32mm conduit entry, terminals accommodate 25mm^2 cable, M Rating 160

IP56

UKF 4P

35A

35A 440V Triple pole with 32mm conduit entry, terminals accommodate 25mm^2 cable, M Rating 160

IP56

UKF 4P

63A

63A 440V Triple pole with 32mm conduit entry, terminals accommodate 25mm^2 cable, M Rating 150

IP56

PDF Download

Meba Outdoor Isolator Switch Box UKF-20 suitable for outdoor switching use in different weather condition. lncluded in the range are single, double and triple pole switches from 20 to 63 Amps. The base mounted mechanism provides for easier termination and more wiring room.

Categories
Waterproof Switch

Meba Waterproof Protected Isolating Switch Box IP66 UKF-35

Meba isolator switch MBI35

Specification

Description:
UKF&UKW isolator is rigidly built to withstand more than just the vagaries of the weather,
it is designed also for frequent switching even on severe load such as switching of motor
loads or other highly inductive load. Suitable to be mounted in outdoor and indoor for diverse environment.

Features:
Switching ON & OFF on-load
Padlockable handle with 7mm hole in OFF position
Dual 25mm threaded conduit entries on top and bottom
IP66 rating prevents from heavy dust and water ingress

Technical Parameter

Standard: IEC/EN60947-3, AS/NZS 3947
Rated Voltage: 240/415V AC
Rated Frequency: 50/60Hz
Utilizatioin Category: AC22A/AC23A
Number of Pole: 1, 2, 3, 4 pole
IP Protection: IP66

Model

Current

Phase & Voltage

IP rating

UKF 1P

20A

20A 250V single pole, surface switch terminals accommodate 16mm^2 cable, M rating 220

IP56

UKF 1P

35A

35A 250V single pole, terminals accommodate 16mm^2 cable, M rating 220

IP56

UKF 1P

63A

63A 250V single pole, terminals accommodate 16mm^2 cable, M rating 220

IP56

UKF 2P

20A

20A 440V Double pole, terminals accommodate 16mm^2 cable, M Rating 180

IP56

UKF 2P

35A

35A 440V Double pole, terminals accommodate 16mm^2 cable, M Rating 180

IP56

UKF 2P

63A

63A 440V Double pole, terminals accommodate 16mm^2 cable, M Rating 180

IP56

UKF 3P

20A

20A 440V Triple pole, terminals accommodate 16mm^2 cable, M Rating 180

IP56

UKF 3P

35A

35A 440V Triple pole, terminals accommodate 16mm^2 cable, M Rating 180

IP56

UKF 3P

63A

63A 440V Triple pole, terminals accommodate 16mm^2 cable, M Rating 180

IP56

UKF 4P

20A

25A 440V Triple pole with 32mm conduit entry, terminals accommodate 25mm^2 cable, M Rating 160

IP56

UKF 4P

35A

35A 440V Triple pole with 32mm conduit entry, terminals accommodate 25mm^2 cable, M Rating 160

IP56

UKF 4P

63A

63A 440V Triple pole with 32mm conduit entry, terminals accommodate 25mm^2 cable, M Rating 150

IP56

PDF Download

Meba Waterproof Protected Isolating Switch Box IP66 UKF-35 suitable for outdoor switching use in different weather condition.

Categories
Miniature Circuit Breaker

Meba power circuit breaker OLB7 2P

Meba power circuit breaker OLB7 2P

Meba power circuit breaker OLB7 2P

Specification

  • Meba power circuit breaker OLB7 2P is used in lighting distribution system or motor distribution system for protection overload and short-circuit in the system.
  • The product is neoteric in structure, light in weight, reliable and excellent in performance.
  • It has high breaking capacity, can trip quickly, and its case and items are adopted by high fire-resistant and shockproof plastics.
  • The power circuit breaker, with long life, is mainly used in AC 50Hz/60Hz single-pole 230V or two, three, four pole 400V circuit for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit in normal case.
  • The power circuit breaker complys with IEC 60898.

Parameter

Technical Data of power circuit breaker
Pole: 1, 2, 3, 4
Rated Voltage(Un): 230(240)/400(415)V AC, max.60V DC
Rated Current IN: 0.5-63A
Rated frequency fN: 50HZ
Rated breaking capacity: 6KA
Energy limiting class: 3
Tripping characteristic: B,C,D
Cross-section of connecting lead: 1-25mm2
Isolating class: B
Mounting on the rail: EN 50022
Build-in width: 18mm/pole
Standards: IEC 60898,EN60898

Categories
NS Moulded Case Circuit Breaker

Meba LS moulded case breaker MBE103B

Meba moulded case breaker MBE103B

Meba LS moulded case breaker MBE103B

Application

1. MBE series MCCB is developed from LS type, suitable for industrial or commercial power and lighting with AC50/60Hz, rated working voltage up to AC600V/DC250V, rated current up to 630A.

2. It’S a kind of economical breaker with the characters of stable and reliable function, beautiful appearance, small size and long life.

3. It can be used for conversion of line and infrequent starting motor. It can also be attached to install the accessories which have protection function for avoiding loss-voltage, undervoltage.

4. The product can install connection line with front board and back board, it also can equip hand-operating apparatus or motor-operating apparatus to control in a remote distance.

Technical Parameter

The rated insulation voltage for this series of circuit breaker is 690V, the rated operating voltage is 600V, the rated frequency is 50Hz, the other rated values for the main circuit.

Type

2pole

MBE-32E

MBE-52E

MBE-52S

MBE-62E

MBE-62S

3pole

MBE-33S

MBE-53E

MBE-53S

MBE-63E

MBE-63S

Frame size(AF)

30

50

60

Rated current (A)

5,10,15,
20,30

5,10,15,20
30,40,50

60

Rated operational voltage(V) Ue (50/60Hz)

600

600

600

600

600

Rated insulation voltage(V) Ui (50/60Hz)

690

690

690

690

690

Rated impulse withstand voltage (KV) Uimp

6

6

6

6

6

Ultimate breaking capacity
(KA, Icu, AC 50/60Hz)

220/240V

10

10

25

10

25

380V

7.5/5

7.5/5

14/10

7.5/5

14/10

415V

7.5/5

7.5/5

14/10

7.5/5

14/10

440/460V

5

5

10

5

10

480/500V

2.5

2.5

7.5

2.5

7.5

600V

2.5

2.5

5

2.5

5

Utilisation category

A

A

A

A

A

Endurance

Mechanical

8500

8500

8500

8500

8500

Electrical

1500

1500

1500

1500

1500

Part2

Type 2pole

MBE-102E

MBE-102S
3pole

MBE-103E

MBE-103S

MBE-203E

MBE-203S

MBE-403E

MBE-403S
Frame size(AF)

100

225

400
Rated current (A)

5,10,15,
20,30,40,50,60,75,100

5,10,15,
20,30,40,50,60,75,100

100,125,150,175,220,225

250,300,350,400
Rated operational voltage(V) Ue (50/60Hz)

600

600

              600

600

600

600
Rated insulation voltage(V) Ui (50/60Hz)

690

690

          690

690

690

690
Rated impulse withstand voltage (KV) Uimp

6

6

                 6

6

6

6
Ultimate breaking capacity
(KA, Icu, AC 50/60Hz)		 220/240V

10

50

35

50

35

50
380V

7.5/5

25

18

25

30

42
415V

7.5/5

25

18

25

25

35
440/460V

5

25

18

25

25

35
480/500V

2.5

25

10

14

18

25
600V

2.5

14

7.5

10

18

22
Utilisation category

A

A

A

A

A

A
Endurance Mechanical

8500

8500

7000

7000

4000

400
Electrical

1500

1500

1000

1000

1000

1000

Dimension:

MBE103B Dimension

PDF Download

Meba LS moulded case breaker MBE103B is delevop moulded case circuit breaker used to distribute electric energy in distribution network, overload or short circuit protection power equipment and transformation of infrequent circuit under the normal conditions.
