Author: meba_admin

Categories
Terminals and Connectors

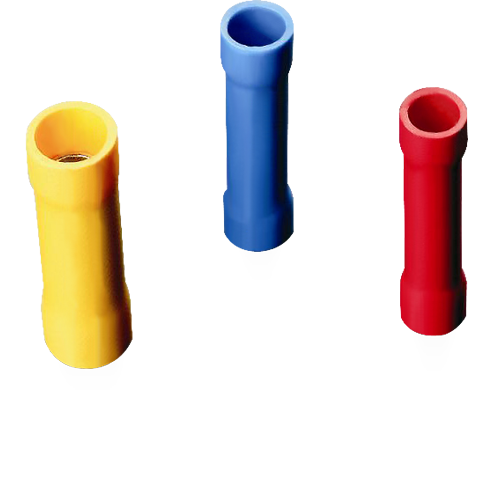

Meba Insulated Butt Connectors BV

Meba electrical wire connectors BV

Specification

Insulated Butt Connectors BV series, Insulated Wiring Butt Splice Connector,insulated terminal

Material:purple copper

Insulating material：PVC

Long or short form insulated terminal

AWG:22-16,16-14,12-10

Item No
Cable size
Dimension(mm)
Imax
Color
A.W.G
mm2
I
dφ
L
BV 1.25
22-16
0.5-1.5
15.0
1.7
26.0
19A
red
BV 2
16-14
1.5-2.5
15.0
2.3
26.0
27A
blue
BV 5.5
12-10
4-6
15.0
3.4
26.0
48A
yellow
BV 8
#8
6-10
21.0
4.5
32.0
62A
red
BV 14
#6
10-16
26.0
5.8
42.0
88A
blue
BV 22
#4
16-25
29.0
7.7
50.0
115A
yellow
BV 38
#2
35-50
32.0
9.4
55.0
160A
red

Dimension:

BV Insulated Butt Connectors DimensionUsage:

1. The product is applied for kinds of industrial and mining enterprises such as steel smelting,prtrochemical industry,electric power,electron ,railway,construction,airport, mine,stope,water supply and drain processing factory ,port,store,hotel and so on.

2. it is also for mating and maintenance fittings of device power and connectors imported from abroad, so it is a new generation ideal power supply unit.

Categories
Terminals and Connectors

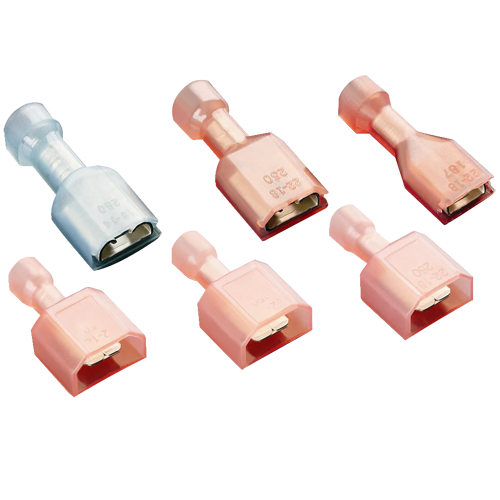

Meba Fully Insulated Male and Female Disconnects (Nylon NY Type) MDFNY1

Meba wire connector assortment MDFNY1

Specification

Fully Insulated Male and Female Disconnects

Max current：10A　　Material:copper　　Insulating:Nylon

Item No
Connecting spec.
Dimension(mm)
diagram
cable sizemm2
color
W
F
L
B
Dφ
Cφ
T
FDFN 1.25-250
0.8×6.35
6.6
7.3
22.0
11.0
4.0
1.7
0.4
1
22～16 A.W.G.
0.5～1.5mm2
red
MDFN 1.25-250
0.8×6.35
6.35
7.7
23.0
2

Max current：15A　　Material:copper　　Insulating:Nylon

Item No
Connecting spec.
Dimension(mm)
diagram
cable sizemm2
color
W
F
L
B
Dφ
Cφ
T
FDFN 2-250
0.8×6.35
6.6
7.3
22.0
11.0
4.5
2.3
0.4
1
16～14 A.W.G.
1.5～2.5mm2
blue
MDFN 2-250
0.8×6.35
6.35
7.7
24.0
2

Max current：24A　　Material:copper　　Insulating:Nylon

Item No
Connecting spec.
Dimension(mm)
diagram
cable sizemm2
color
W
F
L
B
Dφ
Cφ
T
FDFN 5.5-250
0.8×6.35
6.6
7.3
24.0
13.0
6.3
3.4
0.4
1
12～10 A.W.G.
4～6mm2
yellow
MDFN 5.5-250
0.8×6.35
6.35
7.7
25.0

Dimension:

FDFN Male And Female Full-insulating Joint DimensionUsage:

1. The product is applied for kinds of industrial and mining enterprises such as steel smelting,prtrochemical industry,electric power,electron ,railway,construction,airport, mine,stope,water supply and drain processing factory ,port,store,hotel and so on.

2. it is also for mating and maintenance fittings of device power and connectors imported from abroad, so it is a new generation ideal power supply unit.

Categories
Terminals and Connectors

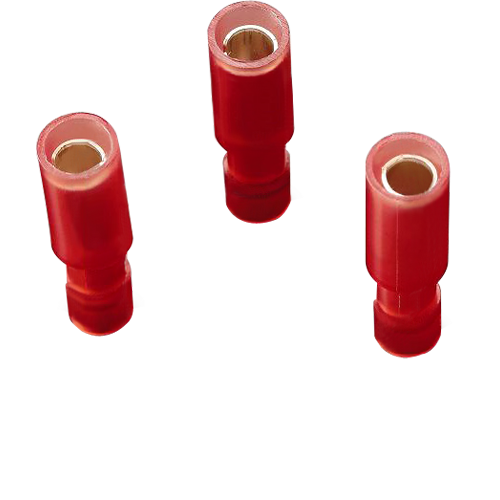

Meba Fully Insulated Bullet Male and Female Disconnects (Nylon) FRFNY

meba bullet wire connector

Specification

Fully Insulated Bullet Male and Female Disconnects

Max current：22-16 A.W.G:19A     16-14A.W.G:27A
Max voltage：105℃ 300V　　Insulating material:nylon　　Material:copper

Item No
Dimension(mm)
diagram
cable sizemm2
color
Bφ
bφ
Dφ
dφ
L
F
H
FRFNY 1.25-156
6.9
3.9
3.2
1.8
26.0
15.0
11.0
1
22～16 A.W.G.
0.5～1.5mm2
red
MRFNY 1.25-156
7.4
4.0
3.2
1.8
27.5
16.5
11.0
2
22～16 A.W.G.
0.5～1.5mm2
red
FRFNY 2-156
6.9
3.9
3.9
2.4
26.0
15.5
11.0
1
16～14 A.W.G.
1.5～2.5mm2
blue
MRFNY 2-156
7.4
4.0
3.9
2.4
27.5
16.5
11.0
2
16～14 A.W.G.
1.5～2.5mm2
blue

Dimension:

FRFNY Bullet-shaped Male And Female Full-insulating Joint DimensionUsage:

1. The product is applied for kinds of industrial and mining enterprises such as steel smelting,prtrochemical industry,electric power,electron ,railway,construction,airport, mine,stope,water supply and drain processing factory ,port,store,hotel and so on.

2. it is also for mating and maintenance fittings of device power and connectors imported from abroad, so it is a new generation ideal power supply unit.

Categories
Terminals and Connectors

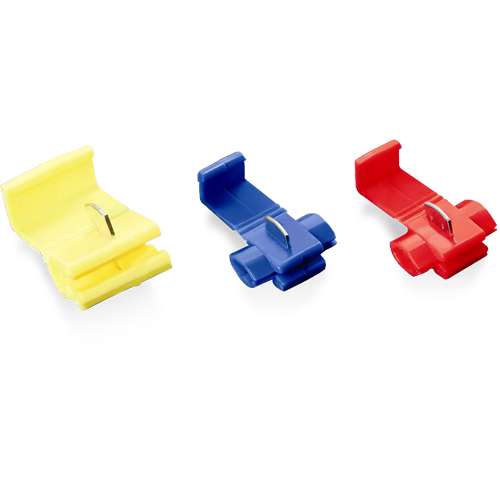

Meba Quick Splice Connectors 878100

Meba electrical wire connectors 878100

Specification

Quick Splice Connectors

Max current：22-18 A.W.G 10A    18-14 A.W.G 15A    12-10 A.W.G 24
Max voltage：105℃　600V　　Material:purple copper　　Insulating material：P.P

Item No Dimension(mm) Wire range Imax Color
W L A.W.G. mm2
878100
(801P3)		 20.0 27.0 22-18 0.5-1.0 10A Red
878101
(802P3)		 20.0 27.0 18-14 0.75-2.5 15A Blue
878201
(805P3)		 20.5 34.5 12-10 4-6 24A Yellow
878006 10.0 38.0 22-18 0.5-1.0 10A Red
878106 10.0 38.0 18-14 0.75-2.5 15A Blue
878206 10.0 38.0 12 4 24A Yellow
878109 28.0 31.0 18-14 0.75-2.5 15A Black

 Dimension:
Fast Connecting Joint DimensionUsage:

1. The product is applied for kinds of industrial and mining enterprises such as steel smelting,prtrochemical industry,electric power,electron ,railway,construction,airport, mine,stope,water supply and drain processing factory ,port,store,hotel and so on.

2. It is also for mating and maintenance fittings of device power and connectors imported from abroad, so it is a new generation ideal power supply unit.

3. The products are sold to over 20 provinces,municipalities and autonomous regions in our country ,and sortheast Asia,European ,Americal and so on areas as well,they are quite enjoyed by clients.

Categories
Terminals and Connectors

Meba Non-Insulated Butt Connectors BN

Meba terminal scrimps BN

Specification

Non-Insulated Butt Connectors BN  Series

Material:purple copper

Item No
Cable size
Dimension(mm)
A.W.G
mm2
Dφ
dφ
L
BN 1.25
22-16
0.5-1.5
3.3
1.7
15.0
BN 2
16-14
1.5-2.5
4.0
2.3
15.0
BN 3.5
14-12
2.5-4
5.0
3.0
15.0
BN 5.5
12-10
4-6
5.5
3.4
15.0
BN 8
#8
10
7.1
4.5
21.0
BN 14
#6
16
9.0
5.8
26.0
BN 22
#4
25
11.4
7.7
29.0
BN 38
#2
35
13.3
9.4
32.0
BN 60
1/0
50
15.4
11.4
36.0
BN 70
2/0
70
17.5
13.3
37.0
BN 80
3/0
95
19.4
14.5
38.0
BN 100
4/0
120
22.0
16.4
38.0
BN 150
250-300MCM
150
26.5
19.5
54.0
BN 180
300-350MCM
185
28.5
21.0
57.0
BN 200
400MCM
240
32.5
24.0
63.0
BN 325
500-600MCM
300
37.0
28.0
72.0

Dimension:

BN Long Naked Terminal In The Middle Dimension

Categories
Terminals and Connectors

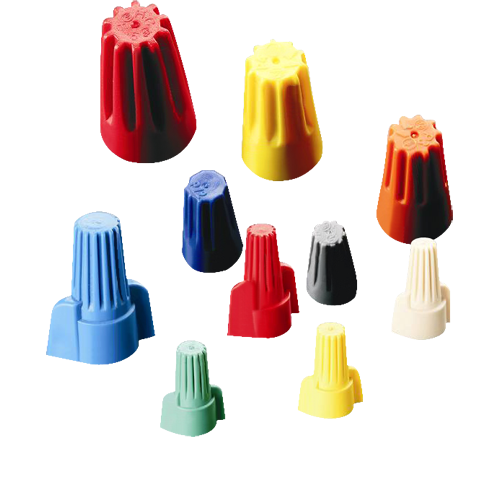

Meba Screw-On Wire Connectors SP1

Meba wire terminal connectors SP1

Specification

Screw-On Wire Connectors

SP1 Cone Insulating Joint·Voltage: 300V
·Temperature: 105℃
·Material: High-class PVC plastic and rubber raw material with good insulation
·Usage: used in varous electrical goods, family matching line and so on connection devices, with the function of durable and good insulatibity and reliable and safe.

Item No
Cable arrange
Dimension(mm)
Color
B
C
L
SP1
min 0.75×1+0.5×1 max 1.5×2
8.5
6.7
15.0

gray
SP2
min 0.75×3 max 1.5×3
10.1
7.4
17.5
blue
SP3
min 0.75×3 max 1.5×3+1×1
12.6
9.9
22.1
orange
SP4
min 0.25×1+0.75×1 max 2.5×4+0.75×1
13.7
11.0
24.5
yellow
SP6
Min 0.25×2 Max 6×2+4×2
16.0
13.0
26.5
red

 Dimension:

SP1 Cone Insulating Joint DimensionApplication:

1. The product is applied for kinds of industrial and mining enterprises such as steel smelting, prtrochemical industry, electric power, electron, railway, construction, airport, mine, stope, water supply and drain processing factory, port, store, hotel and so on.

2. It is also for mating and maintenance fittings of device power and connectors imported from abroad, so it is a new generation ideal power supply unit.

Categories
Terminals and Connectors

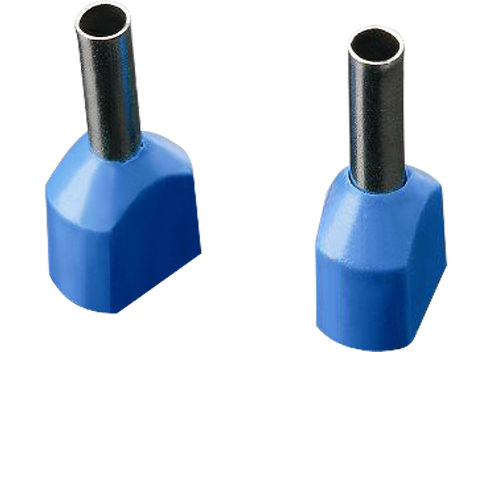

Meba Insulated Twin Cord End Terminals TE series

Meba wire connectors closed end TE0508

Specification

Insulated Twin Cord End Terminals TE series

Max voltage：105℃   Ui=300V　Material：purple copper　Insulating material：nylon

Item No
Conductor(mm2)
Dimension(mm)
Color
F
L
W
B
Dφ
Cφ
German
French
TE 0508
2×0.5
8.0
14.5
5.0
6.5
1.8
1.5
white
white
TE 7508
2×0.75
8.0
14.7
5.5
6.7
2.1
1.8
blue
gray
TE 7510
2×0.75
10.0
16.7
5.5
6.7
2.1
1.8
TE 1008
2×1.0
8.0
15.1
5.5
7.1
2.3
2.0
red
red
TE 1010
2×1.0
10.0
17.1
5.5
7.1
2.3
2.0
TE 1508
2×1.5
8.0
15.5
6.4
7.2
2.6
2.3
black
yellow
TE 1512
2×1.5
12.0
19.5
6.4
7.5
2.6
2.3
TE 2510
2×2.5
10.0
18.5
8.0
8.5
3.3
2.9
gray
blue
TE 2513
2×2.5
13.0
21.5
8.0
8.5
3.3
2.9
TE 4012
2×4.0
12.0
23.1
8.8
11.1
4.2
3.8
orange
gray
TE 6014
2×6.0
14.0
26.1
9.5
12.1
5.3
4.9
green
yellow
TE 10-14
2×10.0
14.0
26.6
12.6
12.0
6.9
6.5
brown
red
TE 16-14
2×16.0
14.0
31.3
19.0
17.3
8.7
8.3
mile
blue

Dimension:

TE Insulated Twin Cord End Terminals Dimension

Categories
Terminals and Connectors

Meba Non-Insulated Cord End Terminals EN series

Meba crimp terminals EN0506

Specification

Non-Insulated Cord End Terminals EN series

Max voltage：Ui=300V　　material：purple copper

Item No Dimension(mm) Wire range
L Dφ Cφ W A.W.G. mm2
EN6006 6.0 0.81.0 1.51.7 2422 0.30.5
EN6010 0.8
EN6012 5.0
EN6015 6.0
EN6018 8.0
EN10-12 12.0 4.9 4.5 5.8 8 10
EN10-15 15.0
EN10-16 16.0
EN10-18 18.0
EN16-12 12.0 6.2 5.8 7.2 6 16
EN16-15 15.0
EN16-16 16.0
EN16-18 18.0
EN16-20 20.0
EN16-22 22.0
EN16-25 25.0
EN16-30 30.0
EN25-12 12.0 7.9 7.5 9.1 4 25
EN25-15 15.0
EN25-16 16.0
EN25-18 18.0
EN25-20 20.0
EN25-22 22.0
EN25-25 25.0
EN25-30 30.0
EN35-12 12.0 8.7 8.3 10.2 2 35
EN35-15 15.0
EN35-16 16.0
EN35-18 18.0
EN35-20 20.0
EN35-25 25.0
EN35-30 30.0
EN50-12 12.0 10.9 10.3 12.7 1/0 50
EN50-18 18.0
EN50-22 22.0
EN50-25 25.0
EN50-30 30.0
EN70-22 22.0 14.3 13.5 15.8 2/0 70
EN70-25 25.0
EN70-30 30.0
EN90-25 25.0 15.6 14.8 17.3 3/0 95
EN90-30 30.0
EN90-32 32.0
EN120-30 30.0 17.7 16.7 20.2 4/0 120
EN120-32 32.0
EN120-34 34.0
EN120-38 38.0
EN150-32 32.0 20.6 19.6 23.0 250/300
MCM		 150
EN150-34 34.0
EN150-38 38.0
EN185-32 32.0 21.4 20.2 23.9 300/350
MCM		 185
EN185-40 40.0

Dimension:

EN Tube Naked Terminal Dimension

Categories
Terminals and Connectors

Meba Insulated Cord End Terminals E series

Meba wire crimp terminals E0506

Specification

 Insulated Cord End Terminals E series

Max voltage：105℃　Ui=300V　　material：purple　　Insulating material：nylon(colors)

Item No Dimension(mm) Wire range French
color		 German
color		 DIN
color
F L W Dφ Cφ A.W.G. mm2
E0505 5.0 11.0 2.6 1.3 1.0 22 0.5 White Orange White
E0506 6.0 12.0
E0508 8.0 14.0
E0510 10.0 16.0
E0512 12.0 18.0
E7506 6.0 12.3 2.8 1.5 1.2 20 0.75 Blue White Grey
E7508 8.0 14.3
E7510 10.0 16.3
E7512 12.0 18.3
E7518 18.0 24.3
E1006 6.0 12.3 3.0 1.7 1.4 18 1.0 Red Yellow Red
E1008 8.0 14.3
E1010 10.0 16.3
E1012 12.0 18.3
E1018 18.0 24.3
E1508 8.0 14.3 3.5 2.0 1.7 16 1.5 Black Red Black
E1510 10.0 16.3
E1512 12.0 18.3
E1515 15.0 21.3
E1518 18.0 24.3
E2508 8.0 15.4 4.0 2.6 2.3 14 2.5 Grey Blue Blue
E2510 10.0 17.4
E2512 12.0 19.4
E2518 18.0 25.4
E2525 25.0 32.4
E4009 9.0 16.4 4.5 3.2 2.8 12 4.0 Orange Grey Grey
E4010 10.0 17.4
E4012 12.0 19.4
E4018 18.0 25.4
E6012 12.0 20.5 6.0 3.9 3.5 10 6.0 Green Black Yellow
E6018 18.0 26.5
E10-12 12.0 20.8 7.5 4.9 4.5 8 10 Brown Ivory Red
E10-18 18.0 26.8
E16-12 12.0 22.0 8.7 6.2 5.8 6 16 Ivory Green Blue
E16-18 18.0 28.0
E25-12 12.0 24.0 11.0 7.9 7.5 4 25 Black Brown Yellow
E25-16 16.0 28.0
E25-18 18.0 30.0
E25-22 22.0 34.0
E35-16 16.0 30.0 12.5 8.7 8.3 2 35 Red Beige Red
E35-18 18.0 32.0
E35-22 22.0 36.0
E35-25 25.0 39.0
E50-12 12.0 28.0 15.0 10.9 10.3 1/0 50 Blue Olive Blue
E50-20 20.0 36.0
E70-20 20.0 37.0 16.0 14.3 13.5 2/0 70 Yellow Yellow Yellow
E70-25 25.0 42.0
E70-27 27.0 44.0
E95-25 25.0 44.0 18.5 15.6 14.8 3/0 95 Red Red Red
E120-27 27.0 47.6 20.3 17.7 16.7 4/0 120 Blue Blue Blue
E120-32 32.0 52.6
E150-25 25.0 50.6 23.4 20.6 19.6 250/300
MCM		 150 Yellow Yellow Yellow
E150-27 27.0 52.6
E150-32 32.0 57.6
Dimension:

E Series Insulated Cord End Terminals Dimension

Categories
Terminals and Connectors

Meba Non-Insulated Blade Terminals DBN

Meba non insulated terminals DBN

Specification

Non-Insulated Blade Terminals DBN  Series

Cable size: 0.5-1.5mm2 (A.W.G.22-16)  Max current: Imax=19A  Material: purple copper

Item No Dimension(mm)
B L F H Dφ dφ
DBN 1.25-10 2.3 14.8 10.0 4.8 3.4 1.7
DBN 1.25-11 3.0 15.8 11.0
DBN 1.25-14 3.0 18.8 14.0
DBN 1.25-18 2.2 22.8 18.0

Cable size: 1.5-2.5mm2 (A.W.G.16-14)  Max current: Imax=27A  Material: purple copper

Item No Dimension(mm)
B L F H Dφ dφ
DBN 2-9 2.4 13.8 9.0 4.8 4.1 2.3
DBN 2-14 2.4 18.8 14.0
DBN 2-18 2.2 22.8 18.0

Cable size: 4-6mm2 (A.W.G.12-10)  Max current: Imax=48A  Material: purple copper

Item No Dimension(mm)
B L F H Dφ dφ
DBN 5.5-10 2.8 14.8 10.0 6.0 5.6 3.4
DBN 5.5-14 4.5 21.0 14.0
DBN 5.5-18 4.5 23.0 18.0
DBN 8-14 5.0 22.5 14.0 8.5 7.2 4.5
DBN 14-16 6.0 30.6 16.0 14.0 9.0 6.5

Dimension:





Categories
Terminals and Connectors

Meba Insulated Blade Terminals DBV

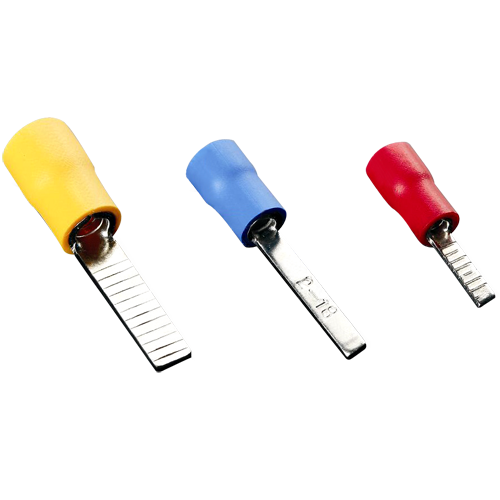

Meba non insulated terminal DBV

Specification

Insulated Blade Terminals DBV  Series

Cable size：0.5～1.5mm2（A.W.G.22～16)    Max current：Imax=19A     Material：purple copper

Item No
Dimension(mm)
Color
B
L
F
H
Dφ
DBV 1.25-10
2.3
20.0
10.0
10.0
4.3
red
DBV 1.25-11
3.0
21.0
11.0
DBV 1.25-14
3.0
24.0
14.0
DBV 1.25-18
2.2
28.0
18.0

Cable size：1.5～2.5mm2（A.W.G.16～14)    Max current：Imax=27A     Material：purple copper

Item No
Dimension(mm)
Color
B
L
F
H
Dφ
DBV 2-10
2.4
19.0
9.0
10.0
4.9
blue
DBV 2-14
2.4
24.0
14.0
DBV 2-18
2.2
28.0
18.0

Cable size：4～6mm2（A.W.G.12～10)    Max current：Imax=48A     Material：purple copper

Item No
Dimension(mm)
Color
B
L
F
H
Dφ
DBV 5.5-10
2.8
22.5
10.0
13.0
5.6
yellow
DBV 5.5-14
4.5
26.5
14.0
DBV 5.5-18
4.5
30.5
18.0

Dimension:

DBV Insulated Blade Terminals DimensionApplication:

1. The product is applied for kinds of industrial and mining enterprises such as steel smelting, prtrochemical industry, electric power, electron, railway, construction, airport, mine, stope, water supply and drain processing factory, port, store, hotel and so on.

2. It is also for mating and maintenance fittings of device power and connectors imported from abroad, so it is a new generation ideal power supply unit.





Categories
Terminals and Connectors

Meba Fully Insulated Female Disconnects FDFD

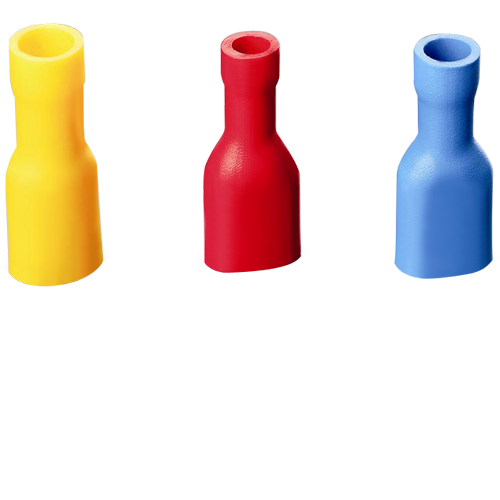

Meba wire terminals female FDFD

Specification

Fully Insulated Female Disconnects FDFD Series

FDFD Insulated Female Disconnects Image

Cable size:0.5～1.5mm2（A.W.G 22～16)    Max current：Imax=10A    Material:Copper

Item No
Name Tab(mm)
Dimension(mm)
B
Dφ
dφ
L
FDFD 1.25-187(5)
0.5×4.75
5.6
3.8
1.7
20.0
FDFD 1.25-187(8)
0.8×4.75
5.6
3.8
1.7
20.0
FDFD 1.25-250
0.8×6.35
7.4
3.8
1.7
21.5

Cable size:1.5～2.5mm2（A.W.G 16～14)    Max current：Imax=15A    Material:Copper

Item No
Name Tab(mm)
Dimension(mm)
B
Dφ
dφ
L
FDFD 2-187(5)
0.8×4.75
5.6
4.3
2.3
20.0
FDFD 2-187(8)
0.8×4.75
5.6
4.3
2.3
20.0
FDFD 2-250
0.8×6.35
7.4
4.3
2.3
21.5

Cable size:4～6mm2（A.W.G 12～10)    Max current：Imax=24A    Material:Copper

Item No
Name Tab(mm)
Dimension(mm)
B
Dφ
dφ
H
FDFD 5.5-250
0.8×6.35
7.4
5.7
3.4
25.5

Dimension:

FDFD Insulated Female Disconnects Dimension

Application:

1. The product is applied for kinds of industrial and mining enterprises such as steel smelting, prtrochemical industry, electric power, electron, railway, construction, airport, mine, stope, water supply and drain processing factory, port, store, hotel and so on.

2. It is also for mating and maintenance fittings of device power and connectors imported from abroad, so it is a new generation ideal power supply unit.

Categories
Front Board Mounted KWH Meters

Meba- electromechanical active meter-MB073QJ

Meba- electromechanical active meter-MB073QJ

Specification

Application

Meba  electromechanical active meter MB073QJis a kind of new style single phase two wire active energy meter, it is designed on the basis of original DD862 single phase electromechanical meter, and fully absorb new technologies about electromechanical meter from domestic and abroad. The meter completely accord with relevant technical requirements of class 2 single phase active energy meter stipulated in international standard IEC 62053-11. It can accurate and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net, it is use for setting indoor or out door meter box. The meter has novel design, rational structure, and it can display total energy consumption by drum wheel mechanical register. It has following features: high overload, power loss, long-life, specious appearance, etc.
Technical Data

Model Accuracy Reference Voltage(V) Current specifications(A) Starting current(A) Insulation performance
MB073QJ Class 2 127
230		 5(20)
10(40)
20(80)
30(100)		 0.025
0.05
0.1
0.15		 AC voltage 4kv for 1 minute,
1.2/50us waveform
pulse voltage 8kv

Installing Diagram

Dimension for MB073QJ
Dimension for MB073QJ

Wiring diagram for MB073QJ
Wiring diagram for MB073QJ



Features

1. Front board three fixed installation, the bottom of the meter and the terminal is made of quality bakelite material which is moisture-resistant, fire-retardant, high temperature molded overall. The cover is also made of bakelite material and has a transparent glass window. It has following features: good weatherability, high rigid, good insulation performance, etc.
2. The meter frame adopt aluminum molding with excellent mechanical strength, stable structure and anti-impact.
3. Voltage components and current components is used of double insulation structure, has good electrical characteristics.
4. Standard configuration bottom bearing is used of double gem bearing, oriented bearing is made of high wear resistance copper alloy bush and stainless steel needle. It has following features: long life and minimal friction, etc. May select magnetic thrust bearing (Product Configuration code is QD) or magnetic suspension (Product Configuration code is QP).
5. All kinds of adjustment mechanism adopt no step shifting mechanism. The meter starting and creeping needn’t to be adjust which is finished by anti-creeping hole of disc and convenient for adjusting by users.
6. Standard configuration 6 digits display by drum wheel mechanical register, may select 5 digits display by drum wheel mechanical register (Product Configuration code is QG).
7. Standard configuration without the device which can prevent retrograde, may select add the function of prevent retrograde. (Please specified when ordering).
8. Standard configuration without handle, may select add a handle for carrying the meter conveniently. (Please specified when ordering).
9. Single component measure single phase two wire active energy consumption. Complying with standard IEC 62053-11.
10. Direct connect operation, there are two types wiring you may select. Standard configuration type 1B wiring, may select type 1A wiring (Product Configuration code is QK).
11. Extension terminals cover, in order to protect to use safety.

Gallery

Online Catalogue

[Download not found]
Categories
Terminals and Connectors

Meba Insulated Female Disconnects FDD

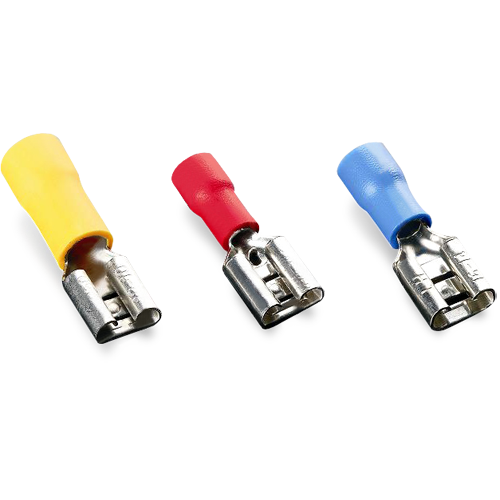

Meba female wire connectors FDD

Specification

Insulated Female Disconnects FDD Series

FDD Insulated Female Disconnects Image

Cable size：0.5～1.5mm2（A.W.G22～16)    Max current：Imax=10A     Material：Copper

Item No
Name Tab(mm)
Thickness of material
Dimension(mm)
Color
B
Dφ
dφ
L
H
FDD 1.25-110(5)
0.5×2.8
0.3
3.8
3.8
1.7
19.0
10.0
red
FDD 1.25-110(8)
0.8×2.8
0.3
3.8
3.8
1.7
19.0
10.0
FDD 1.25-187(5)
0.5×4.75
0.35
5.6
3.8
1.7
19.0
10.0
FDD 1.25-187(8)
0.8×4.75
0.35
5.6
3.8
1.7
19.0
10.0
FDD 1.25-205
0.5×5.2
0.35
6.5
3.8
1.7
20.0
10.0
FDD 1.25-250
0.8×6.35
0.4
7.4
3.8
1.7
21.0
10.0

Cable size:1.5～2.5mm2（A.W.G16～14)    Max current：Imax=15A     Material：Copper

Item No
Name Tab(mm)
Thickness of material
Dimension(mm)
Color
B
Dφ
dφ
L
H
FDD 1.25-110(5)
0.5×2.8
0.3
3.8
3.8
1.7
19.0
10.0
red
FDD 1.25-110(8)
0.8×2.8
0.3
3.8
3.8
1.7
19.0
10.0
FDD 1.25-187(5)
0.5×4.75
0.35
5.6
3.8
1.7
19.0
10.0
FDD 1.25-187(8)
0.8×4.75
0.35
5.6
3.8
1.7
19.0
10.0
FDD 1.25-205
0.5×5.2
0.35
6.5
3.8
1.7
20.0
10.0
FDD 1.25-250
0.8×6.35
0.4
7.4
3.8
1.7
21.0
10.0

Cable size:1.5～2.5mm2（A.W.G16～14)    Max current：Imax=15A     Material：Copper

Item No
Name Tab(mm)
Thickness of material
Dimension(mm)
Color
B
Dφ
dφ
L
H
FDD 5.5-250
0.8×6.35
0.4
7.4
5.7
3.4
25.0
13.0
yellow
FDD 5.5-375
1.2×9.4
0.5
10.9
5.7
3.4
29.6
13.0

Dimension:

FDD Insulated Female Disconnects Dimension

Categories
Terminals and Connectors

Meba Insulated Male Disconnects MDD

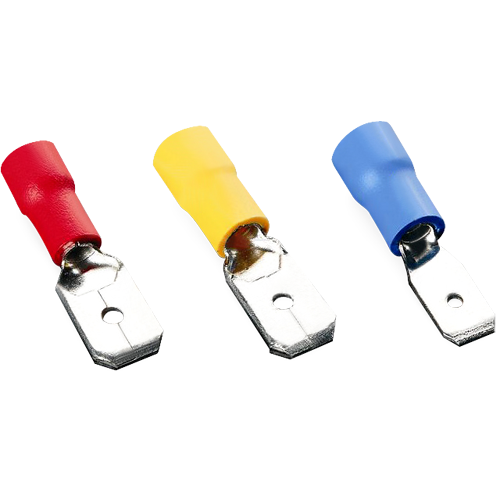

Meba crimping insulated terminals MDD

Specification

Insulated Male Disconnects MDD Series

MDD INSULATED MALE DISCONNECTS Image



Cable size: 0.5-1.5mm2 (A.W.G 22-16)  Max current: Imax=10A  Material:copper

Item No Thickness of material Dimension(mm) Color
dφ Fφ Dφ H L
MPD　1.25-156 0.4 4.0 11.0 1.7 10.0 21.0 red

Cable size: 1.5-2.5mm2 (A.W.G 16-14)  Max current: Imax=15A  Material:copper

Item No Thickness of material Dimension(mm) Color
dφ Fφ Dφ H L
MPD　2-156 0.4 4.0 11.0 2.3 10.0 21.0 blue
MPD　2-195 0.4 5.0 11.0 2.3 10.0 21.0

Cable size: 4-6mm2 (A.W.G 12-10)  Max current: Imax=24A  Material:copper

Item No Thickness of material Dimension(mm) Color
dφ Fφ Dφ H L
MPD　5.5-195 0.4 5.0 12.0 3.4 13.0 25.0 Yellow

 Dimension:

MDD INSULATED MALE DISCONNECTS Dimension

Application:

1. The product is applied for kinds of industrial and mining enterprises such as steel smelting, prtrochemical industry, electric power, electron, railway, construction, airport, mine, stope, water supply and drain processing factory, port, store, hotel and so on.

2. It is also for mating and maintenance fittings of device power and connectors imported from abroad, so it is a new generation ideal power supply unit.

Categories
Terminals and Connectors

Meba Insulated Bullet Wire Connectors MPD

meba bullet wire connectors MPD

Specification

Insulated Bullet Wire Connectors MPD

Wire range: 0.5~1.5mm2 (A.W.G. 22~16) Imax=10A

Item No Dimension(mm) Color
bφ F Dφ H L
MPD1.25-156 4.0 11.0 1.7 10.0 21.0 Red
MPD1.25-176 4.5 14.0 1.7 10.0 24.0

Wire range: 1.5~2.5mm2 (A.W.G. 16~14) Imax=15A

Item No Dimension(mm) Color
bφ F Dφ H L
MPD2-156 4.0 11.0 2.3 10.0 21.0 Blue
MPD2-176 4.5 14.0 2.3 10.0 24.0
MPD2-195 5.0 11.0 2.3 10.0 21.0

Wire range: 4~6mm2 (A.W.G. 12~10) Imax=24A

Item No Dimension(mm) Color
bφ F Dφ H L
MPD5.5-195 5.0 12.0 3.4 13.0 25.0 Yellow

Dimension:

MPD Bullet Shaped Male Pre-insulating Joint Dimension

Application:

1. The product is applied for kinds of industrial and mining enterprises such as steel smelting, prtrochemical industry, electric power, electron, railway, construction, airport, mine, stope, water supply and drain processing factory, port, store, hotel and so on.

2. It is also for mating and maintenance fittings of device power and connectors imported from abroad, so it is a new generation ideal power supply unit.

Categories
Terminals and Connectors

Meba Insulated Pin Terminals PTV

Meba wire ring terminal PTV

Specification

Insulated Pin Terminals  PTV Series

PTV Series Insulated Spade Terminals Image

Cable size：0.5～1.5mm2（A.W.G.22～16)    Max current：Imax=19A     Material：purple copper　

Item No
Dimension(mm)
Color
F
L
H
Dφ
PTV 1.25-9
1.9
19.0
10.0
4.3
red
PTV 1.25-10
1.9
20.0
PTV 1.25-12
1.9
22.0
PTV 1.25-13
1.9
23.0
PTV 1.25-18
1.9
28.0

Cable size1.5～2.5mm2（A.W.G.16～14)    Max current：Imax=27A     Material：purple copper

Item No
Dimension(mm)
Color
F
L
H
Dφ
PTV 2-9
1.9
19.0
10.0
4.9
blue
PTV 2-10
1.9
20.0
PTV 2-12
1.9
22.0
PTV 2-13
1.9
23.0
PTV 2-18
1.9
28.0

Cable size2.5～4mm2（A.W.G.14～12)    Max current：Imax=36A     Material：purple copper

Item No
Dimension(mm)
Color
F
L
H
Dφ
PTV 3.5-10
2.8
20.0
13.0
6.2
black
PTV 3.5-13
2.8
25.5

Cable size4～6mm2（A.W.G.12～10)    Max current：Imax=48A     Material：purple copper　

Item No
Dimension(mm)
Color
F
L
H
Dφ
PTV 5.5-13
2.8
25.5
13.0
6.7
Yellow

Dimension:

PTV Series Insulated Spade Terminals Dimension

Categories
Terminals and Connectors

Meba Non-Insulated terminals RNB

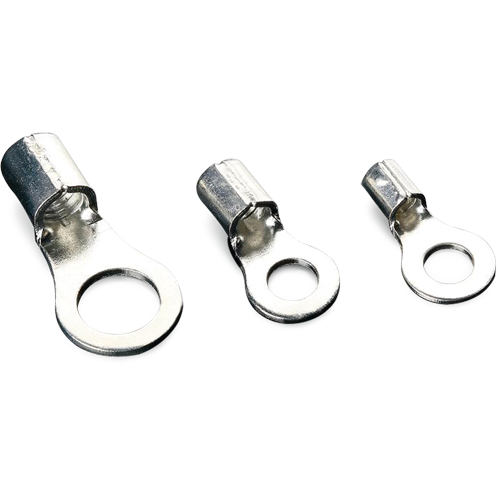

Meba insulated crimp terminals RNB

Specification

Non-Insulated terminals RNB

Cable size: 0.5-1.5mm2 (A.W.G.22-16)  max current: Imax=19A  material: purple copper  thickness: 0.75mm

Item No USA screw screw dia.d2(mm) Dimension(mm)
B L F E DΦ dΦ
RNB 1.25-3 #4 3.2 5.7 12.6 4.95 4.8 3.4 1.7
RNBS 1.25-3.5 #6 3.7 5.7 12.6 4.95
RNBM 1.25-3.5 #6 3.7 6.6 14.4 6.3
RNBL 1.25-3.5 #6 3.7 8.0 15.8 7.0
RNBS 1.25-4 #8 4.3 6.6 14.4 6.3
RNBM 1.25-4 #8 4.3 8.0 15.8 7.0
RNB 1.25-5 #10 5.3 8.0 15.8 7.0
RNBL 1.25-5 #10 5.3 9.8 18.0 8.5
RNBS 1.25-6 1/4 6.4 9.8 18.0 8.5
RNB 1.25-6 1/4 6.4 11.6 21.8 11.1
RNB 1.25-8 5/16 8.4 11.6 21.8 11.1
RNB 1.25-10 3/18 10.5 13.6 25.5 13.9
RNB 1.25-12 1/2 13.0 19.2 31.0 16.5

Cable size: 1.5-2.5mm2 (A.W.G.16-14)  max current: Imax=27A  material: purple copper  thickness: 0.8mm

Item No USA screw screw dia.d2(mm) Dimension(mm)
B L F E DΦ dΦ
RNB 2-3 #4 3.2 6.6 12.3 4.3 4.8 4.1 2.3
RNBS 2-3.5 #6 3.7 6.6 12.3 4.3
RNBM 2-3.5 #6 3.7 6.6 16.0 7.0
RNBL 2-3.5 #6 3.7 8.5 16.8 7.75
RNBS 2-4 #8 4.3 6.6 16.0 7.0
RNBL 2-4 #8 4.3 8.5 16.8 7.75
RNBS 2-5 #10 5.3 8.5 16.8 7.75
RNBL 2-5 #10 5.3 9.5 16.8 7.25
RNB 2-6 1/4 6.4 12.0 21.8 11.0
RNB 2-8 5/16 8.4 12.0 21.8 11.0
RNB 2-10 3/18 10.5 13.6 25.5 13.9
RNB 2-12 1/2 13.0 19.2 31.0 16.5

Cable size: 2.5-4mm2 (A.W.G.14-12)  max current: Imax=37A  material: purple copper  thickness: 1.0mm

Item No USA screw screw dia.d2(mm) Dimension(mm)
B L F E DΦ dΦ
RNB 3.5-4 #8 4.3 8.0 18.0 7.7 6.0 5.0 3.0
RNBS 3.5-5 #10 5.3 8.0 18.0 7.7
RNBL 3.5-5 #10 5.3 12.0 21.4 7.7
RNB 3.5-6 1/4 6.4 12.0 21.4 7.7
RNB 3.5-8 16-5 8.4 15 28 13.7

Cable size: 4-6mm2 (A.W.G.12-10)  max current: Imax=48A  material: purple copper  thickness: 1.0mm

Item No USA screw screw dia.d2(mm) Dimension(mm)
B L F E DΦ dΦ
RNB 5.5-3.5 #6 3.7 7.2 15.7 5.9 6.8 5.6 3.4

Cable size: 6-10mm2 (A.W.G.8)  max current:Imax=62A  material: purple copper  thickness: 1.2mm

Item No USA screw screw dia.d2(mm) Dimension(mm)
B L F E DΦ dΦ
RNB 8-4 #8 4.3 8.8 23.8 9.3 8.5 7.2 4.5
RNBS 8-5 #10 5.3 8.8 23.8 11.1
RNBM 8-5 #10 5.3 12.0 23.8 9.3
RNBL 8-5 #10 5.3 15.0 29.8 13.8
RNBS 8-6 1/4 6.4 12.0 23.8 9.3
RNBL 8-6 1/4 6.4 15.0 29.8 13.8
RNB 8-8 5/16 8.4 15.0 29.8 13.8
RNB 8-10 3/8 10.5 15.0 29.8 13.8
RNB 8-12 1/2 13.0 20.0 33.5 15.0

Cable size: 10-16mm2 (A.W.G.6)   max current: Imax=88A  material: purple copper   thickness: 1.4mm

Item No USA screw screw dia.d2(mm) Dimension(mm)
B L F E DΦ dΦ
RNB 14-4 #8 4.3 12.0 29.8 13.3 10.5 9.0 5.8
RNB 14-5 #10 5.3 12.0 29.8 13.3
RNBS 14-6 1/4 6.4 12.0 29.8 13.3
RNBL 14-6 1/4 6.4 16.0 32.8 13.3
RNB 14-8 5/16 8.4 16.0 32.8 14.5
RNB 14-10 3/8 10.5 16.0 32.8 14.5
RNB 14-12 1/2 13.0 22.0 41.0 19.5

Cable size: 16-25mm2 (A.W.G.4)  max current: Imax=115A  material: purple copper   thickness:1.7mm

Item No USA screw screw dia.d2(mm) Dimension(mm)
B L F E DΦ dΦ
RNBS 22-5 #10 5.3 12.2 33.2 14.5 12.0 11.5 7.7
RNBL 22-5 #10 5.3 16.5 33.7 13.5
RNBS 22-6 1/4 6.4 12.2 33.2 14.5
RNBL 22-6 1/4 6.4 16.5 33.7 13.5
RNB 22-8 5/16 8.4 16.5 33.7 13.5
RNB 22-10 3/8 10.5 16.5 33.7 13.5
RNB 22-11 7/16 11.5 22.0 42.5 19.5
RNB 22-12 1/2 13.0 22.0 42.5 19.5

Cable size: 35-50mm2 (A.W.G.2)  max current: Imax=160A  material: purple copper  thickness: 1.8mm

Item No USA screw screw dia.d2(mm) Dimension(mm)
B L F E DΦ dΦ
RNB 38-5 #10 5.3 15.3 39.0 18.3 14.0 13.3 9.4

Cable size: 50-70mm2 (A.W.G.1/0)  max current: Imax=215A  material: purple copper  thickness: 1.7mm

Item No USA screw screw dia.d2(mm) Dimension(mm)
B L F E DΦ dΦ
RNB 60-6 1/4 6.4 22.0 49.7 20.7 18.0 15.4 11.4
RNB 60-8 5/16 8.4
RNB 60-10 3/8 10.5
RNB 60-11 7/16 11.5
RNB 60-12 1/2 13.0
RNB 60-14 9/16 15.0 32.0 57.5 23.5
RNB 60-16 5/8 17.0
RNB 60-18 11/16 19.0
RNB 60-20 3/4 21.0
RNB 60-22 7/8 23.0

Cable size: 70-95mm2 (A.W.G.2/0)  max current: Imax=235A  material: purple copper  thickness: 1.9mm

Item No USA screw screw dia.d2(mm) Dimension(mm)
B L F E DΦ dΦ
RNB 70-6 1/4 6.4 24.0 51.0 20.0 19.0 17.5 13.3
RNB 70-8 5/16 8.4
RNB 70-10 3/8 10.5
RNB 70-11 7/16 11.5
RNB 70-12 1/2 13.0
RNB 70-14 9/16 15.0 32.0 61.0 26.0
RNB 70-16 5/8 17.0
RNB 70-18 11/16 19.0
RNB 70-20 3/4 21.0
RNB 70-22 7/8 23.0

Cable size: 95-120mm2 (A.W.G.3/0)  max current: Imax=255A  material: purple copper  thickness: 2.2mm

Item No USA screw screw dia.d2(mm) Dimension(mm)
B L F E DΦ dΦ
RNB 80-6 1/4 6.4 27.0 54.2 20.7 20.0 19.5 14.5
RNB 80-8 5/16 8.4
RNB 80-10 3/8 10.5
RNB 80-11 7/16 11.5
RNB 80-12 1/2 13.0
RNB 80-14 9/16 15.0 32.0 68.0 32.0
RNB 80-16 5/8 17.0
RNB 80-18 11/16 19.0
RNB 80-20 3/4 21.0
RNB 80-22 7/8 23.0

Cable size: 120-150mm2 (A.W.G.4/0)  max current: Imax=300A  material: purple copper  thickness: 2.6mm

Item No USA screw screw dia.d2(mm) Dimension(mm)
B L F E DΦ dΦ
RNB 100-6 1/4 6.4 28.5 55.6 20.4 21.0 22.1 16.4

Cable size: 150-185mm2 (A.W.G.250-300MCB)  max current: Imax=395A  material: purple copper  thickness: 3.2mm

Item No USA screw screw dia.d2(mm) Dimension(mm)
B L F E DΦ dΦ
RNB 150-8 5/16 8.4 36.0 66.0 23.0 27.0 26.6 19.5
RNB 150-10 3/8 10.5
RNB 150-11 7/16 11.5
RNB 150-12 1/2 13.0
RNB 150-14 9/16 15.0
RNB 150-16 5/8 17.0
RNB 150-18 11/16 19.0 36.0 81.0 36.0
RNB 150-20 3/4 21.0
RNB 150-22 7/8 23.0
RNB 150-24 15/16 25.0
RNB 150-27 1 28.0

Cable size: 185-240mm2 (A.W.G.300-350MCB)  max current: Imax=440A  material: purple copper  thickness: 3.5mm

Item No USA screw screw dia.d2(mm) Dimension(mm)
B L F E DΦ dΦ
RNB 180-8 5/16 8.4 38.5 69.0 24.5 28.5 28.6 21.0
RNB 180-10 3/8 10.5
RNB 180-11 7/16 11.5
RNB 180-12 1/2 13.0
RNB 180-14 9/16 15.0
RNB 180-16 5/8 17.0
RNB 180-18 11/16 19.0 38.5 86.6 39.0
RNB 180-20 3/4 21.0
RNB 180-22 7/8 23.0
RNB 180-24 15/16 25.0
RNB 180-27 1 28.0

Cable size: 240-300mm2 (A.W.G.400/500MCB)  max current: Imax=470A  material: purple copper  thickness: 3.9mm

Item No USA screw screw dia.d2(mm) Dimension(mm)
B L F E DΦ dΦ
RNB 200-8 5/16 8.4 44.0 72.0 24.5 31.5 32.6 24.0
RNB 200-10 3/8 10.5
RNB 200-11 7/16 11.5
RNB 200-12 1/2 13.0
RNB 200-14 9/16 15.0
RNB 200-16 5/8 17.0
RNB 200-18 11/16 19.0 44.0 91.0 37.5
RNB 200-20 3/4 21.0
RNB 200-22 7/8 23.0
RNB 200-24 15/16 25.0
RNB 200-27 1 28.0

Cable size: 300-400mm2 (A.W.G.500/600MCB)  max current: Imax=650A  material: purple copper  thickness: 4.2mm

Item No USA screw screw dia.d2(mm) Dimension(mm)
B L F E DΦ dΦ
RNB 325-8 5/16 8.4 50.5 88.0 33.5 35.5 37.1 28.0
RNB 325-10 3/8 10.5
RNB 325-11 7/16 11.5
RNB 325-12 1/2 13.0
RNB 325-14 9/16 15.0
RNB 325-16 5/8 17.0
RNB 325-18 11/16 19.0 50.5 105.7 45.0
RNB 325-20 3/4 21.0
RNB 325-22 7/8 23.0
RNB 325-24 15/16 25.0
RNB 325-27 1 28.0

Dimension

RNB Circular Naked Terminal Dimension

Categories
Terminals and Connectors

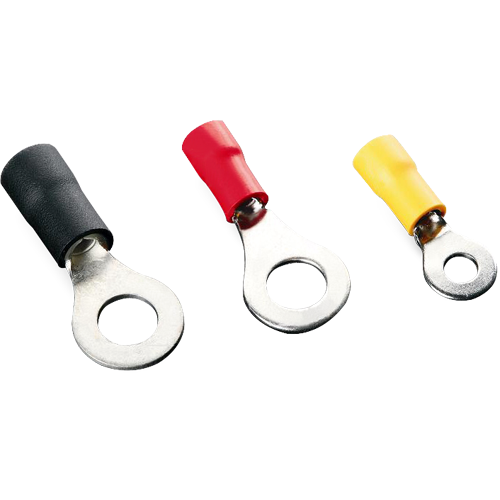

Meba Insulated Ring Terminals RV

Meba insulated ring terminals RV

Specification

 Insulated Ring Terminals

RV Series Insulated Spade Terminals Image

Cable size:0.5～1.5mm2(A.W.G.22～16)    max current:Imax=19A     material:purple copper

Item No
USA screw
Screw dia.d2(mm)
Dimension(mm)
Color
B
L
F
H
Dφ
RV 1.25-3
#4
3.2
5.7
17.8
4.95
10.0
4.3
red
RVS 1.25-3.5
#6
3.7
5.7
17.8
4.95
RVM 1.25-3.5
#6
3.7
6.6
20.1
6.3
RVL 1.25-3.5
#6
4.3
8.0
21.5
7.0
RVS 1.25-4
#8
4.3
6.6
20.1
6.3
RVL 1.25-4
#8
4.3
8.0
21.5
7.0
RV 1.25-5
#10
5.3
8.0
21.5
7.0
RVL 1.25-5
#10
5.3
9.8
23.0
8.5
RVS 1.25-6
1/4
6.4
9.8
23.0
8.5
RV 1.25-6
1/4
6.4
11.6
27.5
11.1
RV 1.25-8
5/16
8.1
11.6
27.5
11.1
RV 1.25-10
3/8
10.5
13.6
31.6
13.9
RV 1.25-12
1/2
13.0
19.2
36.0
16.5

Cable size: 1.5～2.5mm2(A.W.G.16～14)    max current:Imax=27A     material:purple copper

Item No
USA screw
Screw dia.d2(mm)
Dimension(mm)
Color
B
L
F
H
Dφ
RV 2-3
#4
3.2
6.6
17.8
4.3
10.0
4.9
blue
RVS 2-3.5
#6
3.7
6.6
17.8
4.3
RVM 2-3.5
#6
3.7
6.6
20.1
7.0
RVL 2-3.5
#6
3.7
8.5
22.5
7.75
RVS 2-4
#8
4.3
6.6
21.0
7.0
RVL 2-4
#8
4.3
8.5
22.5
7.75
RV 2-5
#10
5.3
8.5
22.5
7.75
RVL 2-5
#10
5.3
9.5
22.5
7.25
RV 2-6
1/4
6.4
12.0
27.6
11.0
RV 2-8
5/16
8.1
12.0
27.6
11.0
RV 2-10
3/8
10.5
13.6
30.2
13.9
RV 2-12
1/2
13.0
19.2
36.5
16.5

Cable size: 2.5～4mm2(A.W.G.14～12)    max current:Imax=37A     material:purple copper　

Item No
USA screw
Screw dia.d2(mm)
Dimension(mm)
Color
B
L
F
H
Dφ
RV 3.5-4
#8
4.3
8.0
24.5
7.7
13.0
6.2
black
RVS 3.5-5
#10
5.3
8.0
24.5
7.7
RVL 3.5-5
#10
5.3
12.0
27.9
7.7
RV 3.5-6
1/4
6.4
12.0
27.9
7.7

Cable size: 4～6mm2(A.W.G.12～10)   max current:Imax=18A     material:purple copper

Item No
USA screw
Screw dia.d2(mm)
Dimension(mm)
Color
B
L
F
H
Dφ
RV 5.5-3.5
#6
3.7
7.2
21.4
5.9
13.0
6.7
yellow
RVS 5.5-4
#8
4.3
7.2
21.4
5.9
RVL 5.5-4
#8
4.3
9.5
25.5
8.3
RV 5.5-5
#10
5.3
9.5
25.5
8.3
RV 5.5-6
1/4
6.4
12.0
31.5
13.0
RV 5.5-8
5/16
8.4
15.0
33.7
13.7
RV 5.5-10
3/8
10.5
15.0
33.7
13.7
RV 5.5-12
1/2
13.0
19.2
38.1
16.0

Dimension:

RV Series Insulated Spade Terminals Dimension

Categories
Front Board Mounted KWH Meters

Meba-reactive integration energy meter -MB073PH

Meba-reactive integration energy meter -MB073PH

Specification

Application

Meba reactive integration energy meter  MB073PH  is a kind of new style single phase two wire active energy meter, it is designed on the basis of original DD862 single phase electromechanical meter, and fully absorb new technologies about electromechanical meter from domestic and abroad. The meter completely accord with relevant technical requirements of class 2 single phase active energy meter stipulated in international standard IEC 62053-11. It can accurate and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net, it is use for setting indoor or out door meter box. The meter has novel design, rational structure, and it can display total energy consumption by drum wheel mechanical register. It has following features: high overload, power loss, long-life, specious appearance, etc.Technical Data

Model Accuracy Reference Voltage(V) Current specifications(A) Starting current(A) Insulation performance
MB073PH Class 2 127
230		 5(20)
10(40)
20(80)
30(100)		 0.025
0.05
0.1
0.15		 AC voltage 2kv for 1 minute,
1.2/50us waveform
pulse voltage 6kv

Installing Diagram

Dimension for MB073PH
Dimension for MB073PH



Wiring diagram for MB073PH
Wiring diagram for MB073PH

Features

1. Front board three fixed installation, the cover is made of high definition transparent glass material molded overall, the bottom of the meter and the terminal is made of quality bakelite material which is moisture-resistant, fire-retardant, high temperature molded overall. It has following features: good weatherability, high rigid, specious appearance, etc.
2. The meter frame adopt aluminum molding with excellent mechanical strength, stable structure and anti-impact.
3. Voltage components and current components is used of double insulation structure, has good electrical characteristics.
4. Standard configuration bottom bearing is used of double gem bearing, oriented bearing is made of high wear resistance copper alloy bush and stainless steel needle. It has following features: long life and minimal friction, etc. May select magnetic thrust bearing (Product Configuration code is PB) or magnetic suspension (Product Configuration code is PN).
5. All kinds of adjustment mechanism adopt no step shifting mechanism. The meter starting and creeping needn’t to be adjusted which is finished by anti-creeping hole of disc and convenient for adjusting by users.
6. Standard configuration 5 digits display by drum wheel mechanical register, may select 6 digits display by drum wheel mechanical register (Product Configuration code is PK).
7. Standard configuration without the device which can prevent retrograde, may select add the function of prevent retrograde. (Please specified when ordering).
8. Single component measure single phase two wire active energy consumption. Complying with standard IEC 62053-11.
9. Direct connect operation, there are two types wiring you may select. Standard configuration type 1A wiring, may select type 1B wiring (Product Configuration code is PG).
10. Extension terminals cover, in order to protect to use safety.

Gallery

Online Catalogue

[Download not found]
