Author: meba_admin

Meba Electrical Breaker Box MBB7-9ways

Post author By meba_admin
Post date 20/12/2013
No Comments on Meba Electrical Breaker Box MBB7-9ways

Specification

1. MBB series Modular distribution boxes/distribution boards are mainly used in the circuit of AC 50Hz, rated voltage 220V/380V, and acted to install the modular combination equipment.

2. It is widely used in the family, high building, house, station, port, airport, commercial house, hospital, cinema, enterprises and so on occassions.

3. The plastic unit of the HA Surface series Modular distribution boxes/distribution boards adopt ABS material with the characteristics of flame-proof, impulse proof, excellent insulation property and so on.

4.This distribution boxes/ boards enclosure confirm to standard IEC-493-1.

Technical Parameter

Structure:
1. This distribution boxes/distribution boards enclosure is provided with elegant appearance and reasonable structures; Installation and dismounting are easy.

2. The products are designed according to the requirement of standardization, generalization and seriation, which make the products with excellent interchangeability.

3. This distribution box has 4way, 6way, 8way, 10way, 12way, 15way, 18way, 24way upto 36way.

Features:

1. Design of super-large and clear luminous bars,soft and elegant outline.

2. Humanized circuitry symbols, printed display of control circuit breaker, clear and elegant.

3. The guide-rail shoe plate has round hole, it is able to regulate the cover of distribution box to level position.

Dimension(mm):

Concealed mounted & Open Mounted

Model	Length(mm)	Width(mm)	Height(mm)
MBB2-4ways	137	161	82
MBB4-6ways	208	208	95
MBB7-9ways	261	208	95
MBB10-13ways	334	208	95
MBB14-16ways	390	208	95
MBB20-26ways	334	416	95
MBB28-32ways	390	416	95

PDF Download

Meba Electrical Breaker Box MBB7-9ways luxury lighting box is divided into two kinds,concealed mounted type and open mounted type. It is with plastic panel and iron bottom. Two terminals (ground connection and zero connection) in the box are easy for the user wiring and routing. This product is applicable to the modular terminal circuit with AC of 50HZ, rated voltages of 220V and 380V.

Tags control board, electrical panel board

Luxury Box

Meba luxury lighting box MBB4-6ways

Post author By meba_admin
Post date 20/12/2013
No Comments on Meba luxury lighting box MBB4-6ways

Specification

1. MBB series Modular distribution boxes/distribution boards are mainly used in the circuit of AC 50Hz, rated voltage 220V/380V, and acted to install the modular combination equipment.

2. It is widely used in the family, high building, house, station, port, airport, commercial house, hospital, cinema, enterprises and so on occassions.

4.This distribution boxes/ boards enclosure confirm to standard IEC-493-1.

Technical Parameter

Structure:
1. This distribution boxes/distribution boards enclosure is provided with elegant appearance and reasonable structures; Installation and dismounting are easy.

2. The products are designed according to the requirement of standardization, generalization and seriation, which make the products with excellent interchangeability.

3. This distribution box has 4way, 6way, 8way, 10way, 12way, 15way, 18way, 24way upto 36way.

Features:

1. Design of super-large and clear luminous bars,soft and elegant outline.

2. Humanized circuitry symbols, printed display of control circuit breaker, clear and elegant.

3. The guide-rail shoe plate has round hole, it is able to regulate the cover of distribution box to level position.

Dimension(mm):

Concealed mounted & Open Mounted

Model	Length(mm)	Width(mm)	Height(mm)
MBB2-4ways	137	161	82
MBB4-6ways	208	208	95
MBB7-9ways	261	208	95
MBB10-13ways	334	208	95
MBB14-16ways	390	208	95
MBB20-26ways	334	416	95
MBB28-32ways	390	416	95

PDF Download

Meba luxury lighting box MBB4-6ways is divided into two kinds,concealed mounted type and open mounted type. It is with plastic panel and iron bottom. Two terminals (ground connection
and zero connection) in the box are easy for the user wiring and routing. This product is applicable to the modular terminal circuit with AC of 50HZ, rated voltages of 220V and 380V.

Tags circuit board panel, circuit box

Magnetic AC Contactor

Meba contactor telemecanique type CLC1-D150

Post author By meba_admin
Post date 20/12/2013
No Comments on Meba contactor telemecanique type CLC1-D150

Specification

Meba contactor telemecanique type CLC1-D150

Meba contactor telemecanique type CLC1-D150 is suitable for using in the circuits the rated voltage up to 660V AC 50Hz or 60Hz, rated current up to 620A, for making & breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, time delay & machine-interlocking contactor, star-delta starter. with the thermal relay, it is combined into the electromagnetic starter. The Contactor is produced according to IEC 60947-4.

Parameter

Meba contactor telemecanique type CLC1-D150

Technical Data

Specification
Model	Rated current AC3 Ue ≤ 440V	Rated heating current AC10 ≤ 40°	Rated power AC3 Three-phase motor 0≤ 40°						Rated power AC4 Three-phase motor 0≤ 40
Model	Rated current AC3 Ue ≤ 440V	Rated heating current AC10 ≤ 40°	220/440V	380/400V	400V	500V	600/690V	1000V	200/230V	380/400V	440V	500V
	A	A	KW	KW	KW	KW	KW	KW	KW	KW	KW	KW
CLC1-D115	115	200	30	55	59	75	80	75	9	18.5	18.5	30
CLC1-D150	150	250	40	75	80	90	100	90	11	22	22	37
CLC1-D170	170	250	55	90	100	110	110	100	22	40	45	51
CLC1-D205	205	275	63	110	110	120	129	100	25	45	51	59
CLC1-D245	245	315	75	132	132	160	160	147	30	55	63	75
CLC1-D300	300	400	100	160	200	200	220	160	37	63	75	80
CLC1-D410	410	500	110	220	250	250	280	185	40	75	80	90
CLC1-D475	475	700	147	265	280	335	335	335	45	80	100	110
CLC1-D620	620	1000	200	335	400	450	450	450	55	100	110	132
External dimensions & Installation dimensions
Type		Amax	Bmax	Cmax	a			b			φ
CLC1-D115/150/170		120	158	132	100± 0.70			130± 0.80			6.5
CLC1-D205		170	175	182	80± 0.60			106± 0.70/120± 0.70			6.5
CLC1-D245		170	198	182	80± 0.60			106± 0.70/120± 0.70			6.5
CLC1-D300		215	208	220	96± 0.70			106± 0.70/120± 0.70			6.5
CLC1-D410		215	216	220	170± 0.90			180± 0.80			8.5
CLC1-D475		235	240	235	170± 0.90			180± 0.80			8.5
CLC1-D620		320	310	260	180± 0.80			180± 0.80			10.5

Gallery

PDF Download

Tags ac contactor, contactor telemecanique type

Magnetic AC Contactor

Meba magnetic contactors CLC1-D95

Post author By meba_admin
Post date 20/12/2013
No Comments on Meba magnetic contactors CLC1-D95

Specification

Meba magnetic contactors CLC1-D95 is suitable for using in the circuits up to the rated voltage 660V AC 50Hz or 60Hz, rated current up to 620A, for making, breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The products comply with IEC60947-4.

Parameter

Meba magnetic contactors CLC1-D95

Technical Data

Type		LC1-D09	LC1-D12	LC1-D18	LC1-D25	LC1-D32	LC1-D40	LC1-D50	LC1-D65	LC1-D80	LC1-D95
Rated working current (A)	AC3	9	12	18	25	32	40	50	65	80	95
Rated working current (A)	AC4	3.5	5	7.7	8.5	12	18.5	24	28	37	44
Standard power ratingsof 3-phase motors 50/60Hz in category AC-3	220/230V	2.2	3	4	5.5	7.5	11	15	18.5	22	25
	380/400V	4	5.5	7.5	11	15	18.5	22	30	37	45
	415V	4	5.5	9	11	15	22	25	37	45	45
	500V	5.5	7.5	10	15	18.5	22	30	37	55	55
	660/690V	5.5	7.5	10	15	18.5	30	33	37	45	55
Rated heat current (A)		20	20	32	40	50	60	80	80	125	125
Electrical life	AC3 (x10 4 )	100	100	100	100	80	80	60	60	60	60
Electrical life	AC4 (x10 4 )	20	20	20	20	20	15	15	15	10	10
Mechanical life (x10 4 )		1000	1000	1000	1000	800	800	800	800	600	600
Number of the contacts	3P+NO					3P+NC+NO

Gallery

PDF Download

Tags contactors, magnetic contactor

Luxury Box

Meba Electrical Box MBB2-4ways

Post author By meba_admin
Post date 20/12/2013
No Comments on Meba Electrical Box MBB2-4ways

Specification

1. MBB series Modular distribution boxes/distribution boards are mainly used in the circuit of AC 50Hz, rated voltage 220V/380V, and acted to install the modular combination equipment.

2. It is widely used in the family, high building, house, station, port, airport, commercial house, hospital, cinema, enterprises and so on occassions.

4.This distribution boxes/ boards enclosure confirm to standard IEC-493-1.

Technical Parameter

Structure:
1. This distribution boxes/distribution boards enclosure is provided with elegant appearance and reasonable structures; Installation and dismounting are easy.

2. The products are designed according to the requirement of standardization, generalization and seriation, which make the products with excellent interchangeability.

3. This distribution box has 4way, 6way, 8way, 10way, 12way, 15way, 18way, 24way upto 36way.

Features:

1. Design of super-large and clear luminous bars,soft and elegant outline.

2. Humanized circuitry symbols, printed display of control circuit breaker, clear and elegant.

3. The guide-rail shoe plate has round hole, it is able to regulate the cover of distribution box to level position.

Dimension(mm):

Concealed mounted & Open Mounted

Model	Length(mm)	Width(mm)	Height(mm)
MBB2-4ways	137	161	82
MBB4-6ways	208	208	95
MBB7-9ways	261	208	95
MBB10-13ways	334	208	95
MBB14-16ways	390	208	95
MBB20-26ways	334	416	95
MBB28-32ways	390	416	95

PDF Download

Meba Electrical Box MBB2-4ways series luxury lighting box is divided into two kinds,concealed mounted type and open mounted type. It is with plastic panel and iron bottom. Two terminals (ground connection
and zero connection) in the box are easy for the user wiring and routing. This product is applicable to the modular terminal circuit with AC of 50HZ, rated voltages of 220V and 380V.

Tags Electrical Enclosure Box, Electrical Power Distribution Box

Magnetic AC Contactor

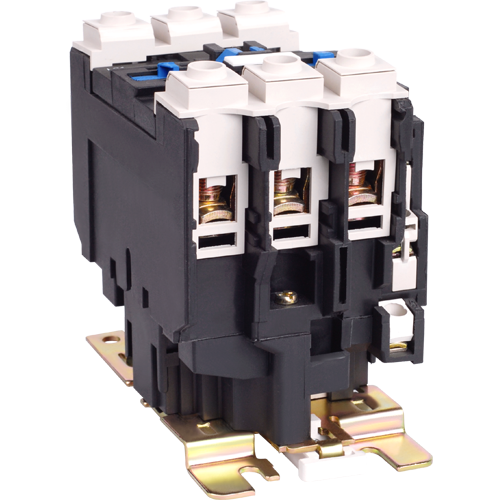

Meba magnetic contactors CLC1-D40

Post author By meba_admin
Post date 20/12/2013
No Comments on Meba magnetic contactors CLC1-D40

Specification

Meba magnetic contactors CLC1-D40 is suitable for using in the circuits up to the rated voltage 660V AC 50Hz or 60Hz, rated current up to 620A, for making, breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The products comply with IEC60947-4.

Parameter

Meba magnetic contactors CLC1-D40

Technical Data

Model		D09	D12	D18	D25	D32	D40	D50	D65
Rated working ccurrent(A)	AC3	9	12	18	25	32	40	50	65
Rated working ccurrent(A)	AC4	3.5	5	7.7	8.5	12	18.5	24	28
AC3 capacity of 3 squirrel-cage motor AC3(KW)	220/230V	2.2	3	4	8.5	7.5	11	15	18.5
	380/400V	4	5.5	7.5	11	15	18.5	22	30
	415V	4	5.5	9	11	15	22	25	37
	500V	5.5	7.5	10	15	18.5	22	30	37
	660/900V	5.5	7.5	10	15	18.5	30	33	37
Rated heat current(A)		20	20	32	40	50	60	80	80
Electrical life	AC3×10 4	100	100	100	100	80	80	60	60
Electrical life	AC4×10 4	20	20	20	20	20	15	15	15
Mechanical life×10 4		1000	1000	1000	1000	800	800	800	800
Number of the contacts		3P+NO					3P+NC+NO
Number of the contacts							3P+NC+NO

Gallery

PDF Download

Magnetic AC Contactor

Meba ac magnetic contactor CLC1-D32

Post author By meba_admin
Post date 20/12/2013
No Comments on Meba ac magnetic contactor CLC1-D32

Specification

Meba ac magnetic contactor CLC1-D32 is suitable for using in the circuits up to the rated voltage 660V AC 50Hz or 60Hz, rated current up to 620A, for making, breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The products comply with IEC60947-4.

Parameter

Meba ac magnetic contactor CLC1-D32

Technical Data

Model		D09	D12	D18	D25	D32	D40	D50	D65
Rated working ccurrent(A)	AC3	9	12	18	25	32	40	50	65
Rated working ccurrent(A)	AC4	3.5	5	7.7	8.5	12	18.5	24	28
AC3 capacity of 3 squirrel-cage motor AC3(KW)	220/230V	2.2	3	4	8.5	7.5	11	15	18.5
	380/400V	4	5.5	7.5	11	15	18.5	22	30
	415V	4	5.5	9	11	15	22	25	37
	500V	5.5	7.5	10	15	18.5	22	30	37
	660/900V	5.5	7.5	10	15	18.5	30	33	37
Rated heat current(A)		20	20	32	40	50	60	80	80
Electrical life	AC3×10 4	100	100	100	100	80	80	60	60
Electrical life	AC4×10 4	20	20	20	20	20	15	15	15
Mechanical life×10 4		1000	1000	1000	1000	800	800	800	800
Number of the contacts		3P+NO					3P+NC+NO
Number of the contacts							3P+NC+NO

Gallery

PDF Download

Europe Type Box

Meba Europe type Lighting Box HK-8ways

Post author By meba_admin
Post date 20/12/2013
No Comments on Meba Europe type Lighting Box HK-8ways

Specification

1. HK series Modular distribution boxes/distribution boards are mainly used in the circuit of AC 50Hz, rated voltage 220V/380V, and acted to install the modular combination equipment.

2. It is widely used in the family, high building, house, station, port, airport, commercial house, hospital, cinema, enterprises and so on occassions.

4.This distribution boxes/ boards enclosure confirm to standard IEC-493-1.

Technical Parameter

Structure:
1. This distribution boxes/distribution boards enclosure is provided with elegant appearance and reasonable structures; Installation and dismounting are easy.

2. The products are designed according to the requirement of standardization, generalization and seriation, which make the products with excellent interchangeability.

3. This distribution box has 4way, 6way, 8way, 10way, 12way, 15way, 18way, 24way upto 36way.

Features:

1. Panel is the ABS material for the engineering, high strength,never change color, the transparent material is PC.

2. Cover push-type opening and closing
Face covering of the distribution box adopts the push-type opening and closing mode, the face mask can be opened by pressing lightly, the self-locking positioning hinge structure is
provided when opening.

3. Wiring design of the power distribution box
The guide rail support plate can be lifted to the highest movable point, it is no longer limited by the narrow space when installing the wire. To install easily, the switch of the distribution box is set up with the wire groove and wire pipe exit-holes, which are easy to use for a variety of wire grooves and wire pipes.

Dimension(mm):

Type	Lenght(mm)	Width(mm)	Height(mm)
HK 2-5ways(IP65)	140	140	105
HK 8ways(IP65)	185	185	105
HK 12ways(IP65)	270	195	105
HK 18ways(IP65)	370	195	105

PDF Download

[Download not found]

Meba Europe type Lighting Box HK-8ways is in line with IEC-493-1 standard,attractive and durable, safe and reliable, which is widely used in various places such as factory, mansion, residence, shopping center and so on.

Tags Lighting Box, Waterproof outdoor use box

Magnetic AC Contactor

Meba magnetic switch CLC1-D12

Post author By meba_admin
Post date 20/12/2013
No Comments on Meba magnetic switch CLC1-D12

Specification

Meba magnetic switch CLC1-D12 is suitable for using in the circuits up to the rated voltage 660V AC 50Hz or 60Hz, rated current up to 620A, for making, breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The products comply with IEC60947-4.

Parameter

Meba magnetic switch CLC1-D12

Technical Data

Model		D09	D12	D18	D25	D32	D40	D50	D65
Rated working ccurrent(A)	AC3	9	12	18	25	32	40	50	65
Rated working ccurrent(A)	AC4	3.5	5	7.7	8.5	12	18.5	24	28
AC3 capacity of 3 squirrel-cage motor AC3(KW)	220/230V	2.2	3	4	8.5	7.5	11	15	18.5
	380/400V	4	5.5	7.5	11	15	18.5	22	30
	415V	4	5.5	9	11	15	22	25	37
	500V	5.5	7.5	10	15	18.5	22	30	37
	660/900V	5.5	7.5	10	15	18.5	30	33	37
Rated heat current(A)		20	20	32	40	50	60	80	80
Electrical life	AC3×10 4	100	100	100	100	80	80	60	60
Electrical life	AC4×10 4	20	20	20	20	20	15	15	15
Mechanical life×10 4		1000	1000	1000	1000	800	800	800	800
Number of the contacts		3P+NO					3P+NC+NO
Number of the contacts							3P+NC+NO

Gallery

PDF Download

Tags ac contactor, magnetic switch

Residual Current Circuit Breaker With Over Current Protection

Meba residual current circuit breaker with overload protection rcd MCH132X

Post author By meba_admin
Post date 20/12/2013
No Comments on Meba residual current circuit breaker with overload protection rcd MCH132X

Specification

Meba residual current circuit breaker with overload protection rcd MCH132X is suitable for the leakage protection of the line of AC 50/60Hz, rated voltage single phase 240V, rated current up to 63A. When there is human electricity shock or if the leakage current of the line exceeds the prescribed value, it will utomatically cut off the power within 0.1s to protect human safety and prevent the accident due to the current leakage.
MCH132X RCBO can protect against overload and shortcircuit. It can be used to protect the line from being overloaded and short circuited as well as unfrequent changeover of the line in normal situation. It complies with standard of IEC/EN61009-1 and GB16917.1.

Parameter

Meba residual current circuit breaker with overload protection rcd MCH132X

Technical Data

1. Residual current device with overcurrent protection
2. Combine in residual current device function and MCB over-current protection function
3. Short circuit capacity: 10KA
4. Rated current(A): 6, 16, 20, 25, 32, 40, 50, 63A
5. Rated voltage: 230V AC
6. Rated frequency: 50HZ, 60HZ
7. Rated leakage operating current(mA): 30, 100, 300mA
8. AC and A types, B-C characteristic
9. Modular Din Rail products 35mm
10. Tripping duration: instantaneous≤0.1s
11. Electro-mechanical endurance: 4000 cycles
12. Connection terminal: pillar terminal with clamp
13. Flexible conductor 10mm²
14. Rigid conductor 16mm²
15. Type: electronic type
16. Pole No.: 1P+N

Gallery

PDF Download

Tags rcd, residual current circuit breaker with overload protection

Residual Current Circuit Breaker With Over Current Protection

Meba residual current circuit breaker with overload protection rccb rcbo MB941

Post author By meba_admin
Post date 20/12/2013
No Comments on Meba residual current circuit breaker with overload protection rccb rcbo MB941

Specification

Meba residual current circuit breaker with overload protection rccb rcbo MB941 is the latest developed RCBO(residual current circuit breaker with overload protection), the function include leakage, overload and short circuit current. additional protection against direct contact(thanks to In=30A)

Parameter

Meba residual current circuit breaker with overload protection rccb rcbo MB941

Technical Data

No. of Poles	Type/Class	Nominal Fault Current In mA	Nominal Current In A	Order Details Type Code
Icn=4.5kA,B characterisics
1P+N	AC	30	10	MB941 B10-30MA AC
			16	MB941 B16-30MA AC
			20	MB941 B20-30MA AC
			25	MB941 B25-30MA AC
Icn=4.5kA,C characterisics
1P+N	AC	30	10	MB941 C10-30MA AC
			16	MB941 C16-30MA AC
			20	MB941 C20-30MA AC
			25	MB941 C25-30MA AC
Icn=6kA,B characterisics
1P+N	AC	30	10	MB951 B10-30MA AC
			16	MB951 B16-30MA AC
			20	MB951 B20-30MA AC
			25	MB951 B25-30MA AC
Icn=6kA,C characteristics
1P+N	AC	30	10	MB951 C10-30MA AC
			16	MB951 C16-30MA AC
			20	MB951 C20-30MA AC
			25	MB951 C25-30MA AC

Gallery

PDF Download

Tags rcbo, rccb, residual current circuit breaker with overload protection

Residual Current Circuit Breaker With Over Current Protection

Meba residual current circuit breakers with overcurrent protection RCBOs MB161

Post author By meba_admin
Post date 19/12/2013
No Comments on Meba residual current circuit breakers with overcurrent protection RCBOs MB161

Specification

Meba residual current circuit breakers with overcurrent protection RCBOs MB161

Construction and Feature
– Provides protection against earth fault/leakage current, short-circuit and overload
– High short-circuit capacity
– Provides complementary protection against direct contact by human body
– Effectively protects electric equipmet against insulating failure
– Contact position indication
– Provides protection against over-voltage
– Provides comprehensive protection to household and commercial distribution systems

Parameter

Meba residual current circuit breakers with overcurrent protection RCBOs MB161

Technical Data
– Type: Electro-magnetic type
– Residual current characteristics: AC
– Pole NO.: 1P+N
– Tripping curve: B, C
– Rated short-circuit capacity: 10kA
– Rated current(A): 6, 10, 16, 20, 25, 32
– Rated voltage: 230/240V AC
– Rated frequency: 50/60Hz
– Rated residual operating current(mA): 0.03, 0.1
– Tripping duration: instantaneous ≤0.1s
– Electro-mechanical endurance: 4000 cycles
– Connection terminal: pillar terminal with clampWiring Diagram

Overall & Installation Dimensions

Gallery

PDF Download

Tags rcbo, rcbo breaker, residual current circuit breaker

Residual Current Circuit Breaker With Over Current Protection

Meba residual current breaker with overload Protection RCBO breaker MBB2

Post author By meba_admin
Post date 19/12/2013
No Comments on Meba residual current breaker with overload Protection RCBO breaker MBB2

Specification

Meba residual current breaker with overload Protection RCBO breaker MBB2

is suitable for the leakage protection in the line of AC 50/ 60Hz, rated voltage single phase 240V, three phase 240/415V and below, rated current up to 63A. When there is human electric shock or if the leakage current of the line exceeds the prescribed value, it will automatically cut off the power within 0.1s to protect human safety and prevent the accident due to the current leakage. Can protect against overload and short-circuit. It can be used to protect the line from being overloaded and short-circuited, also as infrequent changeover of the line in normal situation. It complies with standard IEC/EN61009-1 and GB16917.1.

Parameter

Meba residual current breaker with overload Protection RCBO breaker MBB2

1. Rated current: 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A.
2. Rated residual operating current: 0.01A, 0.03A.
3. Tripping characteristics: C.
4. Icn: 6000A
5. Rated residual current operated making and breaking capacity Im: 500A
6. Rated residual non-operated current: Ino: 0.5InOverall and Mounting DimensionsDimensions B(mm)

1 pole	2 pole	3 pole	4 pole
54	72	117	135

Gallery

PDF Download

Tags rcbo breaker

Residual Current Circuit Breaker With Over Current Protection

Meba residual current circuit breaker with overload protection electrical rcbo MBB1

Post author By meba_admin
Post date 19/12/2013
No Comments on Meba residual current circuit breaker with overload protection electrical rcbo MBB1

Specification

Meba residual current circuit breaker with overload protection electrical rcbo MBB1

is Electronic Type, used for AC 50HZ or 60HZ, single pole and two poles 230V; three poles and four poles 400V, rated current is up to 40A. It can automatically and immediately cut off power supply once someone suffers from electric shock or leakage current above specified value. It can effectively protect personal security and avoid the damage to equipments. This RCBO can also function as overload and short-circuit protection and un-frequent changeover of line under normal condition.
It is suitable for industry, business, building and residence, etc.
The product is conformity with GB16917.1, IEC61009-1 standards.

Parameter

Meba residual current circuit breaker with overload protection electrical rcbo MBB1

Techincal Data
1. Rated current: 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A.
2. Rated residual operating current: 0.01A, 0.03A.
3. Tripping characteristics: C.
4. Icn: 6000A
5. Rated residual current operated making and breaking capacity Im: 500A
6. Rated residual non-operated current: Ino: 0.5InOverall and Mounting DimensionsDimensions B(mm)

1 pole	2 pole	3 pole	4 pole
54	72	117	135

Gallery

Meba residual current circuit breaker with overload protection electrical rcbo MBB1

1 pole	2 pole	3 pole	4 pole
54	72	117	135

PDF Download

Tags consumer unit, electrical rcbo, rcbo, residual current circuit breaker

Residual Current Circuit Breaker With Over Current Protection

Meba residual current breaker rcbo consumer unit MBB3

Post author By meba_admin
Post date 19/12/2013
No Comments on Meba residual current breaker rcbo consumer unit MBB3

Specification

Meba residual current breaker rcbo consumer unit MBB3

Parameter

Meba residual current breaker rcbo consumer unit MBB3

1 pole	2 pole	3 pole	4 pole
54	72	117	135

Gallery

PDF Download

Tags Rcbo Consumer Unit, residual current breaker with overload protection

Residual Current Circuit Breaker With Over Current Protection

Meba residual current breaker with overload protection consumer unit MBB41

Post author By meba_admin
Post date 19/12/2013
No Comments on Meba residual current breaker with overload protection consumer unit MBB41

Specification

Meba residual current breaker with overload protection consumer unit MBB41

Parameter

Meba residual current breaker with overload protection consumer unit MBB41

1 pole	2 pole	3 pole	4 pole
54	72	117	135

Gallery

PDF Download

Europe Type Box

MEBA Waterproof Europe type Plastic Distribution Box IP65 HA-12ways

Post author By meba_admin
Post date 19/12/2013
No Comments on MEBA Waterproof Europe type Plastic Distribution Box IP65 HA-12ways

Specification

1. HA series Modular distribution boxes/distribution boards are mainly used in the circuit of AC 50Hz, rated voltage 220V/380V, and acted to install the modular combination equipment.

2. It is widely used in the family, high building, house, station, port, airport, commercial house, hospital, cinema, enterprises and so on occassions.

4.This distribution boxes/ boards enclosure confirm to standard IEC-493-1.

Technical Parameter

Structure:
1. This distribution boxes/distribution boards enclosure is provided with elegant appearance and reasonable structures; Installation and dismounting are easy.

2. The products are designed according to the requirement of standardization, generalization and seriation, which make the products with excellent interchangeability.

3. This distribution box has 4way, 6way, 8way, 10way, 12way, 15way, 18way, 24way upto 36way.

Features:

1. Panel is the ABS material for the engineering, high strength,never change color, the transparent material is PC.

Dimension(mm):

Type	Lenght(mm)	Width(mm)	Height(mm)
HA 2-4ways(IP65)	140	210	100
HA 8ways(IP65)	215	210	100
HA 12ways(IP65)	300	260	140
HA 18ways(IP65)	410	285	140
HA 24ways(IP65)	415	300	140

PDF Download

[Download not found]

MEBA Waterproof Europe type Plastic Distribution Box IP65 HA-12ways lighting box is in line with IEC-493-1 standard,attractive and durable, safe and reliable, which is widely used in various places such as factory, mansion, residence, shopping center and so on.

Tags Waterproof Europe type Plastic Distribution Box, Waterproof outdoor use box

TSM Flush

Meba Power Breaker Box TSM-15ways Flush

Post author By meba_admin
Post date 19/12/2013
No Comments on Meba Power Breaker Box TSM-15ways Flush

Specification

1. MB-TF Flush series Modular distribution boxes/distribution boards are mainly used in the circuit of AC 50Hz, rated voltage 220V/380V, and acted to install the modular combination equipment.

2. It is widely used in the family, high building, house, station, port, airport, commercial house, hospital, cinema, enterprises and so on occassions.

3. The plastic unit of the MB-TS Surface series Modular distribution boxes/distribution boards adopt ABS material with the characteristics of flame-proof, impulse proof, excellent insulation property and so on.

4.This distribution boxes/ boards enclosure confirm to standard BS EN60439-3, JB/T7121-93.[/tab_item]

Technical Parameter

Structure and Feature
1. This distribution boxes/distribution boards enclosure is provided with elegant appearance and reasonable structures; Installation and dismounting are easy.

2. The products are designed according to the requirement of standardization, generalization and seriation, which make the products with excellent interchangeability.

3. This distribution box has 4way, 6way, 8way, 10way, 12way, 15way, 18way, 24way upto 36way.

Dimension(mm):

Metal Base Size

Iron Base Dimension

Type	Lenght	Width	Height
TSM-2ways	99	140	60
TSM-4ways	107	190	85
TSM-6ways	143	190	85
TSM-8ways	179	190	85
TSM-10ways	222	200	85
TSM-12ways	250	190	85
TSM-15ways	306	190	85
TSM-18ways	361	217	85
TSM-24ways	252	310	85
TSM-36ways	290	475	85
TSM-45ways	473	326	76

Dark Plastic Crates Against the Wall-size

Plastics Base Dimension

Type	Lenght	Width	Height
TSM-2ways	90	140	60
TSM-4ways	112	200	66
TSM-6ways	150	200	66
TSM-8ways	184	200	66
TSM-10ways	222	200	66
TSM-12ways	256	200	66
TSM-15ways	310	200	66
TSM-18ways	365	220	76
TSM-24ways	257	310	76
TSM-36ways	293	455	76
TSM-45ways	473	326	76

Dark Plastic Cover Surface Size

Iron Base Dimension

Type	Lenght	Width	Height	B
TSM-2ways	95	150	27	75
TSM-4ways	136	222	27	86
TSM-6ways	172	222	27	122
TSM-8ways	208	222	27	158
TSM-12ways	280	222	27	230
TSM-15ways	334	222	27	283
TSM-18ways	398	252	27	338
TSM-24ways	300	345	27	232
TSM-36ways	341	505	27	265
TSM-45ways	365	505	27	285

PDF Download

Meba Power Breaker Box TSM-15ways Flush is divided into two kinds,concealed and open mounted type. It is with plastic panel and plastic/iron bottom. Two terminals (ground connection and zero connection) in the box are easy for the user wiring and routing.

Tags distribution board, Plastic Electronic Enclosures

TSM Flush

Meba Plastic Enclosures Box TSM-36ways Flush

Post author By meba_admin
Post date 19/12/2013
No Comments on Meba Plastic Enclosures Box TSM-36ways Flush

Specification

1. MB-TF Flush series Modular distribution boxes/distribution boards are mainly used in the circuit of AC 50Hz, rated voltage 220V/380V, and acted to install the modular combination equipment.

2. It is widely used in the family, high building, house, station, port, airport, commercial house, hospital, cinema, enterprises and so on occassions.

4.This distribution boxes/ boards enclosure confirm to standard BS EN60439-3, JB/T7121-93.

Technical Parameter

Structure and Feature
1. This distribution boxes/distribution boards enclosure is provided with elegant appearance and reasonable structures; Installation and dismounting are easy.

2. The products are designed according to the requirement of standardization, generalization and seriation, which make the products with excellent interchangeability.

3. This distribution box has 4way, 6way, 8way, 10way, 12way, 15way, 18way, 24way upto 36way.

Dimension(mm):

Metal Base Size
TSM Flush Series Metal Base Dimension

Iron Base Dimension

Type	Lenght	Width	Height
TSM-2ways	99	140	60
TSM-4ways	107	190	85
TSM-6ways	143	190	85
TSM-8ways	179	190	85
TSM-10ways	222	200	85
TSM-12ways	250	190	85
TSM-15ways	306	190	85
TSM-18ways	361	217	85
TSM-24ways	252	310	85
TSM-36ways	290	475	85
TSM-45ways	473	326	76

Dark Plastic Crates Against the Wall-size
TSM Flush Series Dark Plastic Crates Against the Wall-size
Plastics Base Dimension

Type	Lenght	Width	Height
TSM-2ways	90	140	60
TSM-4ways	112	200	66
TSM-6ways	150	200	66
TSM-8ways	184	200	66
TSM-10ways	222	200	66
TSM-12ways	256	200	66
TSM-15ways	310	200	66
TSM-18ways	365	220	76
TSM-24ways	257	310	76
TSM-36ways	293	455	76
TSM-45ways	473	326	76

Dark Plastic Cover Surface Size
TSM Flush Series Dark Plastic Cover Surface Size
Iron Base Dimension

Type	Lenght	Width	Height	B
TSM-2ways	95	150	27	75
TSM-4ways	136	222	27	86
TSM-6ways	172	222	27	122
TSM-8ways	208	222	27	158
TSM-12ways	280	222	27	230
TSM-15ways	334	222	27	283
TSM-18ways	398	252	27	338
TSM-24ways	300	345	27	232
TSM-36ways	341	505	27	265
TSM-45ways	365	505	27	285

PDF Download

[Download not found]

Meba Plastic Enclosures Box TSM-36ways Flush is divided into two kinds,concealed and open mounted type. It is with plastic panel and plastic/iron bottom. Two terminals (ground connection and zero connection) in the box are easy for the user wiring and routing.

Tags Enclosure Case Electronic box, Plastic Electronic Enclosures

TSM Flush

Meba Plastic Electronic Enclosures TSM-24ways Flush

Post author By meba_admin
Post date 19/12/2013
No Comments on Meba Plastic Electronic Enclosures TSM-24ways Flush

Specification

1. MB-TF Flush series Modular distribution boxes/distribution boards are mainly used in the circuit of AC 50Hz, rated voltage 220V/380V, and acted to install the modular combination equipment.

2. It is widely used in the family, high building, house, station, port, airport, commercial house, hospital, cinema, enterprises and so on occassions.

4.This distribution boxes/ boards enclosure confirm to standard BS EN60439-3, JB/T7121-93.[/tab_item]

Technical Parameter

Structure and Feature
1. This distribution boxes/distribution boards enclosure is provided with elegant appearance and reasonable structures; Installation and dismounting are easy.

2. The products are designed according to the requirement of standardization, generalization and seriation, which make the products with excellent interchangeability.

3. This distribution box has 4way, 6way, 8way, 10way, 12way, 15way, 18way, 24way upto 36way.

Dimension(mm):

Metal Base Size
TSM Flush Series Metal Base Dimension
Iron Base Dimension

Type	Lenght	Width	Height
TSM-2ways	99	140	60
TSM-4ways	107	190	85
TSM-6ways	143	190	85
TSM-8ways	179	190	85
TSM-10ways	222	200	85
TSM-12ways	250	190	85
TSM-15ways	306	190	85
TSM-18ways	361	217	85
TSM-24ways	252	310	85
TSM-36ways	290	475	85
TSM-45ways	473	326	76

Dark Plastic Crates Against the Wall-size
TSM Flush Series Dark Plastic Crates Against the Wall-size
Plastics Base Dimension

Type	Lenght	Width	Height
TSM-2ways	90	140	60
TSM-4ways	112	200	66
TSM-6ways	150	200	66
TSM-8ways	184	200	66
TSM-10ways	222	200	66
TSM-12ways	256	200	66
TSM-15ways	310	200	66
TSM-18ways	365	220	76
TSM-24ways	257	310	76
TSM-36ways	293	455	76
TSM-45ways	473	326	76

Dark Plastic Cover Surface Size
TSM Flush Series Dark Plastic Cover Surface Size
Iron Base Dimension

Type	Lenght	Width	Height	B
TSM-2ways	95	150	27	75
TSM-4ways	136	222	27	86
TSM-6ways	172	222	27	122
TSM-8ways	208	222	27	158
TSM-12ways	280	222	27	230
TSM-15ways	334	222	27	283
TSM-18ways	398	252	27	338
TSM-24ways	300	345	27	232
TSM-36ways	341	505	27	265
TSM-45ways	365	505	27	285

PDF Download

Meba Plastic Electronic Enclosures TSM-24ways Flush is divided into two kinds,concealed and open mounted type. It is with plastic panel and plastic/iron bottom. Two terminals (ground connection and zero connection) in the box are easy for the user wiring and routing.

Tags Panel board wiring, wiring electrical panel
