Meba Panel Box MB-ABC700

Specification

1. MB-ABC Flush series Modular distribution boxes/distribution boards are mainly used in the circuit of AC 50Hz, rated voltage 220V/380V, and acted to install the modular combination equipment.

2. It is widely used in the family, high building, house, station, port, airport, commercial house, hospital, cinema, enterprises and so on occassions.

3. The plastic unit of the MB-ABC Flush series Modular distribution boxes/distribution boards adopt ABS material with the characteristics of flame-proof, impulse proof, excellent insulation property and so on.

4. This distribution boxes / boards enclosure confirm to standard BS EN60439-3, JB/T7121-93.

Technical Parameter

General:

1. Overall panel design is luxury and attractive, the face covering color is blue (provided according to the color needs of the different interior residential designs except for the standard colors).

2. The design of the face covering gives a noble and elegant feeling. Pure Ivory, high strength, never change color, transparent material is PC. Fixed frame, simple structure and easy installation.

Structure and Feature:

1. This distribution boxes/Distribution board enclosure is provided with elegant appearance and reasonable structures; Installation and dismounting are easy.

2. The products is designed according to the requirement of standardization, generalization and seriation, which make the products with excellent interchangeability.

Dimension:

Type	Lenght(mm)	Width(mm)	Height(mm)
MB-ABC500	200	174	95
MB-ABC700	255	172	95
MB-ABC900	328	172	95

PDF Download

[Download not found]Meba Panel Box MB-ABC700 adopt ABS material widely used in the family, high building, enterprises and so on occassions.

Tags enclosure box, surfaced mounting distribution box

Miniature Circuit Breaker

Meba RDP50 4P 23A Miniature Circuit Breaker

Post author By meba_admin
Post date 17/12/2013
No Comments on Meba RDP50 4P 23A Miniature Circuit Breaker

Specification

Meba RDP50 4P 23A Miniature Circuit Breaker is used in lighting distribution system or motor distribution system for protection overload and short-circuit in the system. The product is neoteric in structure, light in weight, reliable and excellent in performance. It has high breaking capacity, can trip quickly, and its case and items are adopted by high fire-resistant and shockproof plastics. The product, with long life, is mainly used in AC 50Hz/60Hz single-pole 230V or two, three, four pole 400V circuit for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit in normal case. The products comply with IEC 60898.

Parameter

Meba RDP50 4P 23A Miniature Circuit Breaker

Technical parameters

Type: RDP50
Rated Voltage: 65VDC, 230/400V
Rated Current(A): 1, 2, 3, 6, 10, 15, 20, 25, 30, 40, 50
Breaking Capacity: 65VDC 2000A; 230/400VAC 1000A; O-CO-O
Life: Mechanical Life: 10000 times; Electric Life: 6000 times
Ambient Temperature: -40+85
Insulated resistance: 100M(500VDC)
Operation resistance: 2000V 1min
Overload release capacity: Follow
Auxiliary contact point: 230V(AC) 1A
Connection ways: Screw
Resist vibration: 1055Hz 1028Hz 1.5mm 2555Hz 5g
Pole: 1P,2P,3P
Weight : 1P 95g, 2P 190g, 3P 285g

Dimension

RDP50 Over-Current Protection Property

Current	Character	232 release time(s)
Model	Model	Pole	In	1.5In	2In	6In	10In
AC	62M	Single	Non-release	5-60	1.8-20	0.04-0.5	0.01-0.1
AC	62M	Two	Non-release	7-30	3.6-10	0.18-0.7
DC	52M	Single	Non-release	3-43	0.8-13	0.02-1	0.04-0.19
DC	52M	Two	Non-release	5.5-22	2.6-7.7	0.14-0.48	0.01-0.03

Gallery

PDF Download

Tags miniature circuit breaker

Miniature Circuit Breaker

Meba RDP50 5P 10A Circuit Breaker For Equipment

Post author By meba_admin
Post date 17/12/2013
No Comments on Meba RDP50 5P 10A Circuit Breaker For Equipment

Specification

Meba RDP50 5P 10A Circuit Breaker For Equipment is used in lighting distribution system or motor distribution system for protection overload and short-circuit in the system. The product is neoteric in structure, light in weight, reliable and excellent in performance. It has high breaking capacity, can trip quickly, and its case and items are adopted by high fire-resistant and shockproof plastics. The product, with long life, is mainly used in AC 50Hz/60Hz single-pole 230V or two, three, four pole 400V circuit for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit in normal case. The products comply with IEC 60898.

Parameter

Meba RDP50 5P 10A Circuit Breaker For Equipment

Technical parameters

Dimension

RDP50 Over-Current Protection Property

Current	Character	232 release time(s)
Model	Model	Pole	In	1.5In	2In	6In	10In
AC	62M	Single	Non-release	5-60	1.8-20	0.04-0.5	0.01-0.1
AC	62M	Two	Non-release	7-30	3.6-10	0.18-0.7
DC	52M	Single	Non-release	3-43	0.8-13	0.02-1	0.04-0.19
DC	52M	Two	Non-release	5.5-22	2.6-7.7	0.14-0.48	0.01-0.03

Gallery

PDF Download

Miniature Circuit Breaker

Meba RDP50 5P 23A gasolin generator protector

Post author By meba_admin
Post date 17/12/2013
No Comments on Meba RDP50 5P 23A gasolin generator protector

Specification

Meba RDP50 5P 23A gasolin generator protector is used in lighting distribution system or motor distribution system for protection overload and short-circuit in the system. The product is neoteric in structure, light in weight, reliable and excellent in performance. It has high breaking capacity, can trip quickly, and its case and items are adopted by high fire-resistant and shockproof plastics. The product, with long life, is mainly used in AC 50Hz/60Hz single-pole 230V or two, three, four pole 400V circuit for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit in normal case. The products comply with IEC 60898.

Parameter

Meba RDP50 5P 23A gasolin generator protector

Technical parameters

Dimension

RDP50 Over-Current Protection Property

Current	Character	232 release time(s)
Model	Model	Pole	In	1.5In	2In	6In	10In
AC	62M	Single	Non-release	5-60	1.8-20	0.04-0.5	0.01-0.1
AC	62M	Two	Non-release	7-30	3.6-10	0.18-0.7
DC	52M	Single	Non-release	3-43	0.8-13	0.02-1	0.04-0.19
DC	52M	Two	Non-release	5.5-22	2.6-7.7	0.14-0.48	0.01-0.03

Gallery

PDF Download

Tags gasolin generator protector

Miniature Circuit Breaker

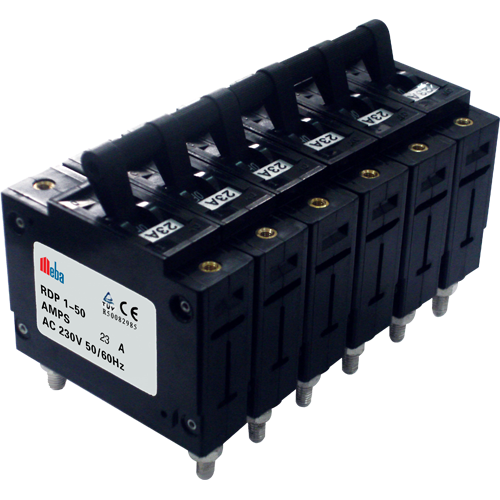

Meba RDP50 6P circuit breaker tripping

Post author By meba_admin
Post date 17/12/2013
No Comments on Meba RDP50 6P circuit breaker tripping

Specification

Meba RDP50 6P circuit breaker tripping is used in lighting distribution system or motor distribution system for protection overload and short-circuit in the system. The product is neoteric in structure, light in weight, reliable and excellent in performance. It has high breaking capacity, can trip quickly, and its case and items are adopted by high fire-resistant and shockproof plastics. The product, with long life, is mainly used in AC 50Hz/60Hz single-pole 230V or two, three, four pole 400V circuit for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit in normal case. The products comply with IEC 60898.

Parameter

Meba RDP50 6P circuit breaker tripping

Technical parameters

Dimension

RDP50 Over-Current Protection Property

Current	Character	232 release time(s)
Model	Model	Pole	In	1.5In	2In	6In	10In
AC	62M	Single	Non-release	5-60	1.8-20	0.04-0.5	0.01-0.1
AC	62M	Two	Non-release	7-30	3.6-10	0.18-0.7
DC	52M	Single	Non-release	3-43	0.8-13	0.02-1	0.04-0.19
DC	52M	Two	Non-release	5.5-22	2.6-7.7	0.14-0.48	0.01-0.03

Gallery

PDF Download

Miniature Circuit Breaker

Meba RDP30-1P Electromagnetic Hydraulic Pressure Circuit breaker

Post author By meba_admin
Post date 13/12/2013
No Comments on Meba RDP30-1P Electromagnetic Hydraulic Pressure Circuit breaker

Specification

Meba RDP30-1P Electromagnetic Hydraulic Pressure Circuit breaker is used in lighting distribution system or motor distribution system for protection overload and short-circuit in the system. The product is neoteric in structure, light in weight, reliable and excellent in performance. It has high breaking capacity, can trip quickly, and its case and items are adopted by high fire-resistant and shockproof plastics. The product, with long life, is mainly used in AC 50Hz/60Hz single-pole 230V or two, three, four pole 400V circuit for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit in normal case. The products comply with IEC 60898.

Parameter

Meba RDP30-1P Electromagnetic Hydraulic Pressure Circuit breaker

Technical parameters

Type: RDP30
Rated Voltage: 65VDC, 230/400V
Rated Current(A): 1, 2, 3, 6, 10, 15, 20, 25, 30
Breaking Capacity: 65VDC 2000A; 230/400VAC 1000A; O-CO-O
Life: Mechanical Life: 10000 times; Electric Life: 6000 times
Ambient Temperature: -40+85
Insulated resistance: 100M(500VDC)
Operation resistance: 2000V 1min
Overload release capacity: Follow
Auxiliary contact point: 230V(AC) 1A
Connection ways: Inset, Screw or Seal
Resist vibration: 1055Hz 1028Hz 1.5mm 2555Hz 5g
Pole: 1P,2P,3P
Weight : 1P 66g, 2P 132g, 3P 198g

Dimension

Gallery

PDF Download

Tags hydraulic circuit breaker, MCB, pressure circuit breaker

Miniature Circuit Breaker

Meba RDP30 2P 10A Electrical fuse

Post author By meba_admin
Post date 13/12/2013
No Comments on Meba RDP30 2P 10A Electrical fuse

Specification

Meba RDP30 2P 10A Electrical Fuse is used in lighting distribution system or motor distribution system for protection overload and short-circuit in the system. The product is neoteric in structure, light in weight, reliable and excellent in performance. It has high breaking capacity, can trip quickly, and its case and items are adopted by high fire-resistant and shockproof plastics. The product, with long life, is mainly used in AC 50Hz/60Hz single-pole 230V or two, three, four pole 400V circuit for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit in normal case. The products comply with IEC 60898.

Parameter

Meba RDP30 2P 10A Electrical Fuse

Technical parameters

Dimension

RDP30 Over-Current Protection Property

Current	Character	232 release time(s)
Model	Model	In	1.25In	1.5In	2In	6In	10In
AC	62M	Non-release	10-120	3-60	1.2-20	0.02-3	0.01-0.25
DC	52M	Non-release	2-100	1-30	0.5-10	0.02-1	0.04-0.3

Gallery

PDF Download

Miniature Circuit Breaker

Meba RDP30 2P 10A Circuit breaker for motor

Post author By meba_admin
Post date 13/12/2013
No Comments on Meba RDP30 2P 10A Circuit breaker for motor

Specification

Meba RDP30 2P 10A Circuit breaker for motor is used in lighting distribution system or motor distribution system for protection overload and short-circuit in the system. The product is neoteric in structure, light in weight, reliable and excellent in performance. It has high breaking capacity, can trip quickly, and its case and items are adopted by high fire-resistant and shockproof plastics. The product, with long life, is mainly used in AC 50Hz/60Hz single-pole 230V or two, three, four pole 400V circuit for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit in normal case. The products comply with IEC 60898.

Parameter

Meba RDP30 2P 10A Circuit breaker for motor

Technical parameters

Dimension

RDP30 Over-Current Protection Property

Current	Character	232 release time(s)
Model	Model	In	1.25In	1.5In	2In	6In	10In
AC	62M	Non-release	10-120	3-60	1.2-20	0.02-3	0.01-0.25
DC	52M	Non-release	2-100	1-30	0.5-10	0.02-1	0.04-0.3

Gallery

PDF Download

Miniature Circuit Breaker

Meba RDP30-3P-10A over current circuit breaker

Post author By meba_admin
Post date 13/12/2013
No Comments on Meba RDP30-3P-10A over current circuit breaker

Specification

Meba RDP30-3P-10A over current circuit breaker is used in lighting distribution system or motor distribution system for protection overload and short-circuit in the system. The product is neoteric in structure, light in weight, reliable and excellent in performance. It has high breaking capacity, can trip quickly, and its case and items are adopted by high fire-resistant and shockproof plastics. The product, with long life, is mainly used in AC 50Hz/60Hz single-pole 230V or two, three, four pole 400V circuit for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit in normal case. The products comply with IEC 60898.

Parameter

Meba RDP30-3P-10A over current circuit breaker

Technical parameters

Dimension

RDP30 Over-Current Protection Property

Current	Character	232 release time(s)
Model	Model	In	1.25In	1.5In	2In	6In	10In
AC	62M	Non-release	10-120	3-60	1.2-20	0.02-3	0.01-0.25
DC	52M	Non-release	2-100	1-30	0.5-10	0.02-1	0.04-0.3

Gallery

PDF Download

NF Moulded Case Circuit Breaker

Meba Electrical Circuit Breakers NF-800CP

Post author By meba_admin
Post date 16/12/2013
No Comments on Meba Electrical Circuit Breakers NF-800CP

Application

1. NF series thermal magnetic type molded case circuit breaker, developed from Mitsubishi type, included NF-CS, NF-SS, NF-CP, NF-SP, NF-HP, NF-CW series.

2. Rated working voltage 690V, 50HZ or 60HZ, and rated working current from 3A to 800A.

3. It mainly used in distributing electric energy and protect the electrical circuit and power equipment from damages caused by overload, short circuit or under-voltage in the distribution network.

4. It complies with IEC60947-2 and GB14048.2 standards.

Working Conditions and Mounting Environments
1. The altitude should be less than 2000m
2. The ambient medium temperature should within -5℃ to +40℃
3. This moulded case circuit breaker is resistant to moisture, salt fog, nuclear radiation, and mildew
4. The maximum tilt angle is 22.5°
5. MCCB can still work reliably if the product is subjected to vibration from ships or earthquakes(4g)

Specification

Parameters of NF-800 Moulded Case Circuit Breaker

Frame Current(A)		800
Model		NF-800S		NF-800H
Rated Current in(A)		500,630,700,800A
Poles		3	4	3	4
Rated Voltage Ue(V)		AC400
Rated Insulation Voltage Ui(V)		AC690
(KA)AC400 Short-Circuit Interrupting Capacity Icu/Ics		50/35		70/70
Operation Life(cycle)	Power on	1500
	Power off	4000
Dimensions(mm)	a	210	280	210	280
	b	275		275
	c	103		103
	ca	155		155
Weight(kg)		9.5	12.5	9.5	12.5
Electrical-operation Device(MD)		•		•
External Rotary Handle		•		•
Automatic Tripping Device		thermal-magnetic		thermal-magnetic

PDF Download

[Download not found] Meba Electrical Circuit Breakers NF-800CP used in distributing electric energy and protect the electrical circuit and power equipment from damages caused by overload, short circuit or under-voltage in the distribution network.

Tags MCB & MCCB, mccb in electrical terms
