Residual Current Circuit Breaker With Over Current Protection

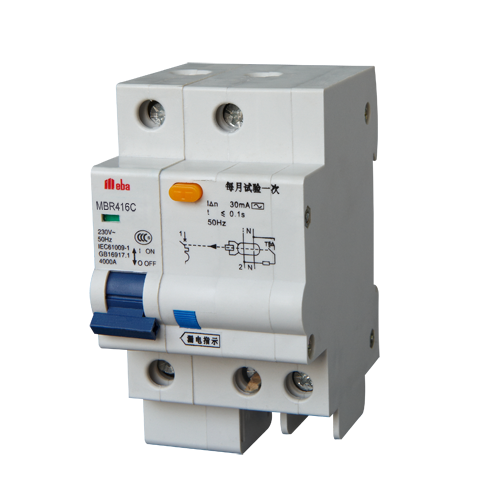

Meba Earth Leakage Circuit Breakers MBR416C

Application:

1. This is belong to DZ47L C45L RCBO is used for the protection against electrical leakage in the circuit of 50Hz or 60Hz, rated voltage 1 phase 230V and 3 phase 400V, rated current up to 63A.

2. When somebody gets an electric shock or the residual current of the circuit exceeds the fixed value, the ELCB can cut off the power within the time.

3. It is automatically to protect the personal safety and preventing the equipment from the fault resulted by the residual current.

4. With this function, the ELCB can protect the circuit against overload and short circuit or can be used for the unfrequent switchover of the circuit under normal conditions.

5. It conforms to IEC61009 standard.

Normal Operation and Mounting Requirement:

◆Circumstance temperature -5~+40, average temperature not exceeding 35.
◆Altitude above sea level less than 2000m.
◆Humidity not exceeding 50% at 40 and not exceeding 90% at 25.
◆Installation class II or III.
◆Pollution class II.
◆Installation method DIN Rail mounting type.
◆The external magnetism shall not be more than 5 times of terrestrial one.
◆Product shall be installed vertically at the place where there shall be no severe impact and vibration. The product is switched on when the handle is at upper position.

Performance & Usage

Circuit breaker is mainly suitable for overload and short protection. It is especially used for illumination and distribution. It is of pleasing out-look, light weight, reliable performance, high breaking capacity, quick trip. etc.

Standard

lEC/EN61009-1

Poles

1P+N,2P,3P,3P+N,4P

Type(wave form of the earth leakage sensed)

AC

Thermo-magnetic release characteristic

C,D

Rated sensitivity lΔn

0.03A,0.05A,0.1A,0.3A

Rated residual making and breaking capacity lΔm

500(ln<63A)630(ln=63A)

Rated short-circuit capacity lcn

3000/4500A

Break time under lΔn

≤0.1s

Rated impulse withstand voltage(1.2/50)Uimp

4000V

Dielectric test voltage at ind.Freq.for 1min

2KV

lnsulation voltage Ui

500V

Electrical life

2000t

Mechanical life

2000t

Contact position indicator

Yes

Protection degree

lP20

Ambient temperature(with daily average≤35°c)

-5~+40°c

Storage temperature

-25~+70°c

Terminal connection type

Cable/Pin-type busbar

Terminal size top/bottom for cable

25mm²

18-3AWG

Terminal size top/bottom for busbar

25mm²

18-3AWG

Tightening torque

2N*m

18ln-lbsm

Mounting

On DIN rail EN  60715(35mm)by means of fast clip device



Product Purpose:

1.Personnal and fire protection cable and line protection against overload and short-circuits

2,General rules for choosing RCBO:

A. Rated residual operating current

lΔn≤30mA:additional protection in the case of direct contact

lΔn≤300mA:preventative fire protection in the case of ground fault currents

B. Tripping class

Operation Principle:

MBR416C Operation Principle

Meba Earth Leakage Circuit Breakers MBR416C frame and parts adopt plastic of high inflammable resistance and shock resistance for long service life. It is mainly used for overload and short circuit protection.

Categories
Residual Current Circuit Breaker

Meba Rccb And Rcbo PFIM40-2P

Earth Leakage Circuit Breaker(ELCB), Residual Current Device(RCD), Residual Current Circuit Breaker(RCCB)
Brand Name: Meba
Model Number: PFIM
Type: Residual Current Circuit Breaker or Residual Current Device
Poles Number: 2P

Application:

1. PFIM 2P, Residual Current Devices for earth leakage detection.

2. It is to be used in association with miniature circuit breakers, its function is to detect earth leakage current and open the connected circuit to protect people and equipment, major used in industrial application.

3. These devices are designed to meet the Earth Leakage Protection Standards of the IEC: IEC/EN 61008.

Merits:

Good quality , high breaking capability, updated structure,quick trip and guide installation, competitive price,excellent and safe performance,beautiful and compact appearance, etc .

1. Electromagnetic and Electronic type
2. 35mm wide for 2 pole Din Rail installation.
3. Standsrd: IEC1008/EN61008
4. Rated Voltage(Un): 2pole, 230V AC
5. Rated Current(In): 25, 40, 63A
6. Rated residual operating current(I△n): 30, 100, 300, 500mA
7. Rated residual non-operating current(I△no): 0.5 I△n
8. Residual current off-time: ≤0.1s
9. Minimum value of rated breaking capacity(lm): 630A
10. Rated conditional short-circuit capacity (lnc): 6KA

Mounting Requirements:

1. Circumstance temperature -5°C ~ +40°C, average temperature not exceeding 35°C.
2. Altitude above sea level less than 2000 m.
3. Humidity not exceeding 50% at 40°C and not exceeding 90% at 25°C.
4. Installation class II or III.
5. Pollution class 2.
6. Installation method DIN Rail mounting type.
7. The external magnetism shall not be more than 5 times of terrestrial one.
8. Product shall be installed vertically at the place where there shall be no severe impact and vibration. The product is switched on when the handle is at upper position.

[Download not found]Meba Rccb And Rcbo PFIM40-2P open a circuit automatically in the event of an earth fault between phase and earth and/or netural and earth.

Categories
Residual Current Circuit Breaker

Meba Earth Leakage Circuit Breakers tripping M

Earth Leakage Circuit Breaker(ELCB), Residual Current Device(RCD), Residual Current Circuit Breaker(RCCB)
Brand Name: Meba
Model Number: M
Type: Residual Current Circuit Breaker or Residual Current Device
Poles Number: 2P

Specification:

1.  M series Residual Cur rent Devices for earth leakage detection.

2. It is to be used in association with miniature circuit breakers, its function is to detect earth leakage current and open the connected circuit to protect people and equipment, major used in industrial application.

3. These devices are designed to meet the Earth Leakage Protection Standards of the IEC: IEC/EN 61008.

Merits:

Good quality , high breaking capability, updated structure,quick trip and guide installation, competitive price,excellent and safe performance,beautiful and compact appearance, etc .

1. Electromagnetic and Electronic type
2. 35mm wide for 2 pole Din Rail installation.
3. Standsrd: IEC1008/EN61008
4. Rated Voltage(Un): 2pole, 230V AC
5. Rated Current(In): 25, 40, 63A
6. Rated residual operating current(I△n): 30, 100, 300, 500mA
7. Rated residual non-operating current(I△no): 0.5 I△n
8. Residual current off-time: ≤0.1s
9. Minimum value of rated breaking capacity(lm): 630A
10. Rated conditional short-circuit capacity (lnc): 6KA

[Download not found] Meba Earth Leakage Circuit Breakers tripping M  is precise in structure, less elements, without auxiliary power and high working reliability.
