Meba temperature controller CX-48BD

Post author By meba_admin
Post date 26/05/2014
No Comments on Meba temperature controller CX-48BD

Specification
Technical Parameter

Specification

Meba temperature controller CX-48BD

1. Our CX-48BD series meter totally adopts imported elements with small volume, light weight, beautiful outline, good reliability, strong shock resistance and anti-jamming.

2. It can be widely used for temperature measure and auto control in different industries like plastic machinery, rubber machinery, packing machinery, dress, food and printing &dyeing etc.

3. Packing way: Standard export carton box with CE.

Technical Parameter

Dimensions(mm)	72mm72mm 96H96W*110D
Tmp. Range	0-99.9℃, 0-199℃, 0-299℃, 0-399℃, 0-999℃
Input Indication	CA(K,J),PT100Ω
Setting Precision	Less than 1% full scale or range display
Indicating Precision	Less than ±2℃	Less than 0.5% full scale
Control Action	ON/OFF only,proportion type (PD)
Output Mode	Relay connection point 5A 250VAC, voltage of non ecting point 12VDC for SSR use
Rated Voltage	AC: 110V/220V/380V±10%. 50/60Hz
Proportion Cycle	Relay: 15secs, Non connection point:2secs
Power Consumption	3W
Accessory Function	sense for temperature sensing line breaking
Ambient Temperature	-10℃~+55℃

Signification of Meter Model:

1. meter soutline dimension:
96-96*96mm; 72-72*72mm;
49-48*96mm; 48-48*48mm;

2. temperature set mode:B-code dialing;
set:V-catch plate set

3. temperature indication mode:
D-diqit display;
M-warp indication;
O-full ranqe indication;
N(X)-no indication

Tags digital temperature controller, temperature controller

Meba temperature controller pid TEL-96

Post author By meba_admin
Post date 27/12/2013
No Comments on Meba temperature controller pid TEL-96

Specification

Meba temperature controller pid TEL-96

Our TEL-96 series meter totally adopts imported elements with small volume, light weight, beautiful outline, good reliability, strong shock resistance and anti-jamming. It can be widely used for temperature measure and auto control in different industries like plastic machinery, rubber machinery, packing machinery, dress, food and printing &dyeing etc.

Packing way: Standard export carton box

Certificate: CE

Parameter

Meba temperature controller pid TEL-96

Technical Parameter:

input signal	K type, J type thermocouple
precision	1.5 class
adjusting rule	two digits mode or time proportion mode
output	relay, solid state relay
power supply	AC 110V, 220V 50/60Hz
set range	0~100%
display error	≤±2.5%, ≤±1.0%
switching difference	≤±7.5%
time proportion adjusting	1.proportional band 3%~10% 2.cycle time 30±10secs
output contact capacity	AC 220v 3A or 1A(sensibility)
work environment	temperature 0~50℃ , place of relative humidity doesn’t exceed 85% without corrosive gas

Gallery

PDF Download

Tags temperature controller, temperature regulator

Temperature Controller

Meba temperature controller pid CXCD1A

Post author By meba_admin
Post date 27/12/2013
No Comments on Meba temperature controller pid CXCD1A

Specification

Meba temperature controller pid CXCD1A

Our CXCD1A series meter totally adopts imported elements with small volume, light weight, beautiful outline, good reliability, strong shock resistance and anti-jamming. It can be widely used for temperature measure and auto control in different industries like plastic machinery, rubber machinery, packing machinery, dress, food and printing &dyeing etc.

Packing way: Standard export carton box

Certificate: CE

Gallery

Meba temperature controller pid CXCD1A

Technical Parameter:

Dimensions(mm)	72mm72mm 96H96W110D
Tmp. Range	0-99.9, 0-199, 0-299, 0-399, 0-999
Input Indication	CA(K,J),PT100Ω
Setting Precision	Less than 1% full scale or range display
Indicating Precision	Less than 2	Less than 0.5% full scale
Control Action	ON/OFF only,proportion type (PD)
Output Mode	Relay connection point 5A 250VAC, voltage of non ecting point 12VDC for SSR use
Rated Voltage	AC: 110V/220V/380V10%. 50/60Hz
Proportion Cycle	Relay: 15secs, Non connection point:2secs
Power Consumption	3W
Accessory Function	sense for temperature sensing line breaking
Ambient Temperature	-10+55

Signification of Meter Model

1. meter soutline dimension:
96-9696mm; 72-7272mm;
49-4896mm; 48-4848mm;
2. temperature set mode:B-code dialing;
set:V-catch plate set
3. temperature indication mode:
D-diqit display;
M-warp indication;
O-full ranqe indication;
N(X)-no indication

Parameter

PDF Download

Tags temperature controller, temperature regulator

Temperature Controller

Meba refrigerator temperature control MB-48S

Post author By meba_admin
Post date 27/12/2013
No Comments on Meba refrigerator temperature control MB-48S

Specification

Meba refrigerator temperature control-MB-48S

Our MB-48S series meter totally adopts imported elements with small volume, light weight, beautiful outline, good reliability, strong shock resistance and anti-jamming. It can be widely used for temperature measure and autocontrol in different industries like plastic machinery, rubber machinery, packing machinery, dress, food and printing &dyeing etc.

Packing way: Standard export carton box

Certificate: CE

Parameter

Meba refrigerator temperature control-MB-48S

Technical Parameter:

input signal	K type, J type thermocouple
precision	1.5 class
adjusting rule	two digits mode or time proportion mode
output	relay, solid state relay
power supply	AC 110V, 220V 50/60Hz
set range	0100%
display error	2.5%, 1.0%
switching difference	7.5%
time proportion adjusting	1.proportional band 3%10% 2.cycle time 3010secs
output contact capacity	AC 220v 3A or 1A(sensibility)
work enviroment	temperature 050 , place of relative humidity doesnt exceed 85% without corrosive gas

Gallery

PDF Download

Tags refrigerator temperature control, temperature controller

Temperature Controller

Meba pid tuning CXTM-90002

Post author By meba_admin
Post date 27/12/2013
No Comments on Meba pid tuning CXTM-90002

Specification

Meba pid tuning CXTM-90002

1. Four different kinds input types(thermo couple dual input, hot resistance dual input, linear dual input, RTD and linear dual input )
2. Linear meter main input supports extraction and small signal excision.
3. Switching value control can distribute to main, deputy input randomly.
4. Max. with 5 switching values output, one is responsible for monitor in put section of line break, thermocouple break, resistance break, other 4 for on-off control or programmable dual timing, counting or intelligent photoelectric alarm.
5. May realize associating alarm control mode.
6. Main, deputy input supports simulation output independently.
7. Main, deputy input support calculating.
8. 8 kinds of alarm control mode for choice.
9. Use 85~VAC switching power supply.

Packing way: Standard export carton box

Certificate: CE

Parameter

Meba pid tuning CXTM-90002

Technical Parameter:

Outline Dimension	□	outline dimension is 160x80m(length*height) (holing dimension 152x76m)
	S	outline dimension is 80x160mm (holing dimension is 76x152mm)
	A	outline dimension is 96x96mm (holing dimension 92x92mm)
	D	outline dimension is 72x72mm (holing dimension 68x68mm mm)
	9	design code(intelligent series)
Control Output	0	no control output
	2	two relays alarm(randomly distributes to main, deputy input)
	3	three relays alarm(randomly distributes to main, deputy input)
	4	four relays alarm(randomly distributes to main, deputy input)
	9	user’s special requirement for control output mode(remark in ordering)
Alarm Function	0	no alarm function
	2	Special responsible for thermocouple break, resistance break, line break alarm.
	3	realize associated alarm to a relay with two specified value combination
	4	SP3 selectively monitors three switching values to realize intelligent photoelectrical alarm with silencing and time
	9	user’s special requirement for alarm function
Transmitting Output	0	no transmitting output
	1	main or deputy input independently transmitting output
	2	(main input± deputy input)x(Lup-Ldo)
	3	(main input±deputy input)x(Lup-Ldo)+shifting+PFS
	9	user’s other requirement for transmitting output(remark in ordering )
Input Mode	1	when main/deputy input are same thermocouple K,E,S,B,J etc(when same sensor is necessary, remarking in ordering )
	2	when main/deputy input are same thermal resistance pt100. Cu50 etc. (when sensor is necessary, remarking in ordering)
	3	when main/deputy input are same current or voltage (when same sensor is necessary, remarking in ordering )
	4	Main input is pt100, deputy input is linear current or voltage (remark value of current and voltage in ordering )
Feeding		no 24V feeding output
Feeding	P	24V feeding output
Power Supply		switching power supply85~264AC
Power Supply	D	24V power supply
Communication		no communication interface function
Communication	T	A RS485 communication interface function cation

Gallery

PDF Download

Tags pid tuning, temperature controller

Temperature Controller

Meba pid temperature controller CXTS-90001

Post author By meba_admin
Post date 27/12/2013
No Comments on Meba pid temperature controller CXTS-90001

Specification

Meba pid temperature controller CXTS-90001

Packing way: Standard export carton box

Certificate: CE

Parameter

Meba pid temperature controller CXTS-90001

Technical Parameter:

Outline Dimension	□	outline dimension is 160x80m(length*height) (holing dimension 152x76m)
	S	outline dimension is 80x160mm (holing dimension is 76x152mm)
	A	outline dimension is 96x96mm (holing dimension 92x92mm)
	D	outline dimension is 72x72mm (holing dimension 68x68mm mm)
	9	design code(intelligent series)
Control Output	0	no control output
	2	two relays alarm(randomly distributes to main, deputy input)
	3	three relays alarm(randomly distributes to main, deputy input)
	4	four relays alarm(randomly distributes to main, deputy input)
	9	user’s special requirement for control output mode(remark in ordering)
Alarm Function	0	no alarm function
	2	Special responsible for thermocouple break, resistance break, line break alarm.
	3	realize associated alarm to a relay with two specified value combination
	4	SP3 selectively monitors three switching values to realize intelligent photoelectrical alarm with silencing and time
	9	user’s special requirement for alarm function
Transmitting Output	0	no transmitting output
	1	main or deputy input independently transmitting output
	2	(main input± deputy input)x(Lup-Ldo)
	3	(main input±deputy input)x(Lup-Ldo)+shifting+PFS
	9	user’s other requirement for transmitting output(remark in ordering )
Input Mode	1	when main/deputy input are same thermocouple K,E,S,B,J etc(when same sensor is necessary, remarking in ordering )
	2	when main/deputy input are same thermal resistance pt100. Cu50 etc. (when sensor is necessary, remarking in ordering)
	3	when main/deputy input are same current or voltage (when same sensor is necessary, remarking in ordering )
	4	Main input is pt100, deputy input is linear current or voltage (remark value of current and voltage in ordering )
Feeding		no 24V feeding output
Feeding	P	24V feeding output
Power Supply		switching power supply85~264AC
Power Supply	D	24V power supply
Communication		no communication interface function
Communication	T	A RS485 communication interface function cation

Gallery

PDF Download

Tags pid temp controller, temperature controller

Temperature Controller

Meba pid temp controller CXTS-90003

Post author By meba_admin
Post date 27/12/2013
No Comments on Meba pid temp controller CXTS-90003

Specification

Meba pid temp controller CXTS-90003

Packing way: Standard export carton box

Certificate: CE

Parameter

Meba pid temp controller CXTS-90003

Technical Parameter:

Outline Dimension	□	outline dimension is 160x80m(length*height) (holing dimension 152x76m)
	S	outline dimension is 80x160mm (holing dimension is 76x152mm)
	A	outline dimension is 96x96mm (holing dimension 92x92mm)
	D	outline dimension is 72x72mm (holing dimension 68x68mm mm)
	9	design code(intelligent series)
Control Output	0	no control output
	2	two relays alarm(randomly distributes to main, deputy input)
	3	three relays alarm(randomly distributes to main, deputy input)
	4	four relays alarm(randomly distributes to main, deputy input)
	9	user’s special requirement for control output mode(remark in ordering)
Alarm Function	0	no alarm function
	2	Special responsible for thermocouple break, resistance break, line break alarm.
	3	realize associated alarm to a relay with two specified value combination
	4	SP3 selectively monitors three switching values to realize intelligent photoelectrical alarm with silencing and time
	9	user’s special requirement for alarm function
Transmitting Output	0	no transmitting output
	1	main or deputy input independently transmitting output
	2	(main input± deputy input)x(Lup-Ldo)
	3	(main input±deputy input)x(Lup-Ldo)+shifting+PFS
	9	user’s other requirement for transmitting output(remark in ordering )
Input Mode	1	when main/deputy input are same thermocouple K,E,S,B,J etc(when same sensor is necessary, remarking in ordering )
	2	when main/deputy input are same thermal resistance pt100. Cu50 etc. (when sensor is necessary, remarking in ordering)
	3	when main/deputy input are same current or voltage (when same sensor is necessary, remarking in ordering )
	4	Main input is pt100, deputy input is linear current or voltage (remark value of current and voltage in ordering )
Feeding		no 24V feeding output
Feeding	P	24V feeding output
Power Supply		switching power supply85~264AC
Power Supply	D	24V power supply
Communication		no communication interface function
Communication	T	A RS485 communication interface function cation

Gallery

PDF Download

Tags pid temp controller, temperature controller

Temperature Controller

Meba pid temp controller CXTS-90002

Post author By meba_admin
Post date 27/12/2013
No Comments on Meba pid temp controller CXTS-90002

Specification

Meba pid temp controller CXTS-90002

Packing way: Standard export carton box

Certificate: CE

Parameter

Meba pid temp controller CXTS-90002

Technical Parameter:

Outline Dimension	□	outline dimension is 160x80m(length*height) (holing dimension 152x76m)
	S	outline dimension is 80x160mm (holing dimension is 76x152mm)
	A	outline dimension is 96x96mm (holing dimension 92x92mm)
	D	outline dimension is 72x72mm (holing dimension 68x68mm mm)
	9	design code(intelligent series)
Control Output	0	no control output
	2	two relays alarm(randomly distributes to main, deputy input)
	3	three relays alarm(randomly distributes to main, deputy input)
	4	four relays alarm(randomly distributes to main, deputy input)
	9	user’s special requirement for control output mode(remark in ordering)
Alarm Function	0	no alarm function
	2	Special responsible for thermocouple break, resistance break, line break alarm.
	3	realize associated alarm to a relay with two specified value combination
	4	SP3 selectively monitors three switching values to realize intelligent photoelectrical alarm with silencing and time
	9	user’s special requirement for alarm function
Transmitting Output	0	no transmitting output
	1	main or deputy input independently transmitting output
	2	(main input± deputy input)x(Lup-Ldo)
	3	(main input±deputy input)x(Lup-Ldo)+shifting+PFS
	9	user’s other requirement for transmitting output(remark in ordering )
Input Mode	1	when main/deputy input are same thermocouple K,E,S,B,J etc(when same sensor is necessary, remarking in ordering )
	2	when main/deputy input are same thermal resistance pt100. Cu50 etc. (when sensor is necessary, remarking in ordering)
	3	when main/deputy input are same current or voltage (when same sensor is necessary, remarking in ordering )
	4	Main input is pt100, deputy input is linear current or voltage (remark value of current and voltage in ordering )
Feeding		no 24V feeding output
Feeding	P	24V feeding output
Power Supply		switching power supply85~264AC
Power Supply	D	24V power supply
Communication		no communication interface function
Communication	T	A RS485 communication interface function cation

Gallery

PDF Download

Tags pid temp controller, temperature controller

Temperature Controller

Meba pid controller CXTA-9000

Post author By meba_admin
Post date 27/12/2013
No Comments on Meba pid controller CXTA-9000

Specification

Meba pid controller CXTA-9000

Packing way: Standard export carton box

Certificate: CE

Parameter

Meba pid controller CXTA-9000

Technical Parameter:

Outline Dimension	□	outline dimension is 160x80m(length*height) (holing dimension 152x76m)
	S	outline dimension is 80x160mm (holing dimension is 76x152mm)
	A	outline dimension is 96x96mm (holing dimension 92x92mm)
	D	outline dimension is 72x72mm (holing dimension 68x68mm mm)
	9	design code(intelligent series)
Control Output	0	no control output
	2	two relays alarm(randomly distributes to main, deputy input)
	3	three relays alarm(randomly distributes to main, deputy input)
	4	four relays alarm(randomly distributes to main, deputy input)
	9	user’s special requirement for control output mode(remark in ordering)
Alarm Function	0	no alarm function
	2	Special responsible for thermocouple break, resistance break, line break alarm.
	3	realize associated alarm to a relay with two specified value combination
	4	SP3 selectively monitors three switching values to realize intelligent photoelectrical alarm with silencing and time
	9	user’s special requirement for alarm function
Transmitting Output	0	no transmitting output
	1	main or deputy input independently transmitting output
	2	(main input± deputy input)x(Lup-Ldo)
	3	(main input±deputy input)x(Lup-Ldo)+shifting+PFS
	9	user’s other requirement for transmitting output(remark in ordering )
Input Mode	1	when main/deputy input are same thermocouple K,E,S,B,J etc(when same sensor is necessary, remarking in ordering )
	2	when main/deputy input are same thermal resistance pt100. Cu50 etc. (when sensor is necessary, remarking in ordering)
	3	when main/deputy input are same current or voltage (when same sensor is necessary, remarking in ordering )
	4	Main input is pt100, deputy input is linear current or voltage (remark value of current and voltage in ordering )
Feeding		no 24V feeding output
Feeding	P	24V feeding output
Power Supply		switching power supply85~264AC
Power Supply	D	24V power supply
Communication		no communication interface function
Communication	T	A RS485 communication interface function cation

Gallery

PDF Download

Tags pid controller, temperature controller

Temperature Controller

Meba pid control CXTM-90001

Post author By meba_admin
Post date 27/12/2013
No Comments on Meba pid control CXTM-90001

Specification

Meba pid control CXTM-90001

Packing way: Standard export carton box

Certificate: CE

Parameter

Meba pid control CXTM-90001

Technical Parameter:

Outline Dimension		outline dimension is 160x80m(length*height) (holing dimension 152x76m)
	S	outline dimension is 80x160mm (holing dimension is 76x152mm)
	A	outline dimension is 96x96mm (holing dimension 92x92mm)
	D	outline dimension is 72x72mm (holing dimension 68x68mm mm)
	9	design code(intelligent series)
Control Output	0	no control output
	2	two relays alarm(randomly distributes to main, deputy input)
	3	three relays alarm(randomly distributes to main, deputy input)
	4	four relays alarm(randomly distributes to main, deputy input)
	9	user’s special requirement for control output mode(remark in ordering)
Alarm Function	0	no alarm function
	2	Special responsible for thermocouple break, resistance break, line break alarm.
	3	realize associated alarm to a relay with two specified value combination
	4	SP3 selectively monitors three switching values to realize intelligent photoelectrical alarm with silencing and time
	9	user’s special requirement for alarm function
Transmitting Output	0	no transmitting output
	1	main or deputy input independently transmitting output
	2	(main input± deputy input)x(Lup-Ldo)
	3	(main input±deputy input)x(Lup-Ldo)+shifting+PFS
	9	user’s other requirement for transmitting output(remark in ordering )
Input Mode	1	when main/deputy input are same thermocouple K,E,S,B,J etc(when same sensor is necessary, remarking in ordering )
	2	when main/deputy input are same thermal resistance pt100. Cu50 etc. (when sensor is necessary, remarking in ordering)
	3	when main/deputy input are same current or voltage (when same sensor is necessary, remarking in ordering )
	4	Main input is pt100, deputy input is linear current or voltage (remark value of current and voltage in ordering )
Feeding		no 24V feeding output
Feeding	P	24V feeding output
Power Supply		switching power supply85~264AC
Power Supply	D	24V power supply
Communication		no communication interface function
Communication	T	A RS485 communication interface function cation

Gallery

PDF Download

Tags Pid control, temperature controller

Temperature Controller

Meba fan temperature controller CXTD-9000

Post author By meba_admin
Post date 26/12/2013
No Comments on Meba fan temperature controller CXTD-9000

Specification

Meba fan temperature controller CXTD-9000

1. Four different kinds input types(thermocouple dual input, hot resistance dual input, linear dual input, RTD and linear dual input )
2. Linear meter main input supports extraction and small signal excision.
3. Switching value control can distribute to main, deputy input randomly.
4. Max. with 5 switching values output, one is responsible for monitor in put section of line break, thermocouple break, resistance break, other 4 for on-off control or programmable dual timing, counting or intelligent photoelectric alarm.
5. May realize associating alarm control mode.
6. Main, deputy input supports simulation output independently.
7. Main, deputy input support calculating.
8. 8 kinds of alarm control mode for choice.
9. Use 85 <VAC switching power supply.

Parameter

Meba fan temperature controller CXTD-9000

Technical Parameter:

Outline Dimension		outline dimension is 160x80m(length*height) (holing dimension 152x76m)
	S	outline dimension is 80x160mm (holing dimension is 76x152mm)
	A	outline dimension is 96x96mm (holing dimension 92x92mm)
	D	outline dimension is 72x72mm (holing dimension 68x68mm mm)
	9	design code(intelligent series)
Control Output	0	no control output
	2	two relays alarm(randomly distributes to main, deputy input)
	3	three relays alarm(randomly distributes to main, deputy input)
	4	four relays alarm(randomly distributes to main, deputy input)
	9	user’s special requirement for control output mode(remark in ordering)
Alarm Function	0	no alarm function
	2	Special responsible for thermocouple break, resistance break, line break alarm.
	3	realize associated alarm to a relay with two specified value combination
	4	SP3 selectively monitors three switching values to realize intelligent photoelectrical alarm with silencing and time
	9	user’s special requirement for alarm function
Transmitting Output	0	no transmitting output
	1	main or deputy input independently transmitting output
	2	(main input± deputy input)x(Lup-Ldo)
	3	(main input± deputy input)x(Lup-Ldo)+shifting+ PFS
	9	user’s other requirement for transmitting output(remark in ordering )
Input Mode	1	when main/deputy input are same thermocouple K,E,S,B,J etc(when same sensor is necessary, remarking in ordering )
	2	when main/deputy input are same thermal resistance pt100. Cu50 etc. (when sensor is necessary, remarking in ordering)
	3	when main/deputy input are same current or voltage (when same sensor is necessary, remarking in ordering )
	4	Main input is pt100, deputy input is linear current or voltage (remark value of current and voltage in ordering )
Feeding		no 24V feeding output
Feeding	P	24V feeding output
Power Supply		switching power supply85 ~264AC
Power Supply	D	24V power supply
Communication		no communication interface function
Communication	T	A RS458 communication interface function cation

Gallery

PDF Download

Tags fan temperature controller, temperature controller, temperature regulator

Temperature Controller

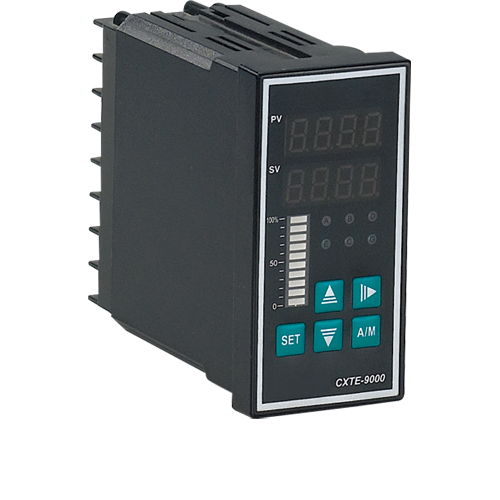

Meba fan controller CXTE-9000

Post author By meba_admin
Post date 26/12/2013
No Comments on Meba fan controller CXTE-9000

Specification

Meba fan controller CXTE-9000

1. Four different kinds input types(thermocouple dual input, hot resistance dual input, linear dual input, RTD and linear dual input )
2. Linear meter main input supports extraction and small signal excision.
3. Switching value control can distribute to main, deputy input randomly.
4. Max. with 5 switching values output, one is responsible for monitor in put section of line break, thermocouple break, resistance break, other 4 for on-off control or programmable dual timing, counting or intelligent photoelectric alarm.
5. May realize associating alarm control mode.
6. Main, deputy input supports simulation output independently.
7. Main, deputy input support calculating.
8. 8 kinds of alarm control mode for choice.
9. Use 85 <VAC switching power supply.

Parameter

Meba fan controller CXTE-9000

Technical Parameter:

Outline Dimension		outline dimension is 160x80m(length*height) (holing dimension 152x76m)
	S	outline dimension is 80x160mm (holing dimension is 76x152mm)
	A	outline dimension is 96x96mm (holing dimension 92x92mm)
	D	outline dimension is 72x72mm (holing dimension 68x68mm mm)
	9	design code(intelligent series)
Control Output	0	no control output
	2	two relays alarm(randomly distributes to main, deputy input)
	3	three relays alarm(randomly distributes to main, deputy input)
	4	four relays alarm(randomly distributes to main, deputy input)
	9	user’s special requirement for control output mode(remark in ordering)
Alarm Function	0	no alarm function
	2	Special responsible for thermocouple break, resistance break, line break alarm.
	3	realize associated alarm to a relay with two specified value combination
	4	SP3 selectively monitors three switching values to realize intelligent photoelectrical alarm with silencing and time
	9	user’s special requirement for alarm function
Transmitting Output	0	no transmitting output
	1	main or deputy input independently transmitting output
	2	(main input± deputy input)x(Lup-Ldo)
	3	(main input± deputy input)x(Lup-Ldo)+shifting+ PFS
	9	user’s other requirement for transmitting output(remark in ordering )
Input Mode	1	when main/deputy input are same thermocouple K,E,S,B,J etc(when same sensor is necessary, remarking in ordering )
	2	when main/deputy input are same thermal resistance pt100. Cu50 etc. (when sensor is necessary, remarking in ordering)
	3	when main/deputy input are same current or voltage (when same sensor is necessary, remarking in ordering )
	4	Main input is pt100, deputy input is linear current or voltage (remark value of current and voltage in ordering )
Feeding		no 24V feeding output
Feeding	P	24V feeding output
Power Supply		switching power supply85 ~264AC
Power Supply	D	24V power supply
Communication		no communication interface function
Communication	T	A RS458 communication interface function cation

Gallery

PDF Download

Tags fan controller, temperature controller

Temperature Controller

Meba digital temperature controller XMTD

Post author By meba_admin
Post date 26/12/2013
No Comments on Meba digital temperature controller XMTD

Specification

Meba digital temperature controller XMTD

The XMT series meter,compared to traditional XC series moving coil meter and TDW meter,owns merits of high precision,strong shock resistance ability,good reliability,simple installation,clear reading,no parallax and long distance observation support etc.it has two digits,three digits,time proportion type,silicon controlled concessive adjusting function,PID type etc and can be added overrun alarm function according requirement on adjusting mode and its renewed product based on XC series product,widely used for -2001800 temperature measure and auto control of different industries such as metallurgy,textile,machinery,oven,refrigeration chemical industry, medical treatment and so on, and also can be used for parameters measure,display and control when equipped to sensor.

Meba digital temperature controller XMTD

Our SG series temp controller totally adopts imported elements with small volume, light weight, beautiful outline, good reliability, strong shock resistance and anti-jamming. It is widely used and can absolutely replace imported meter of same category.

Parameter

Meba digital temperature controller XMTD

Technical Parameter:

Input Signal	Thermocouple(xx1type)RTD(xx2type)voltage(xx3type)resisance(xx4type)current(xx5type)
Adjusting Mode	Two digits adjusting(x0xtype)three digits adjusting(x2xtype)Time proportion adjusting(x6xtype)silicon controlled zero cross(x7xtype)silicon controlled three phases zero cross(x8xtype)PID adjusting(x9xtype)
Outline&installing dimension	Outline dimension 160×80mm installing dimension 152×76mm
Rated voltage of power supply	AC220V±10% 50/60Hz
Precison	Display precision 0.1 class,control precision may reach ±1
Work environment	Temperature 050,relative hunidity≤85%
Output capacity of contact	Relay connection point 5A 250VAC,voltage of no connection point DC12V for SSR use
Proportion cycle	Relay:30secs,no connection point:2 secs.
Power consumption	≤5W
Temperature range	Thermocouple 01800 RTD -200600

Gallery

XMT digital temperature controller

PDF Download

Tags digital temperature controller, temperature controller

Temperature Controller

Meba digital temperature controller SG-761

Post author By meba_admin
Post date 26/12/2013
No Comments on Meba digital temperature controller SG-761

Specification

Meba digital temperature controller SG-761

Meba digital temp controller SG-761 totally adopts imported elements with small volume, light weight, beautiful outline, good reliability, strong shock resistance and anti-jamming. It is widely used and can absolutely replace imported meter of same category. Already CE certificated.

Meba digital temperature controller SG-761

Parameter

Meba digital temp controller SG-761

Technical Parameter:

Dimensions(mm)	48mm X 48mm 48mm X 96mm 72mm X 72mm 96H X 96W X 110D
Temp.Range	DIGIT SETTING:0-99.9,0-199,0-299,0-399,0-999
Input indication	CA(K,J),PT100Ω
Setting precision	Less than ±1% full scale or range display	Less than 0.5% full scale or range display
Indicating precision	Less than ±2
Control Action	ON/OFF only,proportion type(PD)
Output Mode	Relay connection point 5A 250VAC,voltage of non ecting point 12VDC for SSR use
Rated Voltage	AC: 110V/220V/380V/±10% , 50/60Hz
Proportion Cycle	Relay:15secs,Non connection point:2secs
Power Consumption	About:3W
Accessory Function	sense for temperature sensing line breaking
Ambient Temperature	-10°C +55

Gallery

PDF Download

Tags digital temperature controller, temperature controller, temperature regulator

Temperature Controller

Meba automatic temperature control E5C4

Post author By meba_admin
Post date 26/12/2013
No Comments on Meba automatic temperature control E5C4

Specification

Meba automatic temperature control E5C4

Meba automatic temperature control E5C4 Good reliability Strong anti-jamming and shock resistant ability

Meba automatic temperature control E5C4

Our E5 series meter totally adopts imported elements with small volume,light weight,beautiful outline ,good reliability ,strong shock resistance and anti-jamming. It can be widely used for temperature measure and auto control in different industries like plastic machinery ,rubber machinery ,packing machinery ,dress, food and printing & dyeing etc.

Parameter

Technical Parameter:

Meba automatic temperature control E5C4

Main Technical Parameter:

Temp.Range	0-99.9,0-199,0-299,0-399,0-999
Input indication	(K,J),PT100Ω
Setting precision	Less than ±1% full scale or range display	Less than 0.5% full scale or range display
Indicating precision	Less than ±2
Control Action	ON/OFF only,proportion type(PD)
Output Mode	Relay connection point 5A 250VAC,voltage of non ecting point 12VDC for SSR use
Rated Voltage	AC: 110V/220V/380V/±10% , 50/60Hz
Proportion Cycle	Relay:15secs,Non connection point:2secs
Power Consumption	3W
Ambient Temperature	-10°C~ +55°C

Signification of meter model

E5EM, E5EN, E5C2, E5C3, E5C4

EM: code dialing set, wqrp indication,outline dimension 48×96×110mm

EN: code dialing set, digit display,outline dimension 48×96×110mm

C2: knob set, no indication, outline dimension 48×48×110mm

C3: code dialing set, no indication,outline dimension 48×48×110mm

C4: code dialing set, digit display,outline dimension 48×48×110mm

Gallery

PDF Download

Tags automatic temperature control, temperature controller
