Temperature Controller

Meba temperature controller pid TEL-96

Meba temperature controller pid TEL-96

Specification

Meba temperature controller pid TEL-96

Our TEL-96 series meter totally adopts imported elements with small volume, light weight, beautiful outline, good reliability, strong shock resistance and anti-jamming. It can be widely used for temperature measure and auto control in different industries like plastic machinery, rubber machinery, packing machinery, dress, food and printing &dyeing etc.

Packing way: Standard export carton box

Certificate: CE

Parameter

Meba temperature controller pid TEL-96

Technical Parameter:

input signal K type, J type thermocouple
precision 1.5 class
adjusting rule two digits mode or time proportion mode
output relay, solid state relay
power supply AC 110V, 220V 50/60Hz
set range 0~100%
display error ≤±2.5%, ≤±1.0%
switching difference ≤±7.5%
time proportion adjusting 1.proportional band 3%~10%
2.cycle time 30±10secs
output contact capacity AC 220v 3A or 1A(sensibility)
work environment temperature 0~50℃ , place of relative humidity doesn’t exceed 85% without corrosive gas
Categories
Temperature Controller

Meba temperature controller pid CXCD1A

Meba temperature controller pid CXCD1A

Specification

Meba temperature controller pid CXCD1A

Our CXCD1A series meter totally adopts imported elements with small volume, light weight, beautiful outline, good reliability, strong shock resistance and anti-jamming. It can be widely used for temperature measure and auto control in different industries like plastic machinery, rubber machinery, packing machinery, dress, food and printing &dyeing etc.

Packing way: Standard export carton box

Certificate: CE

Gallery

Meba temperature controller pid CXCD1A

Technical Parameter:

Dimensions(mm) 72mm72mm 96H96W110D
Tmp. Range 0-99.9, 0-199, 0-299, 0-399, 0-999
Input Indication CA(K,J),PT100Ω
Setting Precision Less than 1% full scale or range display
Indicating Precision Less than 2 Less than 0.5% full scale
Control Action ON/OFF only,proportion type (PD)
Output Mode Relay connection point 5A 250VAC, voltage of non ecting point 12VDC for SSR use
Rated Voltage AC: 110V/220V/380V10%. 50/60Hz
Proportion Cycle Relay: 15secs, Non connection point:2secs
Power Consumption 3W
Accessory Function sense for temperature sensing line breaking
Ambient Temperature -10+55

Signification of Meter Model

1. meter soutline dimension:
96-9696mm; 72-7272mm;
49-4896mm; 48-4848mm;
2. temperature set mode:B-code dialing;
set:V-catch plate set
3. temperature indication mode:
D-diqit display;
M-warp indication;
O-full ranqe indication;
N(X)-no indication

Categories
Temperature Controller

Meba refrigerator temperature IL-80EN

Meba refrigerator temperature IL-80EN

Specification

Meba refrigerator temperature IL-80EN

Our IL-80EN  series meter totally adopts imported elements with small volume, light weight, beautiful outline, good reliability, strong shock resistance and anti-jamming. It can be widely used for temperature measure and auto control in different industries like plastic machinery, rubber machinery, packing machinery, dress, food and printing &dyeing etc.

Packing way: Standard export carton box

Certificate: CE



Parameter

Meba refrigerator temperature control-MB-48S

Technical Parameter:

input signal K type, J type thermocouple
precision 1.5 class
adjusting rule two digits mode or time proportion mode
output relay, solid state relay
power supply AC 110V, 220V 50/60Hz
set range 0100%
display error 2.5%, 1.0%
switching difference 7.5%
time proportion adjusting 1.proportional band 3%10%
2.cycle time 3010secs
output contact capacity AC 220v 3A or 1A(sensibility)
work enviroment temperature 050 , place of relative humidity doesnt exceed 85% without corrosive gas
Categories
Temperature Controller

Meba fan temperature controller CXTD-9000

Meba fan temperature controller CXTD-9000

Specification

Meba fan temperature controller CXTD-9000

1. Four different kinds input types(thermocouple dual input, hot resistance dual input, linear dual input, RTD and linear dual input )
2. Linear meter main input supports extraction and small signal excision.
3. Switching value control can distribute to main, deputy input randomly.
4. Max. with 5 switching values output, one is responsible for monitor in put section of line break, thermocouple break, resistance break, other 4 for on-off control or programmable dual timing, counting or intelligent photoelectric alarm.
5. May realize associating alarm control mode.
6. Main, deputy input supports simulation output independently.
7. Main, deputy input support calculating.
8. 8 kinds of alarm control mode for choice.
9. Use 85 <VAC switching power supply.

Parameter

Meba fan temperature controller CXTD-9000

Technical Parameter:

Outline
Dimension		 outline dimension is 160x80m(length*height) (holing dimension 152x76m)
S outline dimension is 80x160mm (holing dimension is 76x152mm)
A outline dimension is 96x96mm (holing dimension 92x92mm)
D outline dimension is 72x72mm (holing dimension 68x68mm mm)
9 design code(intelligent series)
Control
Output		 0 no control output
2 two relays alarm(randomly distributes to main, deputy input)
3 three relays alarm(randomly distributes to main, deputy input)
4 four relays alarm(randomly distributes to main, deputy input)
9 user’s special requirement for control output mode(remark in ordering)
Alarm
Function		 0 no alarm function
2 Special responsible for thermocouple break, resistance break, line break alarm.
3 realize associated alarm to a relay with two specified value combination
4 SP3 selectively monitors three switching values to realize intelligent photoelectrical alarm with silencing and time
9 user’s special requirement for alarm function
Transmitting
Output		 0 no transmitting output
1 main or deputy input independently transmitting output
2 (main input± deputy input)x(Lup-Ldo)
3 (main input± deputy input)x(Lup-Ldo)+shifting+ PFS
9 user’s other requirement for transmitting output(remark in ordering )
Input
Mode		 1 when main/deputy input are same thermocouple K,E,S,B,J etc(when same sensor is necessary, remarking in ordering )
2 when main/deputy input are same thermal resistance pt100. Cu50 etc. (when sensor is necessary, remarking in ordering)
3 when main/deputy input are same current or voltage (when same sensor is necessary, remarking in ordering )
4 Main input is pt100, deputy input is linear current or voltage (remark value of current and voltage in ordering )
Feeding no 24V feeding output
P 24V feeding output
Power
Supply		 switching power supply85 ~264AC
D 24V power supply
Communication no communication interface function
T A RS458 communication interface function cation
Categories
Temperature Controller

Meba digital temperature controller SG-761

Meba digital temperature controller SG-761

Specification

Meba digital temperature controller SG-761

Meba digital temp controller SG-761 totally adopts imported elements with small volume, light weight, beautiful outline, good reliability, strong  shock resistance and anti-jamming. It is widely used and can absolutely replace imported meter of same category. Already  CE certificated.

Meba digital temperature controller SG-761

Our SG series temp controller  totally adopts imported elements with small volume, light weight, beautiful outline, good reliability, strong shock resistance and anti-jamming. It is widely used and can absolutely replace imported meter of same category.

Parameter

Meba digital temp controller SG-761

Technical Parameter:

Dimensions(mm)

48mm X 48mm 48mm X 96mm 72mm X 72mm   96H X 96W X 110D

Temp.Range

DIGIT SETTING:0-99.9,0-199,0-299,0-399,0-999

Input indication

CA(K,J),PT100Ω

Setting precision

Less than ±1% full scale or range display

Less than 0.5% full scale or range display

Indicating precision

Less than ±2

Control Action

ON/OFF only,proportion type(PD)

Output Mode

Relay connection point 5A 250VAC,voltage of non ecting point 12VDC for SSR use

Rated Voltage

AC: 110V/220V/380V/±10% , 50/60Hz

Proportion Cycle

Relay:15secs,Non connection point:2secs

Power Consumption

About:3W

Accessory Function

sense for temperature sensing line breaking

Ambient Temperature

-10°C +55

Gallery

SG series temperature controller
SG series temperature controller
Categories
Temperature Controller

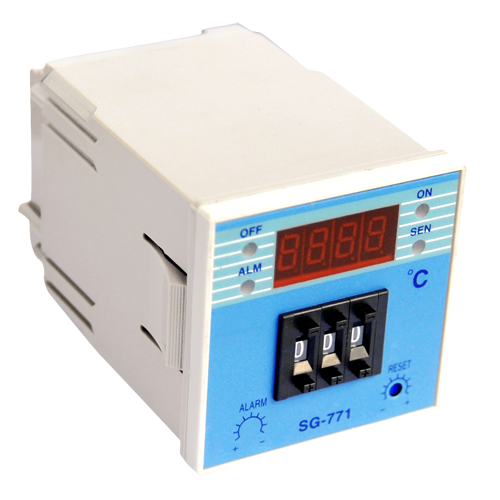

Meba digital temp controller SG-771

Meba digital temp controller SG-771

Specification

Meba digital temp controller SG-771

Meba digital temp controller SG-771 totally adopts imported elements with small volume, light weight, beautiful outline, good reliability, strong  shock resistance and anti-jamming. It is widely used and can absolutely replace imported meter of same category. Already  CE certificated.

Meba digital temp controller SG-771

Our SG series temp controller  totally adopts imported elements with small volume, light weight, beautiful outline, good reliability, strong shock resistance and anti-jamming. It is widely used and can absolutely replace imported meter of same category.

Parameter

Meba digital temp controller SG-771

Technical Parameter:

Dimensions(mm)

48mm X 48mm 48mm X 96mm 72mm X 72mm   96H X 96W X 110D

Temp.Range

DIGIT SETTING:0-99.9,0-199,0-299,0-399,0-999

Input indication

CA(K,J),PT100Ω

Setting precision

Less than ±1% full scale or range display

Less than 0.5% full scale or range display

Indicating precision

Less than ±2

Control Action

ON/OFF only,proportion type(PD)

Output Mode

Relay connection point 5A 250VAC,voltage of non ecting point 12VDC for SSR use

Rated Voltage

AC: 110V/220V/380V/±10% , 50/60Hz

Proportion Cycle

Relay:15secs,Non connection point:2secs

Power Consumption

About:3W

Accessory Function

sense for temperature sensing line breaking

Ambient Temperature

-10°C +55

Gallery

SG series temperature controller
SG series temperature controller
