MCCB with earth leakage protection NS Moulded Case Circuit Breaker

Meba Electrical Mccb Circuit Protection MBDPX-125

Meba electrical mccb MBDPX125

Application

1. MBDPX series Moulded Case Circuit Breaker is one of the most advanced type breakers in the world, which adopts international advanced design and manufacture technology.

2. They are suitable for short circuit and overload protection for circuit of AC 690V 50/60Hz, rated current from 12.5A to 630A.Its rated insulation voltage is 690V.

3. It can make and break the nonfrequently circuit in the normal conditions. It takes protect effect when mouse cage motors non-frequent start, breaking off working and protecting overload, short circuit and lacking voltage.

4. It for distribute energy of electricity & infrequent making & breaking circuit in normal conditions. It complies with IEC60947-2.

Technical Parameter

Type MBDPX-125 MBDPX-250 MBDPX-400 MBDPX-630
Poles number 3 3 3 3
Rated current In (A) 25-125 125-250 250-400 320-630
Rated operating voltage Ue(V) AC 50/60Hz 500 600 600 600
Rated working voltage Ue (V) 250 250 250 250
Rated insulation voltage Ui(V) 500 690 690 690
Rated impulse withstand voltage Uimp(KV) 6 8 8 8
Utilization category A A A A
Rated limited
short circuit
breaking capacity
Icu(KA)		 230/240V 22 60 60 60
400/415V 16 36 36 36
440V 10 30 30 30
480/500V 8 25 25 25
600V – 20 20 20
690V – 16 16 16
250V 16 36 36 36
Rated short-circuit breaking service capacity ics(%Icu) 100 100 100 100
Life(open,close for a time) mechanical 700 700 700 700
Electrical 1000 1000 1000 1000

Dimension:

MBDPX-125 Dimension

PDF Download

Meba Electrical Mccb Circuit Protection MBDPX125 is delevop moulded case circuit breaker used to distribute electric energy in distribution network, overload or short circuit protection power equipment and transformation of infrequent circuit under the normal conditions.

Categories
Air Circuit Breaker

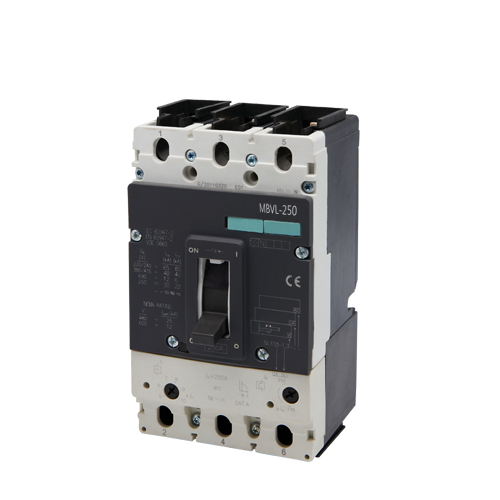

Meba Air Circuit Breakers MBVL-250

Meba air circuit breakers MBVL-250

Meba Air Circuit Breakers MBVL-250

Application

1. MBVL series MCCB is one of new products developed and manufactured by adopting international advanced technology.

2. It is supplied with rated insutaling voltage 690V and used for circuit of AC 50/60Hz, rated operating voltage AC 415V or below, rated opereating current from 16A to250A.

3. It is designed for protection of electric circuit, motors, transformers and other equipments.

4. The products conforms to IEC60947-2 standard.

Technical Parameter

Type MBVL-160X MBVL-160 MBVL-250 MBVL-400 MBVL-630
Poles number 3 3 3 3 3
Rated current In(A) 20~160A 50~160A 100~250A 200~400A 315~400A
Rated operating voltage Ue(V) AC 50/60Hz 690 690 690 690 690
Rated insulation voltage Ui(V) 800 800 800 800 800
Rated impulse withstand voltage Uimp(KV) 8 8 8 8 8
Utilisation category A A A A A
Rated ultimate short-circuit breaking capacityIcu(KA) AC 220/240V 65 65 65 65 65
AC 380/415V 40 40 40 40 40
AC 690V 8 12 12 12 12
Rated short-circuit servicebreaking capacityIcs(KA) AC 220/240V 65 65 65 65 65
AC 380/415V 40 40 40 40 40
AC 690V 4 6 6 6 6

Thermomagnetic

T(thermal)

M(maghetic)

MBVL-160X MBVL-160 MBVL-250
In T adjustable
(0.8~1.0In)		 M
fixed		 In T adjustable
(0.8~1.0In)		 M adjustable In T adjustable
(0.8~1.0In)		 M adjustable
20A 16~20A 300A 50A 40~50A 300~600A 200A 160~200A 1000~2000A
32A 25~32A 300A 63A 50~63A 300~600A 250A 200~250A 1200~2500A
40A 32~40A 600A 80A 63~80A 400~800A



MBVL-400 MBVL-630
In T adjustable(0.8~1.0In) M adjustable In T adjustable(0.8~1.0In) M adjustable
200A 160~200A 1000~2000A 315A 250~315A 1575~3150A
250A 200~250A 1200~2500A 400A 315~400A 2000~4000A
315A 250~315A 1575~3150A 500A 400~500A 2500~5000A
400A 315~400A 2000~4000A 630A 500~630A 3250~6500A



Dimension:

MBVL-250 Dimension

PDF Download

Meba Air Circuit Breakers MBVL-250 is delevop moulded case circuit breaker used to distribute electric energy in distribution network, overload or short circuit protection power equipment and transformation of infrequent circuit under the normal conditions.

Categories
NS Moulded Case Circuit Breaker

Meba Motor Protector Breaker MBVL-160

Meba motor protector MBVL-160

Meba Motor Protector Breaker MBVL-160

Application

1. MBVL series MCCB is one of new products developed and manufactured by adopting international advanced technology.

2. It is supplied with rated insutaling voltage 690V and used for circuit of AC 50/60Hz, rated operating voltage AC 415V or below, rated opereating current from 16A to250A.

3. It is designed for protection of electric circuit, motors, transformers and other equipments.

4. The products conforms to IEC60947-2 standard.

Technical Parameter

Type MBVL-160X MBVL-160 MBVL-250 MBVL-400 MBVL-630
Poles number 3 3 3 3 3
Rated current In(A) 20~160A 50~160A 100~250A 200~400A 315~400A
Rated operating voltage Ue(V) AC 50/60Hz 690 690 690 690 690
Rated insulation voltage Ui(V) 800 800 800 800 800
Rated impulse withstand voltage Uimp(KV) 8 8 8 8 8
Utilisation category A A A A A
Rated ultimate short-circuit breaking capacityIcu(KA) AC 220/240V 65 65 65 65 65
AC 380/415V 40 40 40 40 40
AC 690V 8 12 12 12 12
Rated short-circuit servicebreaking capacityIcs(KA) AC 220/240V 65 65 65 65 65
AC 380/415V 40 40 40 40 40
AC 690V 4 6 6 6 6

Thermomagnetic

T(thermal)

M(maghetic)

MBVL-160X MBVL-160 MBVL-250
In T adjustable
(0.8~1.0In)		 M
fixed		 In T adjustable
(0.8~1.0In)		 M adjustable In T adjustable
(0.8~1.0In)		 M adjustable
20A 16~20A 300A 50A 40~50A 300~600A 200A 160~200A 1000~2000A
32A 25~32A 300A 63A 50~63A 300~600A 250A 200~250A 1200~2500A
40A 32~40A 600A 80A 63~80A 400~800A



MBVL-400 MBVL-630
In T adjustable(0.8~1.0In) M adjustable In T adjustable(0.8~1.0In) M adjustable
200A 160~200A 1000~2000A 315A 250~315A 1575~3150A
250A 200~250A 1200~2500A 400A 315~400A 2000~4000A
315A 250~315A 1575~3150A 500A 400~500A 2500~5000A
400A 315~400A 2000~4000A 630A 500~630A 3250~6500A



Dimension:



meba-mbvl-160-dimension





PDF Download

Meba Motor Protector Breaker MBVL-160 is delevop moulded case circuit breaker used to distribute electric energy in distribution network, overload or short circuit protection power equipment and transformation of infrequent circuit under the normal conditions.

Categories
Residual Current Circuit Breaker

meba elcb and rccb DFS

meba elcb and rccb DFS

Meba Elcb And Rccb DFS

Specification

Application:

1. DFS residual current breaker is used in circuits up to single phase 230V three phase 400V 50/60Hz RCCB is not suitable 1or use on DC pulse system.

2.The RCCB can cut off the fault circuit immediately on the occasion of shock hazard or earth leakage of trunk Thus it is suitable to avoid the shock hazard and fire caused by earth leakage.

3. The RCCB is mainly suitable for use in variety of plants and enterprises building construction, commerce guesthouses and families It conforms with the standards of IEC61008

Produce Description & Features:

  • Provides protection against earth fault/leakage current and function of isolation.
  • High breaking current withstand capacity
  • Applicable to terminal and pin/fork type busbar connection
  • Equipped with finger protected connection terminals
  • Fire resistant plastic parts endures abnormal heating and strong impact
  • Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity
  • Independent of power supply and line voltage, and free from external interference, voltage fluctuation
Categories
Fuse Modular Devices

Meba dc circuit breakers MBPV-30

Meba dc circuit breakers MBPV-30

Meba dc circuit breakers MBPV-30

Parameter

Technical parameters:



1.for fuse 10.3×38

2.EN/IEC 60269-2 2-1

3.AC 20B

4.32a max, 690V

5. 50/60HZ

Categories
NF Moulded Case Circuit Breaker

Meba What Is Mccb CM1

meba what is mccb CM1-225A

Meba What Is Mccb CM1

Specification

1. CM1 series moulded case circuit breaker is one of our new type products developed and manufactured by adopting international advanced technology.

2.It is supplied with rated insulating voltage 800V and used for circuit of AC 50Hz, rated operating voltage AC 400V. (or below),rated operating current up to 800A for infrequent changing over and starting of the motors.

3.Equiped with the protection devices for over current, short circuit and under voltage,  the products are capable of preventing damage of circuits and supply units.

4.The product conforms to GB14048.2, IEC60947-2 standards.

5.The thermodynamic release of a circuit breaker provides the feature of inverse time delay, while the magnetic release is the instantaneous operation as show on table 2 (distribution circuit breaker) and table 3 (motor protection circuit breaker).

Technical Parameter

Products Name CM1 Moulded case circuit breaker (MCCB)
Advantages compact , small size , high short-circuit breaking capacity ,no flashover
Suitable AC 50HZ
Rated insulation Voltage up to 800V
Rated working voltage 690V or below
Rated Current 6A~800A
Breaking capacity rating L , M , H
Standard IEC60947-2,GB-14048.2,GB-14048.4
Pole No. 1P~4P
  Model Rated framecurrent         Ir  (A) Ue ( V ) Ui ( V ) Icu  kA 400V Ics kA 400v Overal Dimension
L W 3P/4P H
CM1-63L 63A (6),10,16,20,25,32,40,50,63 AC400V AC500V 25 18 135 78 73.5
CM1-63M 50 35 135 78/103 81.5
CM1-100L 100A (10),16,20,25,32,40,50,63,80 100 AC690V AC800V 35 22 150 92 68
CM1-100M 50 35 150 92/122 86
CM1-100H 85 50
CM1-160L 160A 100,125,140,160 AC690V AC800V 35 22 165 107 86
CM1-160M 50 35 165 107/142 103
CM1-160H 85 50
CM1-225L 225A 100,125,140,160,180,200,225 AC690V AC800V 35 22 165 107 86
CM1-225M 50 35 165 107/142 103
CM1-225H 85 50
CM1-400L 400A 225,250,315,350,400 AC690V AC800V 50 35 257 150/198 105
CM1-400M 65 42 257 150 106.5
CM1-400H 100 65
CM1-630L 630A 400,500,630 AC690V AC800V 50 35 270 182/240 110
CM1-630M 65 42 270 182 110
CM1-630H 100 65 275 210 115.5
CM1-800M 800A 630,700,800 AC690V AC800V 75 50 275 210 115.5
CM1-800H 100 65



Working Condition:

A , Not over altitude 2000m

B , The outside temperature from -5degree to +45degree

C , It can be adopted by humidy environment

D , It can be withstand the smoke fog , salt fog

E , it can be withstand the influence of fungur

F ,  The Max gradient is ±22.5 degree

G , Working reliably understand the condition of normal vibration on ship .

H , working reliably under  the condition of the earthquake (4g)

I , Working in the condition no any explosive , not enough to corrode the metric box & damage the insulating gas , no any connected with the electric  dust

J, working without any invaded rain and snow

PDF Download

Meba What Is Mccb CM1 series is new type develop Mitsubishi model mccb match with mini circuit breaker, ac contactor or reply compose electric power direibution equipment.

Categories
Indicator Modular Devices

Meba circuit breaker indicator MBGW

Meba circuit breaker indicator MBGW

Meba circuit breaker indicator MBGW

Specification

Meba circuit breaker indicator MBGW, available with Red, Green, Yellow color, With LED or Neon indicator inside. Rated voltage: 230V AC, 50/60Hz, Max power: 0.6W for LED, 1.2W for Neon Bulb,Service duration: 30, 000 hours.

Technical Parameter

Technical parameters:

The DIN Rail type Modular Signal Lamp is applicable to circuit with rated voltage 230V AC, 50/60Hz for visual indication and signaling.

1. Low service duration, minimum power consumption
2. Compact design in modular size, easy installation
3. Rated voltage: 230V AC, 50/60Hz
4. Colour: Red, green, yellow
5. Connection terminal: Pillar terminal with clamp
6. Connection capacity: Rigid conductor 10mm2
7. Installation:
– On symmetrical DIN rail
– Panel mounting
8. Illumination type:
A. Illumination: LED
– Max power: 0.6W
– Service duration: 30, 000 hours
B. Illumination: Neon bulb
– Max power: 1.2W
– Service duration: 15, 000 hours

Categories
Waterproof Switch

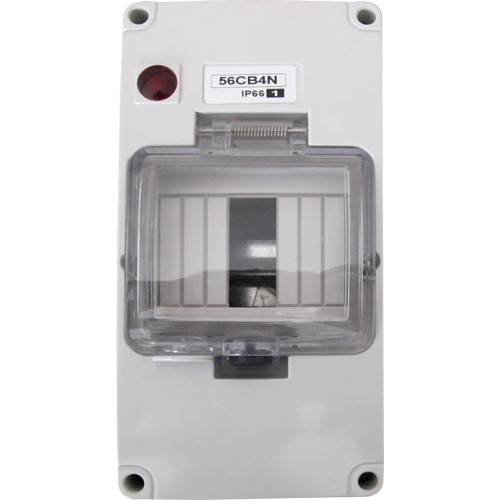

Meba Waterproof Plastic Distribution Box 56CB4N

Meba waterproof case 56CB4N

Meba Waterproof Plastic Distribution Box 56CB4N

Specification

Features:

1.it offers 4 pole, 8 pole, 12 pole, 16 pole space to accommodate MCB or RCD for solar panel

2.providing adjustable for difference type MCB and RCD

3.easy to terminations and more wiring space

4.good design for waterproof gasket, ensure the IP66 ratings.

5.8pole for 16P MCB fittings availble

6.material:UV protect frame detardant hight restant PC

7. the IP66 enclosure body has good quality and long used life

Technical Parameter

– Rated Voltage: 250/440VAC
– Rated Frequency: 50/60Hz
– IP Protection: IP66
– With Sockets: 230V 3P 10A/20A/32A/63A

Model Rated Voltage Rated Current Pole Phase & Voltage IP rating
MB1-20 250V 20A 1 surface switch terminals accommodate 16mm^2 cable, M rating 220 IP66
MB1-35 35A IP66
MB1-63 63A IP66
MB2-20 440V 20A 2 terminals accommodate 16mm^2 cable, M Rating 180 IP66
MB2-35 35A IP66
MB3-63 63A IP66
MB3-20 20A 3 IP66
MB3-35 35A IP66
MB3-55 55A IP66
MB3-55/32 55A 32mm conduit entry, terminals accommodate 25mm^2 cable, M Rating 160 IP66
MB3-63 63A IP66
MB3-80 80A IP66



Dimension:

56CB4N Dimension

Characteristic:

The MB Series of Weather Protected Isolating Switch is a robust range of switches suitable for virtually any external application.

Included in the range are single, double and triple pole switches from 20 to 80 Amps. The base mounted mechanism provides for easier termination and more wiring room. Switch dimensions are 165mm× 82mm with an overall height of 85mm.

A safety feature for mounting switches to metal structures is the insulating caps that cover base mounting screws to totally protect them from any live cables.

Each units supplied with screwed conduit plugs and screwed reducers for easy connection to 25mm or 20mm conduits and screw caps. Screw caps must be instsalled to ensure IP Rating.

PDF Download

waterproof box ,switch box ,junction box,plastic enclosure ,wall switch box ,plastic switch box ,smc box ,scart switch box ,distribution box ,socket box ,power distribution box

Categories
Explosion-proof Light

Meba-explosion proof lighting system-BW3200A-4

Meba-explosion proof lighting system-BW3200A-4

Meba-explosion proof lighting system-BW3200A-4

Specification

Meba explosion proof lighting system BW3200A-4, an explosion led light which can be instantly started as soon as  the main circuit is cut off and powered by the emergent batteries. Also, it can be controlled with external switches.  It divides into two types: one is emergent light combination, the other one is purely emergent light. For the first one, it can work normally as long as the power is on, at the same time, it owns emergent functions when it is cut off. For the latter one, it usually is on the “OFF” condition.

  • Ideal for any flammable or explosive locations like electricity power urgent repair, field maintenance, maritime operation, or emergency rescues and disaster relief work, etc.
  • The BW3200A used 35W HID as lighting source.While the light source of BW3200B is halide bulb
    • Shock absorbance and weatherproof
    • Lamp head turning angle: 360°
    • Lamp head elevation angle: 135°
    • Hinged, articulating head allows you to direct the light where needed
    • Optional accessory tripod allows you to ascend or descend the lamp within 1.2meter to 3.0meter.
    • Capable of withstanding strong collision without damage
    • Waterproof
    • Capable of high pressure water guns shooting without damage
    • Lead acid battery
    • Microprocessor controlled charger
    • Overcharge protection
    • Short current protection
    • Trickle charging designed

Technical Parameter

Description Unit BW3200A BW3200B
Rated voltage V 12 12
Power W 35 35
Rated capacity of battery Ah 30 30
High intensity light flux lm 3200 1800
High intensity lighting time h 8 6
Time of charging h 8.5~10 8.5~10
Service life of bulb (85% brightness ) h 10000 1200
Service life of battery Recycled ≈1000 ≈1000
Dimension mm 255×250×610 255×250×610
Net weight kg 16.5 15.3
Carton dimension mm 675×315×285 675×315×285
Carton No. Piece 1 1
Gross weight Kg 17.9 16.7
Categories
Explosion-proof Light

Meba-explosion proof fluorescent lamp-BC5400

Meba-explosion proof fluorescent lamp-BC5400

Meba-explosion proof fluorescent lamp-BC5400

Specification

Meba explosion proof fluorescent lamp BC5400, an explosion led light which can be instantly started as soon as  the main circuit is cut off and powered by the emergent batteries. Also, it can be controlled with external switches.  It divides into two types: one is emergent light combination, the other one is purely emergent light. For the first one, it can work normally as long as the power is on, at the same time, it owns emergent functions when it is cut off. For the latter one, it usually is on the “OFF” condition.

Wattage(w) 1×8/2×8 1×16/2×16 Ex grade
Power supply(w) 170V~250V Ex edq II C T4 DIP A20 TA,T6
Luminous flux(lm) 880/1760 1760/3520
Average Usefull Time(h) 80000
IP Grade IP65
Cable Diameter Ø10mm – Ø14mm
Net weight Single tube 5.4kgs
Double tube 6.1kgs

Features

1)High efficiency T8 LED light source ensures 50% energy saving comparing with T8 fluorescent tube.
2)Trapezium out shape combines with return air system design according to optical principles,
featuring gentle light, even lighting, glare free or overshadow. It can effectively avoid visual fatigue to operators during the operation.
3)The case use special high hardness light alloy material.The surface have been subjected to electro static spraying.
4)T5 fluorescent light source is available on request. It can provide 30% energy saving than T8 fluorescent.
5)There is connecting wire cavity in the lamp.Customers can connect the wire directly when install the lamp.
6)Only open up the cover,customers can replace the bulb.
7)We can assemble emergency device to the lamp as customers’ request.The lamp will shift to emergency illuminating automatically when power fails.

Gallery

Meba-explosion proof fluorescent lamp-BC5400

Online Catalogue

[Download not found]
Categories
Explosion-proof Light

Meba-floodlight explosion-BC9510

Meba-floodlight explosion-BC9510

Meba-floodlight explosion-BC9510

Specification

Application:

Meba floodlight explosion BC9510, an explosion led light which can be instantly started as soon as  the main circuit is cut off and powered by the emergent batteries. Also, it can be controlled with external switches.  It divides into two types: one is emergent light combination, the other one is purely emergent light. For the first one, it can work normally as long as the power is on, at the same time, it owns emergent functions when it is cut off. For the latter one, it usually is on the “OFF” condition.

Ideal for any potential inflammable and explosive places like petrification device,petroleum platform,gas station, oil pump room, transhipment station, etc as fixed lighting device.

1.Dangerous places in Zone 1, Zone 2 or Zone 21, Zone 22;

2.Grade IIA,IIBor IIC explosive gas environment or flammable dust environment;

3.Dangerous dust atmosphere in Zone 20,Zone21or Zone22.

Technical Data:

Power Supply AC 220V / 50Hz
Explosion Proof Grade Ex d IIB T4/ T3
Grade of protection IP65
Anticorrosion Grade WF2
Insulation Grade   I
Cable Diameter Ø10mm – Ø14mm
Dimension Lamp :480x373x539mm
Explosion Proof Ballast:288x203x125mm
Weight Lamp  9.1kg
Explosion Proof  Ballast : 6.8kg

Features

·It uses metal halide lamp or high pressure sodium lamp as light source.The brightness is 20% higher than similar products.

·The average service life is as long as 100,000 hours. It is also maintenance-free.

·It adopts wide voltage design, enabling convenient use.

·The shell is made of aluminium alloy with electro static spraying treatment,with strong resistant to corrosion, water and dust, applicable to various harsh environments.

·Various ways of installation.It can be mounted on roof ,wall or the ceiling. The lamp can be rotated 360°vertically and 150°horizontally.

Gallery

Meba-floodlight explosion-BC9510

  • Meba-floodlight-explosion-BC9510

Online Catalogue

[Download not found]
Categories
Explosion-proof Light

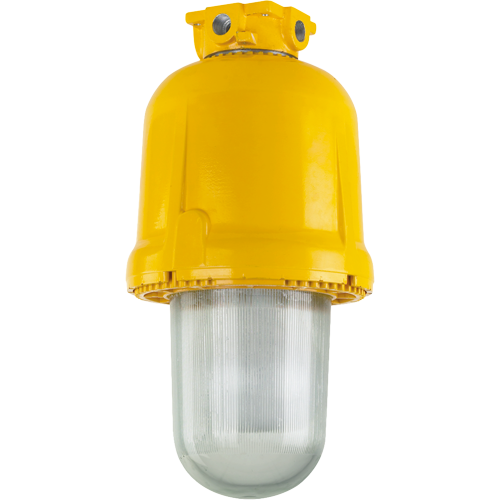

Meba-explosion proof platform light-BC9330

Meba-explosion proof platform light-BC9330

Meba-explosion proof platform light-BC9330

Specification

Application:

Meba explosion proof platform light BC9330, an explosion led light which can be instantly started as soon as  the main circuit is cut off and powered by the emergent batteries. Also, it can be controlled with external switches.  It divides into two types: one is emergent light combination, the other one is purely emergent light. For the first one, it can work normally as long as the power is on, at the same time, it owns emergent functions when it is cut off. For the latter one, it usually is on the “OFF” condition.

This product is an ideal lighting solution for the explosive and flammable places, such as the petrochemical  device, oil platform, gas station, oil pump station, oil transmission station, etc. Safe to use in Zone 1,  Zone 2 explosive gas environment.

Technical Data:

530586634_771

Features

1.World famous brand light source and electrical appliance, with stable performance. It can give more 20% light over the other manufacturers.

2.The average service life of the bulb is over 10,000 hours .Therefore it is low maintenance.

3.The housing is made of aluminium alloy and have strong resistant to corrosion, water and dust, suitable to various harsh environments.The surface is subjected to the electro static treatment ,that enhance the anti corrosion performance.

4.Easy to maintenance.

Gallery

Meba-explosion proof platform light-BC9330

  • Meba-explosion proof platform light-BC9330

Online Catalogue

[Download not found]
Categories
Explosion-proof Light

Meba-explosion proof flood lights-BC9300

Meba-explosion proof flood lights BC9300

Meba-explosion proof flood lights-BC9300

Specification

Application:

Meba explosion proof flood lights BC9300, an explosion led light which can be instantly started as soon as  the main circuit is cut off and powered by the emergent batteries. Also, it can be controlled with external switches.  It divides into two types: one is emergent light combination, the other one is purely emergent light. For the first one, it can work normally as long as the power is on, at the same time, it owns emergent functions when it is cut off. For the latter one, it usually is on the “OFF” condition.

1. Ideal to be used in the oilfield, chemical industry, steel industry, power, port, Petroleum etc.

2. Harsh environment, moist area.

3. Gas explosive environment : Group IIA, IIB, IIC.

4. Zone 1, Zone2; Zone 21, Zone 22

5. Temperature class: T1 to T5

Technical Data:

Input Voltage 220VAC 50Hz (110V 60Hz Option)
Ingress Protection IP65
Anti Corrosion Grade WF2
Insulation Grade I
Space Height Ratio 2.5
Thread G3/4”
Leading-in cable diameter Φ8mm -Φ14mm
Dimension Lamp Φ200x330mm
Ballast 340x220x88mm
Net Weight Lamp 5.2Kg
Ballast 5.3Kg

Features

1. World famous brand light source and electrical appliance, with stable performance. It can give more 20% light over the other manufacturers.

2. The average service life of the bulb is over 10,000 hours .Therefore it is low maintenance.

3. It uses dual-cavity explosion-proof design, making it safer in explosive and flammable places.

4. The housing is made of aluminium alloy and have strong resistant to corrosion, water and dust, suitable to various harsh environments. The surface is subjected to the electro static treatment ,that enhance the anti corrosion performance.

5. The protective guard is available.

6. Other options:

Model: BC9320

Light Source: Energy saving lamp (Compact Fluorescent Lamp ) which

can save almost 70% energy than the incandescent lamp.

Feature: quick start, no flicker, high efficiency and long service life.

Gallery

Meba-explosion proof flood lights-BC9300

  • Meba-explosion proof flood lights-BC9300

Online Catalogue

[Download not found]
Categories
Miniature Circuit Breaker

Meba electrical circuit breaker XYDB7

Meba electrical circuit breaker XYDB7

Meba electrical circuit breaker XYDB7

Specification

Meba electrical circuit breaker XYDB7

have protective function as shortage as overload, and used in lighting distribution system, industry, commerce, and protect fractional electric motors. And they also have many merits of high protective grade(up to IP20),high break capacity, reliable sensitive action, convenient, multi-pole assembling, long life etc. They are mainly adapted to the circuit of AC 50Hz,230V in single pole,400V in double, three, four poles for protecting overload and short circuit. Meanwhile, they are also used in turning on or off the electric apparatus and lighting circuit under the normal condition.

Technical Parameter

Meba electrical circuit breaker XYDB7

Electrical specification EN60898(IEC898 GB10963-99)
Conforms to standard of electrical 230V/400V;50/60Hz
Rated current(Ue) 10KA IEC898(0.5~63A)
15KA IEC947-2(0.5~63A)
Short circuit breaking capacity of DC Max.48V(KL7…,10KA)single pole
Max.250v(Kl7-DC,6KA)single pole
Perfermance C,D charaectisistic curve
Max.fuse that can be connected to 100AgL(>10KA)
Selective grade 3
Working ambient temperature -5 ℃ to +40 ℃
Enclosed protective class P40(Under mounting)
Life:Electrical  Mechanical No less than 8000 times
No less than20000 times
The length of exposed plane 45mm
Enclosure height 80mm
Enclosure width 17.5mm per pole(single pole)
35mm:1P+N(two pole)
Mounting manner Used for track of 35mm of IEC standard
Terminal manner Two-function terminal can connect with busbar and conducting wire
Terminal block capacity Wire 1-25mm2
Conducting wire 0.8-2mm

Gallery

Meba electrical circuit breaker XYDB7

  • Meba electrical circuit breaker XYDB7
Categories
Explosion-proof Light

Meba-remote searching lamp controlled-ZW3320C

Meba-remote searching lamp controlled-ZW3320C

Meba-remote searching lamp controlled-ZW3320C

Specification

Application:

Meba remote searching lamp controlled ZW3320C, an explosion led light which can be instantly started as soon as  the main circuit is cut off and powered by the emergent batteries. Also, it can be controlled with external switches.  It divides into two types: one is emergent light combination, the other one is purely emergent light. For the first one, it can work normally as long as the power is on, at the same time, it owns emergent functions when it is cut off. For the latter one, it usually is on the “OFF” condition.

It is applicable to all-round lighting in the places of aerial work, open fields, roads and sea. It can also satisfy the multi-angle and long-distance lighting needs for patrol, track, rescue, accident site and engineering construction.

Technical Data:

Description Unit ZW3320AValue ZW3320BValue ZW3320CValue
Rated voltage V 12V-24V 12V-24V 12V-24V
Light source W 35W HID 45W HID 100W halogen lamp
Luminous Flux Lm 3200 4100 2500
Service life of bulb(85% brightness) h 3000 3000 1000
Remote charge distance m ≤30
Horizontal turning angle degree 0-360
Vertical turning angle 0-180
Dimension mm 370×315×187
Net weight Kg 4.6 4.6 4.5
Carton dimension mm 445×380×230 445×380×230 445×380×230
Carton No. piece 1 1 1
Gross weight Kg 5.3 5.3 4.8

Features

. Protection grade: IP66.

. ZW3320A and ZW3320B use HID super-white lighting source. The color temperature includes 3000K, 4300K,and 6000K, with 4300K as standard. ZW3320C uses 100W halogen bulb.

.Imported high-purity aluminum reflector.

.Wireless remote control mode. The lamp switch can be controlled within 30m and all-round angle adjustment can be achieved.

.The lamp head can be rotated within 180°from up to down and within 360°from left to right

.A magnet and a magnetic switch are attached to the lamp base, which can meet needs of car driving speed at 80KM/h.

. 12V-24V car cigar lighter can be connected directly for lighting.

. 110V-220V power converter can be used for input power supply.

Gallery

Meba-remote searching lamp controlled-ZW3320C

  • Meba-remote searching lamp controlled-ZW3320C

Online Catalogue

[Download not found]
Categories
Explosion-proof Light

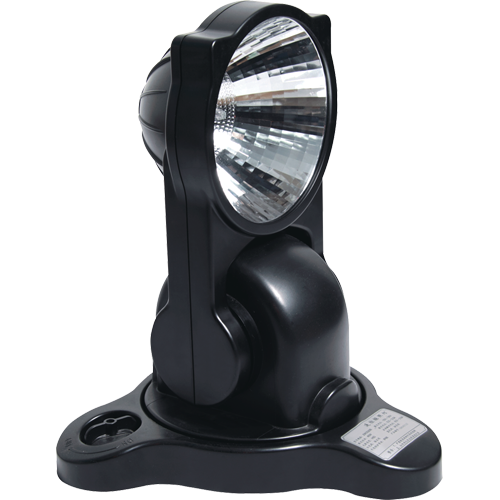

Meba-remote controlling search lamps-ZW3320B

Meba-remote controlling search lamps-ZW3320B

Meba-remote controlling search lamps-ZW3320B

Specification

Application:

Meba remote controlling search lamps ZW3320B, an explosion led light which can be instantly started as soon as  the main circuit is cut off and powered by the emergent batteries. Also, it can be controlled with external switches.  It divides into two types: one is emergent light combination, the other one is purely emergent light. For the first one, it can work normally as long as the power is on, at the same time, it owns emergent functions when it is cut off. For the latter one, it usually is on the “OFF” condition.

It is applicable to all-round lighting in the places of aerial work, open fields, roads and sea. It can also satisfy the multi-angle and long-distance lighting needs for patrol, track, rescue, accident site and engineering construction.

Technical Data:

Description Unit ZW3320A

Value

 ZW3320B

Value

 ZW3320C

Value
Rated voltage V 12V-24V 12V-24V 12V-24V
Light source W 35W HID 45W HID 100W halogen lamp
Luminous Flux Lm 3200 4100 2500
Service life of bulb(85% brightness) h 3000 3000 1000
Remote charge distance m ≤30
Horizontal turning angle degree 0-360
Vertical turning angle 0-180
Dimension mm 370×315×187
Net weight Kg 4.6 4.6 4.5
Carton dimension mm 445×380×230 445×380×230 445×380×230
Carton No. piece 1 1 1
Gross weight Kg 5.3 5.3 4.8

Features

. Protection grade: IP66.

. ZW3320A and ZW3320B use HID super-white lighting source. The color temperature includes 3000K, 4300K,and 6000K, with 4300K as standard. ZW3320C uses 100W halogen bulb.

.Imported high-purity aluminum reflector.

.Wireless remote control mode. The lamp switch can be controlled within 30m and all-round angle adjustment can be achieved.

.The lamp head can be rotated within 180°from up to down and within 360°from left to right

.A magnet and a magnetic switch are attached to the lamp base, which can meet needs of car driving speed at 80KM/h.

. 12V-24V car cigar lighter can be connected directly for lighting.

. 110V-220V power converter can be used for input power supply.

Gallery

Meba-remote controlling search lamps-ZW3320B

  • Meba-remote controlling search lamps-ZW3320B

Online Catalogue

[Download not found]
Categories
Miniature Circuit Breaker

Meba power circuit breaker OLB7 3P

Meba power circuit breaker OLB7 3P

Meba power circuit breaker OLB7 3P

Specification

Meba power circuit breaker OLB7 3P is used in lighting distribution system or motor distribution system for protection overload and short-circuit in the system. The product is neoteric in structure, light in weight, reliable and excellent in performance. It has high breaking capacity, can trip quickly, and its case and items are adopted by high fire-resistant and shockproof plastics. The product, with long life, is mainly used in AC 50Hz/60Hz single-pole 230V or two, three, four pole 400V circuit for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit in normal case. The products comply with IEC 60898.

Technical Parameter

Meba power circuit breaker OLB7 3P

Technical parameters

Technical Data
Pole: 1, 2, 3, 4
Rated Voltage(Un): 230(240)/400(415)V AC, max.60V DC
Rated Current IN: 0.5-63A
Rated frequency fN: 50HZ
Rated breaking capacity: 6KA
Energy limiting class: 3
Tripping characteristic: B,C,D
Cross-section of connecting lead: 1-25mm2
Isolating class: B
Mounting on the rail: EN 50022
Build-in width: 18mm/pole
Standards: IEC 60898,EN60898

Dimensions



Gallery

Meba power circuit breaker OLB7 3P

  • Meba power circuit breaker OLB7 3P
Categories
Explosion-proof Light

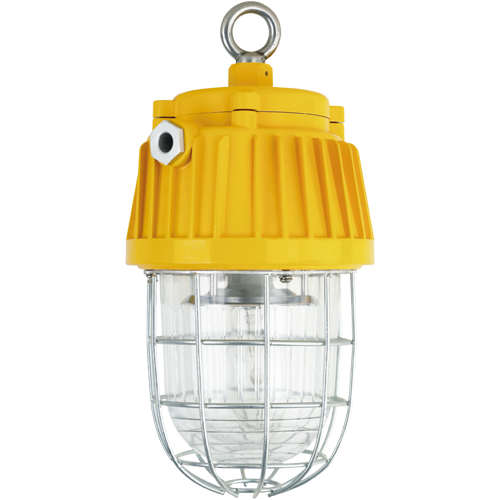

Meba-Mine explosion proof tunnel lamp-DGS70-127B(E)

Meba-Mine explosion proof tunnel lampDGS70-127B(E)

Meba-Mine explosion proof tunnel lamp-DGS70-127B(E)

Specification

Application:

Meba Mine explosion proof tunnel lamp DGS70-127B(E), an explosion led light which can be instantly started as soon as  the main circuit is cut off and powered by the emergent batteries. Also, it can be controlled with external switches.  It divides into two types: one is emergent light combination, the other one is purely emergent light. For the first one, it can work normally as long as the power is on, at the same time, it owns emergent functions when it is cut off. For the latter one, it usually is on the “OFF” condition.

1) Approved for safe use in the explosive environment under the coal mine where the methane and the explosive dust exist.

2) It is the idea lighting solution for the underground tunnel, corner, coal storage, transformer substation.

Technical Data

Rated Voltage AC 127V
Rated Power 70W
Anti Corrosion Grade WF2
Insulation Grade I
Spacing Height Ratio 3.6
Input Cable Diameter Φ8mm – Ø10mm
Dimension  Φ200 x 335 mm
Weight  8.5kg



Model No. Light Source Rated Wattage(W) luminous flux(Lm) Average Service Time(h)
DGS10/127B(E) metal halide lamp 70 5500 10,000

Features

1.Its light source is used of internationally famous brand, give 20% more light than the other manufacturer’s.

2.The average life span of the light source is as long as 10,000 hours, low maintenance.

3.Its advanced transparent part with optimized design according to optical principles, featuring gentle light, even lighting, no dazzle or double image.

4.The housing adopts hightech static spaying treatment,strong resistant to corrosion, water and dust, applicable to various harsh environments.

5.Easy to operate.

Gallery

Meba-Mine explosion proof tunnel lamp-DGS70-127B(E)

  • Meba-Mine explosion proof tunnel lamp-DGS70-127B(E)

Online Catalogue

[Download not found]
Categories
Explosion-proof Light

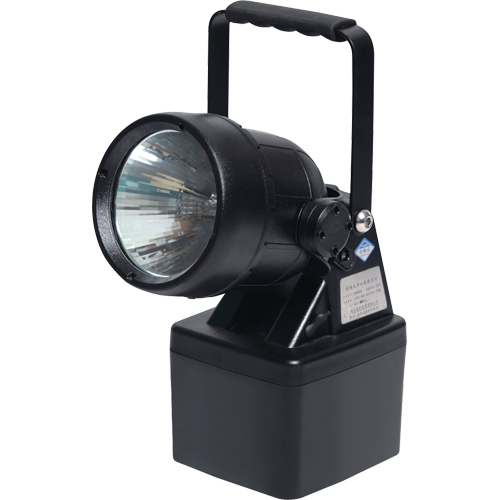

Meba-daily work led lamp-ZW6620

Meba-daily work led lamp-ZW6620

Meba-daily work led lamp-ZW6620

Specification

Application:

Meba daily work led lamp ZW6620, an explosion led light which can be instantly started as soon as  the main circuit is cut off and powered by the emergent batteries. Also, it can be controlled with external switches.  It divides into two types: one is emergent light combination, the other one is purely emergent light. For the first one, it can work normally as long as the power is on, at the same time, it owns emergent functions when it is cut off. For the latter one, it usually is on the “OFF” condition.

It is applicable to mobile lighting in various indoor and outdoor places during the patrol, accident relieve, goods loading/unloading, subway construction, etc.

Technical Data

Description Unit ZW6620Value
Light source type HID
Rated voltage V 14.8
Light source Power W 20
Rated capacity Ah 5
luminous flux Lm 1800
Effective lighting distance m 800
Lighting Time h 3
Time of charge h 6~8
Service life of bulb(85% brightness) h 10000
Service life of battery Recycled 1000
Dimension mm 151×131×272
Net weight kg 1.5
inner box size mm 245×150×250
Carton No. Piece 10
Carton dimension mm 775×270×515
Gross weight Kg 24.5

Features

. Protection grade: IP66.

. It uses 20W super bright HID light source.Its brightness is two fold over the 50W halogen bulb.

. It adapts lithium battery for charging, which is safe, environment friendly and non-pollution.

. Charging voltage: AC100V-AC240V  50Hz/60Hz.

. The lamp head can be rotated 90° upward or 45° downward freely according to the actual needs for lighting angles. Its handle can also be rotated within 180° vertically, so as to satisfy the demands of diversified lighting.

. Due to its small volume and light weight, it can be put on the panel, attached to metal with its magnetic base on the bottom, hung or portable.

. PC shell.

. The battery is controlled by intellective chip inside, along with multiple protections.

Gallery

Meba-daily work led lamp-ZW6620

  • Meba-daily work led lamp-ZW6620

Online Catalogue

[Download not found]
Categories
Explosion-proof Light

Meba-maintenance free light-BC9200

Meba-maintenance free light-BC9200

Meba-maintenance free light-BC9200

Specification

Application:

Meba maintenance free light BC9200, an explosion led light which can be instantly started as soon as  the main circuit is cut off and powered by the emergent batteries. Also, it can be controlled with external switches.  It divides into two types: one is emergent light combination, the other one is purely emergent light. For the first one, it can work normally as long as the power is on, at the same time, it owns emergent functions when it is cut off. For the latter one, it usually is on the “OFF” condition.

This product is approved for safe use in various explosive and flammable fields such as petroleum ,chemical industry ,metallurgy,etc .

Technical Data

Input Voltage AC(90- 264)V, AC/DC(18-40V)
Output Voltage  DC14 to 14.5V
Frequency 47 to 63Hz
Anti corrosion Grade WF2
Insulation Grade I
spacing height ratio 1.2
Cable Diameter Φ 6mm~ Φ8mm
Dimension Φ 147×140mm
Weight 1.3kg

Features

1)Light Source: American CREE LED,save almost 90% on energy than the incandescent lamp and 60% on energy over the energy saving lamp.

2)Long Service Life: with the average service life as long as 100,000 hours,maintenance free.

3)Multi-voltage: 90 to 264VAC or 18 to 40V

4)Feature: LED anti dazzle lens, making the light more gentle, glare free. It will not cause weariness to the operators’ eyes.

5)The housing is made of aluminium alloy. With the surface electrostatic spraying treatment, it is anti corrosion.

6)Multi-mounting options: Ceiling mounted, wall mounted etc.·

7)The PC transparency has a high light transmissivity ,perfect impact resistance ,designed to withstand the harsh industrial applications.

Gallery

Meba-maintenance free light-BC9200

  • Meba-maintenance free light-BC9200

Online Catalogue

[Download not found]
