Explosion-proof Light

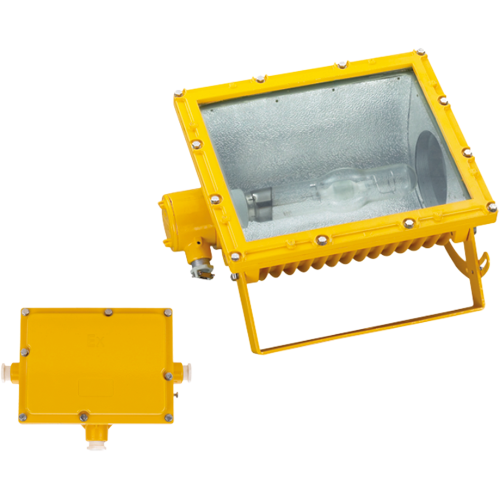

Meba-explosion proof flood lamp-BC9130

Meba-explosion proof flood lamp-BC9130

Meba-explosion proof flood lamp-BC9130

Specification

Application:

Meba explosion proof flood lamp BC9130, an explosion led light which can be instantly started as soon as  the main circuit is cut off and powered by the emergent batteries. Also, it can be controlled with external switches.  It divides into two types: one is emergent light combination, the other one is purely emergent light. For the first one, it can work normally as long as the power is on, at the same time, it owns emergent functions when it is cut off. For the latter one, it usually is on the “OFF” condition.

This product is applicable to large area flood lighting in various explosive and flammable places, outdoor operation or construction sites, as well as places with devices and facilities.

Technical Data

Power Supply AC 220V / 50Hz
Ingress Protection IP65
Anti corrosion Grade WF2
Insulation Grade  I
Input Cable Diameter Ø10 mm- Ø14mm
Dimension Lamp 433 x 387 x 202 mm
Explosion Proof ballast box 288 x 203 x 125 mm
Weight Unity Type Lamp+Electrical box 16.1Kg
Split Type Lamp  9kg
Electrical box  6.8kg

Light Source:

ORDERING REFERENCE Light source Rated Wattage(W) luminous flux(Lm) Weight(Kg) Temperature Classification Average Service Time
BC9130-J250 Metal halogen lamp(MH) 250 25000 17 T4 10,000h
BC9130-J400 Metal halogen lamp(MH) 400 36000 19 T3 10,000h
BC9130-N250 High Pressure Sodium Lamp(HPS) 250 27500 17 T4 28500h
BC9130-N400 High Pressure Sodium Lamp(HPS) 400 50000 19 T3 28500h

Features

1,Safe to use in dangerous places in Zone 1, Zone 2 or Zone 20, Zone 21, Zone 22;

2,Safe to use in grade IIA or IIB explosive gas environment or flammable dust environment.

Characteristics of Performance:

·Power factor>0.9.

·Three mode of installation.

·Orange-figured reflection panel makes the light gentle and enlarge luminance angle .

·The shell is made of high strength aluminium alloy with strong resistant to corrosion, water and dust, applicable to various harsh environments.

·Lateral cover is mounted on the lamp, enabling easy change of bulbs.

·The lamp can be mounted either in pedestal or on wall, adjustable within the angles of 45~90°.

Gallery

Meba-explosion proof flood lamp-BC9130

  • Meba-explosion proof flood lamp-BC9130

Online Catalogue

[Download not found]
Categories
Explosion-proof Light

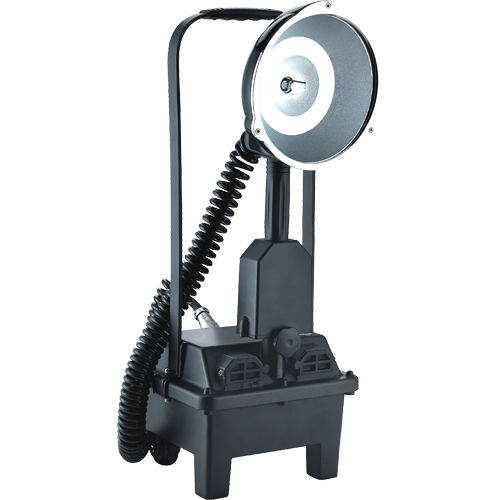

Meba-high intensive Xenon lamp-ZW3100C

Meba-high intensive Xenon lamp-ZW3100C

Meba-high intensive Xenon lamp-ZW3100C

Specification

Application:

Meba high intensive Xenon lamp ZW3100C, an explosion led light which can be instantly started as soon as  the main circuit is cut off and powered by the emergent batteries. Also, it can be controlled with external switches.  It divides into two types: one is emergent light combination, the other one is purely emergent light. For the first one, it can work normally as long as the power is on, at the same time, it owns emergent functions when it is cut off. For the latter one, it usually is on the “OFF” condition.

This product is widely used as mobile lighting for all kinds of night work tasks,repairing,inspection ,constructon ,and accident relief etc .

Technical Data

Specification unit ZW3100B ZW3100C
Rated Voltage V 24 12
Rated Power W 100/35 35
Rated capacity Ah 12 24
Light Output(high/low) lm 2500/850 3200
Runtime(high/low) h 3.5/10 8
recharging time h 9 9
Service life of bulb h ≥1200 10000
Battery Recharge Cycle ≈1000 ≈1000
Dimension mm 255x250x610 255x250x610
Net weight Kg 13. 5 13. 5

Features

1.The hosing is made of PC and aluminium alloy ,can stand strong impact.It is waterproof.

2.ZW3100B:halogen bulb,the high intensity light and low intensity light are switchable .

3.The head of the lamp can be rotated 360° horizontally and 135° vertically.

4.Tripod is optional .The tripod is extendable within 1.2-3 meters .

5.The wheel is optional ,it enable the lamp move easily on the rail .

Gallery

Meba-high intensive Xenon lamp-ZW3100C

  • Meba-high intensive Xenon lamp-ZW3100C

Online Catalogue

[Download not found]
Categories
Explosion-proof Light

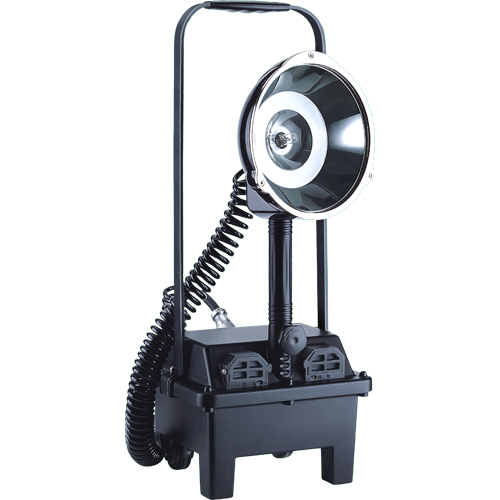

Meba-large power resource lamp-ZW3100B

Meba-large power resource lamp-ZW3100B

Meba-large power resource lamp-ZW3100B

Specification

Application:

Meba large power resource lamp ZW3100B, an explosion led light which can be instantly started as soon as  the main circuit is cut off and powered by the emergent batteries. Also, it can be controlled with external switches.  It divides into two types: one is emergent light combination, the other one is purely emergent light. For the first one, it can work normally as long as the power is on, at the same time, it owns emergent functions when it is cut off. For the latter one, it usually is on the “OFF” condition.

This product is widely used as mobile lighting for all kinds of night work tasks,repairing,inspection ,constructon ,and accident relief etc .

Technical Data

Specification unit ZW3100B



 ZW3100C


Rated Voltage V 24 12
Rated Power W 100/35 35
Rated capacity Ah 12 24
Light Output

(high/low)

 lm 2500/850 3200
Runtime

(high/low)

 h 3.5/10 8
recharging time h 9 9
Service life of bulb h ≥1200 10000
Battery Recharge Cycle ≈1000 ≈1000
Dimension mm 255x250x610 255x250x610
Net weight Kg 13. 5 13. 5

Features

1.The hosing is made of PC and aluminium alloy ,can stand strong impact.It is waterproof.

2.ZW3100B:halogen bulb,the high intensity light and low intensity light are switchable .

3.The head of the lamp can be rotated 360° horizontally and 135° vertically.

4.Tripod is optional .The tripod is extendable within 1.2-3 meters .

5.The wheel is optional ,it enable the lamp move easily on the rail .

Gallery

Meba-large power resource lamp-ZW3100B

  • Meba-large power resource lamp-ZW3100B

Online Catalogue

[Download not found]
Categories
Explosion-proof Light

Meba-explosion proof laneway light-DGS70-127B(A)

Meba-explosion proof laneway light-DGS70-127B(A)

Meba-explosion proof laneway light-DGS70-127B(A)

Specification

Application:

Meba explosion proof laneway light DGS70-127B(A), an explosion led light which can be instantly started as soon as  the main circuit is cut off and powered by the emergent batteries. Also, it can be controlled with external switches.  It divides into two types: one is emergent light combination, the other one is purely emergent light. For the first one, it can work normally as long as the power is on, at the same time, it owns emergent functions when it is cut off. For the latter one, it usually is on the “OFF” condition.

1. Ideal for use in underground coal mine, where there is explosive mixture of firedamp and air or other coal dust.

2. Ideal for use in laneway of underground mining area, laneway corner, shaft bottom, underground chamber, underground coal bin, power substation, etc.

Technical Data

Item No.

Wattage

Output

Lamp Type

Bulb Lifetime

DGS70/127B(A)

70W

5500 lm

MH(OSRAM)

>10,000 hrs

Power Supply

AC 127V

Explosion Proof Grade

Ex d I

Working Environment Temperature

-20 degree ~ +40 degree

Ingress Protection

IP65

Insulation Grade

I

Cable Diameter

Ø8-Ø10(Light)
Ø8-Ø14

(explosion proof ballast)

Dimension

Ø200 x 335 mm

Weight

4.3kg(Light)
4.1kg(explosion proof ballast)

Safety Approval

CE

Features

1. MH Light Source of OSRAM brand, creditable performance, 20% brigher than same type light source of other brand.

2. More than 10,000 hours of bulb lifetime. Almost free maintenance.

3. Optimal structure designed lamp transparency ensures softened and even lightness, no glare, no double images. It helps reduce fatigue and malaise for operators.

4. Main body material: High strength aluminum alloy with electrostatic spraying.

5. Housing: Scratch proof, dust proof, water proof, anti corrosion for all extremely conditions.

6. Safe and reliable. Fast installation. Simple operation.

Gallery

Meba-explosion proof laneway light-DGS70-127B(A)

  • Meba-explosion proof laneway light-DGS70-127B(A)

Online Catalogue

[Download not found]
Categories
Miniature Circuit Breaker

Meba circuit breaker MBL11

Meba Circuit Breaker MBL11

Meba circuit breaker MBL11

Specification

Application:

Meba circuit breaker MBL11is mainly used in AC50/60HZ single-pole 230V or two, three, four-pole 400V circuit for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit under normal condition. The product is suitable for industry, business, building, residence, etc. It is conformity with GB10963,IEC60898 standards.

1.1 Function
protection of circuits against short-circuit currents,
protection of circuits against overload currents,
switch,
isolation,
circuit breaker is used in domestic installation,
as well as in commercial and industry electrical
distribution systems.

1.2 Feature
high protective grade(up to IP20), high breaking capacity,
reliable sensitive action, convenient, long life etc.

1.3 Selection
Technical data of the network at the point considered:
the earthing systems (TNS, TNC),
short-circuit current at the circuit-breaker installation point,
which must always be less than the breaking capacity of this device,
Network normal voltage.

Tripping curves of Circuit breaker:
B curve (3-5In)  protection for people and big length cables in TN and IT systems.
C curve (5-10In)  protection for resistive and inductive loads with low inrush current.
D curve(10-14In)  protection for circuits which supply loads with high inrush current
at the circuit closing (LV/LV transformers, breakdown lamps).

1.4 Approvals and certificates of Circuit breaker
Detailed information, please refer to Certificates Table



Technical Data

Number of Poles: 1P,2P,3P, 4P

Rated Current(A):6A, 10A, 16A,20A, 25A, 32A, 40A, 50A, 63A

Breaking Capacity(A): 6000A

Rated Voltage(V):240/415V

Rated Frequency:50/60HZ

Electrical Life:6000

Mechanical life:20000

Protection degree:IP20

Features

MAGNETIC COIL: ensures the switching of short-circuit, speaking within the following ranges: 5 to 10 times rated current (Type C), 3 to 5 times rated current ( Type B ), 10 to 14 times rated current ( Type D )

BIMETAL: ensures the breaker trip when overloaded.

ARC CHAMBER: effectively dissipates the electric arc that is generated by the opening contacts of the trigger mechanism in the presence of an overload or short circuit.

Gallery

Meba circuit breaker MBL11

  • Meba circuit breaker MBL11
Categories
Photoelectric Switch

Meba Area Secure Sensor GM

meba capacitance sensor GM

Meba Area Secure Sensor GM

Specification

Area Secure Sensor GM Series

■Safe and reliable optic screen sensor

●Applicable for the safety detection of automatic assembly line, elevator, danger restricted zone, metal forming machine, punching & shearing machine tool, paper cutter and so on and has protection function.

●Adopting synchronism scanning technology, concentrated beam path, non working blind area, strong anti-interference ability, and convenient installation.

●Resistance to mutual interference function. It is possible to closely mount more than 2 sets of devices.Fault self-check, function, power failure stop, inner component fault stop, connection fault stop, object invading stop signal output.

●Attached with specific control supplying powerful control function.

●Replaceable for similar products made by SICK,STI, KEYENCE,Honeylell Corp

Detection way

Model

Detection distance

Optic axis distance

Optic axis number

Detection width

Min detectable object

Trough-beam

GM40-4

≤3m

40mm

4

120mm

φ50mm

GM40-6

6

200mm

GM40-8

8

280mm

GM40-10

10

360mm

GM40-12

12

440mm

GM40-16

16

600mm

GM40-20

20

760mm

GM40-24

24

920mm

GM40-32

32

1240mm

GM40-40

40

1560mm

GM40-56

56

2220mm

GM40-64

64

2520mm

Trough-beam

GM20-4

≤3m

20mm

4

60mm

φ30mm

GM20-6

6

100mm

GM20-8

8

140mm

GM20-10

10

180mm

GM20-12

12

220mm

GM20-16

16

300mm

GM20-20

20

380mm

GM20-24

24

460mm

GM20-32

32

620mm

GM20-40

40

780mm

GM20-56

56

1100mm

GM20-64

64

1260mm



Performance:

Power voltage

12-24VDC

Consumption current

Under 100mA

Response time

Under 20mS

Output form

Collector open circuit NPN type, current 100mA, residual voltage 1.6V

Output state

ON when all the optic axis is photic

Optic source

Infrared ray LED

Connection way

With specific cable connector

Shell material

Shell:A1 alloy, color filter cover:PMMA

Ambient temperature

-10~55 while working, -40~70 while storing

Environment humidity

35~85%RH while working; 35~39% while storing

Vibration

Vibration frequency: 10~55Hz, vibration range: 1.5mm  each direction of X、Y、Z for 3hours

Shock

Acceleration:500/s each direction of X、Y、Z for 3hours

Gallery

Meba Area Secure Sensor GM

  • Meba Area Secure Sensor GM
Categories
Explosion-proof Light

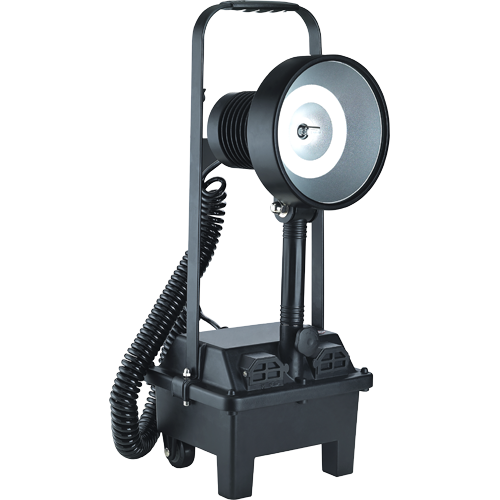

Meba-dimensional adjusted proof lamp-BW3200A-3

Meba-dimensional adjusted proof lamp-BW3200A-3

Meba-dimensional adjusted proof lamp-BW3200A-3

Specification

Application:

Meba dimensional adjusted proof lamp BW3200A-3, an explosion led light which can be instantly started as soon as  the main circuit is cut off and powered by the emergent batteries. Also, it can be controlled with external switches.  It divides into two types: one is emergent light combination, the other one is purely emergent light. For the first one, it can work normally as long as the power is on, at the same time, it owns emergent functions when it is cut off. For the latter one, it usually is on the “OFF” condition.

  • Ideal for any flammable or explosive locations like electricity power urgent repair, field maintenance, maritime operation, or emergency rescues and disaster relief work, etc.



Technical Data

Description Unit BW3200A BW3200B
Rated voltage V 12 12
Power W 35 35
Rated capacity of battery Ah 30 30
High intensity light flux lm 3200 1800
High intensity lighting time h 8 6
Time of charging h 8.5~10 8.5~10
Service life of bulb (85% brightness ) h 10000 1200
Service life of battery Recycled ≈1000 ≈1000
Dimension mm 255×250×610 255×250×610
Net weight kg 16.5 15.3
Carton dimension mm 675×315×285 675×315×285
Carton No. Piece 1 1
Gross weight Kg 17.9 16.7

Features

  • The BW3200A used 35W HID as lighting source.While the light source of BW3200B is halide bulb
    • Shock absorbance and weatherproof
    • Lamp head turning angle: 360°
    • Lamp head elevation angle: 135°
    • Hinged, articulating head allows you to direct the light where needed
    • Optional accessory tripod allows you to ascend or descend the lamp within 1.2meter to 3.0meter.
    • Capable of withstanding strong collision without damage
    • Waterproof
    • Capable of high pressure water guns shooting without damage
    • Lead acid battery
    • Microprocessor controlled charger
    • Overcharge protection
    • Short current protection
    • Trickle charging designed

Gallery

Meba-dimensional adjusted proof lamp-BW3200A-3

  • Meba-dimensional adjusted proof lamp-BW3200A-3

Online Catalogue

[Download not found]
Categories
Explosion-proof Light

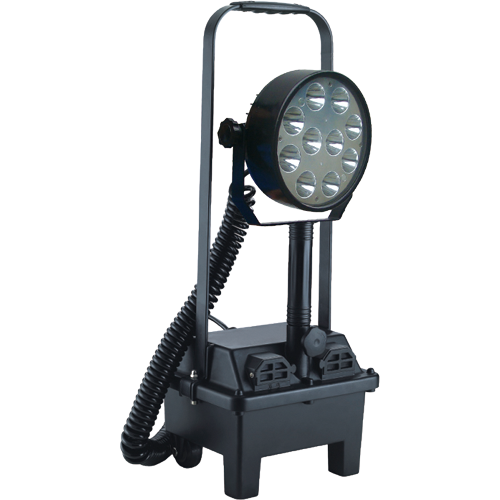

Meba-work led explosion proof lights-BW3210

Meba-work led explosion proof lights-BW3210

Meba-work led explosion proof lights-BW3210

Specification

Application:

Meba work led explosion proof lights BW3210, an explosion led light which can be instantly started as soon as  the main circuit is cut off and powered by the emergent batteries. Also, it can be controlled with external switches.  It divides into two types: one is emergent light combination, the other one is purely emergent light. For the first one, it can work normally as long as the power is on, at the same time, it owns emergent functions when it is cut off. For the latter one, it usually is on the “OFF” condition.

This product is widely used as mobile lighting for all kinds of night work tasks,repairing,inspection and accident relief etc .



Technical Data

Specification unit BW3210
Rated voltage V DC24
Rated capacity Ah 12
LED working voltage V 18. 5
High/low rated power W 30/15
Light Output (high/low) lm 2300/1600
Service life of bulb h 100,000
Continuous Runtime  high h 12
low 24
Recharge Time h 12
Effective Beam Distance m 800
Battery Recharge Cycle times ≈1000
Dimension L*W*H mm 255x250x610
Net weight Kg 14

Features

1. Spot light beam or Flood light beam is available according to the application.

2.Safe and reliable: flame proof type of protection. Suitable to be used in various flammable and explosive environment.

3.Efficient&Energy saving: It adopts CREE LED light source, high intensity, and 100,000 hours service life. It has battery level indication function. Operator can check the energy left at any time.

4.Waterproof & Durability:  The housing is made of aluminium alloy, insure the unit enable to stand the

strong impact. It is sealed to IP66 preventing the ingress of dust and water. Suitable to be used in all kinds of harsh environment.

5.Flexible & Convenient : The lamp head has 360°rotation and 135°tilt.

6.The extendable pole is optional, with 1.2 to 1.7 meters extendable height. The wheels on the bottom make the transportation more easy.

7.Intelligent charging : The charger is controlled by the chip . It protect against over-charging, over discharge and short circuit. When battery is fully charged. It will switch to trickle charging automatically.

Gallery

Meba-work led explosion proof lights-BW3210

  • Meba-work led explosion proof lights-BW3210

Online Catalogue

[Download not found]
Categories
Explosion-proof Light

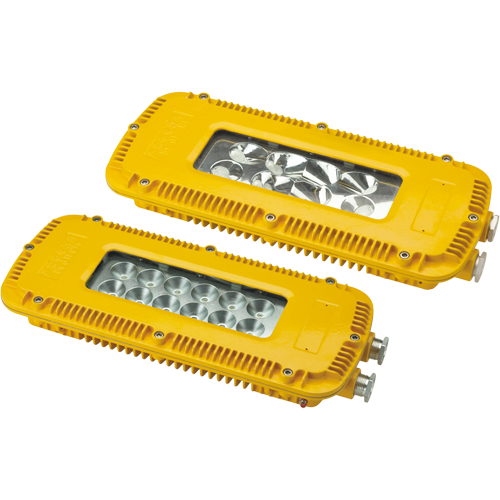

Meba-led explosion tunnel light-DGS10-127L(A)

Meba-led explosion tunnel light-DGS10-127L(A)

Meba-led explosion tunnel light-DGS10-127L(A)

Specification

Application:

Meba led explosion tunnel light DGS10-127L(A), an explosion led light which can be instantly started as soon as  the main circuit is cut off and powered by the emergent batteries. Also, it can be controlled with external switches.  It divides into two types: one is emergent light combination, the other one is purely emergent light. For the first one, it can work normally as long as the power is on, at the same time, it owns emergent functions when it is cut off. For the latter one, it usually is on the “OFF” condition.



Technical Data

ORDERING REFERENCE Light Source Rated Wattage(W) luminous flux(Lm) Average Useful Time(h)
DGS10/127L(A) LED 10 1150 100,000
DGS24/127L(A) LED 24 1185 100,000



Rated Voltage  AC127V
Wattage 10W/24W
GB Code Ex d I
Ingress Protection  IP65
Cable Diameter  Ø10mm – Ø14mm
Dimension  424 ×177×77mm
Weight  4.1Kg

Features

·It uses CREE white light LED. The lamp has very excellent heat radiation effects, which has effectively solved the problem of too fast weakening of LED light source due to too high temperature.

·It illuminates in two ways, with evener lighting and longer distance. It is especially suitable for tunnels. When the lamp is hung 3m high, the lighting distance can reach 15m and its evenness comes to 0.7.

·Strong resistant to corrosion, water and dust, applicable to various harsh environments.

·It is provided with two connectors and can be connected in series.

Gallery

Meba-led explosion tunnel light-DGS10-127L(A)

  • Meba-led explosion tunnel light-DGS10-127L(A)

Online Catalogue

[Download not found]
Categories
Explosion-proof Light

Meba-directional led lamp-BW4100

Meba-directional led lamp-BW4100

Meba-directional led lamp-BW4100

Specification

Application:

Meba directional led lamp BW4100, an explosion led light which can be instantly started as soon as  the main circuit is cut off and powered by the emergent batteries. Also, it can be controlled with external switches.  It divides into two types: one is emergent light combination, the other one is purely emergent light. For the first one, it can work normally as long as the power is on, at the same time, it owns emergent functions when it is cut off. For the latter one, it usually is on the “OFF” condition.

Features

1. Adopts LED light source, which has a higher light efficacy and long service life. It is environment friendly.

2. High intensity light and low intensity light is switchable.

3. Small size and light weight. It is portable. The lamp can also be fixed onto the helmet. It is sealed to IP66, waterproof, dust resistant.

4. The charging and discharging processes are controlled by the chip and provided with multi-protection, ensuring safety and high efficiency.

Gallery

Meba-directional led lamp-BW4100

  • Meba-directional led lamp-BW4100

Online Catalogue

[Download not found]
Categories
Explosion-proof Light

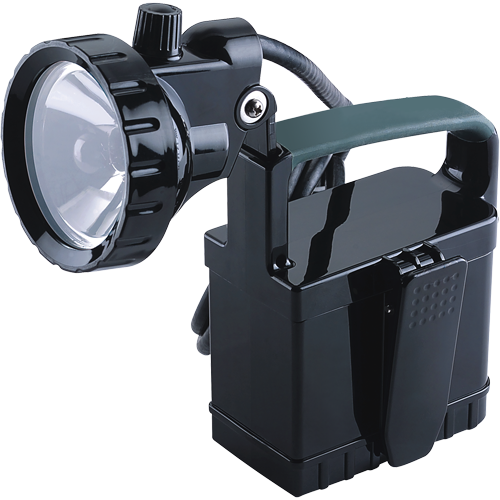

Meba-handed explosion proof led lighting-BW6200C

Meba-handed explosion proof led lighting-BW6200C

Meba-handed explosion proof led lighting-BW6200C

Specification

Application:

Meba handed explosion proof led lighting BW6200C, an handed explosion led light which can be instantly started as soon as  the main circuit is cut off and powered by the emergent batteries. Also, it can be controlled with external switches.  It divides into two types: one is emergent light combination, the other one is purely emergent light. For the first one, it can work normally as long as the power is on, at the same time, it owns emergent functions when it is cut off. For the latter one, it usually is on the “OFF” condition.

1.Handed Explosion Proof Portable Halogen Spot light 2.rechargeable IP67 3.highlight worklight 4.portable ,head mounted

1.It is applicable to be mobile lighting in Zone 1 and Zone 2 explosive and flammable places.

2.This product is ideal for use in railway construction,oilfield,tunnel,mining,electric power site,inspection work task and any other hazardous environment.



Technical Data

Description Unit BW6200C
Rated voltage V 6
High intensity light  Power W 15
Low intensity light  Power W 2.4
Rated capacity of battery Ah 3.5
High intensity light flux Lm 300
Low intensity light flux Lm 48
High intensity lighting time h 1.5
Low intensity lighting time h 8
Time of charging h 8-9
Service life of bulb h ≥480
Service life of battery c ≈1000
Dimension mm 113×75×133
Net weight Kg 1.1
 inner box size mm 235×135×295
Carton No. piece 10
Carton dimension mm 710×320×500
Gross weight Kg 17.2

Features

. It uses Osram 15W halogen bulb.

.The shell is made of PC materials. It is waterproof and explosion proof

. Ni-MH battery with high efficiency .It has a long life span ,equipped with short circuit protection and no memory effect.

.Charging voltage: AC100V-AC240V  50Hz/60Hz.

.Besides portable, it can also be fastened on the waist or on the hat.

.The lamp head can be adjusted 90° upward or 60° downward.

. The high intensity light or operating light can be shifted freely. Also the light focus or stray light can be adjusted.

. The charge and discharge is controlled by the chip intelligently. It provides multiply protection .

Gallery

Meba-handed explosion proof led lighting-BW6200C

  • Meba-handed explosion proof led lighting-BW6200C

Online Catalogue

[Download not found]
Categories
Explosion-proof Light

Meba-search lamp device-BW7101

Meba-search lamp device-BW7101

Meba-search lamp device-BW7101

Specification

Application:

Meba search lamp  device BW7101, an explosion led light which can be instantly started as soon as  the main circuit is cut off and powered by the emergent batteries. Also, it can be controlled with external switches.  It divides into two types: one is emergent light combination, the other one is purely emergent light. For the first one, it can work normally as long as the power is on, at the same time, it owns emergent functions when it is cut off. For the latter one, it usually is on the “OFF” condition.

1.Rechargeable Waterproof CREE LED Police Flashlight 2.12V 9W Ex di II C T6 400Lm 3. runtime:(high)6h (work)10h (strobe)20h.

1.It is applicable to  mobile lighting in Zone 0 explosive and flammable places.

2.Widely used in the sectors of police,searching,fire fighting,work task etc.



Technical Data

Description Unit Value
Rated voltage V 12
Rated capacity Ah 4.4
Light source Operating voltage V 12
current High intensity light A 0.7
Worklight 0.35
 luminous flux High intensity light Lm 400
Worklight 195
Average useful time h 100000
runtime High intensity light h ≥6
Worklight 10
strobe light 20
Time of charging h <8
Service life of battery Recycled  1000
Dimension length mm 191
Diameter Ø 68.5
Weight kg 0.8

Features

. It uses LED as light source.

. Charging voltage: AC100V-AC240V  50Hz/60Hz.

. Lithium battery for charging.

. The high intensity light, worklight and strobe light can be shifted freely.

. The high hardness alloy shell can withstand powerful impact or collision, with very good seal,It can even work normally 100m under the water.

.It has battery status indicator and it is protected against over charging.

Gallery

Meba-search lamp device-BW7101

  • Meba-search lamp device-BW7101

Online Catalogue

[Download not found]
Categories
Explosion-proof Light

Meba-working proof lamps-BW3200A

Meba-working proof lamps-BW3200A

Meba-working proof lamps-BW3200A

Specification

Application:

Meba working proof lamps BW3200A, an explosion led light which can be instantly started as soon as  the main circuit is cut off and powered by the emergent batteries. Also, it can be controlled with external switches.  It divides into two types: one is emergent light combination, the other one is purely emergent light. For the first one, it can work normally as long as the power is on, at the same time, it owns emergent functions when it is cut off. For the latter one, it usually is on the “OFF” condition.

  • Ideal for any flammable or explosive locations like electricity power urgent repair, field maintenance, maritime operation, or emergency rescues and disaster relief work, etc.

Technical Data

Description Unit BW3200A BW3200B
Rated voltage V 12 12
Power W 35 35
Rated capacity of battery Ah 30 30
High intensity light flux lm 3200 1800
High intensity lighting time h 8 6
Time of charging h 8.5~10 8.5~10
Service life of bulb (85% brightness ) h 10000 1200
Service life of battery Recycled ≈1000 ≈1000
Dimension mm 255×250×610 255×250×610
Net weight kg 16.5 15.3
Carton dimension mm 675×315×285 675×315×285
Carton No. Piece 1 1
Gross weight Kg 17.9 16.7

Features

  • The BW3200A used 35W HID as lighting source.While the light source of BW3200B is halide bulb
    • Shock absorbance and weatherproof
    • Lamp head turning angle: 360°
    • Lamp head elevation angle: 135°
    • Hinged, articulating head allows you to direct the light where needed
    • Optional accessory tripod allows you to ascend or descend the lamp within 1.2meter to 3.0meter.
    • Capable of withstanding strong collision without damage
    • Waterproof
    • Capable of high pressure water guns shooting without damage
    • Lead acid battery
    • Microprocessor controlled charger
    • Overcharge protection
    • Short current protection
    • Trickle charging designed

Gallery

Meba-working proof lamps-BW3200A

  • Meba-working proof lamps-BW3200A

Online Catalogue

[Download not found]
Categories
Explosion-proof Light

Meba-searching lamps-TM-2105B

Meba-searching lamps-TM-2105B

Meba-searching lamps-TM-2105B

Specification

Application:

Meba searching lamps TM-2105B, an explosion led light which can be instantly started as soon as  the main circuit is cut off and powered by the emergent batteries. Also, it can be controlled with external switches.  It divides into two types: one is emergent light combination, the other one is purely emergent light. For the first one, it can work normally as long as the power is on, at the same time, it owns emergent functions when it is cut off. For the latter one, it usually is on the “OFF” condition.

10 million candle power Handheld Portable Halogen Spot Light, Work Light, Searching Light, OSRAM light source,rain proof

Technical Data

  • Rated Voltage: 6 V
  • Rated Capacity: 5.5 Ah
  • Light Output: 1,300 lm / 650 lm, approximately 10 million candlepower for high intensive light
  • Lamp Type: 25W OSRAM halogen bulb with a 1,200 hrs lifetime
  • Run Time: 1.5 hrs / 4hrs
  • Battery: Ni-cad rechargeable
  • Battery cycle lifetime: 1,000 times
  • Dimensions: 4.85″ head dia x 7.87″ L
  • Weight w/ Batteries: 2.64 lbs / 1200gm
  • Charging Time: 10~12 hrs
  • Focus Type:  Fixed
  • Effective range: 800m
  • Come with: Halogen spotlight, charger, spare light bulb, shoulder strap, pouch and manual

Features

  • Compact, convenient and strategically configured.
  • Three position push button: choose between high intensive light, ordinary working light and power off
  • Heavy duty adjustable nylon shoulder strap
  • Optimum structural design
  • Quality aluminum alloy T6063 housing
  • Shock resistance
  • Weatherproof
  • OSRAM halogen light source
  • High efficacy
  • Long lifetime bulb
  • Long lifetime Ni-cad battery pack
  • Microprocessor controlled charging
  • Fast charging application
  • Overcharge protection
  • Short current protection
  • Reversal polarity protection
  • Trickle charging designed

Gallery

Meba-searching lamps-TM-2105B

  • Meba-searching lamps-TM-2105B

Online Catalogue

[Download not found]
Categories
Explosion-proof Light

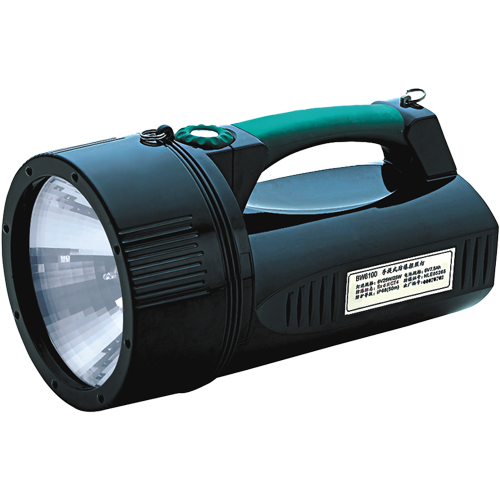

Meba-searching explosion proof lamp-BW6100E

Meba-searching explosion proof lamp-BW6100E

Meba-searching explosion proof lamp-BW6100E

Specification

Application:

Meba searching explosion proof lamp BW6100E, an explosion led light which can be instantly started as soon as  the main circuit is cut off and powered by the emergent batteries. Also, it can be controlled with external switches.  It divides into two types: one is emergent light combination, the other one is purely emergent light. For the first one, it can work normally as long as the power is on, at the same time, it owns emergent functions when it is cut off. For the latter one, it usually is on the “OFF” condition.

Technical Data

Description Unit BW6100E
Rated voltage V 14.8
Power W 35
Rated capacity of battery Ah 5
High intensity light flux Lm 3200











Efficient Range m 3500
Lighting Time h 2



Time of charging h 2-4
Service life of bulb (85% brightness ) h 10000
Dimension mm φ123×205
Net weight kg 1.4
Graphic carton Dimension mm 245×160×270
Carton No. pieces 10
Carton dimension mm 830×290×500

Features

The shell is made of PC materials.It is sealed to IP67 preventing the ingress of dust and water.

. It uses high pressure sodium (HID)light source. The color temperatures include 3000K, 4300K and 6000K, with 4300K as standard.

. Long range lighting distance:  Effective range of BW6100E can be 3500 meters and BW6100F is above 2500 meters.They are ideal for use in patroling and searching at night.They adopts 6000K color temperature which efficiently enhance the smog or smoke penetrability.

. Use of the latest lithium-ion battery technology improves reliability and eliminates ‘memory’ affect.

. Charging voltage: AC100V-AC240V  50Hz/60Hz.

. Besides portable, it can also be carried with leather bag.

. It is provided with a rotary switch, which can shift from high intensity light to operating light freely.

. The power charging is controlled by the chip, with high reliability. It is protected against over-charging, over-discharge, or short circuit. It uses trickle charging and battery level indication.

. waterproof ,rainproof,explosion proof

portable explosion proof HID searchlight 35W;

3200Lm;

3500m light range PC;

IP67 rechargable lithium battery;

2.5h charging time

Certification:

GB Code:Ex d II C T3/T4

CE certificate

GB Certificate:NLE07346

Ingress Protection:IP67

Patent No.:ZL200420054534.4; ZL200530080262.3

Standard: GB3836.1-2000   GB3836.2-2000

Gallery

Meba-searching explosion proof lamp-BW6100E

  • Meba-searching explosion proof lamp-BW6100E
Categories
Explosion-proof Light

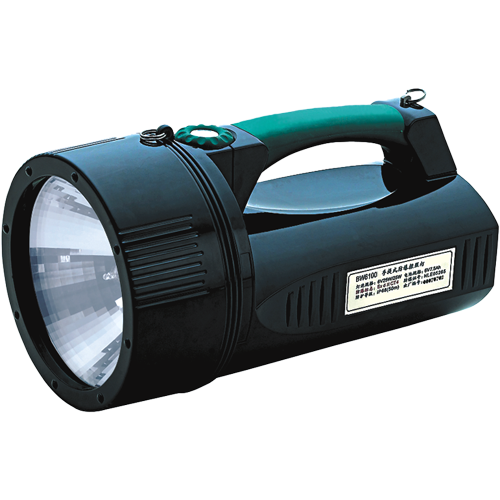

Meba-portable searching lamp-BW6100A

Meba-portable searching lamp-BW6100A

Meba-portable searching lamp-BW6100A

Specification

Application:

Meba portable searching lamp BW6100A, an explosion led light which can be instantly started as soon as  the main circuit is cut off and powered by the emergent batteries. Also, it can be controlled with external switches.  It divides into two types: one is emergent light combination, the other one is purely emergent light. For the first one, it can work normally as long as the power is on, at the same time, it owns emergent functions when it is cut off. For the latter one, it usually is on the “OFF” condition.

It is wiely used as mobile lighting in the field of military ,policy,oil field ,petrocemistry,patrol,rescue relief ,railway,fire fighting etc.

Technical Data

Specification unit Parameter
Rated voltage V 6
Rated Power W 25
Rated capacity Ah 8
Light output (high) lm 1200
Light output (low) lm 300
Beam Distance m 600
Runtime (high) h >2
Runtime (low) h 6.5
Recharge Time h 8-10
Service life of bulb h 1200
Dimension mm Φ123×205
Net weight Kg 1.2

Features

1.Flexible & Convenient : high intensity light and low intensity light switchable. It is portable, besides it can be also carried with searchlight holster.

2.Waterproof&Durability: Made of imported PC material. The optimal designed structure made the searchlight waterproof, dust proof.

3.High Efficiency and reliability: It adopts world famous brand light source, which has high light efficacy, long service life, soft light and impact resistance performance. Use the latest large capacity lithium ion battery improves the service life and eliminates ‘ memory ‘ affect.It equipped with over discharge protection and short-circuit protection. Environment friendly.

4.Intelligent charging : The charger is controlled by the chip. It is protected against over-charging, over-discharging and short circuit. It will switch to trickle charging automatically when the battery is fully charged.

State of battery charge is indicated with the colored lights on the charger.

Gallery

Meba-portable searching lamp-BW6100A

  • Meba-portable searching lamp-BW6100A

Online Catalogue

[Download not found]
Categories
Explosion-proof Light

Meba-explosion head light-BW6310B

Meba-portable explosion light-BW6200E

Meba-explosion head light-BW6310B

Specification

Application:

Meba explosion head light BW6310B , an explosion led light which can be instantly started as soon as  the main circuit is cut off and powered by the emergent batteries. Also, it can be controlled with external switches.  It divides into two types: one is emergent light combination, the other one is purely emergent light. For the first one, it can work normally as long as the power is on, at the same time, it owns emergent functions when it is cut off. For the latter one, it usually is on the “OFF” condition.

Ideal for any indoor or outdoor inflammable or explosive places,like chemical industry,exploitation,military work places , emergency lighting when power off.

Can be used in Zone 1 and Zone 2 hazardous places

Can be used in Zone 21 and Zone 22 hazardous places

Can be used in IIA, IIB and IIC inflammable and explosive gas or dust atmosphere

Strong resistant to corrosion, water and dust, applicable to various harsh environments.

Technical Data

Wattage

Output

Lamp Type

Bulb Lifetime

2×2W

350 lm

 LED

>50,000 hrs



Power Supply

 220V  (work)

DC3.5V(emergency)

Emergency Mode Runtime

36W / 90 min

Explosion Proof Grade

Ex d II C T6

Working Environment Temperature

-20 degree ~ +40 degree

Ingress Protection

IP65

Anticorrosion Grade

WF2

Insulation Grade

I

Cable Diameter

Ø10- Ø14

Dimension

295 x 150 x 275mm

Weight

3.4 kg

Features

1) Anti Explosion LED Emergency lamp

2) 2X2W, 220VAC, Ex d II C T6

3) IP65

4) lithium battery

5) 50,000 hours life

Gallery

Meba-explosion head light-BW6310B

  • Meba-explosion head light-BW6310B

Online Catalogue

[Download not found]
Categories
Explosion-proof Light

Meba-work lamp portable-BW6610A

Meba-detective proofing led light-BW6100H

Meba-work lamp portable-BW6610A

Specification

Application:

Meba work lamp portable BW6610A, an explosion led light which can be instantly started as soon as  the main circuit is cut off and powered by the emergent batteries. Also, it can be controlled with external switches.  It divides into two types: one is emergent light combination, the other one is purely emergent light. For the first one, it can work normally as long as the power is on, at the same time, it owns emergent functions when it is cut off. For the latter one, it usually is on the “OFF” condition.

Ideal for any indoor or outdoor inflammable or explosive places,like chemical industry,exploitation,military work places , emergency lighting when power off.

Can be used in Zone 1 and Zone 2 hazardous places

Can be used in Zone 21 and Zone 22 hazardous places

Can be used in IIA, IIB and IIC inflammable and explosive gas or dust atmosphere

Strong resistant to corrosion, water and dust, applicable to various harsh environments.

Technical Data

Wattage

Output

Lamp Type

Bulb Lifetime

2×2W

350 lm

 LED

>50,000 hrs



Power Supply

 220V  (work)

DC3.5V(emergency)

Emergency Mode Runtime

36W / 90 min

Explosion Proof Grade

Ex d II C T6

Working Environment Temperature

-20 degree ~ +40 degree

Ingress Protection

IP65

Anticorrosion Grade

WF2

Insulation Grade

I

Cable Diameter

Ø10- Ø14

Dimension

295 x 150 x 275mm

Weight

3.4 kg

Features

1) Anti Explosion LED Emergency lamp

2) 2X2W, 220VAC, Ex d II C T6

3) IP65

4) lithium battery

5) 50,000 hours life

Gallery

Meba-work lamp portable-BW6610A

  • Meba-work lamp portable-BW6610A

Online Catalogue

[Download not found]
Categories
Explosion-proof Light

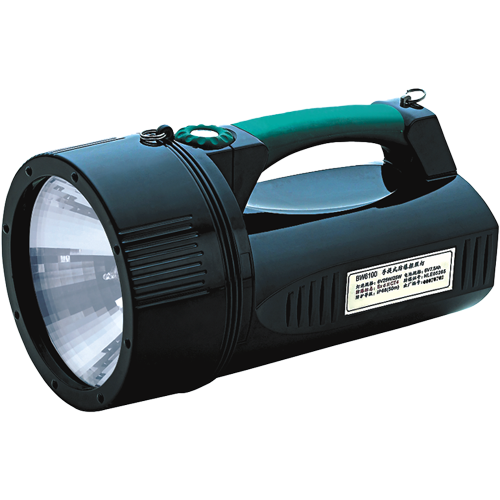

Meba-detective proofing led light-BW6100H

Meba-detective proofing led light-BW6100H

Meba-detective proofing led light-BW6100H

Specification

Application:

Meba detective proofing led light BW6100H, an explosion led light which can be instantly started as soon as  the main circuit is cut off and powered by the emergent batteries. Also, it can be controlled with external switches.  It divides into two types: one is emergent light combination, the other one is purely emergent light. For the first one, it can work normally as long as the power is on, at the same time, it owns emergent functions when it is cut off. For the latter one, it usually is on the “OFF” condition.

It is an efficient lighting tools to be used in military,petrochemistry , oil field, customs inspection, police, patrol, rescue relief, railway, fire fighting etc.

Technical Data

Specification unit BW6100G BW6100H
Rated voltage V 10.8 10.8
Rated Power W 3x3W 3x3W
Rated capacity Ah 2.2 4.4
Light Output(high) LM 680/315 680/315
Effective Beam Distance m 600 600
Runtime (High) h 4. 5 9
Runtime (Low) h 10 20
Recharge Time h 4 8
Service life h 100,000 100,000
 Battery Recharge Cycle times ≈1000 ≈1000
Dimension mm Φ123×205 Φ123×205
Net weight Kg 1.2 1.4

Features

1.Adopts American CREE LED as light source, with 100,000 hours service life.The searchlight is powered by latest lithium ion battery which has no memory effect, low discharge rate and long service life. It is environment friendly.

2.Flame proof type of protection, for safe use in Zone1 and Zone 2 potentially explosive atmosphere.

3.High intensity light and low intensity light switchable. Operator can check the energy left at any time.  It is portable, besides it can be also carried with searchlight holster.

4.Made of imported PC material. The optimal designed structure made the searchlight waterproof, dust proof.

5.The charger is controlled by the intelligent chip, having multiple protection function.

Gallery

Meba-detective proofing led light-BW6100H

  • Meba-detective proofing led light-BW6100H

Online Catalogue

[Download not found]
Categories
Explosion-proof Light

Meba-explosion emergency light-BC5200

Meba-explosion emergency light-BC5200

Meba-explosion emergency light-BC5200

Specification

Application:

Meba explosion emergency light BC5200, an explosion led light which can be instantly started as soon as  the main circuit is cut off and powered by the emergent batteries. Also, it can be controlled with external switches.  It divides into two types: one is emergent light combination, the other one is purely emergent light. For the first one, it can work normally as long as the power is on, at the same time, it owns emergent functions when it is cut off. For the latter one, it usually is on the “OFF” condition.

Ideal for any indoor or outdoor inflammable or explosive places,like chemical industry,exploitation,military work places , emergency lighting when power off.

Can be used in Zone 1 and Zone 2 hazardous places

Can be used in Zone 21 and Zone 22 hazardous places

Can be used in IIA, IIB and IIC inflammable and explosive gas or dust atmosphere

Strong resistant to corrosion, water and dust, applicable to various harsh environments.

Wattage

Output

Lamp Type

Bulb Lifetime

2×2W

350 lm

 LED

>50,000 hrs



Power Supply

 220V  (work)

DC3.5V(emergency)

Emergency Mode Runtime

36W / 90 min

Explosion Proof Grade

Ex d II C T6

Working Environment Temperature

-20 degree ~ +40 degree

Ingress Protection

IP65

Anticorrosion Grade

WF2

Insulation Grade

I

Cable Diameter

Ø10- Ø14

Dimension

295 x 150 x 275mm

Weight

3.4 kg

Features

1) Anti Explosion LED Emergency lamp

2) 2X2W, 220VAC, Ex d II C T6

3) IP65

4) lithium battery

5) 50,000 hours life

Gallery

Meba-explosion emergency light-BC5200

  • Meba-explosion emergency light-BC5200

Online Catalogue

[Download not found]
