Front Board Mounted KWH Meters

Meba-household energy meter-MB074TI

Specification

Application

Meba household energy meter MB074TI is a kind of new style single phase two wire active energy meter, it is designed on the basis of original DD282 single phase electromechanical meter, and fully absorb new technologies about electromechanical meter from domestic and abroad. The meter completely accord with relevant technical requirements of class 2 single phase active energy meter stipulated in international standard IEC 62053-11. It can accurate and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net, it is use for setting indoor or out door meter box. The meter has novel design, rational structure, and it can display total energy consumption by drum wheel mechanical register. It has following features: compact structure design, small size, economy benefits, specious appearance, etc.

Technical Data

Model Accuracy Reference Voltage(V) Current specifications(A) Starting current(A) Insulation performance
MB074TI Class 2 127
230		 10(20)
20(40)
30(60)
40(80)		 0.05
0.1
0.15
0.2		 AC voltage 2kv for 1 minute,
1.2/50us waveform
pulse voltage 6kv

[/acc_item]
[acc_item title=”Installing Diagram“]



Dimension for MB074TI
Dimension for MB074TI







Wiring diagram for Meba-household energy meter-MB074TI
Wiring diagram for  MB074TI



Features

1. Front board two fixed installation, the cover is made of PC material which is transparent and anti-UV molded overall, the bottom of the meter is made of quality steel which is after double-through antirust processing, and the terminal is made of quality bakelite material which is moisture-resistant, fire-retardant, high temperature molded overall. It has following features: economy benefits, specious appearance, etc.
2. The meter frame adopt aluminum molding with excellent mechanical strength, stable structure and anti-impact.
3. Voltage components and current components is used of double insulation structure, has good electrical characteristics.
4. Standard configuration voltage circuit and current circuit connect in the case, may select connect outside.
5. Standard configuration bottom bearing is used of single-precious stone bearing, oriented bearing is made of high wear resistance copper alloy bush and stainless steel needle. May select magnetic thrust bearing (Product Configuration code is TA) or double gem bearing (Product Configuration code is TE).
6. All kinds of error adjustment mechanism adopt no step shifting mechanism. The meter starting and creeping needn’t to be adjust which is finished by anti-creeping hole of disc and convenient for adjusting by users.
7. Standard configuration 5 digits display by drum wheel mechanical register, may select 6 digits display by drum wheel mechanical register (Product Configuration code is TK).
8. Standard configuration without the device which can prevent retrograde, may select add the function of prevent retrograde. (Please specified when ordering).
9. Single component measure single phase two wire active energy consumption. Complying with standard IEC 62053-11.
10. Direct connect operation, there are two types wiring you may select. Standard configuration type 1B wiring, may select type 1A wiring (Product Configuration code is TJ).
11. Standard configuration short terminals cover, may select extension terminals cover, in order to protect to use safety. (Product Configuration code is UI).

Online Catalogue

[Download not found]
Categories
Transformers

Meba Control Transformer JBK5BK

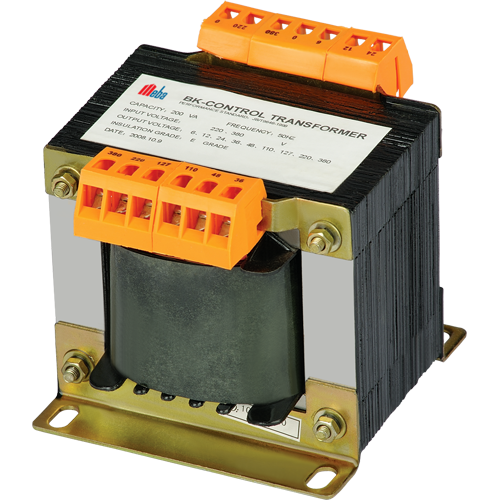

Meba electrical tansformer JBK5BK

Specification

Specifications:

1. JBK5 series machine tool control transformers apply to be used as control power, working light of general electric appliance and mechanical equipment of various trades, and power of signal lamp with AC50-60HZ, input voltage doesn’t exceed 500V, output voltage doesn’t exceed 220V.

2. Transformer provide optimal protection through high permissible ambient temperature up to -40~ 55, a high short-time rating in the case of control transformer, fuseless construction and due to its safety standard to EN61558

Main features:

1. The transformer core is made of high-quality cold-pressing silicon-steel sheet, and copper winding, which guarantees high efficiency and stability in operation.
2. Earth connection uses anti-corrosion alloy material, with higher safety grade.
3. Compact size, less weight, easy wire connection, wide application
4. Products comply with VED0550, IEC61558, IEC439, IEC742, GB/T 5226.1, GB/T 14048.1, JB/T 5555-2001 standards, and CE certified.

Technical Parameter

Type Rated power(VA) Rated input voltage(V) Rated output voltage(V)
JBK5-40 40 Control illumination indication
JBK5-63 63 220±5% 110(127) 24(36) 6(12)
JBK5-100 100
JBK5-160 160
JBK5-250 250
JBK5-400 400
JBK5-500 500
JBK5-630 630
JBK5-800 800
JBK5-1000 1000
JBK5-1600 1600 Distribution of capacity for different windings
JBK5-2500 2500 would be according to the users requirements



Type Rated power(VA) Installing dimensions Outline dimensions Cavity
A C B D E F K or K×J
JBK5-40 40 56±0.2 46±0.5 78 72 95 1.2 4.6×8
JBK5-63 63 56±0.2 46±0.5 78 72 95 1.2 4.6×8
JBK5-100 100 64±0.2 62±0.5 85 75 98 1.5 4.6×8
JBK5-160 160 84±0.2 73.5±0.5 96 92 110 1.5 5.5×10
JBK5-250 250 84±0.2 85±0.5 96 100 110 1.5 5.8×10
JBK5-400 400 90±0.2 85±0.5 120 100 130 2 5.8×10
JBK5-500 500 90±0.2 98 120 120 130 2 5.8×10
JBK5-630 630 122±0.2 90±0.5 150 110 155 2 7×14
JBK5-800 800 122±0.2 105±0.5 150 130 155 2 7×14
JBK5-1000 1000 138±0.2 105±0.5 168 128 170 2 9×15
JBK5-1600 1600 138±0.2 116±0.5 168 140 170 2 9×15
JBK5-1000 1000 127.5±2 152±2 155 205 135 3 7×12
JBK5-1600 1600 140±2 176±2 180 230 153 3 7×12
JBK5-2500 2500 173±2 200±2 205 260 170 4 7×12





Overall Dimension:

JBK5(BK) Control Transformers Overall Dimension

Categories
Temperature Controller

Meba temperature contriller CX-96BD

Meba temperature control CX-96BD

Specification

Meba temperature contriller CX-96BD

1. Our CX-48BD series meter totally adopts imported elements with small volume, light weight, beautiful outline, good reliability, strong shock resistance and anti-jamming.

2. It can be widely used for temperature measure and auto control in different industries like plastic machinery, rubber machinery, packing machinery, dress, food and printing &dyeing etc.

3. Packing way: Standard export carton box with CE.

Technical Parameter

Dimensions(mm) 72mm*72mm 96H*96W*110D
Tmp. Range 0-99.9℃, 0-199℃, 0-299℃, 0-399℃, 0-999℃
Input Indication CA(K,J),PT100Ω
Setting Precision Less than 1% full scale or range display
Indicating Precision Less than ±2℃ Less than 0.5% full scale
Control Action ON/OFF only,proportion type (PD)
Output Mode Relay connection point 5A 250VAC, voltage of non ecting point 12VDC for SSR use
Rated Voltage AC: 110V/220V/380V±10%. 50/60Hz
Proportion Cycle Relay: 15secs, Non connection point:2secs
Power Consumption 3W
Accessory Function sense for temperature sensing line breaking
Ambient Temperature -10℃~+55℃



Signification of Meter Model:

1. meter soutline dimension:
96-96*96mm; 72-72*72mm;
49-48*96mm; 48-48*48mm;

2. temperature set mode:B-code dialing;
set:V-catch plate set

3. temperature indication mode:
D-diqit display;
M-warp indication;
O-full ranqe indication;
N(X)-no indication

Categories
Temperature Controller

Meba refrigerator temperature IL-80EN

Meba refrigerator temperature IL-80EN

Specification

Meba refrigerator temperature IL-80EN

Our IL-80EN  series meter totally adopts imported elements with small volume, light weight, beautiful outline, good reliability, strong shock resistance and anti-jamming. It can be widely used for temperature measure and auto control in different industries like plastic machinery, rubber machinery, packing machinery, dress, food and printing &dyeing etc.

Packing way: Standard export carton box

Certificate: CE



Parameter

Meba refrigerator temperature control-MB-48S

Technical Parameter:

input signal K type, J type thermocouple
precision 1.5 class
adjusting rule two digits mode or time proportion mode
output relay, solid state relay
power supply AC 110V, 220V 50/60Hz
set range 0100%
display error 2.5%, 1.0%
switching difference 7.5%
time proportion adjusting 1.proportional band 3%10%
2.cycle time 3010secs
output contact capacity AC 220v 3A or 1A(sensibility)
work enviroment temperature 050 , place of relative humidity doesnt exceed 85% without corrosive gas
Categories
Temperature Controller

Meba refrigerator temperature control MB-48S

Meba refrigerator temperature control MB-48S

Specification

Meba refrigerator temperature control-MB-48S

Our MB-48S series meter totally adopts imported elements with small volume, light weight, beautiful outline, good reliability, strong shock resistance and anti-jamming. It can be widely used for temperature measure and autocontrol in different industries like plastic machinery, rubber machinery, packing machinery, dress, food and printing &dyeing etc.

Packing way: Standard export carton box

Certificate: CE



Parameter

Meba refrigerator temperature control-MB-48S

Technical Parameter:

input signal K type, J type thermocouple
precision 1.5 class
adjusting rule two digits mode or time proportion mode
output relay, solid state relay
power supply AC 110V, 220V 50/60Hz
set range 0100%
display error 2.5%, 1.0%
switching difference 7.5%
time proportion adjusting 1.proportional band 3%10%
2.cycle time 3010secs
output contact capacity AC 220v 3A or 1A(sensibility)
work enviroment temperature 050 , place of relative humidity doesnt exceed 85% without corrosive gas
Categories
Temperature Controller

Meba refrigerator temperature control-MB-48S

Meba refrigerator temperature control-MB-48S

Specification

Meba refrigerator temperature control-MB-48S

Our MB-48S series meter totally adopts imported elements with small volume, light weight, beautiful outline, good reliability, strong shock resistance and anti-jamming. It can be widely used for temperature measure and autocontrol in different industries like plastic machinery, rubber machinery, packing machinery, dress, food and printing &dyeing etc.

Packing way: Standard export carton box

Certificate: CE

Parameter

Meba refrigerator temperature control-MB-48S

Technical Parameter:

input signal K type, J type thermocouple
precision 1.5 class
adjusting rule two digits mode or time proportion mode
output relay, solid state relay
power supply AC 110V, 220V 50/60Hz
set range 0100%
display error 2.5%, 1.0%
switching difference 7.5%
time proportion adjusting 1.proportional band 3%10%
2.cycle time 3010secs
output contact capacity AC 220v 3A or 1A(sensibility)
work enviroment temperature 050 , place of relative humidity doesnt exceed 85% without corrosive gas
Categories
C Series Moulded Case Circuit Breaker

Meba Mould Case Breakers GWF125

meba mould case breakers GWF125

Specification

·Brief description
1. Compared with traditional circuit breaker or relevant fuse,MEBA C series circuit breaker has excellent protection performance in smaller space, in maximum range can satisfy rated current and faulty current’s requirement.
2. C series  circuit breaker  can  be used in cascade system,  meet next stage circuit breaker’s limit section capacity select protection req-uirement, save whole system cost.
C series circuit breaker complies with IECZ60947-2 international standard;  also comply with main industrial countries standard.
·Features
1. C series  circuit  breaker  including 7 basic frames, frame current from  100  to  2500A.  Each  frame  has up to  415V 100KA （AC240V 200KA）short circuit breaking capacity multiple choice, more flexibility in design, and save space as well.
2. Actually, using  C series  circuit breaker  can  avoid  in  re-design system.  It  can be used in original  switchboard,  feeder ark, bus duct, equipment control panel,  motor  control  center  substitute of old type circuit  breaker.  At  most situations,  can  adopt  same Connector bar, terminal and shaft structure.
3. Circuit  breaker  stan dard  temperature  is  40  degree,  for other higher  ambient  temperature  situation,  can  use  50  degree  factory finalize type design circuit breaker.
4. C series circuit breaker can be used in DC situation as well, 630A frame  3P  circuit breaker   concatenation  used  in  DC600V  breaking capacity can reach 40KA.

·Most reasonable contact terminal system design
C series circuit breaker flexible and special specific is adopt one of the most reasonable design in circuit breaker history, can assure circuit breaker in high fault current fast and reliable breaking.

·Whole testing process in factory
Each C series circuit breaker steady and reliable quality is acc-ording to a whole testing procedure assurance, each circuit breaker’s same pole has to make two times setting test to verify trip,  operating characteristic and electric circuit contentiously.

·High breaking capacity in smaller space
C circuit breaker in shape and electric function can be interchan-ged with Westinghouse moulded case circuit breaker, this means C series circuit breaker is ideal product after  improve its equipment design.
·Operation structure
1.C  series  circuit breaker adopt in fast-separate  and  fast-close mechanical  operation,  which has free trip function,  assure  circuit breaker in short circuit time can not keep closed.
2. Circuit  breaker’s  trip shaft’s  position and two sides’  windows point its working condition:  ‘witch-on’, ‘reak- brake’ and ‘rip’ If circuit breaker overloading,  short circuit, shunt  or  under voltage or press TEST button makes trip, shaft will slip to ‘rip’ position. At mean while if need  circuit  breaker re-switch on,  it should switch shaft to reset position then break brake.

·Current limit feature
　　C series circuit breaker adopts high repulsion contact terminal structure and advantage ARC technology, so it has significant currentlimit function.
·Standard
　　IEC60947-1：General rule
IEC60947-2：Circuit breaker
IEC60947-3：Switch, isolating switch, load switch etc.

C Series Trip unit type work

Technical Parameter

GWF 125 parameter

Working condition:
1.The altitude not exceeding 2000m
2.The ambient temperature is from +40°Cto -5°C
3.Ambient environment is free from explosive danger and air or dust, which may cause corrosion of metal or weakness of insulation.
4.Ambient environment is free from erosion of rain or snow.
5.Pollution degree 3
6.Over-voltage category III

C series MCCB Structure

PDF Download

[Download not found]Meba Mould Case Breakers GWF125 is big ampere circuit breaker  with high breaking capacity match with RCCB, MCB  use  to protection power distribution equipment safety.

Categories
MTmax Moulded Case Circuit Breaker

Meba MCCB Breaker Protection MBS250

meba mccb breaker MBS250

Application

1. EZC-250F MCCB series is one of breakers which adopts international advanced design, manufacture technology to develop.

2.The rated insulating voltage is 500V, suitable for AC 50Hz(60Hz), rated working voltage 500V or below, rated working current is 15A to 250A of circuit and use in distributing electric energy.

3. It complies with standard of IEC60947-2.

Classification:

1. Installation way: Mounted vertically, Horizontal installation;
2. By use of circuit breaker usage: Distribution protection, Motor protection;
3. According to the mode of wiring points: Front panel wiring, Back panel wiring , Plug-in connection;
4. According to the mode of operation: direct operating handle, External turning the handle operations, electric operation;
5. By release type distinction: instantaneous action release (magnetic release), thermal + electromagnetic release (duplex); electronic release;
6. Poles Number: 3poles, 4poles;

Specification

Type MBS-125 MBS-250
Poles No. 3 3
Rated Current In(A) 16, 20, 25, 32, 40, 50, 60, 80, 100, 125 63, 80, 100, 125, 160, 200, 225, 250
Rated Insulation Voltage Ui(V) 690 690
Rated Impulse Withstand Voltage(Kv) 6 8
Utilisation Category A A
Rated Breaking Capacity(KA)Icu/Ics 220/240VAC 25/7 40/40
380/415VAC 18/5 25/25
660/690VAC – 12/6

Working condition:
1.The altitude not exceeding 2000m
2.The ambient temperature is from +40°Cto -5°C
3.Ambient environment is free from explosive danger and air or dust, which may cause corrosion of metal or weakness of insulation.
4.Ambient environment is free from erosion of rain or snow.
5.Pollution degree 3
6.Over-voltage category III

Trip characteristic:
The thermodynamic release of the breaker has the advantages of inverse time-delay while the magnetic release the instantaneous operation as shown on table 2(distribution circuit breaker)and table 3(motor protection circuit breaker).

Overall & Installation Dimensions:

MBS series Overall & Installation Dimensions

PDF Download

[Download not found]Meba MCCB Breaker Protection MBS250 is big ampere circuit breaker  with high breaking capacity match with RCCB, MCB  use  to protection power distribution equipment safety.

Categories
MTmax Moulded Case Circuit Breaker

Meba MCCB Breaker MBS125-1P

meba mccb breaker MBS125

Application

1. EZC-250F MCCB series is one of breakers which adopts international advanced design, manufacture technology to develop.

2.The rated insulating voltage is 500V, suitable for AC 50Hz(60Hz), rated working voltage 500V or below, rated working current is 15A to 250A of circuit and use in distributing electric energy.

3. It complies with standard of IEC60947-2.

Classification:

1. Installation way: Mounted vertically, Horizontal installation;
2. By use of circuit breaker usage: Distribution protection, Motor protection;
3. According to the mode of wiring points: Front panel wiring, Back panel wiring , Plug-in connection;
4. According to the mode of operation: direct operating handle, External turning the handle operations, electric operation;
5. By release type distinction: instantaneous action release (magnetic release), thermal + electromagnetic release (duplex); electronic release;
6. Poles Number: 3poles, 4poles;

Specification

Type MBS-125 MBS-250
Poles No. 3 3
Rated Current In(A) 16, 20, 25, 32, 40, 50, 60, 80, 100, 125 63, 80, 100, 125, 160, 200, 225, 250
Rated Insulation Voltage Ui(V) 690 690
Rated Impulse Withstand Voltage(Kv) 6 8
Utilisation Category A A
Rated Breaking Capacity(KA)Icu/Ics 220/240VAC 25/7 40/40
380/415VAC 18/5 25/25
660/690VAC – 12/6

Working condition:
1.The altitude not exceeding 2000m
2.The ambient temperature is from +40°Cto -5°C
3.Ambient environment is free from explosive danger and air or dust, which may cause corrosion of metal or weakness of insulation.
4.Ambient environment is free from erosion of rain or snow.
5.Pollution degree 3
6.Over-voltage category III

Trip characteristic:
The thermodynamic release of the breaker has the advantages of inverse time-delay while the magnetic release the instantaneous operation as shown on table 2(distribution circuit breaker)and table 3(motor protection circuit breaker).

Overall & Installation Dimensions:

MBS series Overall & Installation Dimensions

PDF Download

[Download not found]Meba MCCB Breaker MBS125-1P is big ampere circuit breaker  with high breaking capacity match with RCCB, MCB  use  to protection power distribution equipment safety.

Categories
MTmax Moulded Case Circuit Breaker

Meba Mould Case Breaker EZC-100F

meba mould case breaker EZC-100F

Application

1. EZC-250F MCCB series is one of breakers which adopts international advanced design, manufacture technology to develop.

2.The rated insulating voltage is 500V, suitable for AC 50Hz(60Hz), rated working voltage 500V or below, rated working current is 15A to 250A of circuit and use in distributing electric energy.

3. It complies with standard of IEC60947-2.

Classification:

1. Installation way: Mounted vertically, Horizontal installation;
2. By use of circuit breaker usage: Distribution protection, Motor protection;
3. According to the mode of wiring points: Front panel wiring, Back panel wiring , Plug-in connection;
4. According to the mode of operation: direct operating handle, External turning the handle operations, electric operation;
5. By release type distinction: instantaneous action release (magnetic release), thermal + electromagnetic release (duplex); electronic release;
6. Poles Number: 3poles, 4poles;

Specification

Type

EZC60E

EZC100B

EZC100D

EZC160D

EZC250D

Poles No.

3

3

3

3

3

Rated Current In(A)

15, 20, 25, 30, 40, 50, 60

15, 20, 25, 30, 40, 50, 60, 75, 80, 100

15, 20, 25, 30, 40, 50, 60, 75, 80, 100

125, 160

200, 225, 250

Rated Operating Voltage Ue(V)(50/60Hz)

500

500

500

500

500

Rated Insulation Voltage Ui(V)

500

500

500

500

500

Rated Impulse Voltage Uimp(Kv)

6

6

6

6

6

Utilisation Category

A

A

A

A

A

Rated Limited Breaking Capacity Icu(KA)

220/240V

7.5

25

25

85

85

380V

7.5

10

18

18

18

400V

7.5

10

15

15

15

Rated Used Breaking Capacity Ics(%Icu)

25

50

50

50

50

Working condition:
1.The altitude not exceeding 2000m
2.The ambient temperature is from +40°Cto -5°C
3.Ambient environment is free from explosive danger and air or dust, which may cause corrosion of metal or weakness of insulation.
4.Ambient environment is free from erosion of rain or snow.
5.Pollution degree 3
6.Over-voltage category III

Trip characteristic:
The thermodynamic release of the breaker has the advantages of inverse time-delay while the magnetic release the instantaneous operation as shown on table 2(distribution circuit breaker)and table 3(motor protection circuit breaker).

Overall & Installation Dimensions:

EZC Series Overall & Installation Dimensions

PDF Download

[Download not found]Meba Mould Case Breaker EZC-100F is big ampere circuit breaker  with high breaking capacity match with RCCB, MCB  use  to protection power distribution equipment safety.

Categories
Temperature Controller

Meba temp controller CXTG-3000

Meba temp controller CXTG-3000

Specification

Meba temp controller CXTG-3000

1. Four different kinds input types(thermo couple dual input, hot resistance dual input, linear dual input, RTD and linear dual input )
2. Linear meter main input supports extraction and small signal excision.
3. Switching value control can distribute to main, deputy input randomly.
4. Max. with 5 switching values output, one is responsible for monitor in put section of line break, thermocouple break, resistance break, other 4 for on-off control or programmable dual timing, counting or intelligent photoelectric alarm.
5. May realize associating alarm control mode.
6. Main, deputy input supports simulation output independently.
7. Main, deputy input support calculating.
8. 8 kinds of alarm control mode for choice.
9. Use 85~VAC switching power supply.

Packing way: Standard export carton box

Certificate: CE

Parameter

Meba temp controller CXTG-3000

Technical Parameter:

Input Thermocouple(TC), Resistance Temperature Detector(RTD), Standard Current and voltage signals.
Display Process Value(PV), Setting Value(SV): -1999~+1999
Output( OUT1, OUT2) Alarm(Alarm1, Alarm2) Auto setting(AT) Display: LED
Control way 1). PID Control(including ON/OFF, position PID and continuous PID)
2). Auto Setting Control
Accuracy Measurement Accuracy: 0.5%FS Compensation error of cold terminal: 2(amend within 0~50 by soft)
Resolution: 14bit. Sampling period: 0.5Sec.
Setting Range Setting Value(SV): same range with PV
Proportional Band(P): 0~full range(ON/OFF Control when set to 0)
Integration Time(I): 0~3600Sec (no integral action when set to 0)
Derivative Time(D): 0~3600Sec(no derivative action when set to 0)
Proportional Period: 1~100Sec
On-off control output hysteretic loop width: 1~100(or other PV units)
Control Output (1)Currency output: DC 0~10Ma, 4~20mA(RL<500Ω)
(2)Voltage output: DC 0~5V, 1~5V(RL>10K)
(3)Relay output: Contact capacity:250V AC 3A(resistive load)
(4)Voltage Impulse output: 0-12V(applicable for solid state relay SSR)
(5)Silicon Controlled Rectifier(SCR) output: zero-cross triggering or phase-shift triggering(resistive load)
(6)Output Contact Capacity: 250V AC 3A
Alarm output 2 groups output at most, 12 modes
Inanlating resistanle 50M(500V DC)
Inanlating intensity 1500V AC/min
Power consumed 10 VA
Work condition 050, 3085RH, no corrosive gas
Weight abt.0.5Kg(CXTA type)

Model Name

1. Outline dimension: See the outline dimension picture
2. Serial number
3. Control Mode
– 0: PID operation and auto calculating(reverse operation)
– 1: PID operation and auto calculating(Forward operation)
4. Input mode: Refer to input Range Table
– 0: TC, RTD
– 1: Standard current: 420mA, 020mA
– 2: Standard voltage: 05V DC, 15V DC
– 3:electronic sigral code:()
5. Femperature unit
– 0:Degree celsius ()
– 1:Fahrenheit (F)
6. First control output(OUT1) (Heating side)
– M: Relay contact output
– V: Voltage impulse output
– T: Thyratron output
– 8: Current output(IC4-20mA)
– G: Thyratron driving & triggering output		 7. Second control output(OUT2) (Cooling side)
– No mark: when the control mode is F or D
– M: Relay contact output T: Thyratron output
– V: Voltage impulse output 8: Current output(IC 4-20mA)
– T: Thyratron output
– 8: Current output(IC 4-20mA)
8. First alarm(ALM1)
9. Second alarm (ALM2)
– N: No alarm
– A: Upper-limit deviation alarm
– B: Lower-limit bias alarm
– C: Upper/lower limit bias alarm
– D: Alarm in area
– E: Standby upper-limit bias alarm attached
– F: Standby lower-limit bias alarm attached
– G: Standby upper/lower limit bias alarm
– H: Upper-limit input value alarm
– J: Lower-limit input alarm
– K: Standby upper-limit input alarm attached
– L: Standby lower-limit input alarm attached

Extemal Dimensin

REX-C00 CXT-3000 A B C D E F G H
C100 CXTG 48 48 10 100 45 45 80 80
C400 CXTE 96 48 10 100 92 45 116 80
C410 CXTF 48 96 10 100 45 92 80 116
C700 CXTD 72 72 10 100 68 65 90 96
C900 CXTA 90 90 10 100 92 92 116 116
C800 CXTM 80 160 10 100 76 152 105 190
Categories
MTmax Moulded Case Circuit Breaker

Meba Moulded Case Circuit Breakers EZC-250F

Application

1. EZC-250F MCCB series is one of breakers which adopts international advanced design, manufacture technology to develop.

2.The rated insulating voltage is 500V, suitable for AC 50Hz(60Hz), rated working voltage 500V or below, rated working current is 15A to 250A of circuit and use in distributing electric energy.

3. It complies with standard of IEC60947-2.

Classification:

1. Installation way: Mounted vertically, Horizontal installation;
2. By use of circuit breaker usage: Distribution protection, Motor protection;
3. According to the mode of wiring points: Front panel wiring, Back panel wiring , Plug-in connection;
4. According to the mode of operation: direct operating handle, External turning the handle operations, electric operation;
5. By release type distinction: instantaneous action release (magnetic release), thermal + electromagnetic release (duplex); electronic release;
6. Poles Number: 3poles, 4poles;

Specification

Type

EZC60E

EZC100B

EZC100D

EZC160D

EZC250D

Poles No.

3

3

3

3

3

Rated Current In(A)

15, 20, 25, 30, 40, 50, 60

15, 20, 25, 30, 40, 50, 60, 75, 80, 100

15, 20, 25, 30, 40, 50, 60, 75, 80, 100

125, 160

200, 225, 250

Rated Operating Voltage Ue(V)(50/60Hz)

500

500

500

500

500

Rated Insulation Voltage Ui(V)

500

500

500

500

500

Rated Impulse Voltage Uimp(Kv)

6

6

6

6

6

Utilisation Category

A

A

A

A

A

Rated Limited Breaking Capacity Icu(KA)

220/240V

7.5

25

25

85

85

380V

7.5

10

18

18

18

400V

7.5

10

15

15

15

Rated Used Breaking Capacity Ics(%Icu)

25

50

50

50

50

Working condition:
1.The altitude not exceeding 2000m
2.The ambient temperature is from +40°Cto -5°C
3.Ambient environment is free from explosive danger and air or dust, which may cause corrosion of metal or weakness of insulation.
4.Ambient environment is free from erosion of rain or snow.
5.Pollution degree 3
6.Over-voltage category III

Trip characteristic:
The thermodynamic release of the breaker has the advantages of inverse time-delay while the magnetic release the instantaneous operation as shown on table 2(distribution circuit breaker)and table 3(motor protection circuit breaker).

Overall & Installation Dimensions:

EZC Series Overall & Installation Dimensions

PDF Download

[Download not found] Meba Moulded Case Circuit Breakers EZC-250F is big ampere circuit breaker  with high breaking capacity match with RCCB, MCB  use  to protection power distribution equipment safety.

Categories
Temperature Controller

Meba temperature control system CXTS-90005

Meba temperature control system CXTS-90005

Specification

Meba temperature control system CXTS-90005

1. Four different kinds input types(thermo couple dual input, hot resistance dual input, linear dual input, RTD and linear dual input )
2. Linear meter main input supports extraction and small signal excision.
3. Switching value control can distribute to main, deputy input randomly.
4. Max. with 5 switching values output, one is responsible for monitor in put section of line break, thermocouple break, resistance break, other 4 for on-off control or programmable dual timing, counting or intelligent photoelectric alarm.
5. May realize associating alarm control mode.
6. Main, deputy input supports simulation output independently.
7. Main, deputy input support calculating.
8. 8 kinds of alarm control mode for choice.
9. Use 85~VAC switching power supply.

Packing way: Standard export carton box

Certificate: CE



Parameter

Meba temperature control system CXTS-90005

Technical Parameter:

Outline
Dimension		 □ outline dimension is 160x80m(length*height) (holing dimension 152x76m)
S outline dimension is 80x160mm (holing dimension is 76x152mm)
A outline dimension is 96x96mm (holing dimension 92x92mm)
D outline dimension is 72x72mm (holing dimension 68x68mm mm)
9 design code(intelligent series)
Control
Output		 0 no control output
2 two relays alarm(randomly distributes to main, deputy input)
3 three relays alarm(randomly distributes to main, deputy input)
4 four relays alarm(randomly distributes to main, deputy input)
9 user’s special requirement for control output mode(remark in ordering)
Alarm
Function		 0 no alarm function
2 Special responsible for thermocouple break, resistance break, line break alarm.
3 realize associated alarm to a relay with two specified value combination
4 SP3 selectively monitors three switching values to realize intelligent photoelectrical alarm with silencing and time
9 user’s special requirement for alarm function
Transmitting
Output		 0 no transmitting output
1 main or deputy input independently transmitting output
2 (main input± deputy input)x(Lup-Ldo)
3 (main input±deputy input)x(Lup-Ldo)+shifting+PFS
9 user’s other requirement for transmitting output(remark in ordering )
Input
Mode		 1 when main/deputy input are same thermocouple K,E,S,B,J etc(when same sensor is necessary, remarking in ordering )
2 when main/deputy input are same thermal resistance pt100. Cu50 etc. (when sensor is necessary, remarking in ordering)
3 when main/deputy input are same current or voltage (when same sensor is necessary, remarking in ordering )
4 Main input is pt100, deputy input is linear current or voltage (remark value of current and voltage in ordering )
Feeding no 24V feeding output
P 24V feeding output
Power
Supply		 switching power supply85~264AC
D 24V power supply
Communication no communication interface function
T A RS485 communication interface function cation
Categories
Front Board Mounted KWH Meters

Meba-multifunctional kwh meter -MB313DS

Meba-multifunctional kwh meter -MB313DS

Specification

Application
Meba multifunctional kwh meter  MB313DS  is a kind of new style single phase two wire active energy meter, it adopt micro-electronics technique, and imported large scale integrate circuit, use advanced technique of digital and SMT techniques, etc. The meter completely accord with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC 62053-21. It can accurate and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net, it is use for setting indoor or setting out door directly, and this meter has seven digits LCD displays shows the active energy consumption. And there is a maintenance-free lithium batteries in it, use for displaying power cut reading. It has following features: good reliability, small volume, light weight, specious nice appearance, convenient installation, etc.

Technical Data

Model Accuracy Reference Voltage(V) Current specifications(A) Starting current(A) Insulation performance
MB313DS Class 1 127
230		 5(30)
10(60)
20(100)		 0.02
0.04
0.08		 AC voltage 4kv for 1 minute,
1.2/50us waveform
pulse voltage 6kv

Installing Diagram

Dimension for MB313DS
Dimension for MB313DS



Wiring diagram for MB313DS
Wiring diagram for MB313DS

Features

1. Front board three fixed installation, the cover is made of PC material which is transparent and anti-UV molded overall, the bottom and the terminal of the meter are made of black glass fiber which can fire-retardant and enhanced PC material, and the IP rating up to IP56. It has following features: good weatherability, anti-impact, good insulation performance, specious appearance, etc.
2. Standard configuration the bottom and the terminal of the meter are closed by the screw of the meter, may select the bottom and the terminal of the meter are closed by ultrasonic. (Please specified when ordering).
3. Seven digits display LCD, standard configuration 6+1 digits display (999999.1kWh,). May select 5+2 digits display (Please specified when ordering).
4. There is a maintenance-free lithium batteries in it, use for displaying power cut reading.
5. Standard configuration one port of pulse output passive (polarity), May select increase a distant port of pulse output passive (nonpolarity). And contact with all kind of AMR system conveniently, Complying with standard IEC 62053-31 and DIN 43864.
6. Two LED instructions respectively power supply state (green) and signal of energy impulse (red).
7. Automatic detection the direction of the flow of load current. And Instructions on individual LED. (Only yellow energy impulse signal when working, that is meaning the direction of the flow of load current reverse).
8. Single direction single component measurement single phase two wire active energy consumption. It is nothing with direction of the flow of load current. Complying with standard IEC 62053-21.
9. Direct connect operation, there are two types wiring you may select. Standard configuration type 1A wiring, may select type 1B wiring (Product Configuration code is MF).
10. Standard configuration extension terminals cover, in order to protect to use safety, may select short terminals cover. (Product Configuration code is DR).

Gallery

Online Catalogue

[Download not found]
Categories
Temperature Controller

Meba ranco temp controller CXTS-90004

Meba ranco temp controller CXTS-90004

Specification

Meba ranco temp controller CXTS-90004

1. Four different kinds input types(thermo couple dual input, hot resistance dual input, linear dual input, RTD and linear dual input )
2. Linear meter main input supports extraction and small signal excision.
3. Switching value control can distribute to main, deputy input randomly.
4. Max. with 5 switching values output, one is responsible for monitor in put section of line break, thermocouple break, resistance break, other 4 for on-off control or programmable dual timing, counting or intelligent photoelectric alarm.
5. May realize associating alarm control mode.
6. Main, deputy input supports simulation output independently.
7. Main, deputy input support calculating.
8. 8 kinds of alarm control mode for choice.
9. Use 85~VAC switching power supply.

Packing way: Standard export carton box

Certificate: CE



Parameter

Meba ranco temp controller CXTS-90004

Technical Parameter:

Outline
Dimension		 □ outline dimension is 160x80m(length*height) (holing dimension 152x76m)
S outline dimension is 80x160mm (holing dimension is 76x152mm)
A outline dimension is 96x96mm (holing dimension 92x92mm)
D outline dimension is 72x72mm (holing dimension 68x68mm mm)
9 design code(intelligent series)
Control
Output		 0 no control output
2 two relays alarm(randomly distributes to main, deputy input)
3 three relays alarm(randomly distributes to main, deputy input)
4 four relays alarm(randomly distributes to main, deputy input)
9 user’s special requirement for control output mode(remark in ordering)
Alarm
Function		 0 no alarm function
2 Special responsible for thermocouple break, resistance break, line break alarm.
3 realize associated alarm to a relay with two specified value combination
4 SP3 selectively monitors three switching values to realize intelligent photoelectrical alarm with silencing and time
9 user’s special requirement for alarm function
Transmitting
Output		 0 no transmitting output
1 main or deputy input independently transmitting output
2 (main input± deputy input)x(Lup-Ldo)
3 (main input±deputy input)x(Lup-Ldo)+shifting+PFS
9 user’s other requirement for transmitting output(remark in ordering )
Input
Mode		 1 when main/deputy input are same thermocouple K,E,S,B,J etc(when same sensor is necessary, remarking in ordering )
2 when main/deputy input are same thermal resistance pt100. Cu50 etc. (when sensor is necessary, remarking in ordering)
3 when main/deputy input are same current or voltage (when same sensor is necessary, remarking in ordering )
4 Main input is pt100, deputy input is linear current or voltage (remark value of current and voltage in ordering )
Feeding no 24V feeding output
P 24V feeding output
Power
Supply		 switching power supply85~264AC
D 24V power supply
Communication no communication interface function
T A RS485 communication interface function cation
Categories
Temperature Controller

Meba pid tuning CXTM-90002

Meba pid tuning CXTM-90002

Specification

Meba pid tuning CXTM-90002

1. Four different kinds input types(thermo couple dual input, hot resistance dual input, linear dual input, RTD and linear dual input )
2. Linear meter main input supports extraction and small signal excision.
3. Switching value control can distribute to main, deputy input randomly.
4. Max. with 5 switching values output, one is responsible for monitor in put section of line break, thermocouple break, resistance break, other 4 for on-off control or programmable dual timing, counting or intelligent photoelectric alarm.
5. May realize associating alarm control mode.
6. Main, deputy input supports simulation output independently.
7. Main, deputy input support calculating.
8. 8 kinds of alarm control mode for choice.
9. Use 85~VAC switching power supply.

Packing way: Standard export carton box

Certificate: CE



Parameter

Meba pid tuning CXTM-90002

Technical Parameter:

Outline
Dimension		 □ outline dimension is 160x80m(length*height) (holing dimension 152x76m)
S outline dimension is 80x160mm (holing dimension is 76x152mm)
A outline dimension is 96x96mm (holing dimension 92x92mm)
D outline dimension is 72x72mm (holing dimension 68x68mm mm)
9 design code(intelligent series)
Control
Output		 0 no control output
2 two relays alarm(randomly distributes to main, deputy input)
3 three relays alarm(randomly distributes to main, deputy input)
4 four relays alarm(randomly distributes to main, deputy input)
9 user’s special requirement for control output mode(remark in ordering)
Alarm
Function		 0 no alarm function
2 Special responsible for thermocouple break, resistance break, line break alarm.
3 realize associated alarm to a relay with two specified value combination
4 SP3 selectively monitors three switching values to realize intelligent photoelectrical alarm with silencing and time
9 user’s special requirement for alarm function
Transmitting
Output		 0 no transmitting output
1 main or deputy input independently transmitting output
2 (main input± deputy input)x(Lup-Ldo)
3 (main input±deputy input)x(Lup-Ldo)+shifting+PFS
9 user’s other requirement for transmitting output(remark in ordering )
Input
Mode		 1 when main/deputy input are same thermocouple K,E,S,B,J etc(when same sensor is necessary, remarking in ordering )
2 when main/deputy input are same thermal resistance pt100. Cu50 etc. (when sensor is necessary, remarking in ordering)
3 when main/deputy input are same current or voltage (when same sensor is necessary, remarking in ordering )
4 Main input is pt100, deputy input is linear current or voltage (remark value of current and voltage in ordering )
Feeding no 24V feeding output
P 24V feeding output
Power
Supply		 switching power supply85~264AC
D 24V power supply
Communication no communication interface function
T A RS485 communication interface function cation
Categories
Temperature Controller

Meba pid temperature controller CXTS-90001

Meba pid temperature controller CXTS-90001

Specification

Meba pid temperature controller CXTS-90001

1. Four different kinds input types(thermo couple dual input, hot resistance dual input, linear dual input, RTD and linear dual input )
2. Linear meter main input supports extraction and small signal excision.
3. Switching value control can distribute to main, deputy input randomly.
4. Max. with 5 switching values output, one is responsible for monitor in put section of line break, thermocouple break, resistance break, other 4 for on-off control or programmable dual timing, counting or intelligent photoelectric alarm.
5. May realize associating alarm control mode.
6. Main, deputy input supports simulation output independently.
7. Main, deputy input support calculating.
8. 8 kinds of alarm control mode for choice.
9. Use 85~VAC switching power supply.

Packing way: Standard export carton box

Certificate: CE



Parameter

Meba pid temperature controller CXTS-90001

Technical Parameter:

Outline
Dimension		 □ outline dimension is 160x80m(length*height) (holing dimension 152x76m)
S outline dimension is 80x160mm (holing dimension is 76x152mm)
A outline dimension is 96x96mm (holing dimension 92x92mm)
D outline dimension is 72x72mm (holing dimension 68x68mm mm)
9 design code(intelligent series)
Control
Output		 0 no control output
2 two relays alarm(randomly distributes to main, deputy input)
3 three relays alarm(randomly distributes to main, deputy input)
4 four relays alarm(randomly distributes to main, deputy input)
9 user’s special requirement for control output mode(remark in ordering)
Alarm
Function		 0 no alarm function
2 Special responsible for thermocouple break, resistance break, line break alarm.
3 realize associated alarm to a relay with two specified value combination
4 SP3 selectively monitors three switching values to realize intelligent photoelectrical alarm with silencing and time
9 user’s special requirement for alarm function
Transmitting
Output		 0 no transmitting output
1 main or deputy input independently transmitting output
2 (main input± deputy input)x(Lup-Ldo)
3 (main input±deputy input)x(Lup-Ldo)+shifting+PFS
9 user’s other requirement for transmitting output(remark in ordering )
Input
Mode		 1 when main/deputy input are same thermocouple K,E,S,B,J etc(when same sensor is necessary, remarking in ordering )
2 when main/deputy input are same thermal resistance pt100. Cu50 etc. (when sensor is necessary, remarking in ordering)
3 when main/deputy input are same current or voltage (when same sensor is necessary, remarking in ordering )
4 Main input is pt100, deputy input is linear current or voltage (remark value of current and voltage in ordering )
Feeding no 24V feeding output
P 24V feeding output
Power
Supply		 switching power supply85~264AC
D 24V power supply
Communication no communication interface function
T A RS485 communication interface function cation
Categories
Photoelectric Switch

Meba Sensor Connector RK

meba sensor RK

Specification

Sensor Connector RK Series

   outward appearance code                          RK02-2-3-N                  RK02-2-3-P      RK02-2-4-N        RK02-2-4-P
   Application     NPN    NO/NC       PNP      NO/NC    NPN     NO+NC      PNP   NO+NC
   Color             black / orange                black /orange           black /Orange        black/ orange
   Material             Cuzn. nickel plated          Cuzn. nickel plated        Cuzn, nickel plated    Cuzn. nickel plated
   Over-circuit                      4.0A                   4.0A              4.0A           4.0A
   Rated-voltage                     250V                  250V              250V           250V
   Cable material                      PVC                  PVC               PVC          PVC
   Insulator  color
   Output display                     LED                  LED               LED           LED
   Power indicator                     LED                  LED               LED           LED
   Cable length                     2m                   2m               2m
   Data                  bn, bu,bk            bn. bu ,bk       bn,bu,bk.wh          bn,bu,bk,wh
                3x 0.5           3 X 0.5          4 X 0.34          4 X0.34
   Protection level                 IP67                 IP67              IP67              IP67

Main features:
1. Compact volume
2. High precision of repeated location
3. Diversified exterior structures
4. Good performance of anti-interference
5. Many output forms
6. High on-off frequency
7. Wide voltage range
8. Dust proof, vibration proof, water proof and oil proof
9. With short-circuit protection and inverted connecting protection
10. Long service life

Categories
Temperature Controller

Meba pid temp controller CXTS-90003

Meba pid temp controller CXTS-90003

Specification

Meba pid temp controller CXTS-90003

1. Four different kinds input types(thermo couple dual input, hot resistance dual input, linear dual input, RTD and linear dual input )
2. Linear meter main input supports extraction and small signal excision.
3. Switching value control can distribute to main, deputy input randomly.
4. Max. with 5 switching values output, one is responsible for monitor in put section of line break, thermocouple break, resistance break, other 4 for on-off control or programmable dual timing, counting or intelligent photoelectric alarm.
5. May realize associating alarm control mode.
6. Main, deputy input supports simulation output independently.
7. Main, deputy input support calculating.
8. 8 kinds of alarm control mode for choice.
9. Use 85~VAC switching power supply.

Packing way: Standard export carton box

Certificate: CE

Parameter

Meba pid temp controller CXTS-90003

Technical Parameter:

Outline
Dimension		 □ outline dimension is 160x80m(length*height) (holing dimension 152x76m)
S outline dimension is 80x160mm (holing dimension is 76x152mm)
A outline dimension is 96x96mm (holing dimension 92x92mm)
D outline dimension is 72x72mm (holing dimension 68x68mm mm)
9 design code(intelligent series)
Control
Output		 0 no control output
2 two relays alarm(randomly distributes to main, deputy input)
3 three relays alarm(randomly distributes to main, deputy input)
4 four relays alarm(randomly distributes to main, deputy input)
9 user’s special requirement for control output mode(remark in ordering)
Alarm
Function		 0 no alarm function
2 Special responsible for thermocouple break, resistance break, line break alarm.
3 realize associated alarm to a relay with two specified value combination
4 SP3 selectively monitors three switching values to realize intelligent photoelectrical alarm with silencing and time
9 user’s special requirement for alarm function
Transmitting
Output		 0 no transmitting output
1 main or deputy input independently transmitting output
2 (main input± deputy input)x(Lup-Ldo)
3 (main input±deputy input)x(Lup-Ldo)+shifting+PFS
9 user’s other requirement for transmitting output(remark in ordering )
Input
Mode		 1 when main/deputy input are same thermocouple K,E,S,B,J etc(when same sensor is necessary, remarking in ordering )
2 when main/deputy input are same thermal resistance pt100. Cu50 etc. (when sensor is necessary, remarking in ordering)
3 when main/deputy input are same current or voltage (when same sensor is necessary, remarking in ordering )
4 Main input is pt100, deputy input is linear current or voltage (remark value of current and voltage in ordering )
Feeding no 24V feeding output
P 24V feeding output
Power
Supply		 switching power supply85~264AC
D 24V power supply
Communication no communication interface function
T A RS485 communication interface function cation
Categories
Front Board Mounted KWH Meters

Meba-digital smart powering meterings-MB074QE

Digital smart powering meterings-MB074QE

Specification

Application

Meba digital smart powering meterings MB074QE is a kind of new style single phase two wire active energy meter, it is designed on the basis of original DD282 single phase electromechanical meter, and fully absorb new technologies about electromechanical meter from domestic and abroad. The meter completely accord with relevant technical requirements of class 2 single phase active energy meter stipulated in international standard IEC 62053-11. It can accurate and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net, it is use for setting indoor or out door meter box. The meter has novel design, rational structure, and it can display total energy consumption by drum wheel mechanical register. It has following features: compact structure design, small size, economy benefits, specious appearance, etc.[/acc_item]
Technical Data

Model Accuracy Reference Voltage(V) Current specifications(A) Starting current(A) Insulation performance
MB074QE Class 2 127
230		 10(20)
20(40)
30(60)
40(80)		 0.05
0.1
0.15
0.2		 AC voltage 2kv for 1 minute,
1.2/50us waveform
pulse voltage 6kv

Installing Diagram

Dimension for Digital smart powering meterings-MB074QE
Dimension for MB074QE





Wiring diagram for Digital smart powering meterings-MB074QE
Wiring diagram for MB074QE

Features

1. Front board two fixed installation, the cover is made of high definition transparent glass material molded overall, the bottom of the meter is made of quality steel which is after double-through antirust processing, and the terminal is made of quality bakelite material which is moisture-resistant, fire-retardant, high temperature molded overall. It has following features: good weatherability, high rigid, specious appearance, etc.
2. The meter frame adopt aluminum molding with excellent mechanical strength, stable structure and anti-impact.
3. Voltage components and current components is used of double insulation structure, has good electrical characteristics.
4. Standard configuration voltage circuit and current circuit connect in the case, may select connect outside.
5. Standard configuration bottom bearing is used of double gem bearing, oriented bearing is made of high wear resistance copper alloy bush and stainless steel needle. It has following features: long life and minimal friction, etc. May select magnetic thrust bearing (Product Configuration code is QA) or single-precious stone bearing (Product Configuration code is QI).
6. All kinds of error adjustment mechanism adopt no step shifting mechanism. The meter starting and creeping needn’t to be adjust which is finished by anti-creeping hole of disc and convenient for adjusting by users.
7. Standard configuration 5 digits display by drum wheel mechanical register, may select 6 digits display by drum wheel mechanical register (Product Configuration code is QG).
8. Standard configuration without the device which can prevent retrograde, may select add the function of prevent retrograde. (Please specified when ordering).
9. Single component measure single phase two wire active energy consumption. Complying with standard IEC 62053-11.
10. Direct connect operation, there are two types you may select. Standard configuration type 1B wiring, may select type 1A wiring (Product Configuration code is QF).
11. Extension terminals cover, in order to protect to use safety.

Gallery

Online Catalogue

[Download not found]
