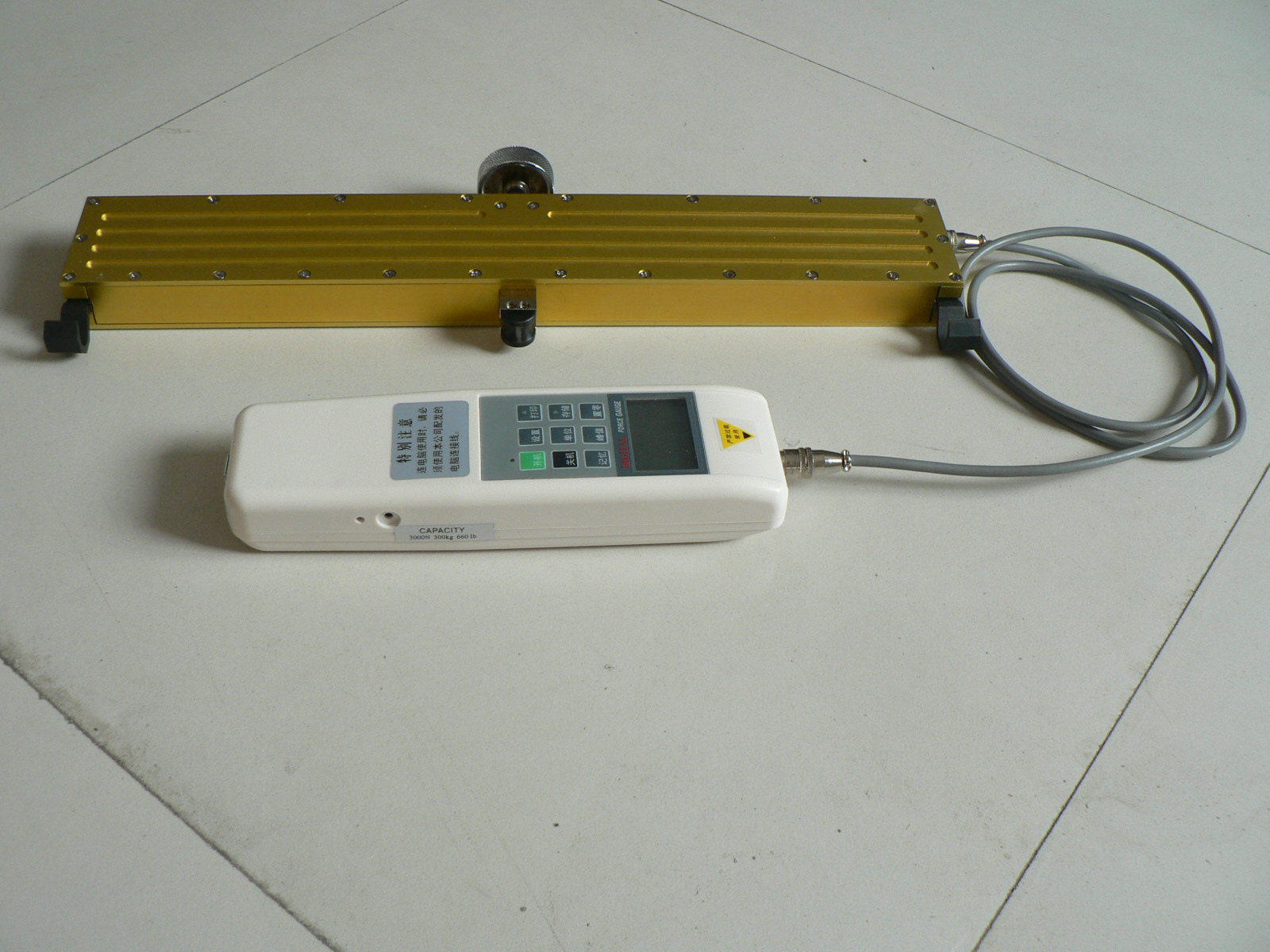

P1250363
Elevator Rope Tensiometer Manual

Discription:

The Elevator rope tensiometer is main used in the elevator traction wire rope tension test.
In elevator installation, acceptance and inspection process, through the test and adjustment of each tractive ropes, make each rope tension as consistent as possible. So can prolong the service life of tractive sheave and make the elevator wire rope run more smoothly.
The tensiometer can also be used in bridge sling, tower connection line, overhead conductors, index wire rope and all involving the wire tension tests.

Characteristic:
1. Has the tensile force rope structure, no need to disassemble, install and making test within a few seconds
2. Can measure the relatively static tension of wire rope(Diameter φ 8 to φ15）
3. Support each wire rope multipoint testing, greatly improve the test accuracy
4. Can transmit the test data to the computer via USB, manage the testing data

Technical parameters:

Type DGZ-300 DGZ-500 DGZ-1000 DGZ-3000 DGZ-5000
Load 300N 500N 1000N 3000N 5000N
Resolution 0.1N 1N
Accuracy ≦±5%
Repeatability ≦±1%
Loading method Manual
Power 7.2V Nickel metal hydride rechargeable battery pack
Size 418*128*40
N.W. 1.7Kg
