Meba MCB Plastic Junction Box MB-S 1ways

meba electricity board S 1ways

Specification

1. MB-S Surface type series Modular distribution boxes/distribution boards are mainly used in the circuit of AC 50Hz, rated voltage 220V/380V, and acted to install the modular combination equipment.

2. It is widely used in the family, high building, house, station, port, airport, commercial house, hospital, cinema, enterprises and so on occassions.

3. The plastic unit of the MB-S modular distribution boxes/distribution boards adopt ABS material with the characteristics of flame-proof, impulse proof, excellent insulation property and so on.

4. This distribution boxes/ boards enclosure confirm to standard BS EN60439-3, JB/T7121-93.

Technical Parameter

Structure and Feature
1. This distribution boxes/distribution boards enclosure is provided with elegant appearance and reasonable structures; Installation and dismounting are easy.

2. The products are designed according to the requirement of standardization, generalization and seriation, which make the products with excellent interchangeability.

3. This distribution box has1way, 2way, 4way, 6way and 8way.

Dimension(mm)

MB-S Series Dimension

Type Lenght Width Height
MB-S 1ways 34 130 60
MB-S 2ways 52 130 60
MB-S 4ways 87 130 60
MB-S 6ways 123 130 60
MB-S 8ways 160 130 60

PDF Download

[Download not found]Meba MCB Plastic Junction Box MB-S 1ways  acted to install the modular combination equipment. It is widely used in the family, high building. The design of the face covering gives a noble and elegant feeling.

Categories
Residual Current Circuit Breaker With Over Current Protection

Meba A Type RCBO MDZLE

Meba AC C type rcbo residual current breakers with overload protection rccb MBL1-32N

Specification

Meba A Type RCBO MDZLE , function as combination of circuit breaker and residual current device, which protect human from the fault of electric because of over-current, short circuit, earth fault current. MDZLE-32 is self-protecting up to a maximum short-circuit current 32A. All breaking capacities comply with Standard IEC/EN 61009.

Parameter

Meba A Type RCBO MDZLE

Technical parameters

1. Residual current device with overcurrent protection
2. Combine in residual current device function and MCB over-current protection function
3. Short circuit capacity: 4.5KA
4. Rated current(A): 6, 16, 20, 25, 32A
5. Rated leakage operating current(mA): 30, 100, 300mA
6. AC and A types, B-C characteristic
7. Modular Din Rail products 35mm.

Categories
Miniature Circuit Breaker

Meba type 2 mcb MBBH

Meba TQL ge breakers

Specification

Meba type 2 mcb MBBH , major export to South America, Middle East market, has light weight, small size, novel structure and excellent performance. They are mounted in the metal distribution board and used in guesthouses. block of fiats, high buildings, squares, airports, railway stations, plants and enterprises etc, in AC circuits 240V(single pole)up to 415V(3poie)50Hz for protection of overload short circuit and for circuit changeover in lighting system. Breaking capacity is 3KA. The items comply with BS & NEMA STANDARD.

Parameter

Meba type 2 mcb MBBH

Technical parameters

Tropicalization Relative Humidity 93% RH at 25
Room Temperature 10 a 60
Electrical Properties Rated at 40 A 6/10/15/20/30/40/50/60
Rated operating voltage at 40 Vac 120/240/415
Nominal Frequency Hz 50/60
Interrupting Capacity at 230V kA 3
Operating temperature -5 a +40
Degree of Protection IP20
Number of poles 1,2,3,4
Conductor cross section (minimum allowable) mm2 25
Minimum number of power moves 4000
Minimum number of mechanical operations 6000
Operation curve B/C/D
Current Trip Curve A Type B 3a 5 In
Type C 5 a 10 In
Type D 10 a 14 In
Characteristic Intervention attach
Type Of Assembly NEMA Type
Features MAGNETIC COIL: ensures the switching of short-circuit, speaking within the following ranges: 5 to 10 times rated current (Type C), 10 to 14 times rated current ( Type D )
BIMETAL: ensures the breaker trip when overloaded.
ARC CHAMBER: effectively dissipates the electric arc that is generated by the opening contacts of the trigger mechanism in the presence of an overload or short circuit.

PDF Download

[Download not found]
Categories
Miniature Circuit Breaker

Meba THQL ge Breakers

Meba THQL ge Breakers

Specification

Meba THQL ge Breakers  is characteristic of small size, light weight, novel structure and excellent performance. They are mounted in the illuminating distribution board and used in guesthouses, block of flats, high buildings, squares, airports, railway stations, plants and enterprises etc, in AC circuits 230V(single pole) up 400V(3pole) 50/60Hz for protection of overload short circuit and for circuit change-over in lighting system. Breaking capacity is 3KA. The items comply with BS & IEC60947 standard.

Parameter

Meba THQL ge Breakers

Technical parameters

Pole number Rated current(A) Rated voltage(V) Rated making and breaking
capacity(KA)		 Setting temperature of
protective characteristics
B.S NEMA
1P 6, 10, 15, 20, 30, 40, 50, 63 AC12 5 40℃
AC120/230 5
AC230/400 3
2P 6, 10, 15, 20, 30, 40 AC120/230 40℃
AC230/400 3 5
3P 50, 63 AC230/400 3

Connection
Pillar type terminal
Mounting: clips pan assembly base
Plug-in mounting base

Overall & Installation Dimensions

Categories
Miniature Circuit Breaker

Meba circuit breaker type THQC

Meba circuit breaker type THQC

Specification

Meba circuit breaker type THQC

THQ, THC series miniature circuit breaker is characteristic of small size, light weight, novel structure and excellent performance. They are mounted in the illuminating distribution board and used in guesthouses, block of flats, high buildings, squares, airports, railway stations, plants and enterprises etc, in AC circuits 230V(single pole) up 400V(3pole) 50/60Hz for protection of overload short circuit and for circuit change-over in lighting system. Breaking capacity is 3KA. The items comply with BS & IEC60947 standard.

Parameter

Meba circuit breaker type THQC

Feature

1. Much higher short circuit breaking capacity.
2. Dual-connection convenient for both standard busbar and conductor connection.
3. Improved safety of operators offered by special design of terminals.
4. Much longer service life thanks to energy storage operating mechanism.
5. A variety of modular auxiliaries allows for easy and quick installation.
6. Enclosure and functional parts made of advanced plastics with flame-retardant,heat-resistant and impulse-proof properties.
7. Higher current-limiting capacity ensuring a cost-effective range of products.

Technical Data

Pole number Rated current(A) Rated voltage(V) Rated making and breaking
capacity(KA)		 Setting temperature of
protective characteristics
B.S NEMA
1P 6, 10, 15, 20, 30, 40, 50, 63 AC12 5 40
AC120/230 5
AC230/400 3
2P 6, 10, 15, 20, 30, 40 AC120/230 40
AC230/400 3 5
3P 50, 63 AC230/400 3

Connection
Pillar type terminal
Mounting: clips pan assembly base
Plug-in mounting base

Overall & Installation Dimensions

Gallery

[Download not found]
Categories
Modular Devices Timer Relay

Meba time delay breaker MBDR047

Meba time delay breaker MBDR047

Specification

Meba time delay breaker MBDR047  is used in lighting distribution system or motor distribution system for protection overload and short-circuit in the system. The product is neoteric in structure, light in weight, reliable and excellent in performance. It has high breaking capacity, can trip quickly, and its case and items are adopted by high fire-resistant and shockproof plastics. The product, with long life, is mainly used in AC 50Hz/60Hz single-pole 230V or two, three, four pole 400V circuit for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit in normal case. The products comply with IEC 60898.

Parameter

Meba time delay breaker MBDR047

Technical parameters

MBDR047 is one kind of timer relay, used in distribution box with MCB, Isolator, Surge Arrester together.
Rated voltage(V): 220-415

Overall & Installation Dimensions

Categories
Miniature Circuit Breaker

Mcb rating MB626C made by Meba

Meba mcb rating MB626C

Specification

Meba mcb rating MB626C adopts advanced design technology, it has protective function as shortage as overload, and are used in lighting distribution system industry, commerce and dwelling, and protecting fractional electric motors, and Meba mcb rating MB626C also have many merits of high protective grade(up to IP20), high breaking capacity, reliable sensitive action, convenient, multiple assembling, long life etc. They are mainly adapted to the circuit of AC 50Hz, 230V in single pole; 400V in double, three, four poles for protecting overload and short circuit, meanwhile Meba mcb rating MB626C  are also used in turning on or off the electric apparatus and lighting circuit under the normal condition.

Parameter

Meba mcb rating MB626C

Technical parameters:

Against overload and short circuit in commercial, household and electric equipment installation. The product is suitable for non-frequently making and breaking operation.

Basic specification and main parameters

Frame class 63A
Rated working voltage 240V/415V
Rated frequency 50/60Hz
Rated working current 1,3,6,10,16,20,25,32,40,50,63A
Making and breaking capacity 6000A(6~40A),4500A(50,63A)
Release type B,C,D
Poles 1,2,3,4P
Mechanical life 20000
Electric life 4000



The over-current tripping unit protection feature

Sequence
NO .		 Release Test
current I/In		 Start state Tripping
time		 Expected
results
1 B,C,D 1.13In Cold state t≤1h Not tripping
2 B,C,D 1.45In Start right after
the serial NO .
1 test		 t<1h Tripping
3 B,C,D 2.55In Cold state 1s Tripping
4 B
C
D		 3In
5In
10In		 Cold state t≤0.1s Not tripping
5 B
C
D		 5In
10In
20In		 Cold state t<0.1s Tripping

PDF Download

[Download not found]
Categories
MB-LS

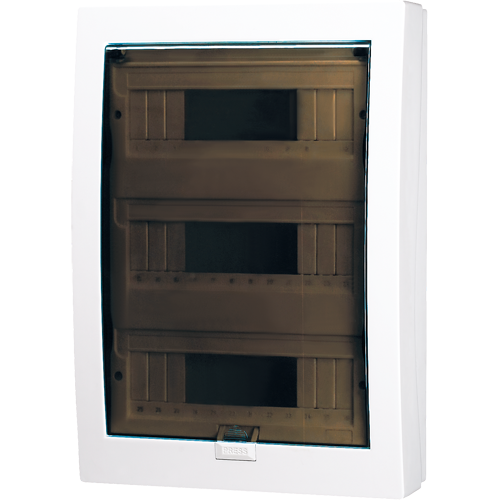

Meba PVC Bottom Distribution Board MB-LS 36ways

meba wall board LS-36ways

Specification

1. MB-LS Surface type series Modular distribution boxes/distribution boards are mainly used in the circuit of AC 50Hz, rated voltage 220V/380V, and acted to install the modular combination equipment.

2. It is widely used in the family, high building, house, station, port, airport, commercial house, hospital, cinema, enterprises and so on occassions.

3. The plastic unit of the MB-LS modular distribution boxes/distribution boards adopt ABS material with the characteristics of flame-proof, impulse proof, excellent insulation property and so on.

4. This distribution boxes/boards enclosure confirm to standard BS EN60439-3, JB/T7121-93.

Technical Parameter

Structure and Feature:
1. This distribution boxes/distribution boards enclosure is provided with elegant appearance and reasonable structures; Installation and dismounting are easy.

2. The products are designed according to the requirement of standardization, generalization and seriation, which make the products with excellent interchangeability.

3. This distribution box has 6way, 8way,12way, 16way, 24way and 36way.

Dimension(mm):

MB-LS Series Dimension

Type Lenght Width Height
MB-LS 6ways 185 141 100
MB-LS 8ways 230 175 100
MB-LS 12ways 308 290 100
MB-LS 16ways 233 290 104
MB-LS 24ways 314 344 104
MB-LS 36ways 314 440 104

PDF Downlaod

[Download not found]

Meba PVC Bottom Distribution Board MB-LS 36ways equipped is luxury and attractive, the face covering colors are dark green and brown (provided according to the color needs of the different interior residential designs except for the standard colors). The design of the face covering gives a noble and elegant feeling.

Categories
MB-LS

Meba AC Power Distribution Panel MB-LS 24ways

meba control board LS-24ways

Specification

1. MB-LS Surface type series Modular distribution boxes/distribution boards are mainly used in the circuit of AC 50Hz, rated voltage 220V/380V, and acted to install the modular combination equipment.

2. It is widely used in the family, high building, house, station, port, airport, commercial house, hospital, cinema, enterprises and so on occassions.

3. The plastic unit of the MB-LS modular distribution boxes/distribution boards adopt ABS material with the characteristics of flame-proof, impulse proof, excellent insulation property and so on.

4. This distribution boxes/boards enclosure confirm to standard BS EN60439-3, JB/T7121-93.

Technical Parameter

Structure and Feature:
1. This distribution boxes/distribution boards enclosure is provided with elegant appearance and reasonable structures; Installation and dismounting are easy.

2. The products are designed according to the requirement of standardization, generalization and seriation, which make the products with excellent interchangeability.

3. This distribution box has 6way, 8way,12way, 16way, 24way and 36way.

Dimension(mm):

MB-LS Series Dimension

Type Lenght Width Height
MB-LS 6ways 185 141 100
MB-LS 8ways 230 175 100
MB-LS 12ways 308 290 100
MB-LS 16ways 233 290 104
MB-LS 24ways 314 344 104
MB-LS 36ways 314 440 104

PDF Downlaod

[Download not found]

Meba AC Power Distribution Panel MB-LS 24ways equipped is luxury and attractive, the face covering colors are dark green and brown (provided according to the color needs of the different interior residential designs except for the standard colors). The design of the face covering gives a noble and elegant feeling.

Categories
MB-LS

Meba Control Panel Board MB-LS 16ways

meba control panel board LS-16ways

Specification

1. MB-LS Surface type series Modular distribution boxes/distribution boards are mainly used in the circuit of AC 50Hz, rated voltage 220V/380V, and acted to install the modular combination equipment.

2. It is widely used in the family, high building, house, station, port, airport, commercial house, hospital, cinema, enterprises and so on occassions.

3. The plastic unit of the MB-LS modular distribution boxes/distribution boards adopt ABS material with the characteristics of flame-proof, impulse proof, excellent insulation property and so on.

4. This distribution boxes/boards enclosure confirm to standard BS EN60439-3, JB/T7121-93.

Technical Parameter

Structure and Feature:
1. This distribution boxes/distribution boards enclosure is provided with elegant appearance and reasonable structures; Installation and dismounting are easy.

2. The products are designed according to the requirement of standardization, generalization and seriation, which make the products with excellent interchangeability.

3. This distribution box has 6way, 8way,12way, 16way, 24way and 36way.

Dimension(mm):

MB-LS Series Dimension

Type Lenght Width Height
MB-LS 6ways 185 141 100
MB-LS 8ways 230 175 100
MB-LS 12ways 308 290 100
MB-LS 16ways 233 290 104
MB-LS 24ways 314 344 104
MB-LS 36ways 314 440 104

PDF Downlaod

[Download not found]

Meba Control Panel Board MB-LS 16ways equipped is luxury and attractive, the face covering colors are dark green and brown (provided according to the color needs of the different interior residential designs except for the standard colors). The design of the face covering gives a noble and elegant feeling.

Categories
MB-LS

Meba Enclosure Distribution Panel MB-LS 12ways

meba panel board LS-12ways

Specification

1. MB-LS Surface type series Modular distribution boxes/distribution boards are mainly used in the circuit of AC 50Hz, rated voltage 220V/380V, and acted to install the modular combination equipment.

2. It is widely used in the family, high building, house, station, port, airport, commercial house, hospital, cinema, enterprises and so on occassions.

3. The plastic unit of the MB-LS modular distribution boxes/distribution boards adopt ABS material with the characteristics of flame-proof, impulse proof, excellent insulation property and so on.

4. This distribution boxes/boards enclosure confirm to standard BS EN60439-3, JB/T7121-93.

Technical Parameter

Structure and Feature:
1. This distribution boxes/distribution boards enclosure is provided with elegant appearance and reasonable structures; Installation and dismounting are easy.

2. The products are designed according to the requirement of standardization, generalization and seriation, which make the products with excellent interchangeability.

3. This distribution box has 6way, 8way,12way, 16way, 24way and 36way.

Dimension(mm):

MB-LS Series Dimension

Type Lenght Width Height
MB-LS 6ways 185 141 100
MB-LS 8ways 230 175 100
MB-LS 12ways 308 290 100
MB-LS 16ways 233 290 104
MB-LS 24ways 314 344 104
MB-LS 36ways 314 440 104

PDF Downlaod

[Download not found]

Meba Enclosure Distribution Panel MB-LS 12ways equipped with transpartent/non-transparent door, door open upward 90 degrees & use Insulating, self-extinguishing fire material. flush mounting and surface mounting available,plenty of space for smooth and easy wiring, double row of copper

Categories
MB-LS

Meba Surface wall mounting AC Box Enclosure MB-LS 8ways

meba electrical panel design LS-8ways

Specification

1. MB-LS Surface type series Modular distribution boxes/distribution boards are mainly used in the circuit of AC 50Hz, rated voltage 220V/380V, and acted to install the modular combination equipment.

2. It is widely used in the family, high building, house, station, port, airport, commercial house, hospital, cinema, enterprises and so on occassions.

3. The plastic unit of the MB-LS modular distribution boxes/distribution boards adopt ABS material with the characteristics of flame-proof, impulse proof, excellent insulation property and so on.

4. This distribution boxes/boards enclosure confirm to standard BS EN60439-3, JB/T7121-93.

Technical Parameter

Structure and Feature:
1. This distribution boxes/distribution boards enclosure is provided with elegant appearance and reasonable structures; Installation and dismounting are easy.

2. The products are designed according to the requirement of standardization, generalization and seriation, which make the products with excellent interchangeability.

3. This distribution box has 6way, 8way,12way, 16way, 24way and 36way.

Dimension(mm):

MB-LS Series Dimension

Type Lenght Width Height
MB-LS 6ways 185 141 100
MB-LS 8ways 230 175 100
MB-LS 12ways 308 290 100
MB-LS 16ways 233 290 104
MB-LS 24ways 314 344 104
MB-LS 36ways 314 440 104

PDF Downlaod

[Download not found]

Meba Surface wall mounting AC Box Enclosure MB-LS 8ways equipped with transpartent/non-transparent door, door open upward 90 degrees & use Insulating, self-extinguishing fire material. flush mounting and surface mounting available,plenty of space for smooth and easy wiring, double row of copper

Categories
MB-LS

Meba Electric Enclosure Box MB-LS 6ways

meba panel board wiring LS-6ways

Specification

1. MB-LS Surface type series Modular distribution boxes/distribution boards are mainly used in the circuit of AC 50Hz, rated voltage 220V/380V, and acted to install the modular combination equipment.

2. It is widely used in the family, high building, house, station, port, airport, commercial house, hospital, cinema, enterprises and so on occassions.

3. The plastic unit of the MB-LS modular distribution boxes/distribution boards adopt ABS material with the characteristics of flame-proof, impulse proof, excellent insulation property and so on.

4. This distribution boxes/boards enclosure confirm to standard BS EN60439-3, JB/T7121-93.

Technical Parameter

Structure and Feature:
1. This distribution boxes/distribution boards enclosure is provided with elegant appearance and reasonable structures; Installation and dismounting are easy.

2. The products are designed according to the requirement of standardization, generalization and seriation, which make the products with excellent interchangeability.

3. This distribution box has 6way, 8way,12way, 16way, 24way and 36way.

Dimension(mm):

MB-LS Series Dimension

Type Lenght Width Height
MB-LS 6ways 185 141 100
MB-LS 8ways 230 175 100
MB-LS 12ways 308 290 100
MB-LS 16ways 233 290 104
MB-LS 24ways 314 344 104
MB-LS 36ways 314 440 104

PDF Downlaod

[Download not found] Meba Electric Enclosure Box MB-LS 6ways equipped with transpartent/non-transparent door, door open upward 90 degrees & use Insulating, self-extinguishing fire material. flush mounting and surface mounting available,plenty of space for smooth and easy wiring, double row of copper

Categories
MB-LF

Meba Electrical Distribution Board MB-LF 36ways

Specification

1. MB-LF Flush type series Modular distribution boxes/distribution boards are mainly used in the circuit of AC 50Hz, rated voltage 220V/380V, and acted to install the modular combination equipment.

2. It is widely used in the family, high building, house, station, port, airport, commercial house, hospital, cinema, enterprises and so on occassions.

3. The plastic unit of the MB-LF modular distribution boxes/distribution boards adopt ABS material with the characteristics of flame-proof, impulse proof, excellent insulation property and so on.

4. This distribution boxes/ boards enclosure confirm to standard BS EN60439-3, JB/T7121-93.

Technical Parameter

Structure and Feature:
1. This distribution boxes/distribution boards enclosure is provided with elegant appearance and reasonable structures; Installation and dismounting are easy.

2. The products are designed according to the requirement of standardization, generalization and seriation, which make the products with excellent interchangeability.

3. This distribution box has 6way, 8way,12way, 16way, 24way and 36way.

Dimension(mm):

Type H1 H2 H3 L L1 W1 W
MB-LF 6ways 60 74 99.5 185 172 130 141
MB-LF 8ways 60 74 99.5 230 216.2 165.2 175
MB-LF 12ways 60 74 99.5 308 296.2 200.2 209
MB-LF 16ways 59 73 103 233 219.2 279.2 290
MB-LF 24ways 59 73 103 314 299.2 333.2 344
MB-LF 36ways 59 73 103 314 299.2 428.7 110

PDF Downlaod

[Download not found] Meba Electrical Distribution Board MB-LF 36ways equipped with transpartent/non-transparent door, door open upward 90 degrees & use Insulating, self-extinguishing fire material. flush mounting and surface mounting available,plenty of space for smooth and easy wiring, double row of copper

Categories
MB-LF

Meba Electric Panel Board MB-LF-24ways

meba electric panel board LF-24ways

Specification

1. MB-LF Flush type series Modular distribution boxes/distribution boards are mainly used in the circuit of AC 50Hz, rated voltage 220V/380V, and acted to install the modular combination equipment.

2. It is widely used in the family, high building, house, station, port, airport, commercial house, hospital, cinema, enterprises and so on occassions.

3. The plastic unit of the MB-LF modular distribution boxes/distribution boards adopt ABS material with the characteristics of flame-proof, impulse proof, excellent insulation property and so on.

4. This distribution boxes/ boards enclosure confirm to standard BS EN60439-3, JB/T7121-93.

Technical Parameter

Structure and Feature:
1. This distribution boxes/distribution boards enclosure is provided with elegant appearance and reasonable structures; Installation and dismounting are easy.

2. The products are designed according to the requirement of standardization, generalization and seriation, which make the products with excellent interchangeability.

3. This distribution box has 6way, 8way,12way, 16way, 24way and 36way.

Dimension(mm):

MB-LF Series Dimension



Type H1 H2 H3 L L1 W1 W
MB-LF 6ways 60 74 99.5 185 172 130 141
MB-LF 8ways 60 74 99.5 230 216.2 165.2 175
MB-LF 12ways 60 74 99.5 308 296.2 200.2 209
MB-LF 16ways 59 73 103 233 219.2 279.2 290
MB-LF 24ways 59 73 103 314 299.2 333.2 344
MB-LF 36ways 59 73 103 314 299.2 428.7 110

PDF Downlaod

[Download not found] Meba Electric Panel Board MB-LF-24ways equipped with transpartent/non-transparent door, door open upward 90 degrees & use Insulating, self-extinguishing fire material. flush mounting and surface mounting available,plenty of space for smooth and easy wiring, double row of copper

Categories
MB-LF

Meba MCB Distribution Box MB-LF 16ways

meba electrical panel board LF-16ways

Specification

1. MB-LF Flush type series Modular distribution boxes/distribution boards are mainly used in the circuit of AC 50Hz, rated voltage 220V/380V, and acted to install the modular combination equipment.

2. It is widely used in the family, high building, house, station, port, airport, commercial house, hospital, cinema, enterprises and so on occassions.

3. The plastic unit of the MB-LF modular distribution boxes/distribution boards adopt ABS material with the characteristics of flame-proof, impulse proof, excellent insulation property and so on.

4. This distribution boxes/ boards enclosure confirm to standard BS EN60439-3, JB/T7121-93.

Technical Parameter

Structure and Feature:
1. This distribution boxes/distribution boards enclosure is provided with elegant appearance and reasonable structures; Installation and dismounting are easy.

2. The products are designed according to the requirement of standardization, generalization and seriation, which make the products with excellent interchangeability.

3. This distribution box has 6way, 8way,12way, 16way, 24way and 36way.

Dimension(mm):

MB-LF Series Dimension

Type H1 H2 H3 L L1 W1 W
MB-LF 6ways 60 74 99.5 185 172 130 141
MB-LF 8ways 60 74 99.5 230 216.2 165.2 175
MB-LF 12ways 60 74 99.5 308 296.2 200.2 209
MB-LF 16ways 59 73 103 233 219.2 279.2 290
MB-LF 24ways 59 73 103 314 299.2 333.2 344
MB-LF 36ways 59 73 103 314 299.2 428.7 110

PDF Downlaod

[Download not found] Meba MCB Distribution Box MB-LF 16ways equipped with transpartent/non-transparent door, door open upward 90 degrees & use Insulating, self-extinguishing fire material.

Categories
MB-LF

Meba Combination illuminating distribution box MB-LF 12ways

meba electrical panel cost LF-12ways

Specification

1. MB-LF Flush type series Modular distribution boxes/distribution boards are mainly used in the circuit of AC 50Hz, rated voltage 220V/380V, and acted to install the modular combination equipment.

2. It is widely used in the family, high building, house, station, port, airport, commercial house, hospital, cinema, enterprises and so on occassions.

3. The plastic unit of the MB-LF modular distribution boxes/distribution boards adopt ABS material with the characteristics of flame-proof, impulse proof, excellent insulation property and so on.

4. This distribution boxes/ boards enclosure confirm to standard BS EN60439-3, JB/T7121-93.

Technical Parameter

Structure and Feature:
1. This distribution boxes/distribution boards enclosure is provided with elegant appearance and reasonable structures; Installation and dismounting are easy.

2. The products are designed according to the requirement of standardization, generalization and seriation, which make the products with excellent interchangeability.

3. This distribution box has 6way, 8way,12way, 16way, 24way and 36way.

Dimension(mm):

MB-LF Series Dimension

Type H1 H2 H3 L L1 W1 W
MB-LF 6ways 60 74 99.5 185 172 130 141
MB-LF 8ways 60 74 99.5 230 216.2 165.2 175
MB-LF 12ways 60 74 99.5 308 296.2 200.2 209
MB-LF 16ways 59 73 103 233 219.2 279.2 290
MB-LF 24ways 59 73 103 314 299.2 333.2 344
MB-LF 36ways 59 73 103 314 299.2 428.7 110

PDF Downlaod

[Download not found] Meba Combination illuminating distribution box MB-LF 12ways equipped with transpartent/non-transparent door, door open upward 90 degrees & use Insulating, self-extinguishing fire material.

Categories
MB-LF

Meba Electrical Power Distribution Box MB-LF 8ways

meba home electrical panel LF-8ways

Specification

1. MB-LF Flush type series Modular distribution boxes/distribution boards are mainly used in the circuit of AC 50Hz, rated voltage 220V/380V, and acted to install the modular combination equipment.

2. It is widely used in the family, high building, house, station, port, airport, commercial house, hospital, cinema, enterprises and so on occassions.

3. The plastic unit of the MB-LF modular distribution boxes/distribution boards adopt ABS material with the characteristics of flame-proof, impulse proof, excellent insulation property and so on.

4. This distribution boxes/ boards enclosure confirm to standard BS EN60439-3, JB/T7121-93.

Technical Parameter

Structure and Feature:
1. This distribution boxes/distribution boards enclosure is provided with elegant appearance and reasonable structures; Installation and dismounting are easy.

2. The products are designed according to the requirement of standardization, generalization and seriation, which make the products with excellent interchangeability.

3. This distribution box has 6way, 8way,12way, 16way, 24way and 36way.

Dimension(mm):

MB-LF Series Dimension

Type H1 H2 H3 L L1 W1 W
MB-LF 6ways 60 74 99.5 185 172 130 141
MB-LF 8ways 60 74 99.5 230 216.2 165.2 175
MB-LF 12ways 60 74 99.5 308 296.2 200.2 209
MB-LF 16ways 59 73 103 233 219.2 279.2 290
MB-LF 24ways 59 73 103 314 299.2 333.2 344
MB-LF 36ways 59 73 103 314 299.2 428.7 110

PDF Downlaod

[Download not found] Meba Electrical Power Distribution Box MB-LF 8ways High impact resistance material:plastic base, ABS or PC cover, automatically open and lock of lid,control by pressing the on-off botton on the cover.

Categories
MB-LF

Meba Power Distribution Box MB-LF 6ways

meba electric wire LF-6ways

Specification

1. MB-LF Flush type series Modular distribution boxes/distribution boards are mainly used in the circuit of AC 50Hz, rated voltag 220V/380V, and acted to install the modular combination equipment.

2. It is widely used in the family, high building, house, station, port, airport, commercial house, hospital, cinema, enterprises and so on occassions.

3. The plastic unit of the MB-LF modular distribution boxes/distribution boards adopt ABS material with the characteristics of flame-proof, impulse proof, excellent insulation property and so on.

4. This distribution boxes/ boards enclosure confirm to standard BS EN60439-3, JB/T7121-93.

Technical Parameter

Structure and Feature:
1. This distribution boxes/distribution boards enclosure is provided with elegant appearance and reasonable structures; Installation and dismounting are easy.

2. The products are designed according to the requirement of standardization, generalization and seriation, which make the products with excellent interchangeability.

3. This distribution box has 6way, 8way,12way, 16way, 24way and 36way.

Dimension(mm):

MB-LF Series Dimension

Type H1 H2 H3 L L1 W1 W
MB-LF 6ways 60 74 99.5 185 172 130 141
MB-LF 8ways 60 74 99.5 230 216.2 165.2 175
MB-LF 12ways 60 74 99.5 308 296.2 200.2 209
MB-LF 16ways 59 73 103 233 219.2 279.2 290
MB-LF 24ways 59 73 103 314 299.2 333.2 344
MB-LF 36ways 59 73 103 314 299.2 428.7 110

PDF Downlaod

[Download not found] Meba Power Distribution Box MB-LF 6ways suitable for distribution control of modern buildings,such as large stores,guesthouse ,1way to 36ways are available. IP40 protection degree.

Categories
MB-AS

Meba Electric MCB Box MB-AS 36 ways

meba breaker box AS-36ways

Specification

1. MB-AS Surface series Modular distribution boxes/distribution boards are the new design with the fashion door.

2. They are mainly used in the circuit of AC 50Hz, rated voltage 220V/380V, and acted to install the modular combination equipment.

3. It is widely used in the family, high building, house, station, port, airport, commercial house, hospital, cinema, enterprises and so on occassions.

4. The plastic unit of the MB-AS modular distribution boxes/distribution boards adopt ABS material with the characteristics of flame-proof, impulse proof, excellent insulation property and so on.

5. This distribution boxes/ boards enclosure confirm to standard BS EN60439-3, JB/T7121-93.

Technical Parameter

Structure and Feature:
1. This distribution boxes/distribution boards enclosure is provided with elegant appearance and reasonable structures; Installation and dismounting are easy.

2. The products are designed according to the requirement of standardization, generalization and seriation, which make the products with excellent interchangeability.

3. This distribution box has 6way, 8way,12way, 16way, 24way and 36way.

Dimension(mm):

MB-AS Series Dimension

Type Lenght Width Height
MB-AS 6ways 185 141 100
MB-AS 8ways 230 175 100
MB-AS 12ways 308 290 100
MB-AS 16ways 233 290 104
MB-AS 24ways 314 344 104
MB-AS 36ways 314 440 104

PDF Downlaod

[Download not found] Meba Electric MCB Box MB-AS 36 ways suitable for distribution control of modern buildings,such as large stores,guesthouse ,1way to 36ways are available. IP40 protection degree.
