1. XCD series Waterproof Lifting Button Control Switch is a newly developed product which combined with the advantages of both China made products and imported products.
2. The plastic cover is good-looking,strong and easy for handing.It has good structure and big area of contact.The forward and backward control can be mechanically locked in a reciprocal direction.
3. It also has IP65 dust proof and water proof level thus it is suitable for operating in open area,dust environment,rainy/snowy weather conditions by wet hands for controlling the electric circuit,conveyer belt and construction apparatus.
4. The product meets the standards of Q/YDD02-00,GB14048.5-2001 and EN60947-5-1;1997.
Operating & Installation Conditions
1 Operational temperation:-5°c – +40°c the average value less than +35°c in 24 hours
2 Altitude: less than 2000m
3 Atmosphere condition : when the maximum temperature is +40 °c ,the Operational humidity is less than 50%,allow higher humidity in cooler environments.
4 Pollution degree:3 level
5 Installs Category: II
6 No significant Shaking,no impact vibration and no snow or rain
7 No explosive media,the Gas and dust can’t corroding metal and damage the insulation
1. The Waterproof Push Button Control Box Switch are made of PC materials, which are in good appearance and suitable for assembling.
2. It has the performance of dustproof and corrosion prevention. With great variety of products and flexible packaging.
3. They are widely used in industrial and mining establishments and cabins for controlling and indicating.
Operating & Installation Conditions
1 Operational temperation:-5°c – +40°c the average value less than +35°c in 24 hours
2 Altitude: less than 2000m
3 Atmosphere condition : when the maximum temperature is +40 °c ,the Operational humidity is less than 50%,allow higher humidity in cooler environments.
4 Pollution degree:3 level
5 Installs Category: II
6 No significant Shaking,no impact vibration and no snow or rain
7 No explosive media,the Gas and dust can’t corroding metal and damage the insulation
1. The Protective Mushroom Push Button are made of PC materials, which are in good appearance and suitable for assembling.
2. It has the performance of dustproof and corrosion prevention. With great variety of products and flexible packaging.
3. They are widely used in industrial and mining establishments and cabins for controlling and indicating.
Operating & Installation Conditions
1 Operational temperation:-5°c – +40°c the average value less than +35°c in 24 hours
2 Altitude: less than 2000m
3 Atmosphere condition : when the maximum temperature is +40 °c ,the Operational humidity is less than 50%,allow higher humidity in cooler environments.
4 Pollution degree:3 level
5 Installs Category: II
6 No significant Shaking,no impact vibration and no snow or rain
7 No explosive media,the Gas and dust can’t corroding metal and damage the insulation
Meba 400A Pole Mounted Fuse switch Disconnector For L.V. System is specially designed as an on-load protective switch and offers a reliabe medium for disconnection & protection of fully insulated open wire network section.The unique modular design offers flexibility to connect switches for single, double, triple & quadruple phases. Series of such combinations can be linked together. The switch is versatile and is ideally suited for top mounting directly to poles,transformers and cross arms.The fuseswitch disconnector is fully insulated made from corrosion proof , impact resistant, weather & UV resilient glass fiber reinforced polyamide compound with high glass content. This high quality of material, together with robust construction guarantees consistent performance even under adverse climatic conditions.The upper housing of the switch ishinged to the lower body and houses the conductors, terminals and contacts. The operation of the switch is simple and safe with the help of insulated operating rod.The fuse contacts are fully shrouded and terminals are made of ETP grade high conductivity copper duly tin plated which ensures minimum contact resistance besides offering flexibility to use copper or aluminum cables.Electrical & Mechanical fuse indicators.Minimum number of moving parts.Designed for switching on full load with DIN Type fuse links upto a rated current of 400A.Arc quenching chambers to allow for On-Load switching.Change of fuse possible by using the lnsulated operating rod.Lower flap can be withdrawn by the lnsulated operating rod.Flexibility of linking a series of flaps for simultaneous operation.The contacts are rigidly mounted in the housing independent of the terminal bolts.Bolted or Moving blade linked neutral.
Meba 160A Pole Mounted Fuse switch Disconnector
Meba 160A Pole Mounted Fuse Switch Disconnector
Application
The basic function of 160A Fuse switch Disconnector is to protect and disconnect a network during faults and is specially designed for on-load switching. The switch offers a reliable medium for disconnection & protection of fully insulated open wire network. The fuse switch is versatile and is ideally suited for mounting directly to poles, tranformers & cross arms.
Features
A.Designed for Full load switching with Fuse links or disconnecting blades upto a rated current.
B.Integral mounting facility and Unique modular design allowing one ,two , three or more switches to be installed together to meet SP. TP or TPN system requirements.
C.Fully insulated made from corrosion proof, impact resistant, weather & UV resilient glass fiber reinforced polyamide compound with high glass content suitalbe for consistent perfomance under adverse climatic conditions.
D.The upper housing of the switch is hinged to the lower body and can be withdrawn by the lnsulated operating rod thereby enabling changing of fuse from ground level.
E.Flexibility of linking a series of flaps for simultaneous operation.
F.The contacts, made up of ETP grade copper – duly plated are rigiolly mounted in the housing independent of the terminal bolts. Single incoming & Double outgoing termination is provided in standard version.
G.Electrical & mechanical fuse indicators are provided to show status of blown fuse.
Termination Available
Based on requirements of the customer, we can supply the Fuse switch disconnector with either Bolted, Pillar or V Groove Temination.
Catalogue Ref:
APDM-1/160A
APDM-1/400A
Body/Carrier Material
Polyamide
Polyamide
Rated Operational Current
160 Amps
400 Amps
Rated Operating Voltage In
440 Volts,50 Hz
440 Volts,50 Hz
Rated Insulation Voltage Ue
1000 Votts
1000 Votts
Rated Short Time Current Ui
10 kA rms for 0.5s with 17 kA peak
10 kA rms for 0.5s with 17 kA peak
Cable Size up to Icw
95 sq.mm.
240 sq.mm.
Fuse Link
“NH”TYPE Size 1 & 2
“NH”TYPE Size 1 & 2
Dimensions
210X140X70 mm(approx.)
351X142X195 mm(approx.)
Weight
720grams(Not Binding,Without Fuse)
2.5Kgs(Not Binding,Without Fuse)
Meba High Current Limiting Fuse
Meba High Current Limiting Fuse
Application:
Model S transformer protection high breaking capability high current limiting fuse is suitable for electrical power system of AC 50Hz,rated voltage 3.6 to 40.5kV, the rated current to 200A for protecting transformer and other power equipment from short-circuit overload; it also may use with load switch, vacuum contact and so on.
This high-voltage fuse conforms to the national standard GB15166.2 standard and the international electrical committee standard IEC60282 standard as well as the German DIN standard.
Specifications:
Code
no
Products model
Abroad
Rated
voltage
Fuse body rated current
Rated drop-
out current
Overall dimension
Weight
Drawing
no .
φD L
XRNTI
SDO.J
3.6
6.3, 10, 16, 20, 25, 31.5, 40
31.5
9.1 51
1.12
XRNTI
SDO.J
7.2
6.3, 10, 16, 20, 25, 31.5, 40, 50, 63
31.5
9.1 51
1.47
XRNTI
SFL.J
7.2
80, 100, 125, 160
31.5
9.1 76
1.47
XRNTI
SDL.J
12
6.3, 10, 16, 20, 25, 31.5, 40
31.5
9.1 76
3.15
XRNTI
SFL.J
12
50, 63, 71, 80, 100
31.5
9.1 76
3.15
XRNTI
SFL.J
12
25
31.5
9.1 76
3.15
XRNTI
SXL.J
12
160, 200
31.5
9.1 76
4.15
XRNTI
SDM.J
24
63, 10, 16, 20, 25, 31.5, 40
31.5
9.1 88
2.7
XRNTI
SFM.J
24
50, 63, 71, 80, 100
31.5
9.1 88
4.5
XRNTI
SKM.J
24
25
31.5
9.1 88
4.5
XRNTI
SXM.J
24
160
31.5
9.1 51
5.4
XRNTI
SDQ.J
40.5
3.15, 63, 10, 16, 20, 25
31.5
9.1 51
2.9
XRNTI
SFQ.J
40.5
3.15, 10
31.5
9.1 76
5.51
XRNTI
SXQ.J
40.5
63
31.5
9.1 51
6.5
Meba KB, KU, KS Fuse Links
Meba KB, KU, KS Fuse Links
Application:
“KB、KU、KS” type fuses links belong to “K” and “T” type fuses, it has general type, universal type and screw type available according to IEC-282 standard. The product drop-out type fuse of 11 to 36V grade.
Specifications:
Meba Arrester Disconnector is a deice for disconnectin gan arrestor from the systm in the evnt of arrestor failure, to prevent a persistent fault on the system and to give visible indication of the failed arrestor. TLB-1 is a thermal explode disconector. Our products as per IEC60099-4 Standard.
1. The control box are made of PC materials, which are in good appearance and suitable for assembling.
2. It has the performance of dustproof and corrosion prevention. With great variety of products and flexible packaging.
3. They are widely used in industrial and mining establishments and cabins for controlling and indicating.
Operating & Installation Conditions
1 Operational temperation:-5°c – +40°c the average value less than +35°c in 24 hours
2 Altitude: less than 2000m
3 Atmosphere condition : when the maximum temperature is +40 °c ,the Operational humidity is less than 50%,allow higher humidity in cooler environments.
4 Pollution degree:3 level
5 Installs Category: II
6 No significant Shaking,no impact vibration and no snow or rain
7 No explosive media,the Gas and dust can’t corroding metal and damage the insulation
1. MK miniature power relay is widely suitable for DC or AC circuit switching in various automation devices, process control and communication equipments etc.
2. It has characteristics of stable performance, high reliability, capable of making and breaking relatively large load current, easy in maintenance and inspection as well as long service.
3. The plug-in base of the relay is suitable for use with standard 8, 11 & 14 pins socket. They cover the rated current from 3A to 15A.
1. MY、LY electromagnetic relay is widely suitable for DC or AC circuit switching in various automation devices, process control and communication equipments etc.
2. It has characteristics of stable performance, high reliability, capable of making and breaking relatively large load current, easy in maintenance and inspection as well as long service.
3. The plug-in base of the relay is suitable for use with standard 8, 11 & 14 pins socket. They cover the rated current from 3A to 15A.
1. MY、LY general miniature relay is widely suitable for DC or AC circuit switching in various automation devices, process control and communication equipments etc.
2. It has characteristics of stable performance, high reliability, capable of making and breaking relatively large load current, easy in maintenance and inspection as well as long service.
3. The plug-in base of the relay is suitable for use with standard 8, 11 & 14 pins socket. They cover the rated current from 3A to 15A.
Meba JSZ-8 Power and Fault of Surge Arrester Discharge Counter
Discharge Counter is used for recording the discharge times of surge arrester in operation. Minitor is connected in series with surge arrester and operates in power system. It measures on-line real-time leakage current of surge arresters and records the monitor discharge times.
Application scope:
It’s used for all kinds kf metal oxide surge arrester in the voltage of 220KV and below, the service conditions is the same with the surge arrester connected.
The following general purpose relay is widely suitable for DC or AC circuit switching in various automation devices, process control and commmunication equipments etc.
It is characteristic of stable perfomance, high reliability, capable of making and brcaking relativcly large load current, easy in maintenance and inspection as well as long service life.The plug-in base of the relay is suitable for using with standard 8 and 11 pins socket.
Timing Relay Switch series time relay is used ASIC and professional manufacturing technology to produce innovative time relay.
With small size, light weight, delay a wide range of anti-interference ability, long life characteristics to be suitable for a variety of demanding precision, high reliability, automation and control sites used for delay control.

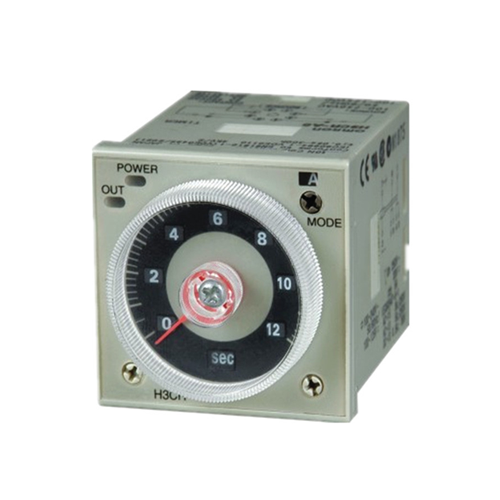

H3CR-A8 Multi-function Timer Relay widely used in the fields of Communications & Telecom, Computers & Peripherals, Consumer Electronics, Energy and Lighting, Industrial, Medical, Security, Transportation & Automotive, Video & Imaging, Wireless, Space, Avionics and Defense.
Technical Parameter
CLASSIFICATION
TIMER
MODEL
H3CR-A8 Multi-function Timer Relay
DIMENSIONS
48H48W57.5D
MOUNTING&SOCKER
SURFACE(-N)
P2CF-08
FLUSH(-Y)
US-08 P3G-08
FULL TIMING RANGE
0.05SEC-300HRS
RATED VOLTAGE
24 to 24V DC/AC
DC(V):12,24,48
AC(V):24,50,110,220
